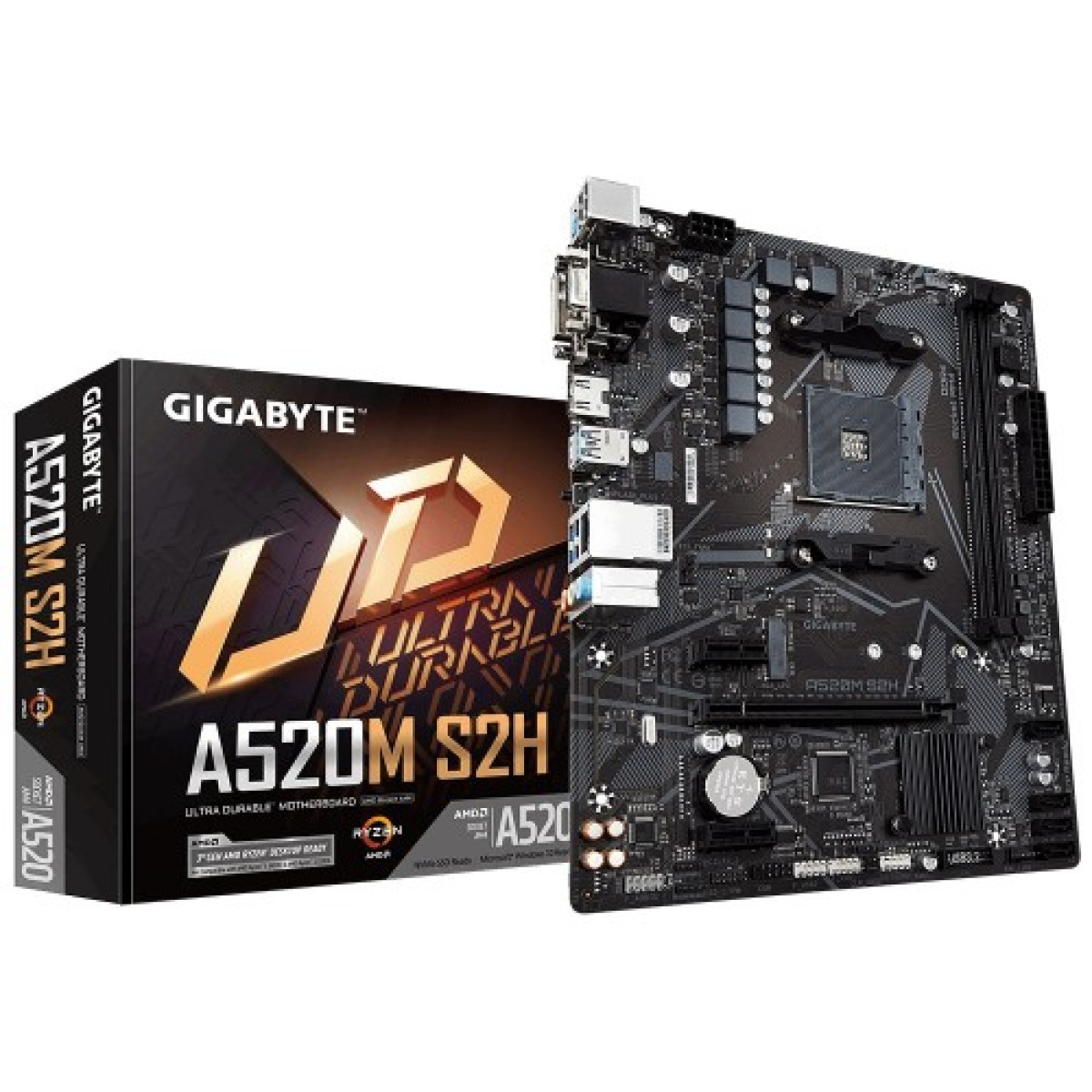

Buy Gigabyte A520M S2H Ultra Durable AMD AM4 ATX Motherboard
- Brand:Gigabyte
- Product Code: Gigabyte A520M S2H
- Availability:Out of Stock
- Updated:
Specification
| BASIC INFORMATION | |
| Form Factor | Micro ATX Form Factor; 24.4cm x 20.5cm |
|---|---|
| Supported CPU | AMD Socket AM4, support for 3rd Generation AMD Ryzen processors/ 3rd Generation AMD Ryzen with Radeon Graphics processors |
| Chipset | AMD A520 |
| BIOS | 1 x 128 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| Expansion Slots | |
| M.2 Socket | 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe 3.0 x4/x2 SSD support) |
| PCI | CPU: 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x16 Chipset: 2 x PCI Express x1 slots, supporting PCIe 3.0 |
| Graphics Specifications | |
| Max Shared Memory | 16 GB |
| Graphics | Integrated in the 3rd Generation AMD Ryzen with Radeon Graphics processors: 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz 1 x DVI-D port, supporting a maximum resolution of 1920x1200@60 Hz 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz |
| Memory Specifications | |
| Maximum Size | 64 GB |
| Slots | 2 x DDR4 DIMM |
| Supported Memory | 3rd Gen AMD Ryzen Processors: Support for DDR4 5000(O.C.) / 4866(O.C.) / 4600(O.C.) / 4400(O.C.) / 4000(O.C.) / 3600(O.C.) / 3333(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MHz memory modules 3rd Gen AMD Ryzen with Radeon Graphics processors: Support for DDR4 5000(O.C.) / 4866(O.C.) / 4600(O.C.) / 4400(O.C.) / 4000(O.C.) / 3600(O.C.) / 3333(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MHz memory modules |
| Type | Dual channel memory architecture |
| PORTS, CONNECTORS & SLOTS | |
| Audio Jack Combo | Realtek ALC887 codec High Definition Audio 2/4/5.1/7.1-channel |
| D-Sub (s) | 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz |
| DVI-D (s) | 1 x DVI-D port, supporting a maximum resolution of 1920x1200@60 Hz |
| HDMI | 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz |
| LAN Port (s) | Realtek GbE LAN chip (1000 Mbit/100 Mbit) |
| Supported Storage | CPU: 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe 3.0 x4/x2 SSD support) Chipset: 4 x SATA 6Gb/s connectors Support for RAID 0, RAID 1, and RAID 10 |
| USB (s) | CPU: 4 x USB 3.2 Gen 1 ports on the back panel Chipset: 2 x USB 3.2 Gen 1 ports available through the internal USB header 6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers) |
| Internal I/O Connectors | 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 2 x system fan headers 1 x addressable LED strip header 1 x RGB LED strip header 1 x M.2 Socket 3 connector 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only) 1 x serial port header 1 x speaker header 1 x chassis intrusion header 1 x Clear CMOS jumper |
| Special | |
| Bundled Software | Support for Windows 10 64-bit |
| Special Feature | Support for APP Center @BIOS EasyTune Fast Boot Game Boost ON/OFF Charge RGB Fusion Smart Backup System Information Viewer Support for Q-Flash Plus Support for Q-Flash Support for Xpress Install Support for Q-Flash Support for Xpress Install |
| WARRANTY | |
| Manufacturing Warranty | 03 years |
Description
Gigabyte A520M S2H Ultra Durable Motherboard
Experience unparalleled performance with the Gigabyte A520M S2H Ultra Durable AMD AM4 ATX Motherboard. Designed for gamers and professionals alike, this motherboard supports AMD Ryzen processors, ensuring you get the best from your high-performance components. Its Ultra Durable technology guarantees longevity and stability, making it an excellent choice for those who demand reliability.
With dual-channel memory support and enhanced thermal performance, the A520M S2H allows for smooth multitasking and gaming experiences. The motherboard features multiple connectivity options, including USB 3.2 Gen 1 and HDMI, providing versatility for all your peripherals.
Not only does it support the latest technology, but it is also equipped with real-time hardware monitoring and customizable RGB lighting options, allowing you to personalize your setup. The easy BIOS update feature ensures you stay current with the latest enhancements and fixes, giving you peace of mind and optimal performance.
