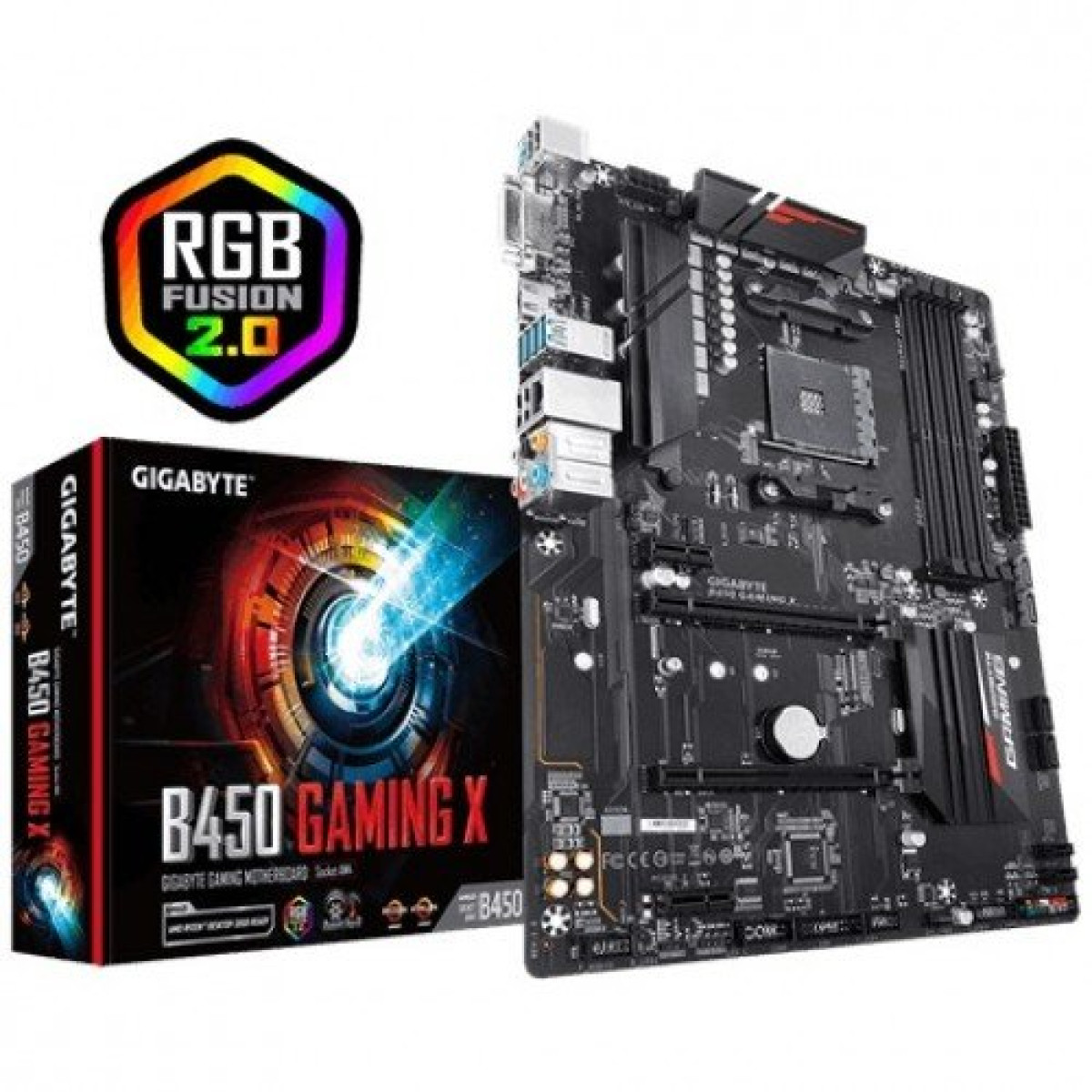

Gigabyte AMD B450 Gaming X Motherboard
- Brand:Gigabyte
- Product Code: Gigabyte AMD B450 Gaming X Motherboard
- Availability:Out of Stock
- Updated:
Specification
| BASIC INFORMATION | |
| Form Factor | ATX Form Factor; 30.5cm x 23.5cm |
|---|---|
| Supported CPU | AMD Ryzen 2nd Generation processors AMD Ryzen with Radeon™ Vega Graphics processors AMD Athlon with Radeon™ Vega Graphics processors AMD Ryzen 1st Generation processors |
| Chipset | AMD B450 |
| BIOS | 1 x 128 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| Expansion Slots | |
| M.2 Socket | 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 PCIe 3.0 x4/x2 SSD support) |
| PCI | 1 x PCI Express x16 slot, running at x16 (PCIEX16) * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot. ** Actual support may vary by CPU. (The PCIEX16 slot conforms to PCI Express 3.0 standard.) 1 x PCI Express x16 slot, running at x4 (PCIEX4) * The PCIEX4 slot shares bandwidth with the PCIEX1_2 slot. The PCIEX4 slot operates at up to x2 mode when the PCIEX1_2 slot is populated. The PCIEX4 slot operates at up to x4 mode when the PCIEX1_2 is empty. 2 x PCI Express x1 slots (The PCIEX4 and PCIEX1 slots conform to PCI Express 2.0 standard.) |
| Graphics Specifications | |
| Max Shared Memory | 16 GB |
| Graphics | Integrated Graphics Processor: 1 x DVI-D port, supporting a maximum resolution of 1920x1200@60 Hz * The DVI-D port does not support D-Sub connection by adapter. 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz * Support for HDMI 2.0 version and HDCP 2.2. ** Actual support may vary by CPU. |
| Memory Specifications | |
| Maximum Size | 64 GB |
| Slots | 4 x DDR4 DIMM sockets supporting up to 64 GB of system memory |
| Supported Memory | Support for DDR4 2933/2667/2400/2133 MHz memory modules Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules |
| Type | Dual channel memory architecture |
| PORTS, CONNECTORS & SLOTS | |
| Audio Jack Combo | 3 x audio jacks Realtek ALC892 codec High Definition Audio 2/4/5.1/7.1-channel Support for S/PDIF Out |
| DVI-D (s) | 1 x DVI-D port, supporting a maximum resolution of 1920x1200@60 Hz The DVI-D port does not support D-Sub connection by adapter. |
| HDMI | 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz Support for HDMI 2.0 version and HDCP 2.2. |
| LAN Port (s) | 1 x RJ-45 port Realtek GbE LAN chip (10/100/1000 Mbit) |
| Supported Storage | 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe x4/x2* SSD support) * Supports only M.2 SATA SSDs when using an AMD 7th Generation A-series or Athlon™ processor. 4 x SATA 6Gb/s connectors Support for RAID 0, RAID 1, and RAID 10 |
| USB (s) | 2 x USB 3.1 Gen 1 ports available through the internal USB header 6 x USB 2.0/1.1 ports (4 ports on the back panel, 2 ports available through the internal USB header) 4 x USB 3.1 Gen 1 ports on the back panel |
| Internal I/O Connectors | 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x M.2 Socket 3 connector 6 x SATA 6Gb/s connectors 1 x CPU fan header 3 x system fan headers 1 x CPU cooler LED strip/RGB LED strip header 1 x RGB LED strip header 2 x addressable LED strip headers 1 x front panel header 1 x front panel audio header 1 x S/PDIF Out header 1 x USB 3.1 Gen 1 header 1 x USB 2.0/1.1 header 1 x Trusted Platform Module (TPM) header (2x10 pin, for the GC-TPM2.0 module only) 1 x serial port header 1 x Clear CMOS jumper |
| Special | |
| Bundled Software | Norton Internet Security (OEM version) Realtek 8118 Gaming LAN Bandwidth Control Utility |
| Special Feature | Support for APP Center * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. 3D OSD @BIOS AutoGreen Cloud Station EasyTune Fast Boot Game Boost ON/OFF Charge RGB Fusion Smart Backup Smart Keyboard Smart TimeLock Smart HUD Smart Survey System Information Viewer USB Blocker Support for Q-Flash Support for Xpress Install |
| WARRANTY | |
| Manufacturing Warranty | 03 years |
Description
Elevate Your Gaming Experience with Gigabyte AMD B450 Gaming X Motherboard
The Gigabyte AMD B450 Gaming X Motherboard is designed for gamers and PC enthusiasts who demand top-tier performance and reliability. This motherboard supports the latest AMD Ryzen processors, ensuring that you can run the most demanding games and applications without a hitch. With advanced thermal design, it keeps your system cool even during intense gaming sessions, while the Ultra Durable technology ensures longevity and stability.
Its dual-channel memory architecture supports up to 64GB of DDR4 RAM, allowing for seamless multitasking. The motherboard is equipped with multiple PCIe slots, enabling you to expand your system with additional graphics cards or other peripherals easily. The integrated audio features deliver an immersive sound experience, making every game more engaging.
Additionally, the B450 Gaming X includes RGB Fusion technology, allowing you to customize the lighting effects to match your gaming setup. With its user-friendly BIOS interface, overclocking is straightforward, giving you the ability to boost performance according to your needs. The Gigabyte AMD B450 Gaming X Motherboard truly embodies the perfect balance between performance, aesthetics, and durability.
