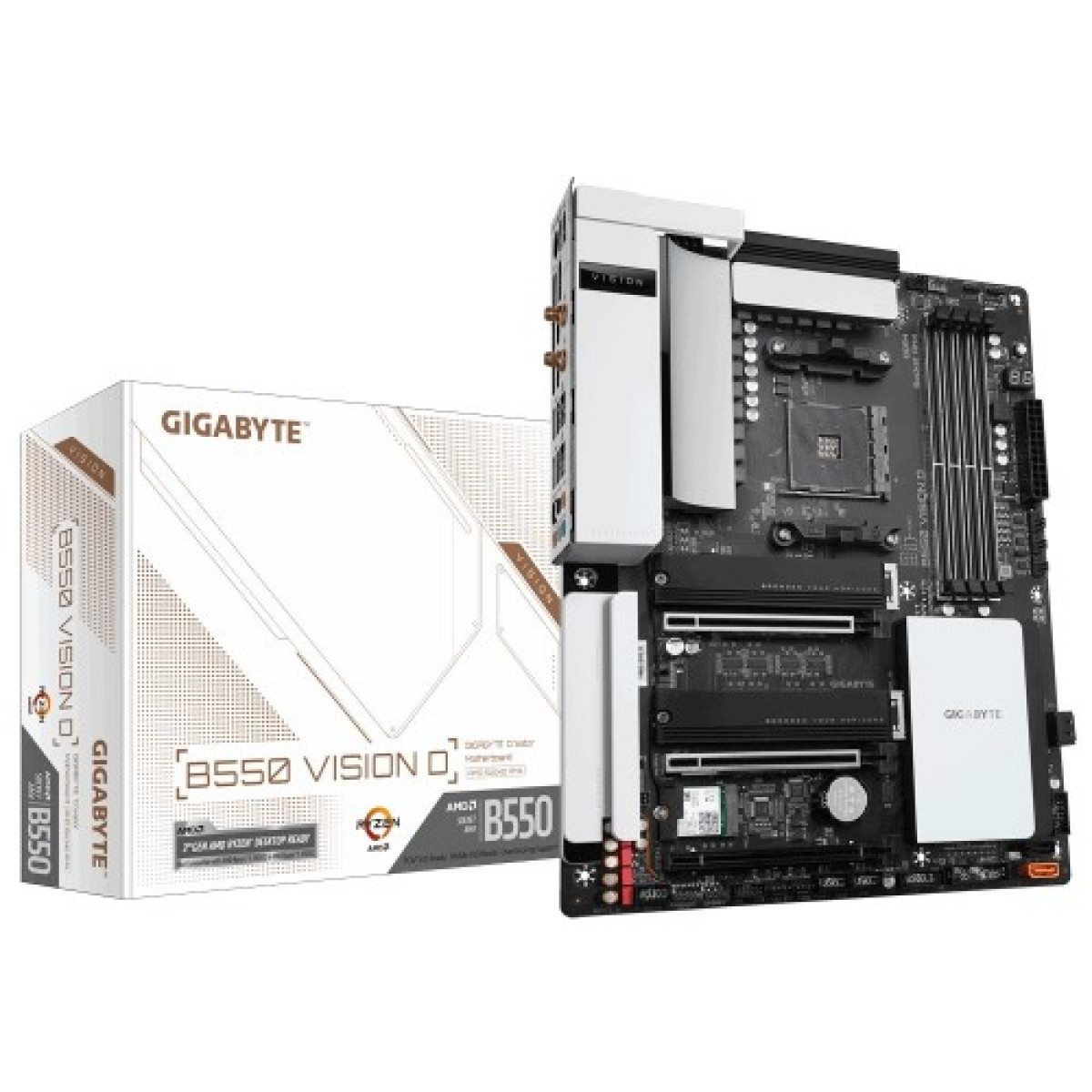

Gigabyte Aorus B550 Vision D AMD 3rd Gen Wi-Fi Motherboard
৳33,500
Key highlights
- Form Factor: ATX Form Factor; 30.5cm x 24.4cm
- Supported CPU: AMD Socket AM4, support for: 3rd Generation AMD Ryzen processors/ New Generation AMD Ryzen with Radeon Graphics processors
- Chipset: AMD B550
- BIOS: 1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
- M.2 Socket: 1 x M.2 connector (M2A_CPU), integrated into the CPU, supporting Socket 3, M key, type 2242/2260/2280/22110 SSDs: 3rd Generation AMD Ryzen processors support SATA and PCIe 4.0 x4/x2 SSDs 3rd Generation AMD Ryzen with Radeon Graphics processors support SATA and PCIe 3.0 x4/x2 SSDs 1 x M.2 connector (M2B_SB), integrated in the Chipset, supporting Socket 3, M key, type 2242/2260/2280/22110 SSDs: Supporting SATA and PCIe 3.0 x4/x2 SSDs
Description
High-Performance AMD Motherboard with Wi-Fi Support
Gigabyte Aorus B550 Vision D: Unleash Your Gaming Potential
The Gigabyte Aorus B550 Vision D motherboard is designed for gamers and creators alike, offering a perfect blend of performance and aesthetic appeal. With support for AMD's 3rd Generation Ryzen processors, this motherboard provides exceptional computing power to handle demanding applications and tasks. The advanced thermal design ensures optimal cooling, allowing you to push your system to its limits without compromising stability.
Equipped with Wi-Fi 6 technology, the Aorus B550 Vision D delivers faster wireless speeds and more reliable connections, making it an excellent choice for online gaming and streaming. The dual M.2 slots support ultra-fast NVMe SSDs, ensuring quick load times and seamless multitasking. Additionally, the robust power delivery system guarantees consistent performance during intense gaming sessions.
This motherboard also features customizable RGB lighting, allowing you to personalize your rig’s appearance. The stunning design and premium build quality make it a standout choice for enthusiasts looking to build a high-performance system. Upgrade your setup with the Gigabyte Aorus B550 Vision D and experience the next level of gaming.
Upgrade Your PC with Aorus B550 Vision D Features
Specification
| BASIC INFORMATION | |
|---|---|
| Form Factor | ATX Form Factor; 30.5cm x 24.4cm |
| Supported CPU | AMD Socket AM4, support for: 3rd Generation AMD Ryzen processors/ New Generation AMD Ryzen with Radeon Graphics processors |
| Chipset | AMD B550 |
| BIOS | 1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| Expansion Slots | |
| M.2 Socket | 1 x M.2 connector (M2A_CPU), integrated into the CPU, supporting Socket 3, M key, type 2242/2260/2280/22110 SSDs: 3rd Generation AMD Ryzen processors support SATA and PCIe 4.0 x4/x2 SSDs 3rd Generation AMD Ryzen with Radeon Graphics processors support SATA and PCIe 3.0 x4/x2 SSDs 1 x M.2 connector (M2B_SB), integrated in the Chipset, supporting Socket 3, M key, type 2242/2260/2280/22110 SSDs: Supporting SATA and PCIe 3.0 x4/x2 SSDs |
| PCI | 1 x PCI Express x16 slot (PCIEX16), integrated into the CPU: 3rd Generation AMD Ryzen processors support PCIe 4.0 x16 mode 3rd Generation AMD Ryzen with Radeon Graphics processors support PCIe 3.0 x16 mode 1 x PCI Express x16 slot (PCIEX8), integrated in the CPU: 3rd Generation AMD Ryzen processors support PCIe 4.0 x8 mode 3rd Generation AMD Ryzen with Radeon Graphics processors support PCIe 3.0 x8 mode 1 x PCI Express x16 slot (PCIEX4), integrated into the Chipset: Supporting PCIe 3.0 x4 mode |
| Graphics Specifications | |
| Max Shared Memory | 16 GB |
| Graphics | Integrated into the 3rd Generation AMD Ryzen with Radeon Graphics processors+Intel Titan Ridge Controller: 2 x USB Type-C ports with Titan Ridge, supporting DisplayPort video outputs and a maximum resolution of 5120x2880@60 Hz with 24 bpp Integrated into the 3rd Generation AMD Ryzen with Radeon Graphics processors: 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz Support for AMD Quad-GPU CrossFire and 2-Way AMD CrossFire technologies |
| Memory Specifications | |
| Maximum Size | support up to 128GB |
| Slots | 4 x DDR4 memory slots |
| Supported Memory | 3rd Gen AMD Ryzen Processors: Support for DDR4 5200(O.C.) / 5000(O.C.) / 4866(O.C.) / 4600(O.C.) / 4400(O.C.) / 4000(O.C.) / 3600(O.C.) / 3333(O.C.) /3200/2933/2667/2400/2133 MHz memory modules New Generation AMD Ryzen with Radeon Graphics processors: Support for DDR4 5400(O.C.) / 5200(O.C.) / 5000(O.C.) / 4866(O.C.) / 4600(O.C.) / 4400(O.C.) / 4000(O.C.) / 3600(O.C.) / 3333(O.C.) /3200 /2933 /2667 /2400 /2133 MHz memory modules Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules Support for non-ECC Un-buffered DIMM 1Rx8/ 2Rx8/ 1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules |
| Type | Dual-Channel Architecture |
| PORTS, CONNECTORS & SLOTS | |
| Audio Jack Combo | Realtek ALC1220-VB codec Support for DTS: X Ultra High Definition Audio 2/4/5.1/7.1-channel Support for S/PDIF Out |
| HDMI | 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz |
| LAN Port (s) | 2 x Intel GbE LAN chips (1000 Mbit/100 Mbit). Intel Wi-Fi 6 AX200: WIFI a, b, g, n, ac with wave 2 features, ax, supporting 2.4/5 GHz Dual-Band BLUETOOTH 5: Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate |
| Supported Storage | 1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 2242/2260/2280/22110 SSDs: 3rd Generation AMD Ryzen™ processors support SATA and PCIe 4.0 x4/x2 SSDs 3rd Generation AMD Ryzen™ with Radeon™ Graphics processors support SATA and PCIe 3.0 x4/x2 SSDs 1 x M.2 connector (M2B_SB), integrated in the Chipset, supporting Socket 3, M key, type 2242/2260/2280/22110 SSDs: Supporting SATA and PCIe 3.0 x4/x2 SSDs 4 x SATA 6Gb/s connectors, integrated in the Chipset: Support for RAID 0, RAID 1, and RAID 10 |
| USB (s) | Integrated into the CPU: 4 x USB 3.2 Gen 1 ports on the back panel Chipset+Intel Titan Ridge Controller: 2 x USB Type-C ports on the back panel, with USB 3.2 Gen 2 support Chipset: 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel 2 x USB 3.2 Gen 1 ports available through the internal USB header 1 x USB 2.0/1.1 port on the back panel Chipset+2 USB 2.0 Hubs: 5 x USB 2.0/1.1 ports (1 port on the back panel, 4 ports available through the internal USB headers) |
| Internal I/O Connectors | 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 1 x water cooling CPU fan header 4 x system fan headers 2 x system fan/water cooling pump headers 2 x addressable LED strip headers 2 x RGB LED strip headers 1 x CPU cooler LED strip/RGB LED strip header 2 x M.2 Socket 3 connectors 4 x SATA 6Gb/s connectors 1 x SATA DOM power connector 1 x front panel header 1 x front panel audio header 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only) 1 x serial port header 1 x Clear CMOS jumper 2 x temperature sensor headers 1 x Q-Flash Plus button |
| Special | |
| Bundled Software | Support for Windows 10 64-bit |
| Special Feature | Support for APP Center @BIOS EasyTune Fast Boot Game Boost ON/OFF Charge RGB Fusion Smart Backup System Information Viewer Support for Q-Flash Plus Support for Q-Flash Support for Xpress Install |
| WARRANTY | |
| Manufacturing Warranty | 03 years warranty |
