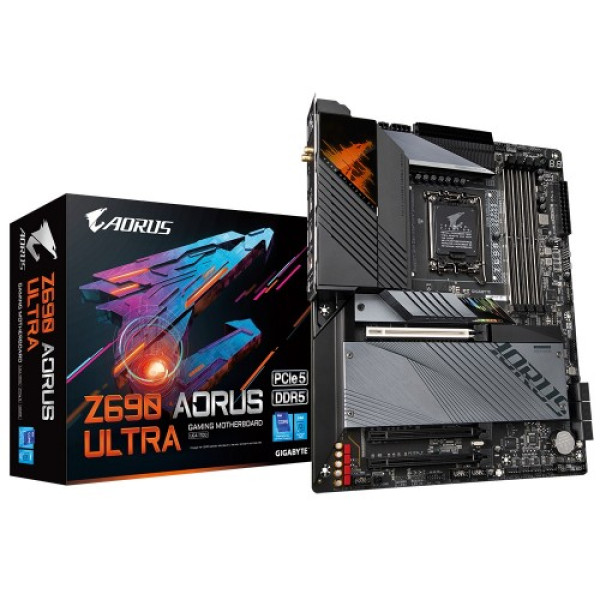

GIGABYTE AORUS Z690 ULTRA 12th Gen ATX Gaming Motherboard (rev. 1.x)
Key highlights
- Graphics: Integrated Graphics Processor-Intel HD Graphics support: 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz * Support for DisplayPort 1.2 version and HDCP 2.3 Support for AMD Quad-GPU CrossFire and 2-Way AMD CrossFire technologies
- Supported CPU: LGA1700 socket: Support for 12th Generation Intel Core i9 processors/Intel Core i7 processors/Intel Core i5
- Slots: 4 x DIMM
- Audio: 1 x front panel audio header
- BIOS: 1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Description
Unlock Gaming Potential with AORUS Z690 ULTRA Motherboard
GIGABYTE AORUS Z690 ULTRA: Elevate Your Gaming Experience
The GIGABYTE AORUS Z690 ULTRA 12th Gen ATX Gaming Motherboard (rev. 1.x) is engineered to bring the ultimate gaming performance to enthusiasts and professionals alike. Designed with cutting-edge technology, this motherboard is built to support Intel's 12th Generation processors, ensuring you harness the full potential of your CPU for an unparalleled gaming experience.
One of the standout features of the AORUS Z690 ULTRA is its advanced thermal design. With multiple heatsinks and a thermal guard, it efficiently dissipates heat, allowing your system to maintain optimal performance even during intense gaming sessions. This is crucial for gamers who demand both speed and stability, as overheating can lead to performance throttling and system instability.
Benefits of the GIGABYTE AORUS Z690 ULTRA: This motherboard accommodates DDR5 memory, offering higher bandwidth and faster speeds compared to its predecessors. This means smoother multitasking and improved performance in memory-intensive applications. Furthermore, the AORUS Z690 ULTRA supports PCIe 5.0, providing lightning-fast data transfer speeds and future-proofing your system for the latest graphics cards and storage solutions.
This motherboard is not just about performance; it also boasts an exceptional audio system with high-fidelity audio capacitors and the ALC1220-VB codec, delivering immersive sound quality that enhances your gaming experience. Whether you are gaming, streaming, or creating content, the audio performance will make a noticeable difference.
Use Cases: Ideal for gamers, content creators, and PC builders, the GIGABYTE AORUS Z690 ULTRA is versatile enough to handle a variety of demanding tasks. It is particularly suited for those who wish to build high-performance gaming rigs or workstations that can seamlessly handle graphics processing, video editing, and other demanding applications.
Why should customers choose the GIGABYTE AORUS Z690 ULTRA? Its robust build quality, extensive connectivity options, and comprehensive cooling solutions make it a top choice for anyone looking to invest in a powerful and reliable motherboard. In a competitive market, this motherboard stands out for its combination of performance, features, and customer support, making it a wise investment for the future.
High-Performance Features of GIGABYTE AORUS Z690 ULTRA
Specification
| BASIC INFORMATION | |
|---|---|
| Graphics | Integrated Graphics Processor-Intel HD Graphics support: 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz * Support for DisplayPort 1.2 version and HDCP 2.3 Support for AMD Quad-GPU CrossFire and 2-Way AMD CrossFire technologies |
| Supported CPU | LGA1700 socket: Support for 12th Generation Intel Core i9 processors/Intel Core i7 processors/Intel Core i5 |
| Slots | 4 x DIMM |
| Audio | 1 x front panel audio header |
| BIOS | 1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| Type | DDR5 |
| Expansion Slots | |
| PCI | 1 x PCI Express x16 slot, running at x16 (PCIEX16) (The PCIEX16 slot conforms to PCI Express 5.0 standard.) 2 x PCI Express x16 slots, running at x4 (PCIEX4_1, PCIEX4_2) (The PCIEX4 slots conform to PCI Express 3.0 standard.) |
| Memory Specifications | |
| Maximum Memory | Maximum Memory Up to 128 GB (32 GB single DIMM capacity) |
| Supported Memory | Support for DDR5 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000 MHz memory modules Dual-channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules |
| PORTS, CONNECTORS & SLOTS | |
| Internal I/O Ports | 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x 4-pin ATX 12V power connector 1 x CPU fan header 1 x water cooling CPU fan header 4 x system fan headers 2 x system fan/water cooling pump headers 2 x addressable LED strip headers 2 x RGB LED strip headers 4 x M.2 Socket 3 connectors 6 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB Type-C header, with USB 3.2 Gen 2x2 support 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 1 x noise detection header 2 x Thunderbolt add-in card connectors 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only) 1 x power button 1 x reset button 1 x Q-Flash Plus button 2 x temperature sensor headers 1 x reset jumper 1 x Clear CMOS jumper |
| TPM (Trusted Platform Module ) | 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only) |
| USB (s) | Chipset: 2 x USB Type-C ports, with USB 3.2 Gen 2x2 support (1 port on the back panel, 1 port available through the internal USB header) 4 x USB 3.2 Gen 2 Type-A ports (red) on the back panel Chipset+2 USB 3.2 Gen 1 Hubs: 6 x USB 3.2 Gen 1 ports (4 ports on the back panel, 2 ports available through the internal USB header) Chipset+2 USB 2.0 Hub: 8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers) |
| WARRANTY | |
| Manufacturing Warranty | 3 years |
