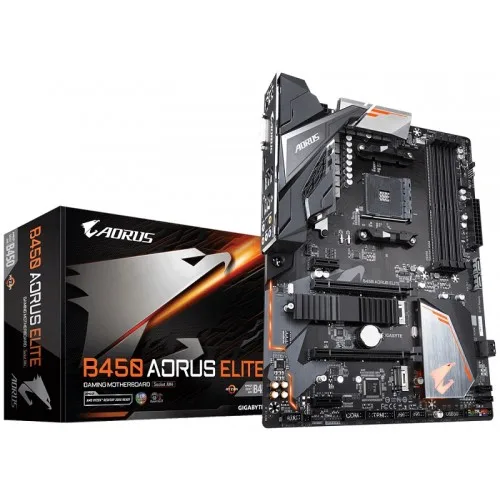

Gigabyte B450 AORUS ELITE AMD ATX Motherboard for Gamers

  • Brand: Gigabyte
  • Product Code: Gigabyte B450 AORUS ELITE
  • Availability: Out Of Stock
৳7,350
Out Of Stock

One email when this product is in stock again. Nothing else.

0 reviews Write a review

Share on FacebookSend in MessengerShare on TelegramShare on X (Twitter)Share by email
Unisoft ERP Accounting Software – Free Smartphone Offer Unisoft ERP Accounting Software – Free Smartphone Offer

Specification

BASIC INFORMATION
Form FactorATX Form Factor; 30.5cm x 23.5cm
Supported CPUAMD Ryzen™ 2nd Generation processors AMD Ryzen™ with Radeon™ Vega Graphics processors AMD Ryzen™ 1st Generation processors
ChipsetAMD B450
BIOS1 x 128 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Expansion Slots
M.2 Socket1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe 3.0 x4/x2 SSD support) (M2A_SOCKET) 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 PCIe 3.0 x2 SSD support)(M2B_SOCKET)
PCI1 x PCI Express x16 slot, running at x16 (PCIEX16)(Note) * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot. (The PCIEX16 slot conforms to PCI Express 3.0 standard.) 1 x PCI Express x16 slot, running at x4 (PCIEX4) * The PCIEX4 slot shares bandwidth with the PCIEX1_2 slot. The PCIEX4 slot operates at up to x2 mode when the PCIEX1_2 slot is populated. The PCIEX4 slot operates at up to x4 mode when the PCIEX1_2 is empty. 2 x PCI Express x1 slots (The PCIEX4 and PCIEX1 slots conform to PCI Express 2.0 standard.)
Graphics Specifications
Max Shared Memory16 GB
Graphics1 x DVI-D port, supporting a maximum resolution of 1920x1200@60 Hz * The DVI-D port does not support D-Sub connection by adapter. 1 x HDMI port, supporting a maximum resolution of 4096x2160@60(Note) Hz * Support for HDMI 2.0 version and HDCP 2.2.(Note)
Memory Specifications
Maximum Size64 GB
Slots4 x DIMM
Supported MemorySupport for DDR4 3200(O.C.)/2933/2667/2400/2133 MHz memory modules Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules
TypeDual Channel DDR4 Memory Technology
PORTS, CONNECTORS & SLOTS
Audio Jack ComboRealtek® ALC892 codec High Definition Audio 2/4/5.1/7.1-channel Support for S/PDIF Out
DVI-D (s)1 x DVI-D
HDMI1 x HDMI
LAN Port (s)Realtek® GbE LAN chip (10/100/1000 Mbit)
Supported Storage1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe 3.0 x4/x2 SSD support) (M2A_SOCKET) 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 PCIe 3.0 x2 SSD support)(M2B_SOCKET) 6 x SATA 6Gb/s connectors Support for RAID 0, RAID 1, and RAID 10 * Refer to "1-7 Internal Connectors," for the installation notices for the M.2 and SATA connectors.
USB (s)Chipset: 2 x USB 3.1 Gen 1 ports available through the internal USB header 8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers) Integrated in the APU: 4 x USB 3.1 Gen 1 ports on the back panel
Internal I/O Connectors1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 2 x M.2 Socket 3 connectors 6 x SATA 6Gb/s connectors 1 x CPU fan header 3 x system fan headers 1 x CPU cooler LED strip/RGB LED strip extension cable header 1 x RGB (RGBW) LED strip header 2 x digital LED strip headers 2 x digital LED strip power select jumpers 1 x front panel header 1 x front panel audio header 1 x S/PDIF Out header 1 x USB 3.1 Gen 1 header 2 x USB 2.0/1.1 headers 1 x Trusted Platform Module (TPM) header (2x10 pin, for the GC-TPM2.0 module only) 1 x serial port header 1 x Clear CMOS jumper
WARRANTY
Manufacturing Warranty03 years

Description

Experience Exceptional Performance with the Gigabyte B450 AORUS ELITE Motherboard

The Gigabyte B450 AORUS ELITE AMD ATX Motherboard is designed for gamers and PC enthusiasts who demand the best in performance and reliability. Built on the AMD B450 chipset, this motherboard supports the latest Ryzen processors, giving you the power to run demanding applications and games with ease. With its advanced thermal design and RGB Fusion technology, it not only ensures efficient cooling but also provides an eye-catching aesthetic for your build.

This motherboard boasts Dual Channel DDR4 support, allowing for faster data transfer rates and improved multitasking capabilities. Additionally, the Smart Fan 5 technology keeps your system cool during intense gaming sessions by automatically adjusting fan speeds based on temperature readings. Whether you're a casual gamer or a hardcore enthusiast, the B450 AORUS ELITE is equipped to handle all your computing needs.

With multiple PCIe slots and M.2 connectors, you can expand your system with additional graphics cards and storage drives with ease. The motherboard also features integrated audio and high-speed Ethernet connectivity, ensuring a smooth online gaming experience. Choose the Gigabyte B450 AORUS ELITE for a quality motherboard that enhances performance and allows you to build the PC of your dreams.
