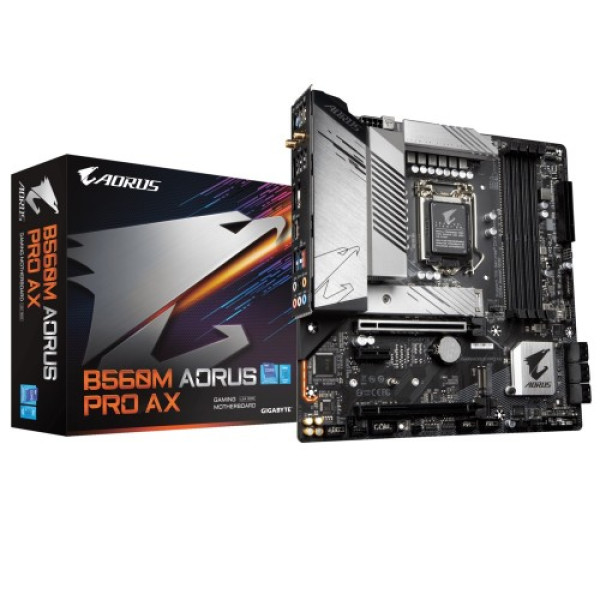

GIGABYTE B560M AORUS PRO AX Wi-Fi Intel 10th and 11th Gen ATX Motherboard
- Brand: Gigabyte
- Product Code: B560M AORUS PRO AX Wi-Fi
- Availability: Out of Stock
- Updated:
Specification
| BASIC INFORMATION | |
| Form Factor | Micro ATX Form Factor; 24.4cm x 24.4cm |
|---|---|
| Graphics | Integrated Graphics Processor-Intel® HD Graphics support: 1 x HDMI port, supporting a maximum resolution of 4096x2160@30 Hz 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz Support for AMD Quad-GPU CrossFire and 2-Way AMD CrossFire technologies |
| Supported CPU | 11th Generation Intel Core i9 processors / Intel Core i7 processors / Intel Core i5 processors 10th Generation Intel Core i9 processors / Intel Core i7 processors / Intel Core i5 processors / Intel Core i3 processors/ Intel Pentium processors / Intel Celeron processors L3 cache varies with CPU |
| Chipset | Intel B560 Express Chipset |
| Slots | 4 x DIMM |
| BIOS | 1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| Type | DDR4 |
| Connectivity | |
| HDMI | 1 x HDMI port, supporting a maximum resolution of 4096 x 2160@30 Hz |
| Expansion Slots | |
| PCI | 1 x PCI Express x16 slot, running at x16 (PCIEX16) 1 x PCI Express x16 slot, running at x4 (PCIEX4) 1 x PCI Express x1 slot |
| Memory Specifications | |
| Maximum Memory | 128 GB (32 GB single DIMM capacity) |
| Supported Memory | 11th Generation Intel Core i9/ i7/ i5 processors: Support for DDR4 5333(O.C.)/ DDR4 5133(O.C.)/ DDR4 5000(O.C.)/ 4933(O.C.)/ 4800(O.C.)/ 4700(O.C.)/ 4600(O.C.)/ 4500(O.C.)/ 4400(O.C.)/ 4300(O.C.)/ 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200 / 3000 / 2933 / 2800 / 2666 / 2400 / 2133 MHz memory modules 10th Generation Intel Core i9/ i7 processors: Support for DDR4 2933/ 2666/ 2400/ 2133 MHz memory modules 10th Generation Intel Core i5/ i3 /Pentium/Celeron processors: Support for DDR4 2666/2400/2133 MHz memory modules Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/ 2Rx8/ 1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules |
| PORTS, CONNECTORS & SLOTS | |
| Display Port (s) | 1 x DisplayPort, supporting a maximum resolution of 4096 x 2304@60 Hz |
| Internal I/O Ports | 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 1 x water cooling CPU fan header 3 x system fan headers 2 x addressable LED strip headers 2 x RGB LED strip headers 6 x SATA 6Gb/s connectors 2 x M.2 Socket 3 connectors 1 x front panel header 1 x front panel audio header 1 x USB Type-C header, with USB 3.2 Gen 1 support 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 2 x Thunderbolt add-in card connectors 1 x serial port header 1 x Clear CMOS jumper 1 x Q-Flash Plus button |
| TPM (Trusted Platform Module ) | 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only) |
| USB (s) | 1 x USB Type-C port on the back panel, with USB 3.2 Gen2x2 support 1 x USB 3.2 Gen2 Type-A ports (red) on the back panel 2 x USB 3.2 Gen1 ports on the back panel 2 x USB 2.0/1.1 ports on the back panel Chipset+USB 3.2 Gen 1 Hub: 1 x USB Type-C port with USB 3.2 Gen1 support, available through the internal USB header 2 x USB 3.2 Gen1 ports available through the internal USB header Chipset+ 2 USB 2.0 Hubs: 8 x USB 2.0/ 1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers) |
| WARRANTY | |
| Manufacturing Warranty | 3 Years |
Description
GIGABYTE B560M AORUS PRO AX Wi-Fi: Elevate Your Gaming Experience
The GIGABYTE B560M AORUS PRO AX Wi-Fi is a top-tier motherboard designed specifically for gamers and PC enthusiasts who demand the very best from their systems. Supporting both Intel's 10th and 11th generation processors, this ATX motherboard is packed with features that not only enhance performance but also ensure reliability and longevity. With its cutting-edge technology, the B560M AORUS PRO AX Wi-Fi is ideal for building a powerful gaming rig, whether you're a casual gamer or a competitive player.
Exceptional Performance: The B560M AORUS PRO AX Wi-Fi comes with an advanced power delivery system that ensures stable and efficient power supply to your CPU, reducing the risk of overheating during intense gaming sessions. Its support for DDR4 memory up to 5200 MHz provides lightning-fast data transfer speeds, allowing for seamless multitasking and swift game loading times.
Future-Ready Connectivity: With integrated Wi-Fi 6 support, this motherboard offers ultra-fast wireless connectivity, ensuring that you can enjoy lag-free online gaming and streaming. Additionally, it features multiple USB 3.2 Gen 2 ports for rapid data transfer, along with Thunderbolt 4 support for enhanced connectivity options.
Robust Build Quality: The B560M AORUS PRO AX Wi-Fi is constructed with high-quality components designed to withstand the rigors of gaming. Its durable PCB design and reinforced PCIe slots provide additional stability and protection for your graphics cards and other expansions, ensuring that your investment is secure.
Comprehensive Cooling Solutions: Heat management is critical for high-performance systems, and this motherboard excels in this area with its advanced thermal design. It includes multiple fan headers and M.2 thermal guards that prevent throttling, allowing your system to maintain peak performance even under heavy loads.
Why Choose GIGABYTE B560M AORUS PRO AX Wi-Fi?: Investing in the GIGABYTE B560M AORUS PRO AX Wi-Fi means choosing a product that is engineered for excellence. With its extensive feature set, you’ll experience better gameplay, faster load times, and a more enjoyable overall user experience. Perfect for gamers, content creators, and anyone who demands high performance, this motherboard is a smart choice for your next build.
