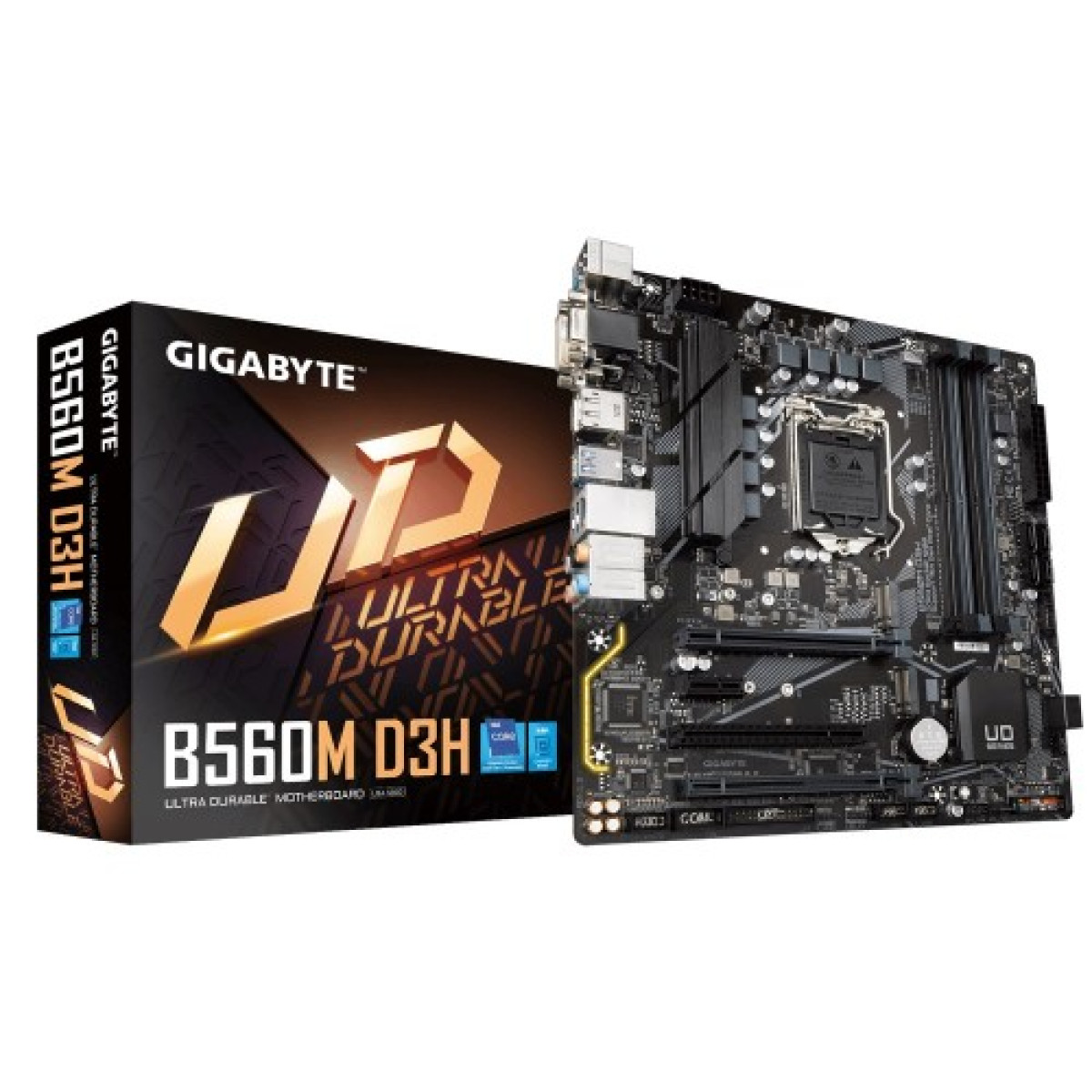

Gigabyte B560M D3H Ultra Durable 10th and 11th Gen Micro ATX Motherboard
৳10,300
Key highlights
- Form Factor: Micro ATX Form Factor; 24.4cm x 24.4cm
- Supported CPU: 11th Generation Intel Core i9 processors / Intel Core i7 processors / Intel Core i5 processors 10th Generation Intel Core i9 processors / Intel Core i7 processors / Intel Core i5 processors / Intel Core i3 processors/ Intel Pentium processors / Intel Celeron processors
- Chipset: Intel B560 Express Chipset
- Memory: 128 GB (32 GB single DIMM capacity)
- Slots: 4 x DIMM
Description
High-Performance Micro ATX Motherboard for 10th and 11th Gen CPUs
Unleash Your Potential with the Gigabyte B560M D3H Motherboard
The Gigabyte B560M D3H Ultra Durable Micro ATX Motherboard is designed to support both 10th and 11th generation Intel processors, bringing you unmatched performance and stability. With its Ultra Durable technology, this motherboard ensures longevity and reliability, making it a perfect choice for gamers and professionals alike.
Equipped with an advanced thermal design, the B560M D3H features high-quality capacitors and reinforced PCIe slots, ensuring your components are well-protected under intense workloads. The Smart Fan 5 technology allows you to customize fan speeds and monitor system temperatures, providing an optimal cooling environment for your system.
Connectivity is a breeze, thanks to multiple USB 3.2 Gen 1 ports and M.2 slots, which allow for fast data transfer and storage solutions. Additionally, the motherboard supports up to 64GB of DDR4 RAM, ensuring you have enough memory for demanding applications.
Incorporating RGB Fusion 2.0, the B560M D3H lets you personalize your system’s lighting, allowing you to create a unique aesthetic that reflects your style. Whether you're building a gaming rig or a workstation, the Gigabyte B560M D3H is your go-to choice for performance and durability.
Explore Features of Gigabyte B560M D3H Motherboard Today
Specification
| BASIC INFORMATION | |
|---|---|
| Form Factor | Micro ATX Form Factor; 24.4cm x 24.4cm |
| Supported CPU | 11th Generation Intel Core i9 processors / Intel Core i7 processors / Intel Core i5 processors 10th Generation Intel Core i9 processors / Intel Core i7 processors / Intel Core i5 processors / Intel Core i3 processors/ Intel Pentium processors / Intel Celeron processors |
| Chipset | Intel B560 Express Chipset |
| Memory | 128 GB (32 GB single DIMM capacity) |
| Slots | 4 x DIMM |
| Audio | Realtek Audio CODEC High Definition Audio 2/4/5.1/7.1-channel |
| BIOS | 1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| Expansion Slots | |
| M.2 Socket | CPU: 1 x M.2 connector (Socket 3, M key, type 2260/ 2280/ 22110 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)(Note) (Note) Supported by 11th Generation processors only. Chipset: 1 x M.2 connector (Socket 3, M key, type 2260/ 2280 SATA and PCIe 3.0 x4/ x2 SSD support) (M2P_SB) |
| PCI | 1 x PCI Express x16 slot, running at x16 (PCIEX16) * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot. (The PCIEX16 slot conforms to PCI Express 4.0 standard.)(Note) 1 x PCI Express x16 slot, running at x4 (PCIEX4) 1 x PCI Express x1 slot (PCIEX1) (The PCIEX4 and PCIEX1 slots conform to PCI Express 3.0 standard.) 1 x PCI slot |
| Graphics Specifications | |
| Graphics | Integrated Graphics Processor-Intel HD Graphics support: 1 x D-Sub port, supporting a maximum resolution of 1920 x 1200 @60 Hz(Note) 1 x DVI-D port, supporting a maximum resolution of 1920 x1200 @60 Hz * The DVI-D port does not support D-Sub connection by adapter. 1 x HDMI port, supporting a maximum resolution of 4096 x 2160 @30 Hz * Support for HDMI 1.4 version and HDCP 2.3. 1 x DisplayPort, supporting a maximum resolution of 4096 x 2304 @60 Hz * Support for DisplayPort 1.2 version and HDCP 2.3 (Graphics specifications may vary depending on CPU support.) Support for up to 3 displays at the same time Support for AMD Quad-GPU CrossFire and 2-Way AMD CrossFire technologies |
| Memory Specifications | |
| Supported Memory | 11th Generation Intel Core i9/ i7/ i5 processors: Support for DDR4 5333(O.C.) / DDR4 5133(O.C.) / DDR4 5000(O.C.) / 4933(O.C.) / 4800(O.C.) / 4700(O.C.) / 4600(O.C.) / 4500(O.C.) / 4400(O.C.) / 4300(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200 / 3000 / 2933 / 2800 / 2666 / 2400 / 2133 MHz 10th Generation Intel Core i9/ i7 processors: Support for DDR4 2933/ 2666/ 2400/ 2133 MHz memory modules 10th Generation Intel Core i5/ i3 / Pentium/ Celeron processors: Support for DDR4 2666/ 2400/ 2133 MHz memory modules Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/ 2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/ 2Rx8/ 1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules |
| Type | DDR4 |
| PORTS, CONNECTORS & SLOTS | |
| D-Sub (s) | 1 x D-Sub port, supporting a maximum resolution of 1920 x 1200 @60 Hz |
| Display Port (s) | 1 x DisplayPort, supporting a maximum resolution of 4096 x 2304 @60 Hz |
| DVI-D (s) | 1 x DVI-D port, supporting a maximum resolution of 1920 x 1200 @60 Hz |
| HDMI | 1 x HDMI port, supporting a maximum resolution of 4096 x 2160 @30 Hz |
| LAN Port (s) | Intel GbE LAN chip (1000 Mbit/100 Mbit) |
| Supported Storage | CPU: 1 x M.2 connector (Socket 3, M key, type 2260/ 2280/ 22110 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)(Note) (Note) Supported by 11th Generation processors only. Chipset: 1 x M.2 connector (Socket 3, M key, type 2260/ 2280 SATA and PCIe 3.0 x4/ x2 SSD support) (M2P_SB) 6 x SATA 6Gb/s connectors Intel Optane Memory Ready |
| USB (s) | Chipset: 6 x USB 3.2 Gen 1 ports (4 ports on the back panel, 2 ports available through the internal USB header) Chipset+USB 2.0 Hub: 8 x USB 2.0/1.1 ports (2 ports on the back panel, 6 ports available through the internal USB headers) |
| Internal I/O Connectors | 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 3 x system fan headers 1 x addressable LED strip header 1 x RGB LED strip header 6 x SATA 6Gb/s connectors 2 x M.2 Socket 3 connectors 1 x front panel header 1 x front panel audio header 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 2 x Thunderbolt add-in card connectors 1 x serial port header 1 x parallel port header 1 x Clear CMOS jumper 1 x Q-Flash Plus button |
| Special | |
| Special Feature | Support for APP Center @BIOS EasyTune Fast Boot Game Boost ON/OFF Charge RGB Fusion Smart Backup System Information Viewer Support for Q-Flash Plus Support for Q-Flash Support for Xpress Install |
| WARRANTY | |
| Manufacturing Warranty | 3 year |
