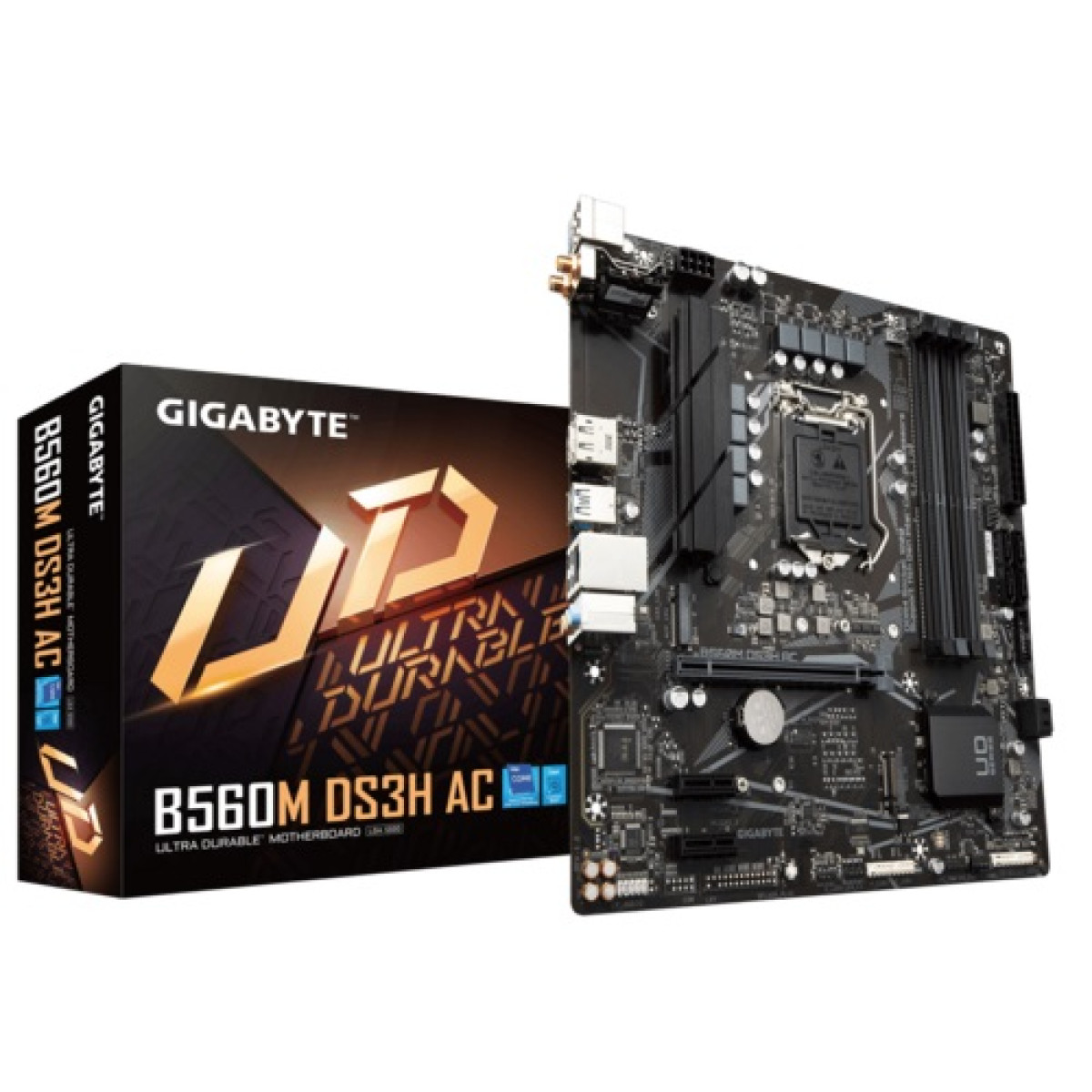

Gigabyte B560M DS3H AC Intel 10th and 11th Gen Micro ATX Motherboard
৳14,000
Key highlights
- Form Factor: Micro ATX Form Factor; 24.4cm x 24.4cm
- Supported CPU: 11th Generation Intel Core i9 processors / Intel Core i7 processors / Intel Core i5 processors 10th Generation Intel Core i9 processors / Intel Core i7 processors / Intel Core i5 processors / Intel Core i3 processors/ Intel Pentium processors / Intel Celeron processors
- Chipset: Intel B560 Express Chipset
- Memory: 128 GB (32 GB single DIMM capacity)
- Slots: 4 x DDR4 DIMM
Description
Affordable Micro ATX Motherboard for Gaming and Work
Introducing the Gigabyte B560M DS3H AC Motherboard
The Gigabyte B560M DS3H AC is a Micro ATX motherboard that provides an excellent foundation for your Intel 10th and 11th Generation processors. This board is specifically designed for gamers, enthusiasts, and professionals looking to build a reliable and high-performance system. With its advanced features, including dual-channel DDR4 support, multiple PCIe slots, and integrated Wi-Fi, it ensures a seamless computing experience.
One of the standout features of the B560M DS3H AC is its ability to support up to 64GB of RAM, allowing for smooth multitasking and enhanced performance in demanding applications. The motherboard also includes Smart Fan 5 technology, which allows users to customize fan speeds for optimal cooling. Additionally, the board comes equipped with a Realtek ALC887 audio codec for high-quality sound output, making it ideal for both gaming and media consumption.
Security and stability are paramount, and Gigabyte has ensured that this motherboard is equipped with features like Q-Flash Plus for easy BIOS updates and Ultra Durable technology for enhanced longevity. Whether you're building a workstation or a gaming rig, the B560M DS3H AC stands out as a top choice for Bangladeshi customers seeking quality and performance.
Upgrade Your PC with Gigabyte B560M DS3H AC Features
Specification
| BASIC INFORMATION | |
|---|---|
| Form Factor | Micro ATX Form Factor; 24.4cm x 24.4cm |
| Supported CPU | 11th Generation Intel Core i9 processors / Intel Core i7 processors / Intel Core i5 processors 10th Generation Intel Core i9 processors / Intel Core i7 processors / Intel Core i5 processors / Intel Core i3 processors/ Intel Pentium processors / Intel Celeron processors |
| Chipset | Intel B560 Express Chipset |
| Memory | 128 GB (32 GB single DIMM capacity) |
| Slots | 4 x DDR4 DIMM |
| Audio | 3 x audio jacks |
| BIOS | 1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| Expansion Slots | |
| M.2 Socket | 1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 PCIe 4.0 x4/x2 SSD support) (M2P_CPU) (Note) Chipset: 1 x M.2 connector (Socket 3, M key, type 2260/2280 SATA and PCIe 3.0 x4/ x2 SSD support) (M2A_SB) |
| PCI | 1 x PCI Express x16 slot, running at x16 (The PCIEX16 slot conforms to PCI Express 4.0 standard.) (Note) 2 x PCI Express x1 slots (The PCIEX1 slot conforms to PCI Express 3.0 standard.) |
| Graphics Specifications | |
| Graphics | Integrated Graphics Processor-Intel HD Graphics support: 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz * Support for DisplayPort 1.2 version and HDCP 2.3 * When the D-Sub port and DisplayPort are connected at the same time, images will output from the DisplayPort only. 1 x HDMI port, supporting a maximum resolution of 4096x2160@30 Hz * Support for HDMI 1.4 version and HDCP 2.3. |
| Memory Specifications | |
| Supported Memory | 11th Generation Intel Core i9/i7/i5 processors: Support for DDR4 5333(O.C.)/ DDR4 5133(O.C.)/DDR4 5000(O.C.)/4933(O.C.)/4800(O.C.)/ 4700(O.C.)/ 4600(O.C.)/ 4500(O.C.)/ 4400(O.C.)/ 4300(O.C.)/4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200(O.C.) / 3000(O.C.) / 2933 / 2800 / 2666 / 2400 / 2133 MHz 10th Generation Intel Core i9/i7 processors: Support for DDR4 2933/2666/2400/2133 MHz memory modules 10th Generation Intel Core i5/i3/Pentium/Celeron processors: Support for DDR4 2666/2400/2133 MHz memory modules 4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory Dual-channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules |
| PORTS, CONNECTORS & SLOTS | |
| D-Sub (s) | Yes |
| Display Port (s) | 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz |
| HDMI | 1 x HDMI port, supporting a maximum resolution of 4096x2160@30 Hz |
| LAN Port (s) | Realtek GbE LAN chip (1000/100 Mbit) |
| Supported Storage | 1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 PCIe 4.0 x4/x2 SSD support) (M2P_CPU) (Note) Chipset: 1 x M.2 connector (Socket 3, M key, type 2260/2280 SATA and PCIe 3.0 x4/ x2 SSD support) (M2A_SB) 6 x SATA 6Gb/s connectors Intel Optane Memory Ready |
| USB (s) | Chipset: 1 x USB Type-C port on the back panel, with USB 3.2 Gen 1 support 5 x USB 3.2 Gen 1 ports (3 ports on the back panel, 2 ports available through the internal USB header) 4 x USB 2.0/1.1 ports available through the internal USB headers Chipset+USB 2.0 Hub: 2 x USB 2.0/1.1 ports on the back panel |
| Internal I/O Connectors | 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 3 x system fan headers 1 x addressable LED strip header 1 x RGB LED strip header 6 x SATA 6Gb/s connectors 2 x M.2 Socket 3 connectors 1 x front panel header 1 x front panel audio header 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 1 x Clear CMOS jumper 1 x Q-Flash Plus button |
| Special | |
| Bundled Software | Norton Internet Security (OEM version) Realtek 8118 Gaming LAN Bandwidth Control Utility |
| Special Feature | Support for APP Center @BIOS EasyTune Fast Boot Game Boost ON/OFF Charge RGB Fusion Smart Backup System Information Viewer Support for Q-Flash Plus Support for Q-Flash Support for Xpress Install |
| WARRANTY | |
| Manufacturing Warranty | 3 years |
