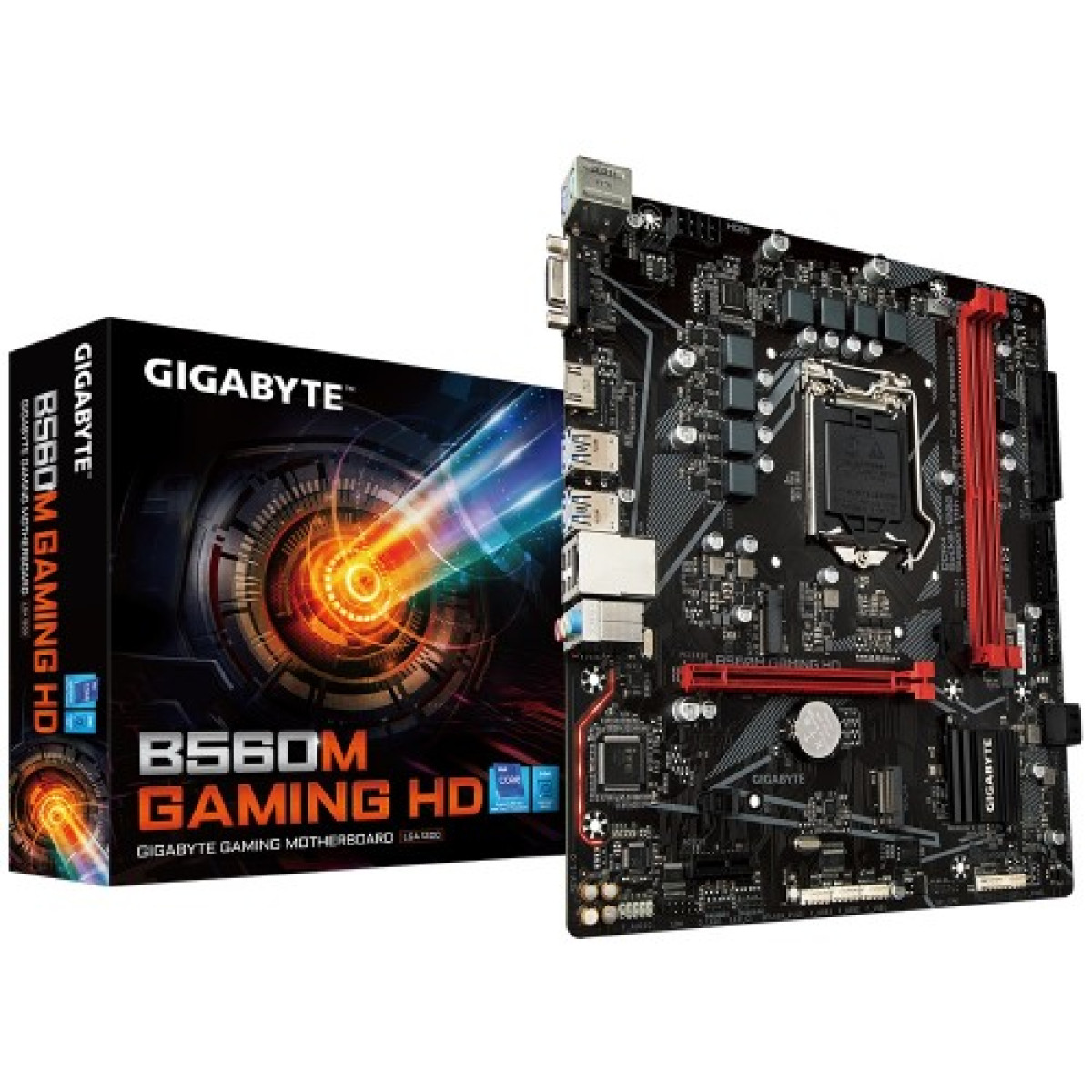

Gigabyte B560M GAMING HD Intel 10th and 11th Gen Micro ATX Motherboard
৳9,600
Key highlights
- Form Factor: Micro ATX Form Factor; 24.4cm x 22.5cm
- Supported CPU: 11th Generation Intel Core i9 processors / Intel Core i7 processors / Intel Core i5 processors 10th Generation Intel Core i9 processors / Intel Core i7 processors / Intel Core i5 processors / Intel Core i3 processors/ Intel Pentium processors / Intel Celeron processors
- Chipset: Intel B560 Express Chipset
- Memory: 64 GB (32 GB single DIMM capacity)
- Slots: 2 x DIMM
Description
Best Micro ATX Motherboard for Gaming at Unix Network
Gigabyte B560M GAMING HD: Unleash Your Gaming Potential
The Gigabyte B560M GAMING HD motherboard is designed for gamers and PC enthusiasts looking to build a powerful system with Intel's 10th and 11th Gen processors. With its Micro ATX form factor, this motherboard fits perfectly into compact cases while providing a wealth of features and connectivity options.
Equipped with advanced thermal design, including large heatsinks and a multi-phase power delivery system, the B560M ensures that your CPU remains cool even during intense gaming sessions. The motherboard supports dual-channel DDR4 memory up to 64GB, allowing for lightning-fast performance and seamless multitasking.
Additionally, the onboard RGB Fusion technology lets you customize your gaming rig with stunning RGB lighting effects. The B560M features multiple PCIe slots, making it compatible with the latest graphics cards, and its USB 3.2 Gen 1 ports provide high-speed data transfer for your peripherals.
With a focus on durability and reliability, this motherboard is built to last, ensuring that your investment is protected. Whether you're a casual gamer or a hardcore enthusiast, the Gigabyte B560M GAMING HD is your gateway to an immersive gaming experience.
Gigabyte B560M Features for 10th and 11th Gen Intel
Specification
| BASIC INFORMATION | |
|---|---|
| Form Factor | Micro ATX Form Factor; 24.4cm x 22.5cm |
| Supported CPU | 11th Generation Intel Core i9 processors / Intel Core i7 processors / Intel Core i5 processors 10th Generation Intel Core i9 processors / Intel Core i7 processors / Intel Core i5 processors / Intel Core i3 processors/ Intel Pentium processors / Intel Celeron processors |
| Chipset | Intel B560 Express Chipset |
| Memory | 64 GB (32 GB single DIMM capacity) |
| Slots | 2 x DIMM |
| Audio | Realtek Audio CODEC High Definition Audio 2/4/5.1/7.1-channel |
| BIOS | 1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| Expansion Slots | |
| M.2 Socket | CPU: 1 x M.2 connector (Socket 3, M key, type 2260/ 2280 PCIe 4.0 x4/x2 SSD support) (M2P_CPU)(Note) Chipset: 1 x M.2 connector (Socket 3, M key, type 2260/ 2280 SATA and PCIe 3.0 x4/x2 SSD support) (M2A_SB) |
| PCI | 1 x PCI Express x16 slot, running at x16 (PCIEX16) * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot. (The PCIEX16 slot conforms to PCI Express 4.0 standard.)(Note) 1 x PCI Express x1 slot (PCIEX1) (The PCIEX1 slot conforms to PCI Express 3.0 standard.) |
| Graphics Specifications | |
| Graphics | Integrated Graphics Processor-Intel® HD Graphics support: 1 x D-Sub port, supporting a maximum resolution of 1920 x 1200 @60 Hz 1 x HDMI port, supporting a maximum resolution of 4096 x 2160 @30 Hz |
| Memory Specifications | |
| Supported Memory | 11th Generation Intel Core i9/ i7/ i5 processors: Support for DDR4 3200/ 3000/ 2933/ 2666/ 2400/ 2133 MHz memory modules 10th Generation Intel Core i9/ i7 processors: Support for DDR4 2933/ 2666/ 2400/ 2133 MHz memory modules 10th Generation Intel Core i5/ i3/ Pentium/ Celeron processors: Support for DDR4 2666/ 2400/ 2133 MHz memory modules Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/ 2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/ 2Rx8/ 1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules |
| Type | DDR4 |
| PORTS, CONNECTORS & SLOTS | |
| D-Sub (s) | 1 x D-Sub port, supporting a maximum resolution of 1920 x 1200 @60 Hz |
| HDMI | 1 x HDMI port, supporting a maximum resolution of 4096 x 2160 @30 Hz |
| LAN Port (s) | Realtek GbE LAN chip (1 Gbit/ 100 Mbit) |
| Supported Storage | CPU: 1 x M.2 connector (Socket 3, M key, type 2260/ 2280 PCIe 4.0 x4/x2 SSD support) (M2P_CPU)(Note) Chipset: 1 x M.2 connector (Socket 3, M key, type 2260/ 2280 SATA and PCIe 3.0 x4/x2 SSD support) (M2A_SB) 4 x SATA 6Gb/s connectors Intel Optane Memory Ready |
| USB (s) | Chipset: 6 x USB 3.2 Gen 1 ports (4 ports on the back panel, 2 ports available through the internal USB header) Chipset + USB 2.0 Hub: 8 x USB 2.0/ 1.1 ports (2 ports on the back panel, 6 ports available through the internal USB headers) |
| Internal I/O Connectors | 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 1 x system fan header 1 x addressable LED strip header 1 x RGB LED strip header 2 x M.2 Socket 3 connectors 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB 3.2 Gen 1 header 3 x USB 2.0/1.1 headers 1 x serial port header 1 x Clear CMOS jumper 1 x Q-Flash Plus button |
| Special | |
| Special Feature | Support for APP Center @BIOS EasyTune Fast Boot Game Boost ON/OFF Charge RGB Fusion Smart Backup System Information Viewer Support for Q-Flash Plus Support for Q-Flash Support for Xpress Install |
| WARRANTY | |
| Manufacturing Warranty | 3 year |
