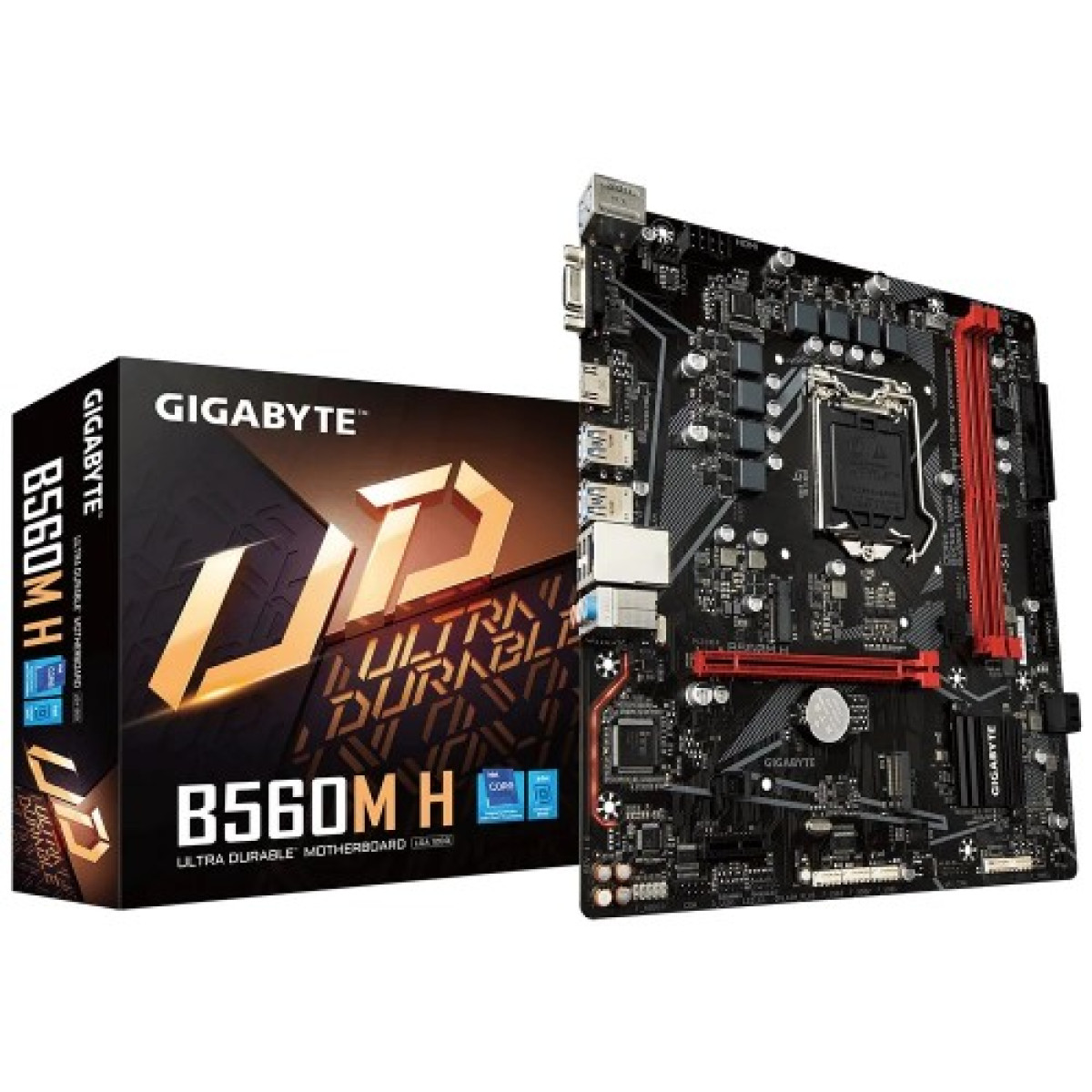

GIGABYTE B560M H Intel 10th and 11th Gen Micro ATX Motherboard
Key highlights
- Form Factor: Micro ATX Form Factor; 24.4cm x 22.5cm
- SpecialFeatures: Support for APP Center @BIOS EasyTune Fast Boot Game Boost ON/OFF Charge RGB Fusion Smart Backup System Information Viewer Support for Q-Flash Plus Support for Q-Flash Support for Xpress Install
- Chipset: Intel B560 Express Chipset
- BIOS: 1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
- M.2 Socket: CPU: 1 x M.2 connector (Socket 3, M key, type 2260/ 2280 PCIe 4.0 x4/x2 SSD support) (M2P_CPU)(Note) Chipset: 1 x M.2 connector (Socket 3, M key, type 2260/ 2280 SATA and PCIe 3.0 x4/x2 SSD support) (M2A_SB)
Description
Best Micro ATX Motherboard for Gaming and Productivity
Unleash Your Potential with the GIGABYTE B560M H Motherboard
The GIGABYTE B560M H Micro ATX Motherboard is engineered for enthusiasts looking to harness the power of Intel's 10th and 11th Gen processors. Featuring an advanced design, this motherboard offers exceptional performance and unmatched reliability for gamers and content creators alike.
Superior Performance: Built on Intel's B560 chipset, this motherboard supports PCIe 4.0 for lightning-fast data transfer speeds, ensuring that your system is future-proofed for the latest graphics cards and storage solutions.
Enhanced Connectivity: With multiple USB ports, including USB 3.2 Gen 1, and HDMI support, you'll enjoy versatile connectivity options that cater to all your peripheral needs. Connect your devices seamlessly and enjoy high-resolution displays without compromise.
Reliable Power Delivery: The B560M H features an efficient power design with a 6+2 phase VRM, ensuring stable performance even under heavy loads. This means you can push your system to its limits without worrying about overheating or power fluctuations.
Upgrade Your Gaming Experience: With support for Intel Optane Memory and DDR4 RAM, you can optimize your gaming experience and load times, making your gaming sessions smoother and more enjoyable. This motherboard is perfect for both casual gamers and hardcore enthusiasts.
Upgrade Your System with GIGABYTE B560M H Features
Specification
| BASIC INFORMATION | |
|---|---|
| Form Factor | Micro ATX Form Factor; 24.4cm x 22.5cm |
| SpecialFeatures | Support for APP Center @BIOS EasyTune Fast Boot Game Boost ON/OFF Charge RGB Fusion Smart Backup System Information Viewer Support for Q-Flash Plus Support for Q-Flash Support for Xpress Install |
| Chipset | Intel B560 Express Chipset |
| BIOS | 1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| Expansion Slots | |
| M.2 Socket | CPU: 1 x M.2 connector (Socket 3, M key, type 2260/ 2280 PCIe 4.0 x4/x2 SSD support) (M2P_CPU)(Note) Chipset: 1 x M.2 connector (Socket 3, M key, type 2260/ 2280 SATA and PCIe 3.0 x4/x2 SSD support) (M2A_SB) |
| PCI | 1 x PCI Express x16 slot, running at x16 (PCIEX16) (The PCIEX16 slot conforms to PCI Express 4.0 standard.)(Note) 1 x PCI Express x1 slot (PCIEX1) (The PCIEX1 slot conforms to PCI Express 3.0 standard.) |
| Memory Specifications | |
| Maximum Memory | 64 GB (32 GB single DIMM capacity) |
| Slots | 2 x DIMM |
| Supported Memory | 11th Generation Intel Core i9/ i7/ i5 processors: Support for DDR4 3200/ 3000/ 2933/ 2666/ 2400/ 2133 MHz memory modules 10th Generation Intel Core i9/i7 processors: Support for DDR4 2933/2666/2400/2133 MHz memory modules 10th Generation Intel Core i5/ i3/ Pentium/ Celeron processors: Support for DDR4 2666/2400/2133 MHz memory modules Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/ 2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/ 2Rx8/ 1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules |
| PORTS, CONNECTORS & SLOTS | |
| D-Sub (s) | 1 x D-Sub port, supporting a maximum resolution of 1920 x 1200 @60 Hz |
| HDMI | 1 x HDMI port, supporting a maximum resolution of 4096 x 2160 @30 Hz |
| Internal I/O Ports | 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 1 x system fan header 1 x addressable LED strip header 1 x RGB LED strip header 2 x M.2 Socket 3 connectors 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB 3.2 Gen 1 header 3 x USB 2.0/1.1 headers 1 x serial port header 1 x Clear CMOS jumper 1 x Q-Flash Plus button |
| LAN Port (s) | Realtek GbE LAN chip (1 Gbit/100 Mbit) |
| Supported Storage | CPU: 1 x M.2 connector (Socket 3, M key, type 2260/ 2280 PCIe 4.0 x4/x2 SSD support) (M2P_CPU)(Note) Chipset: 1 x M.2 connector (Socket 3, M key, type 2260/ 2280 SATA and PCIe 3.0 x4/ x2 SSD support) (M2A_SB) 4 x SATA 6Gb/s connectors Intel Optane Memory Ready |
| USB (s) | Chipset: 6 x USB 3.2 Gen 1 ports (4 ports on the back panel, 2 ports available through the internal USB header) Chipset + USB 2.0 Hub: 8 x USB 2.0/ 1.1 ports (2 ports on the back panel, 6 ports available through the internal USB headers) |
| WARRANTY | |
| Manufacturing Warranty | 3 year |
