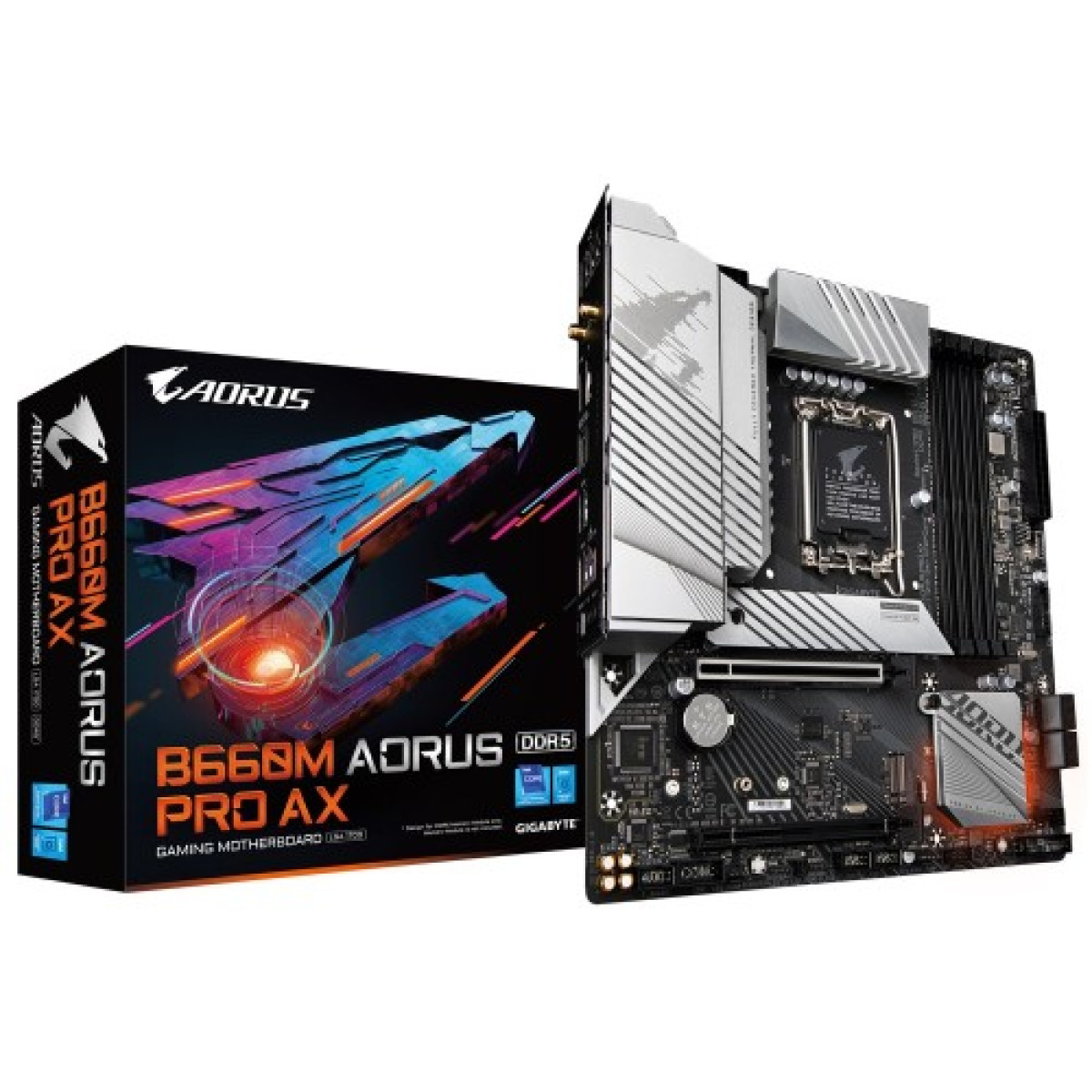

GIGABYTE B660M Aorus Pro AX DDR5 12th Gen Micro ATX Motherboard
Key highlights
- Form Factor: Micro ATX Form Factor; 24.4cm x 24.4cm
- SpecialFeatures: Support for APP Center * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. @BIOS EasyTune Fast Boot Game Boost ON/OFF Charge RGB Fusion Smart Backup System Information Viewer Support for Q-Flash Plus Support for Q-Flash Support for Xpress Install
- Supported CPU: LGA1700 socket: Support for 12th Generation Intel Core, Pentium Gold and Celeron Processors L3 cache varies with CPU
- Chipset: Intel B660 Express Chipset
- Audio: 2 x audio jacks
Description
Upgrade Your PC with GIGABYTE B660M Aorus Pro AX
Introducing the GIGABYTE B660M Aorus Pro AX DDR5 Motherboard
The GIGABYTE B660M Aorus Pro AX DDR5 Micro ATX Motherboard is a powerful and versatile solution designed for gamers and PC builders seeking performance and reliability. This motherboard is built on the Intel B660 chipset, supporting the latest 12th generation Intel processors, and is engineered to deliver an exceptional computing experience. With its robust feature set, it ensures that your system can handle everything from casual gaming to demanding productivity tasks.
Unmatched Performance: The B660M Aorus Pro AX is equipped with support for DDR5 memory, allowing for higher speeds and improved bandwidth compared to previous generations. This means faster data processing and improved overall system responsiveness, making it an ideal choice for high-performance gaming and content creation.
Advanced Connectivity Options: This motherboard features multiple M.2 slots for ultra-fast SSDs, ensuring that your storage solution can keep up with the demands of modern applications. Additionally, with PCIe 4.0 support, users can take advantage of the latest graphics cards and expansion cards, enhancing the overall performance of their PC.
Enhanced Gaming Experience: The GIGABYTE B660M Aorus Pro AX is equipped with advanced gaming features, including customizable RGB lighting, audio capacitors for superior sound quality, and reinforced PCIe slots to support heavy graphics cards. The motherboard is designed to provide an immersive gaming experience, making it perfect for gamers who demand the best.
Versatile Use Cases: Whether you are building a gaming rig, a workstation for creative tasks, or a general-purpose PC, this motherboard offers the flexibility and performance you need. Its efficient cooling solutions and durable components ensure that your system remains stable under heavy loads.
In conclusion, choosing the GIGABYTE B660M Aorus Pro AX DDR5 Micro ATX Motherboard means investing in a high-quality product that offers unmatched performance, advanced features, and a reliable experience. Don’t compromise on your build; elevate your system with this exceptional motherboard today.
Top Features of GIGABYTE B660M Aorus Pro AX for Gamers
Specification
| BASIC INFORMATION | |
|---|---|
| Form Factor | Micro ATX Form Factor; 24.4cm x 24.4cm |
| SpecialFeatures | Support for APP Center * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. @BIOS EasyTune Fast Boot Game Boost ON/OFF Charge RGB Fusion Smart Backup System Information Viewer Support for Q-Flash Plus Support for Q-Flash Support for Xpress Install |
| Supported CPU | LGA1700 socket: Support for 12th Generation Intel Core, Pentium Gold and Celeron Processors L3 cache varies with CPU |
| Chipset | Intel B660 Express Chipset |
| Audio | 2 x audio jacks |
| BIOS | 1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| Type | DDR5 |
| Connectivity | |
| HDMI | 1 x HDMI port |
| Expansion Slots | |
| PCI | 1 x PCI Express x16 slot, running at x16 (PCIEX16) * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot. (The PCIEX16 slot conforms to PCI Express 4.0 standard.) 1 x PCI Express x16 slot, running at x4 (PCIEX4) (The PCIEX4 slot conforms to PCI Express 3.0 standard.) |
| Memory Specifications | |
| Maximum Memory | up to 128 GB (32 GB single DIMM capacity) of system memory |
| Supported Memory | Support for DDR5 5600(O.C.) / 5400(O.C.) / 5200(O.C.) /4800/4000 MHz memory modules Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules |
| PORTS, CONNECTORS & SLOTS | |
| Display Port (s) | 1 x DisplayPort |
| Internal I/O Ports | 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x 4-pin ATX 12V power connector 1 x CPU fan header 1 x water cooling CPU fan header 3 x system fan headers 1 x system fan/water cooling pump header 2 x addressable LED strip headers 2 x RGB LED strip headers 2 x M.2 Socket 3 connectors 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB Type-C header, with USB 3.2 Gen 2 support 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 2 x Thunderbolt add-in card connectors 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only) 1 x serial port header 1 x reset button 1 x Q-Flash Plus button 1 x reset jumper 1 x Clear CMOS jumper |
| Supported Storage | CPU: 1 x M.2 connector (Socket 3, M key, type 2260/2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU) Chipset: 1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 PCIe 4.0 x4/x2 SSD support) (M2P_SB) 4 x SATA 6Gb/s connectors Support for SATA RAID 0, RAID 1, RAID 5, and RAID 10 Intel Optane Memory Ready |
| TPM (Trusted Platform Module ) | 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only) |
| Wireless Communication module | WIFI Module WIFI a, b, g, n, ac, ax, supporting 2.4/5 GHz Dual-Band BLUETOOTH 5.2 Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate |
| Special | |
| Bundled Software | Norton Internet Security (OEM version) cFosSpeed |
| WARRANTY | |
| Manufacturing Warranty | 3 years |
