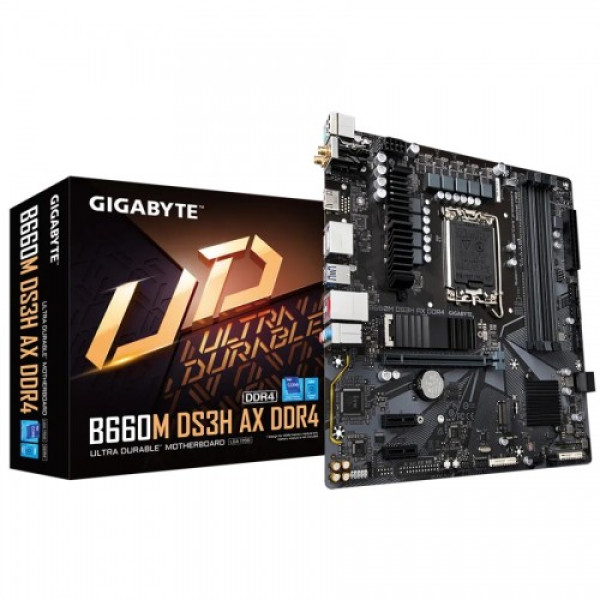

GIGABYTE B660M DS3H AX: Best Micro ATX Motherboard for 12th Gen
Key highlights
- Graphics: Integrated Graphics Processor-Intel HD Graphics support: 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz * Support for HDMI 2.1 version and HDCP 2.3. ** Support native HDMI 2.1 TMDS compatible ports. 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz * Support for DisplayPort 1.2 version and HDCP 2.3 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz * Support for DisplayPort 1.2 version. Support for up to 3 displays at the same time
- Chipset: Intel B660 Express Chipset
- Slots: 4 x DDR DIMM sockets
- Audio: Realtek Audio CODEC High Definition Audio 2/4/5.1/7.1-channel * To configure 7.1-channel audio, you need to open the audio software and select Device advanced settings > Playback Device to change the default setting first.
- BIOS: 1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Description
Upgrade Your Build with GIGABYTE B660M DS3H AX Motherboard
Unleash Your Computing Potential with GIGABYTE B660M DS3H AX DDR4 Motherboard
The GIGABYTE B660M DS3H AX DDR4 is a powerhouse designed for the 12th Generation Intel processors, offering a perfect blend of performance and efficiency. This Micro ATX motherboard is tailored for gamers and professionals in Bangladesh who seek reliability and speed. Equipped with advanced features, it supports Dual Channel DDR4 memory up to 64 GB, ensuring that multitasking and heavy applications run smoothly. Its PCIe 4.0 support allows for ultra-fast data transfer speeds, making it ideal for high-performance graphics cards and NVMe SSDs.
Connectivity is a strong point with the GIGABYTE B660M DS3H AX, featuring multiple USB ports, including USB 3.2 Gen 2. The integrated Wi-Fi 6 ensures a stable and fast internet connection, which is crucial for online gaming and streaming. Furthermore, with Smart Fan 6 technology, the motherboard guarantees optimized cooling and quiet operation, enhancing your overall computing experience.
Investing in the GIGABYTE B660M DS3H AX means choosing a product backed by GIGABYTE's renowned quality and support, ensuring that your system remains robust and future-proof.
12th Gen Performance with GIGABYTE B660M DS3H AX Features
Specification
| BASIC INFORMATION | |
|---|---|
| Graphics | Integrated Graphics Processor-Intel HD Graphics support: 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz * Support for HDMI 2.1 version and HDCP 2.3. ** Support native HDMI 2.1 TMDS compatible ports. 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz * Support for DisplayPort 1.2 version and HDCP 2.3 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz * Support for DisplayPort 1.2 version. Support for up to 3 displays at the same time |
| Chipset | Intel B660 Express Chipset |
| Slots | 4 x DDR DIMM sockets |
| Audio | Realtek Audio CODEC High Definition Audio 2/4/5.1/7.1-channel * To configure 7.1-channel audio, you need to open the audio software and select Device advanced settings > Playback Device to change the default setting first. |
| BIOS | 1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| Type | DDR4 |
| PORTS, CONNECTORS & SLOTS | |
| HDMI | 1 x HDMI port |
| Internal I/O Ports | 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 3 x system fan headers 1 x addressable LED strip header 1 x RGB LED strip header 2 x M.2 Socket 3 connectors 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only) 1 x S/PDIF Out header 1 x Q-Flash Plus button 1 x reset button 1 x reset jumper 1 x Clear CMOS jumper |
| TPM (Trusted Platform Module ) | 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only) |
| Wireless Communication module | Intel Wi-Fi 6 AX201 (For PCB rev. 1.0) WIFI a, b, g, n, ac, ax, supporting 2.4/5 GHz Dual-Band BLUETOOTH 5.2 Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate Intel Wi-Fi 6 AX200 (For PCB rev. 1.1) WIFI a, b, g, n, ac, ax, supporting 2.4/5 GHz Dual-Band BLUETOOTH 5.2 Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate Intel Wi-Fi 6E AX211 (For PCB rev. 1.2) WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands BLUETOOTH 5.2 Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate |
| Special | |
| Bundled Software | Norton Internet Security (OEM version) cFosSpeed |
| WARRANTY | |
| Manufacturing Warranty | 3 years |
