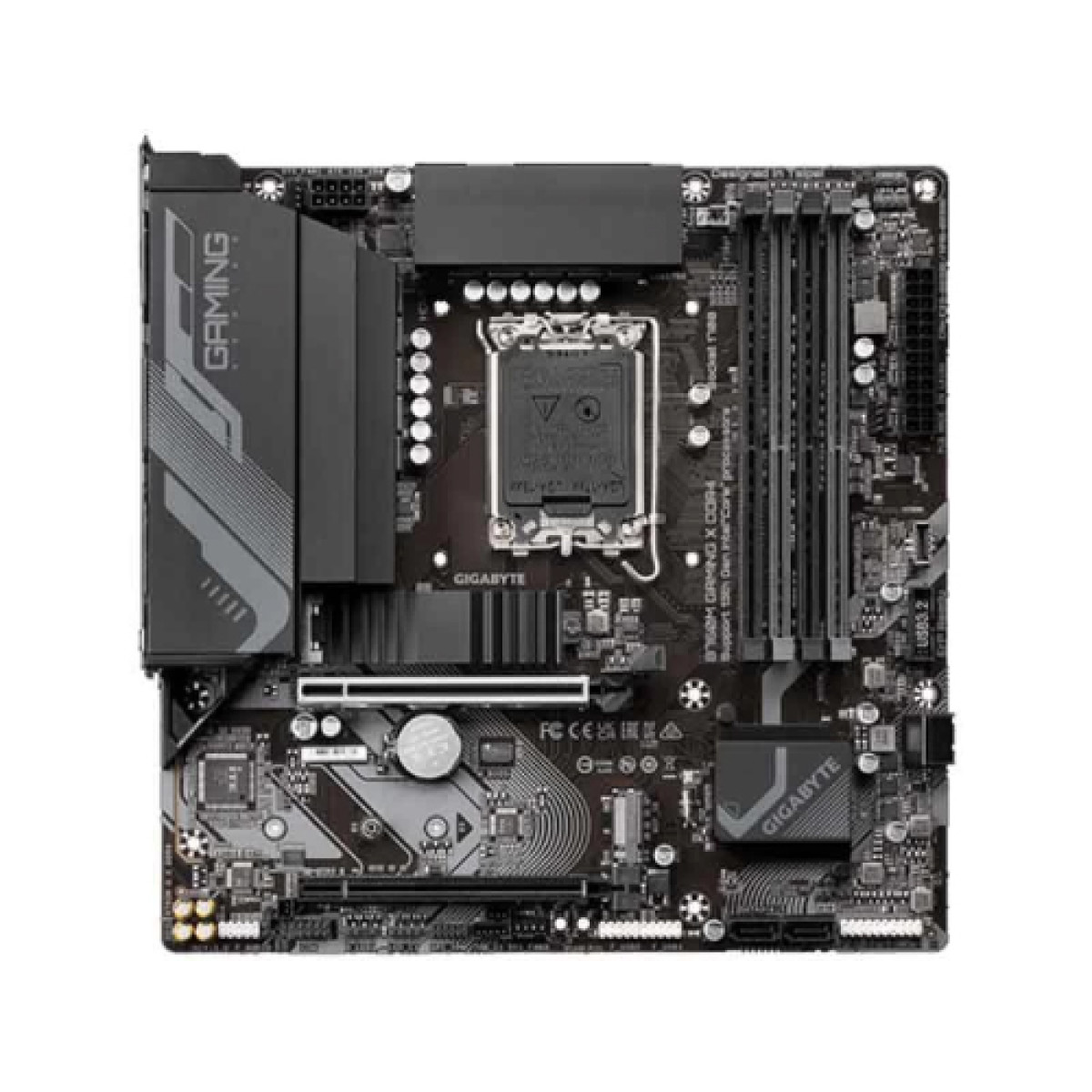

GIGABYTE B760M GAMING X DDR4 13th and 12th Gen Intel mATX Motherboard
- Brand:Gigabyte
- Product Code: B760M GAMING X DDR4
- Availability:Out of Stock
- Updated:
৳19,700
Out of Stock
Specification
| BASIC INFORMATION | |
| Form Factor | Micro ATX Form Factor; 24.4cm x 24.4cm |
|---|---|
| Supported CPU | LGA1700 socket: Support for the 13th and 12th Generation Intel Core, Pentium Gold and Celeron Processors L3 cache varies with the CPU |
| Chipset | Intel B760 Express Chipset |
| Audio | Realtek Audio CODEC High Definition Audio 2/4/5.1/7.1-channel Support for S/PDIF Out |
| BIOS | 1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| Type | DDR4 |
| Expansion Slots | |
| M.2 Socket | 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU) 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB) 4 x SATA 6Gb/s connectors |
| PCI | 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 (PCIEX16) 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x4 (PCIEX4) |
| Memory Specifications | |
| Maximum Memory | 128GB |
| Supported Memory | Support for DDR4 5333(O.C.)/ 5133(O.C.)/ 5000(O.C.)/ 4933(O.C.)/ 4800(O.C.)/ 4700(O.C.)/ 4600(O.C.)/ 4500(O.C.)/ 4400(O.C.)/ 4300(O.C.)/ 4266(O.C.)/ 4133(O.C.)/ 4000(O.C.)/ 3866(O.C.)/ 3800(O.C.)/ 3733(O.C.)/ 3666(O.C.)/ 3600(O.C.)/ 3466(O.C.)/ 3400(O.C.)/ 3333(O.C.)/ 3300(O.C.)/ 3200/ 3000/ 2933/ 2666/ 2400/ 2133 MT/s memory modules Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules |
| PORTS, CONNECTORS & SLOTS | |
| Display Port (s) | 1x DisplayPort |
| HDMI | 1x HDMI |
| Internal I/O Ports | 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 3 x system fan headers 2 x addressable LED strip headers 2 x RGB LED strip headers 2 x M.2 Socket 3 connectors 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x S/PDIF Out header 1 x USB Type-C header, with USB 3.2 Gen 2 support 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 2 x Thunderbolt add-in card connectors 1 x serial port header 1 x reset button 1 x Q-Flash Plus button 1 x reset jumper 1 x Clear CMOS jumper |
| LAN Port (s) | Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) 1 x RJ-45 port |
| TPM (Trusted Platform Module ) | 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only) |
| USB (s) | 1 x USB Type-C port with USB 3.2 Gen 2 support, available through the internal USB header 5 x USB 3.2 Gen 1 ports (3 ports on the back panel, 2 ports available through the internal USB header) 1 x USB 2.0/1.1 port on the back panel 8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers) |
Description
Unleash Your Gaming Potential with GIGABYTE B760M GAMING X
The GIGABYTE B760M GAMING X DDR4 motherboard is engineered for gamers and enthusiasts looking for a robust and reliable platform to build their systems. This mATX motherboard supports the latest 13th and 12th Gen Intel processors, offering exceptional performance and overclocking capabilities. With its advanced thermal design, you can enjoy stable performance even during intense gaming sessions. The motherboard features multiple PCIe slots for graphics cards and expansion cards, ensuring that you can upgrade your system as needed.
Key Features:
- Enhanced Durability: High-quality capacitors and solid pin power connectors ensure longevity.
- Immersive Gaming Experience: Supports high-speed DDR4 memory with overclocking options.
- Connectivity: Multiple USB ports and M.2 slots for fast data transfer and storage expansion.
Designed with gamers in mind, the GIGABYTE B760M GAMING X is the perfect choice for those who demand performance and reliability from their gaming rig.
