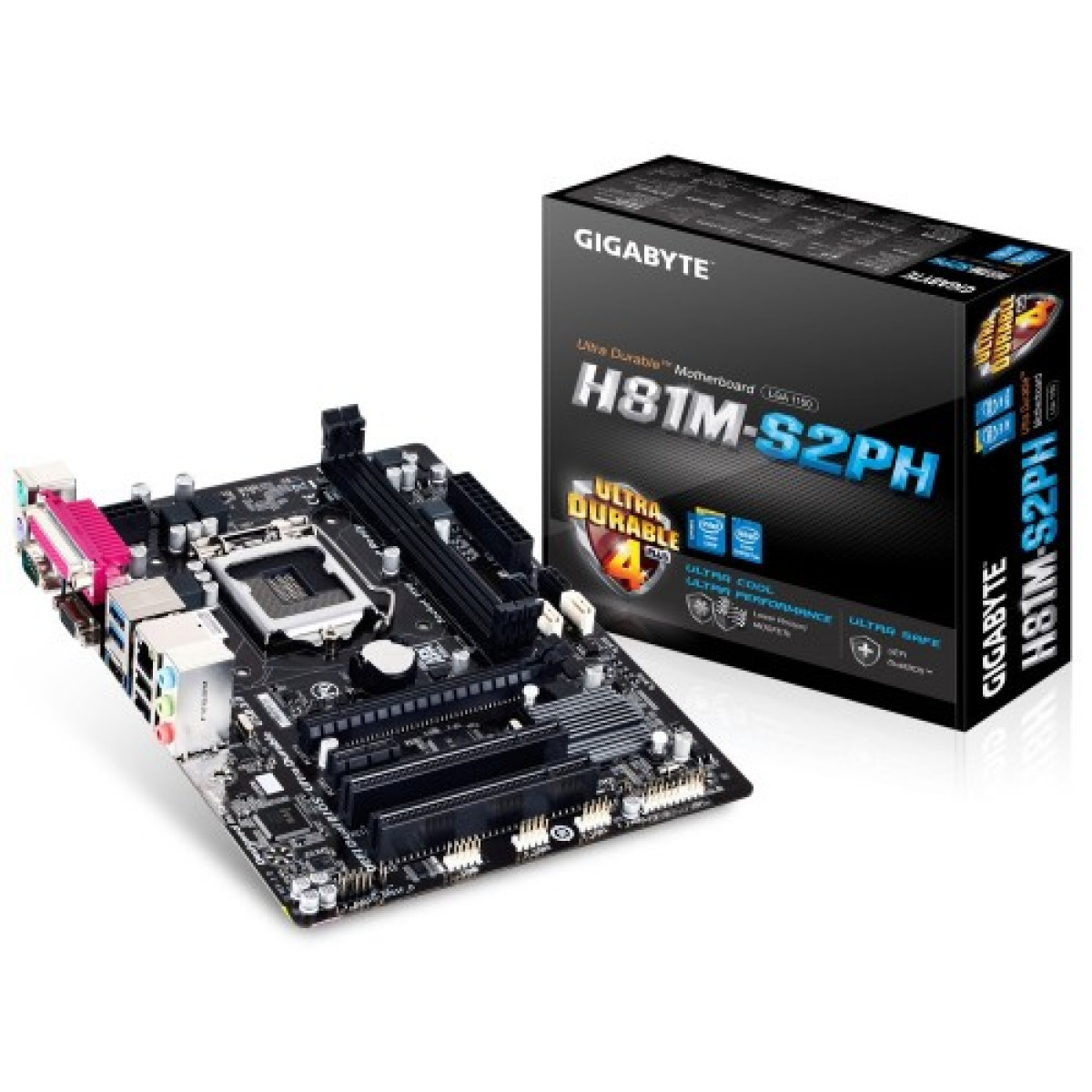

Gigabyte GA-H81M-S2PH Micro ATX Motherboard

  • Brand: Gigabyte
  • Product Code: GA-H81M-S2PH
  • Availability: Out of Stock
  • Updated:
৳7,800
Out of Stock

One email when this product is in stock again. Nothing else.

0 reviews Write a review

Share on FacebookSend in MessengerShare on TelegramShare on X (Twitter)Share by email

Specification

BASIC INFORMATION
Form FactorMicro ATX Form Factor; 24.4cm x 18.0cm
GraphicsIntegrated Graphics Processor - Intel HD Graphics support: 1 x D-Sub port, supporting a maximum resolution of 1920x1200 1 x HDMI port, supporting a maximum resolution of 4096 x 2160 @ 24 Hz / 2560 x 1600 @ 60 Hz
SpecialFeaturesSupport for Q-Flash Support for Xpress Install Support for APP Center * Available applications in APP Center may differ by motherboard model. Supported functions of each application may also differ depending on motherboard specifications. @BIOS EasyTune EZ Setup USB Blocker Support for ON/OFF Charge
Supported CPUSupport for Intel Core i7 processors/Intel Core i5 processors/Intel® Core™ i3 processors/Intel Pentium processors/Intel Celeron processors in the LGA1150 package
BIOS2 x 64 Mbit flash Use of licensed AMI EFI BIOS Support for DualBIOS™ PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
TypeDual channel memory architecture
Memory Specifications
Slots2 x 1.5V DDR3
Supported MemorySupport for DDR3 1600/1333 MHz memory modules
PORTS, CONNECTORS & SLOTS
D-Sub (s)1 x D-Sub port maximum resolution of 1920x1200
HDMI1 x HDMI port maximum resolution of 4096 x 2160 @ 24 Hz / 2560 x 1600 @ 60 Hz
Internal I/O Ports1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 2 x SATA 6Gb/s connectors 2 x SATA 3Gb/s connectors 1 x CPU fan header 1 x system fan header 1 x front panel header 1 x front panel audio header 1 x S/PDIF Out header 2 x USB 2.0/1.1 header 1 x serial port header 1 x Clear CMOS jumper
LAN Port (s)Realtek GbE LAN chip (10/100/1000 Mbit)
Supported Storage2 x SATA 6Gb/s connectors (SATA3 0/1) supporting up to 2 SATA 6Gb/s devices 2 x SATA 3Gb/s connectors (SATA2 2/3) supporting up to 2 SATA 3Gb/s devices
TPM (Trusted Platform Module )N/A
WARRANTY
Manufacturing Warranty03 Years

Description

Gigabyte GA-H81M-S2PH Micro ATX Motherboard

The Gigabyte GA-H81M-S2PH Micro ATX Motherboard is designed for the modern user seeking a balance between performance and efficiency. This motherboard supports Intel's 4th generation processors, providing a robust platform for gaming, multimedia, and everyday computing tasks. With its Micro ATX form factor, it fits perfectly in compact cases, making it an ideal choice for users with limited space.

Equipped with dual-channel DDR3 memory support, the GA-H81M-S2PH offers up to 16GB of RAM, ensuring smooth multitasking and responsive performance. The motherboard features HDMI and DVI-D video outputs, delivering stunning visuals for gaming and video playback. Additionally, it includes an Integrated Realtek ALC887 audio codec for high-definition audio, enhancing your overall multimedia experience.

This motherboard also emphasizes durability with its Ultra Durable 4 technology, which protects against humidity, high temperature, and electrostatic discharge. For connectivity, it has four SATA III ports and USB 3.0 support, allowing for fast data transfer and ample storage options. With the Gigabyte GA-H81M-S2PH, you’re not just investing in a motherboard; you're ensuring longevity and reliability for your system.
