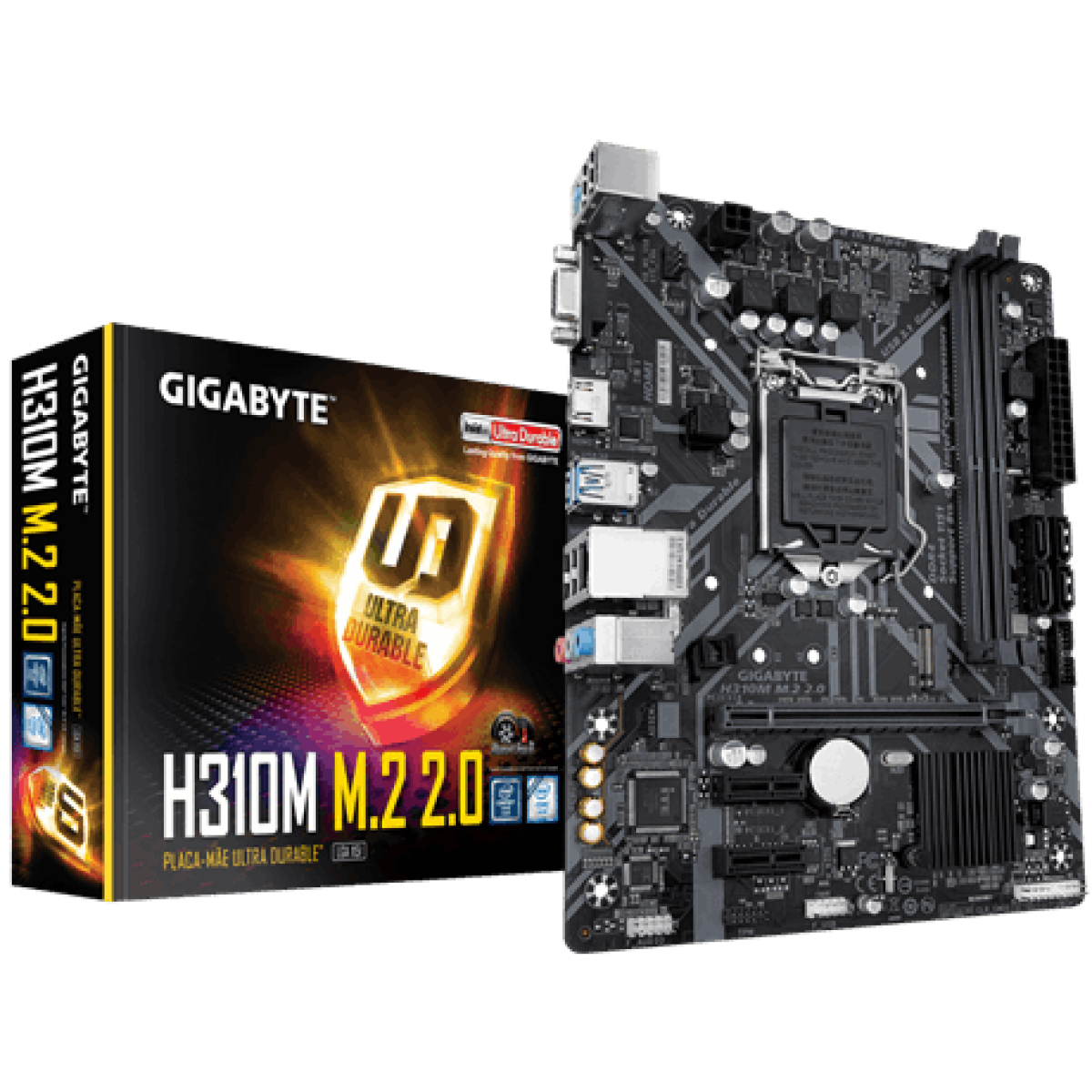

Gigabyte H310M M.2 2.0
- Brand: Gigabyte
- Product Code: M11063651
- Availability: Out of Stock
- Updated:
Specification
| BASIC INFORMATION | |
| Form Factor | Micro ATX Form Factor; 22.6cm x 17.4cm |
|---|---|
| Operating System | Support for Windows 10 64-bit |
| Processor | Support for 9th and 8th Generation Intel® Core™ i9 processors/Intel® Core™ i7 processors/Intel® Core™ i5 processors/Intel® Core™ i3 processors/Intel® Pentium® processors/Intel® Celeron® processors in the LGA1151 package L3 cache varies with CPU (Please refer "CPU Support List" for more information.) |
| Remark | Due to different Linux support condition provided by chipset vendors, please download Linux driver from chipset vendors' website or 3rd party website. Most hardware/software vendors may no longer offer drivers to support Win9X/ME/2000/XP. If drivers are available from the vendors, we will update them on the GIGABYTE website. |
| Unique Features | Support for APP Center * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. @BIOS AutoGreen Cloud Station EasyTune Fast Boot Game Boost ON/OFF Charge Platform Power Management Smart Backup Smart Keyboard System Information Viewer USB Blocker Support for Q-Flash Support for Xpress Install |
| Chipset | Intel® H310 Express Chipset |
| Memory | 2 x DDR4 DIMM sockets supporting up to 32 GB of system memory Dual channel memory architecture Support for DDR4 2666/2400/2133 MHz memory modules Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules * To support 2666 MHz or XMP memory, you must install a 9th or 8th Generation Intel® Core™ i9/i7/i5 processor. (Please refer "Memory Support List" for more information.) |
| H/W Monitoring | Voltage detection Temperature detection Fan speed detection Overheating warning Fan fail warning Fan speed control * Whether the fan speed control function is supported will depend on the cooler you install. |
| Storage | Chipset: 1 x M.2 connector (Socket 3, M key, type 2260/2280 SATA and PCIe x2 SSD support) 4 x SATA 6Gb/s connectors |
| Slots | 1 x PCI Express x16 slot, running at x16 (The PCIEX16 slot conforms to PCI Express 3.0 standard.) 2 x PCI Express x1 slots (The PCI Express x1 slots conform to PCI Express 2.0 standard.) |
| I/O Controller | iTE® I/O Controller Chip |
| Audio | Realtek® ALC887 codec High Definition Audio 2/4/5.1/7.1-channel * To configure 7.1-channel audio, you have to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver. |
| BIOS | 1 x 128 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| Back Panel Connectors | 1 x PS/2 keyboard/mouse port 1 x D-Sub port 1 x HDMI port 2 x USB 3.1 Gen 1 ports 4 x USB 2.0/1.1 ports 1 x RJ-45 port 3 x audio jacks |
| Graphics Specifications | |
| Graphics | Integrated Graphics Processor-Intel® HD Graphics support: 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz 1 x HDMI port, supporting a maximum resolution of 4096x2160@30 Hz * Support for HDMI 1.4 version and HDCP 2.2. Maximum shared memory of 1 GB |
| NETWORK & WIRELESS CONNECTIVITY | |
| LAN | Realtek® GbE LAN chip (10/100/1000 Mbit) |
| PORTS, CONNECTORS & SLOTS | |
| USB (s) | Chipset: 4 x USB 3.1 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header) 6 x USB 2.0/1.1 ports (4 ports on the back panel, 2 ports available through the internal USB header) |
| Internal I/O Connectors | 1 x 24-pin ATX main power connector 1 x 4-pin ATX 12V power connector 4 x SATA 6Gb/s connectors 1 x CPU fan header 1 x system fan header 1 x front panel header 1 x front panel audio header 1 x USB 3.1 Gen 1 header 1 x USB 2.0/1.1 header 1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only) 1 x Clear CMOS jumper |
| Special | |
| Bundled Software | Norton® Internet Security (OEM version) Realtek® 8118 Gaming LAN Bandwidth Control Utility |
| WARRANTY | |
| Manufacturing Warranty | 2 Years |
Description
Unleash Your System's Potential with the Gigabyte H310M M.2 2.0
The Gigabyte H310M M.2 2.0 motherboard is engineered for users who demand both performance and reliability in their systems. This micro ATX motherboard supports Intel's 8th and 9th generation processors, providing a robust foundation for your computing needs. With its M.2 slot, you can easily upgrade your storage to NVMe SSDs, ensuring lightning-fast data access and boot times. Whether you're a gamer, content creator, or a professional looking to build a powerful workstation, the H310M M.2 2.0 is designed to meet your needs.
This motherboard features an advanced thermal design that prevents overheating, ensuring stable performance even during intensive tasks. Its durable components, including solid capacitors and reinforced PCIe slots, guarantee longevity and reliability. The Gigabyte H310M M.2 2.0 also comes equipped with multiple USB ports, HDMI and DVI outputs, and support for dual-channel DDR4 memory, making it a versatile choice for any build.
Upgrade your PC with the Gigabyte H310M M.2 2.0 and experience the perfect balance of performance, efficiency, and value.
