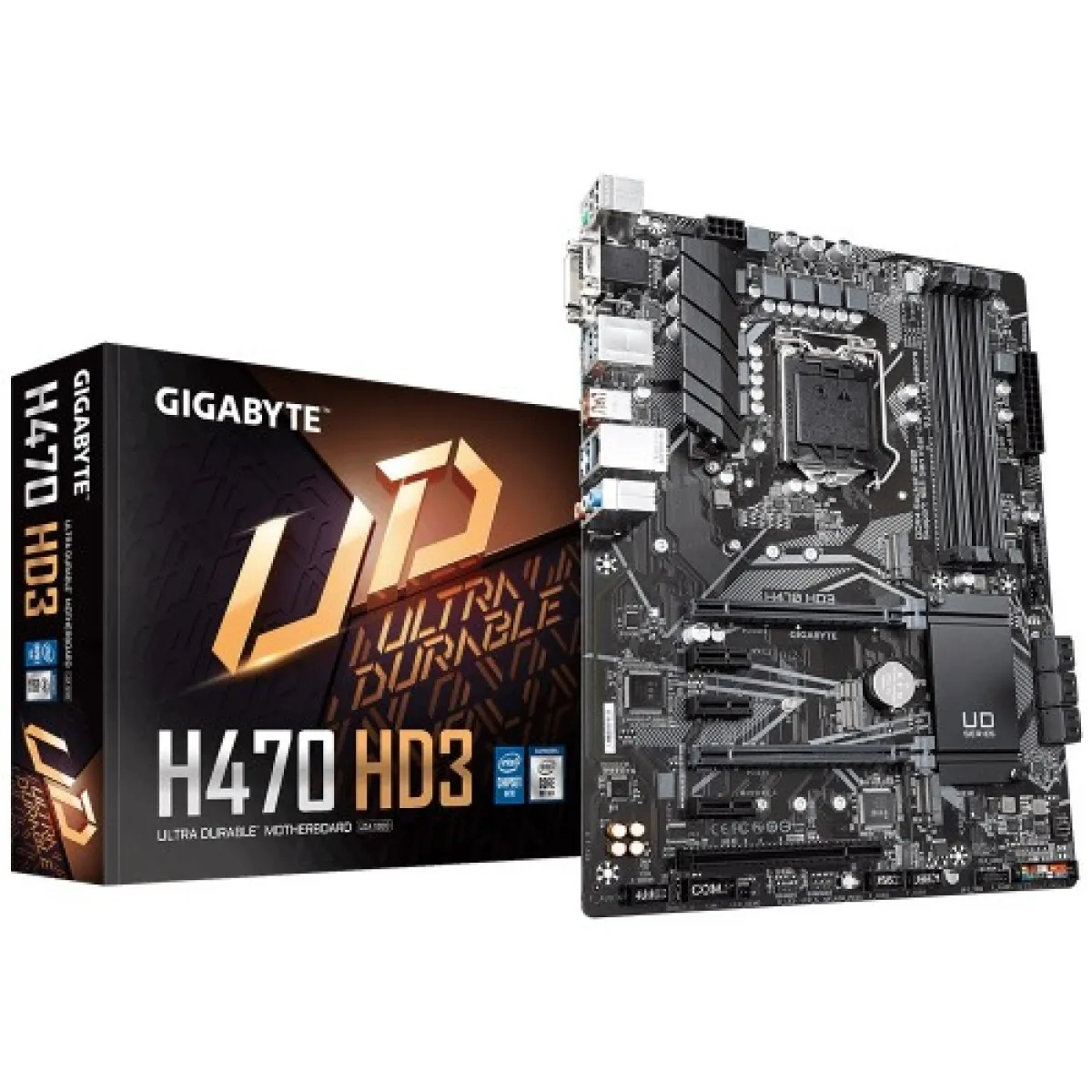

GIGABYTE H470 HD3 10th Gen Ultra Durable ATX Motherboard
Key highlights
- Form Factor: ATX Form Factor; 30.5cm x 22.5cm
- Supported CPU: Support for 10th Generation Intel Core i9 processors/Intel Core i7 processors/Intel Core i5 processors/Intel Core i3 processors/Intel Pentium processors/Intel Celeron processors in the LGA1200 package
- Chipset: Intel B470 Express Chipset
- BIOS: 1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
- M.2 Socket: 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 PCIe x4/x2 SSD support) (M2M_SB) 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe x4/x2 SSD support) (M2P_SB)
Description
Shop GIGABYTE H470 HD3 at Unix Network Jashore
Elevate Your Build with the GIGABYTE H470 HD3
The GIGABYTE H470 HD3 motherboard is designed for the modern gamer and professional alike, delivering exceptional performance and reliability for Intel's 10th generation processors. With its ultra-durable construction, this ATX motherboard ensures longevity and stability, making it a perfect choice for users in Bangladesh looking to build a high-performance PC.
Featuring dual-channel DDR4 memory support, the H470 HD3 allows for efficient multitasking and enhanced system responsiveness. The motherboard also includes multiple PCIe slots for graphics cards and expansion, enabling users to customize their setups according to their needs. Additionally, USB 3.2 Gen 2 ports provide lightning-fast data transfer speeds, essential for heavy workloads.
In terms of connectivity, the H470 HD3 boasts realtek ethernet for stable internet connections, perfect for online gaming and streaming. The motherboard also comes with a comprehensive BIOS interface for easy setup and system management. With the GIGABYTE H470 HD3, you can build a robust system that meets all your computing demands.
Explore Features of GIGABYTE H470 HD3 Motherboard
Specification
| BASIC INFORMATION | |
|---|---|
| Form Factor | ATX Form Factor; 30.5cm x 22.5cm |
| Supported CPU | Support for 10th Generation Intel Core i9 processors/Intel Core i7 processors/Intel Core i5 processors/Intel Core i3 processors/Intel Pentium processors/Intel Celeron processors in the LGA1200 package |
| Chipset | Intel B470 Express Chipset |
| BIOS | 1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| Expansion Slots | |
| M.2 Socket | 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 PCIe x4/x2 SSD support) (M2M_SB) 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe x4/x2 SSD support) (M2P_SB) |
| PCI | 1 x PCI Express x16 slot, running at x16 (PCIEX16) 1 x PCI Express x16 slot, running at x4 (PCIEX4) 3 x PCI Express x1 slots 1 x PCI slot |
| Graphics Specifications | |
| Max Shared Memory | 512MB |
| Graphics | Integrated Graphics Processor-Intel HD Graphics support: 1 x HDMI port, supporting a maximum resolution of 4096x2160@30 Hz 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz |
| Memory Specifications | |
| Maximum Size | 128 GB |
| Slots | 4 x DDR4 DIMM |
| Supported Memory | Intel Core i9/i7 processors: Support for DDR4 2933/2666/2400/2133 MHz memory modules Intel Core i5/i3/Pentium/Celeron processors: Support for DDR4 2666/2400/2133 MHz memory modules Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules |
| Type | Dual channel memory architecture |
| PORTS, CONNECTORS & SLOTS | |
| Audio Jack Combo | Realtek ALC887 codec High Definition Audio 2/4/5.1/7.1-channel Support for S/PDIF Out |
| D-Sub (s) | 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz |
| DVI-D (s) | 1 x DVI-D port, supporting a maximum resolution of 1920x1200@60 Hz |
| HDMI | 1 x HDMI port, supporting a maximum resolution of 4096x2160@30 Hz |
| LAN Port (s) | Intel GbE LAN chip (1000 Mbit/100 Mbit) |
| Supported Storage | 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 PCIe x4/x2 SSD support) (M2M_SB) 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe x4/x2 SSD support) (M2P_SB) 6 x SATA 6Gb/s connectors Support for RAID 0, RAID 1, RAID 5, and RAID 10 Intel Optane Memory Ready |
| USB (s) | 1 x USB Type-C port on the back panel, with USB 3.2 Gen 2 support 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel 6 x USB 3.2 Gen 1 ports (4 ports on the back panel, 2 ports available through the internal USB header) 2 x USB 2.0/1.1 ports on the back panel Chipset+USB 2.0 Hub: 4 x USB 2.0/1.1 ports available through the internal USB headers |
| Internal I/O Connectors | 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 3 x system fan headers 1 x addressable LED strip header 1 x RGB LED strip header 6 x SATA 6Gb/s connectors 2 x M.2 Socket 3 connectors 1 x front panel header 1 x front panel audio header 1 x S/PDIF Out header 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 2 x Thunderbolt add-in card connectors 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only) 1 x serial port header 1 x Clear CMOS jumper 1 x Q-Flash Plus button |
| Special | |
| Special Feature | Support for APP Center: @BIOS EasyTune Fast Boot Game Boost ON/OFF Charge RGB Fusion Smart Backup System Information Viewer Support for Q-Flash Plus Support for Q-Flash Support for Xpress Install |
| WARRANTY | |
| Manufacturing Warranty | 03 Years |
