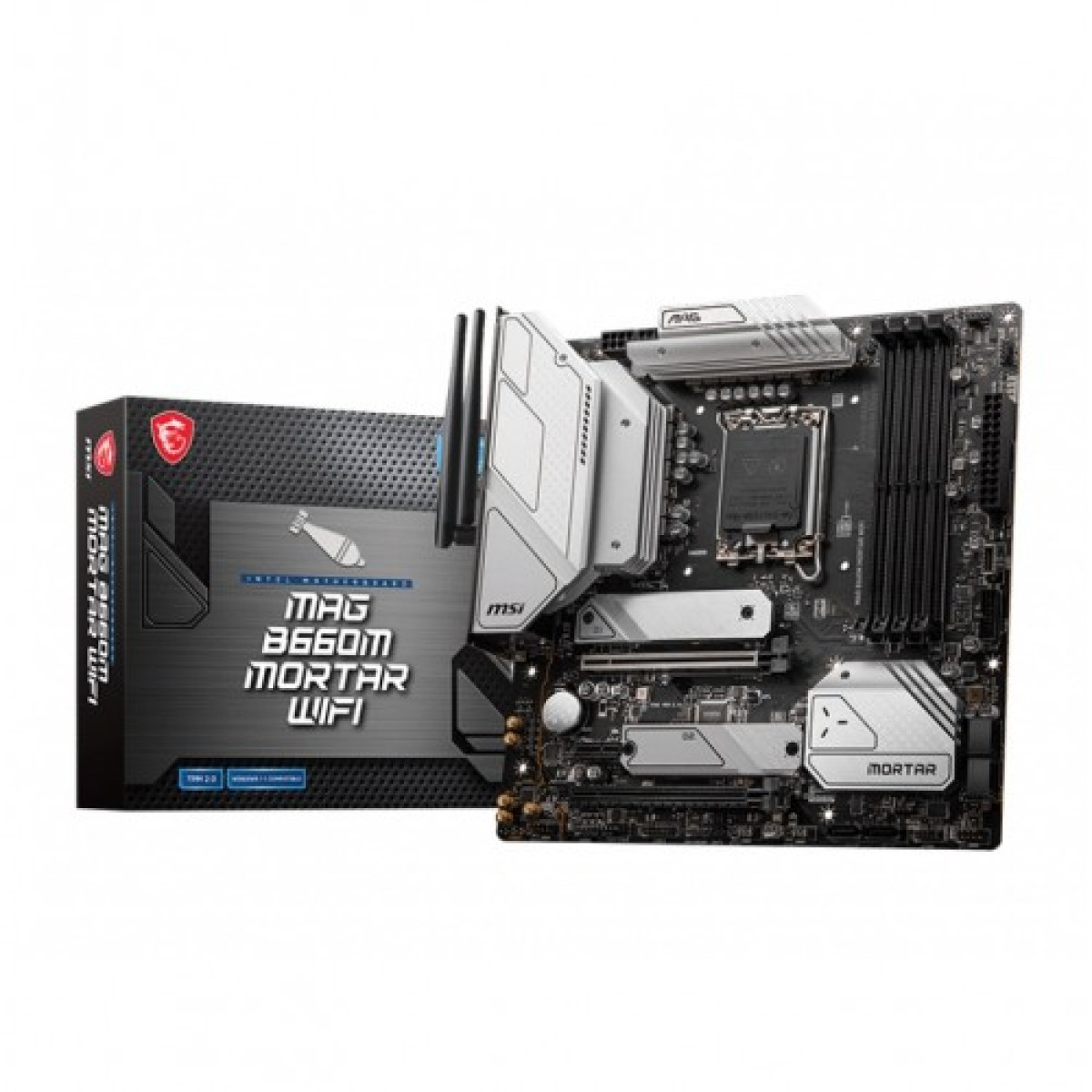

MSI MAG B660M MORTAR WIFI DDR5 12th Gen Micro-ATX Motherboard
৳23,700
Key highlights
- Form Factor: Micro-ATX Form Factor 9.6 in. x 9.6 in. (24.4 cm x 24.4 cm)
- Graphics: 1x HDMI 2.1 with HDR port, supports a maximum resolution of 4K 60Hz 1x DisplayPort 1.4 port with HBR3, supports a maximum resolution of 4K 60Hz
- SpecialFeatures: 4x EZ Debug LED 1x 4-pin RGB LED connector 2x 3-pin RAINBOW LED connectors
- Chipset: Intel B660 Chipset
- Audio: Realtek ALC1200 Codec 7.1-Channel High Definition Audio Supports S/PDIF output
Description
Get the Best Deals on MSI MAG B660M Motherboard
Experience Unmatched Performance with MSI MAG B660M MORTAR WIFI DDR5
Upgrade your PC setup with the MSI MAG B660M MORTAR WIFI DDR5 motherboard, designed specifically for the 12th generation Intel processors. This Micro-ATX motherboard is perfect for gamers and professionals alike, combining cutting-edge technology with user-friendly features. With support for DDR5 memory, you can enjoy faster speeds and improved efficiency, ensuring your system runs smoothly even during the most demanding tasks.
Connectivity is a key feature of this motherboard, offering built-in Wi-Fi 6 and Bluetooth 5.2 for seamless networking. Say goodbye to laggy connections and enjoy faster online gaming, streaming, and downloads. Additionally, the dual M.2 slots and multiple USB ports provide ample expansion options for your storage and peripherals.
With a robust cooling system, the MSI MAG B660M MORTAR WIFI ensures that your components stay cool under pressure. The premium thermal pads and multiple fan headers allow for optimal airflow management, which is essential for maintaining high performance during intense gaming sessions.
Designed for durability, this motherboard features high-quality capacitors and a sturdy PCB to withstand the rigors of daily use. Invest in a motherboard that not only meets your current needs but also prepares you for the future of computing.
High Performance Micro-ATX Motherboard for Gamers
Specification
| BASIC INFORMATION | |
|---|---|
| Form Factor | Micro-ATX Form Factor 9.6 in. x 9.6 in. (24.4 cm x 24.4 cm) |
| Graphics | 1x HDMI 2.1 with HDR port, supports a maximum resolution of 4K 60Hz 1x DisplayPort 1.4 port with HBR3, supports a maximum resolution of 4K 60Hz |
| SpecialFeatures | 4x EZ Debug LED 1x 4-pin RGB LED connector 2x 3-pin RAINBOW LED connectors |
| Chipset | Intel B660 Chipset |
| Audio | Realtek ALC1200 Codec 7.1-Channel High Definition Audio Supports S/PDIF output |
| Expansion Slots | |
| PCI | 2x PCIe x16 slots PCI_E1 slot (From CPU) Supports PCIe 4.0 x16 PCI_E3 slot (From B660 Chipset) Supports PCIe 3.0 x4 1x PCIe 3.0 x1 slot |
| Memory Specifications | |
| Maximum Memory | support up to 128GB |
| Slots | 4x DDR5 memory slots |
| PORTS, CONNECTORS & SLOTS | |
| Display Port (s) | DisplayPort 1.4 (BACK PANEL PORTS) |
| HDMI | HDMI 2.1 Port (BACK PANEL PORTS) |
| Internal I/O Ports | INTERNAL CONNECTORS: 1x 24-pin ATX main power connector 2x 8-pin ATX 12V power connectors 6x SATA 6Gb/s connectors 2x M.2 slots (M-Key) 1x USB 3.2 Gen 2 10Gbps Type-C connector 1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports) 2x USB 2.0 Type-A connectors (supports additional 4 USB 2.0 ports) 1x 4-pin CPU fan connector 1x 4-pin water-pump fan connector 2x 4-pin system fan connectors 1x Front panel audio connector 2x System panel connectors 1x Chassis Intrusion connector 1x Clear CMOS jumper 1x TBT connector (supports RTD3) 1x Tuning Controller connector BACK PANEL PORTS: USB 2.0 Port DisplayPort 1.4 USB 3.2 Gen 2 10Gbps Type-A 2.5G LAN Port Wi-Fi / Bluetooth Antenna HD Audio Connectors HDMI 2.1 Port USB 3.2 Gen 2x2 20Gbps Type-C Optical S/PDIF OUT |
| LAN Port (s) | 1x Realtek 8125BG 2.5Gbps LAN controller |
| Supported Storage | 4x SATA 6Gb/s ports (SATA5~8, from B660 Chipset) 2x SATA 6Gb/s ports (SATA_A & SATA_B, from ASMedia ASM1061) 2x M.2 slots (Key M) M2_1 slot (From CPU) Supports PCIe 4.0 x4 Supports 2242/ 2260/ 2280 storage devices M2_2 slot (From B660 Chipset) Supports PCIe 4.0 x4 Supports SATA 6Gb/s Supports 2242/ 2260/ 2280 storage devices Supports Intel Optane Memory |
| USB (s) | Intel B660 Chipset 1x USB 3.2 Gen2x2 20Gbps Type-C port on the back panel 1x USB 3.2 Gen 2 10Gbps Type-C port available through the internal connector 2x USB 3.2 Gen 1 5Gbps ports available through the internal connector 4x USB 2.0 ports on the back panel USB Hub-GL3590 3x USB 3.2 Gen 2 10Gbps Type-A ports on the back panel USB Hub-GL850G 4x USB 2.0 ports available through internal connectors |
| Wireless Communication module | Intel Wi-Fi 6E The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz1 (160MHz) up to 2.4Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax Supports Bluetooth 5.22, FIPS, FISMA |
