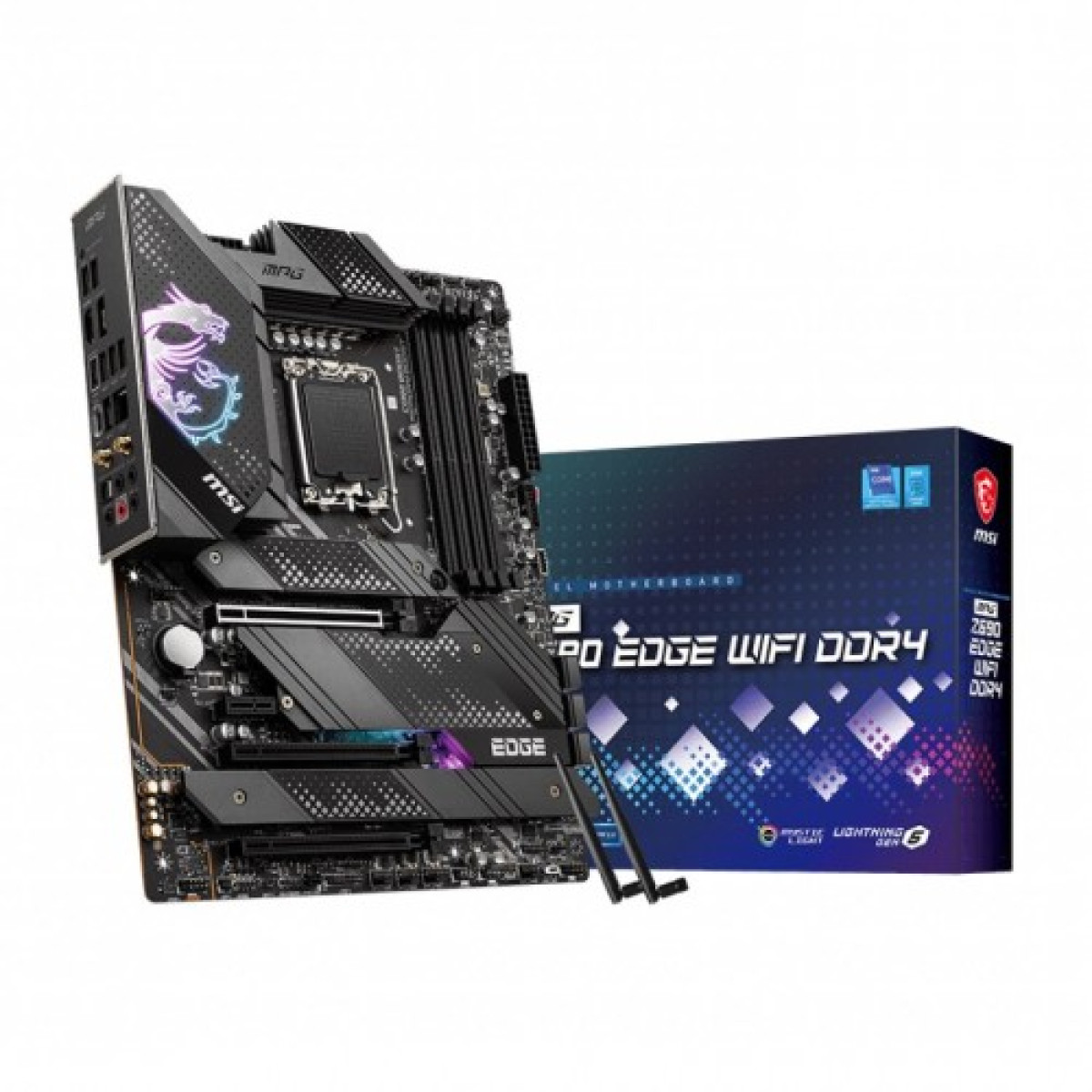

MSI MPG Z690 EDGE WIFI DDR4 12th Gen ATX Motherboard
Key highlights
- Form Factor: ATX Form Factor 12 in. x 9.6 in. (30.5 cm x 24.4 cm)
- Chipset: Intel Z690 Chipset
- Type: DDR4
- Supported Memory: Supports 1R 2133/ 2666/ 2933/ 3200 MHz (by JEDEC & POR)1 Max. overclocking frequency: 1DPC 1R Max speed up to 5200+ MHz 1DPC 2R Max speed up to 4800+ MHz 2DPC 1R Max speed up to 4400+ MHz 2DPC 2R Max speed up to 4000+ MHz Supports Dual-Channel mode Supports non-ECC, un-buffered memory Supports Intel Extreme Memory Profile (XMP)
- Display Port (s): 1x DisplayPort 1.4 with HBR3
Description
High-Performance ATX Motherboard for 12th Gen Intel CPUs
Unleash Your Gaming Potential with MSI MPG Z690 EDGE WIFI
The MSI MPG Z690 EDGE WIFI DDR4 motherboard is engineered for gamers and content creators seeking high performance and reliability. Built on the LGA 1700 socket, this ATX motherboard supports Intel's 12th generation processors, delivering exceptional speed and efficiency. With advanced thermal solutions and a sleek design, it not only looks great but also keeps your system cool during intense gaming sessions.
Features like Wi-Fi 6E ensure that you stay connected with lightning-fast internet speeds, while multiple M.2 slots provide ample storage options for your games and applications. The motherboard is equipped with DDR4 memory support for up to 128GB, allowing seamless multitasking and improved performance in demanding applications.
Additionally, the robust power delivery system ensures stable performance even during overclocking. The RGB Mystic Light feature offers customizable lighting effects, enhancing your gaming setup's aesthetics. Choose the MSI MPG Z690 EDGE WIFI motherboard and elevate your gaming experience to new heights!
MSI MPG Z690 EDGE WIFI Features and Specifications
Specification
| BASIC INFORMATION | |
|---|---|
| Form Factor | ATX Form Factor 12 in. x 9.6 in. (30.5 cm x 24.4 cm) |
| Chipset | Intel Z690 Chipset |
| Type | DDR4 |
| Memory Specifications | |
| Supported Memory | Supports 1R 2133/ 2666/ 2933/ 3200 MHz (by JEDEC & POR)1 Max. overclocking frequency: 1DPC 1R Max speed up to 5200+ MHz 1DPC 2R Max speed up to 4800+ MHz 2DPC 1R Max speed up to 4400+ MHz 2DPC 2R Max speed up to 4000+ MHz Supports Dual-Channel mode Supports non-ECC, un-buffered memory Supports Intel Extreme Memory Profile (XMP) |
| PORTS, CONNECTORS & SLOTS | |
| Display Port (s) | 1x DisplayPort 1.4 with HBR3 |
| HDMI | 1x HDMI 2.1 with HDR port |
| Supported Storage | 6x SATA 6Gb/s ports SATA5~8 (From Z690 Chipset) SATAA~B (From ASMedia ASM1061) 2 x SATA 6Gb/s ports - SATAA & SATAB (From ASMedia ASM1061) 4x M.2 slots (Key M) M2_1 slot (From CPU) Supports PCIe 4.0 x4 Supports 2260/ 2280/ 22110 storage devices M2_2 slot (From Z690 Chipset) Supports PCIe 4.0 x4 Supports 2260/ 2280 storage devices M2_3 slot (From Z690 Chipset) Supports PCIe 4.0 x4 Supports SATA 6Gb/s Supports 2242/ 2260/ 2280 storage devices M2_4 slot (From Z690 Chipset) Supports PCIe 4.0 x4 Supports SATA 6Gb/s Supports 2242/ 2260/ 2280 storage devices M2_2~4 support Intel Optane Memory Supports Intel Smart Response Technology for Intel Core processors Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices Supports RAID 0, RAID 1 , RAID 5 and RAID 10 for M.2 NVMe storage devices |
| USB (s) | Intel Z690 Chipset 1x USB 3.2 Gen 2x2 20Gbps Type-C port on the back panel 6x USB 3.2 Gen 2 10Gbps ports (1 Type-C internal connector and 5 Type-A ports on the back panel) 2x USB 2.0 Type-A ports on the back panel 2x USB 3.2 Gen 1 5Gbps ports available through the internal USB connector USB Hub-GL850G 4x USB 2.0 ports available through internal connectors |
| Wireless Communication module | Intel Wi-Fi 6 The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz (160MHz) up to 2.4Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax Supports Bluetooth 5.2 |
| WARRANTY | |
| Manufacturing Warranty | 3 years |
