Specification
| BASIC INFORMATION | |
| Form Factor | ATX Form Factor; 30.5cm x 24.4cm |
| Supported CPU | AMD Socket AM5, support for: AMD Ryzen 9000, 8000, 7000 Series Processors |
| Chipset | AMD X870E |
| Slots | 4 DIMMs |
| Audio | Realtek ALC1220 CODEC * The back panel line out jack supports DSD audio. High Definition Audio 2/4/5.1/7.1-channel * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings. |
| BIOS | 1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| Expansion Slots | |
| PCI | 1 x PCI Express x16 slot (PCIEX16), integrated in the CPU: AMD Ryzen™ 9000/7000 Series Processors support PCIe 5.0 x16 mode * The M2B_CPU and M2C_CPU connectors share bandwidth with the PCIEX16 slot. When the M2B_CPU or M2C_CPU connector is populated, the PCIEX16 slot operates at up to x8 mode. AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode (The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot.) Chipset: - 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4_1) - 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x4 (PCIEX4_2) |
| Graphics Specifications | |
| Graphics | Integrated Graphics Processor: 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz * Support for HDMI 2.1 version and HDCP 2.3. ** Support native HDMI 2.1 TMDS compatible ports. |
| Memory Specifications | |
| Maximum Memory | up to 256 GB (64 GB single DIMM capacity) of system memory |
| Supported Memory | Support for DDR5 8000(OC) / 7800(OC) / 7600(OC) / 7200(OC) / 7000(OC) / 6800(OC) / 6666(OC) / 6600(OC) / 6400(OC) /6200(OC) / 6000(OC) / 5600(OC) / 5200 / 4800 / 4400 MT/s memory modules 4 x DDR5 DIMM sockets Dual channel memory architecture Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for AMD EXtended Profiles for Overclocking (AMD EXPO) and Extreme Memory Profile (XMP) memory modules (The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" on GIGABYTE's website for more information.) |
| Type | DDR5 |
| PORTS, CONNECTORS & SLOTS | |
| HDMI | 1 x HDMI port |
| Internal I/O Ports | 1 x 24-pin ATX main power connector 2 x 8-pin ATX 12V power connectors 1 x CPU fan header 1 x CPU fan/water cooling pump header 3 x system fan headers 1 x system fan/water cooling pump header 3 x addressable RGB Gen2 LED strip headers 1 x RGB LED strip header 4 x M.2 Socket 3 connectors 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB Type-C® header, with USB 3.2 Gen 2x2 support 2 x USB 3.2 Gen 1 headers 2 x USB 2.0/1.1 headers 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only) 1 x HDMI port (Note) 1 x power button 1 x reset button 1 x reset jumper 1 x Clear CMOS jumper Back Panel Connectors 1 x Q-Flash Plus button 4 x USB 2.0/1.1 ports 4 x USB 3.2 Gen 1 ports 1 x HDMI port (Note) 2 x USB4® USB Type-C® ports (DisplayPort (Note)) 1 x RJ-45 port 2 x USB 3.2 Gen 2 Type-A ports (red) 2 x antenna connectors (2T2R) 2 x audio jacks 1 x optical S/PDIF Out connector |
| LAN Port (s) | Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) |
| Supported Storage | 1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 25110/22110/2580/2280 SSDs: AMD Ryzen™ 9000/7000 Series Processors support PCIe 5.0 x4/x2 SSDs AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs 2 x M.2 connectors (M2B_CPU, M2C_CPU), integrated in the CPU, supporting Socket 3, M key, type 22110/2280 SSDs: AMD Ryzen™ 9000/7000 Series Processors support PCIe 5.0 x4/x2 SSDs * The M2B_CPU and M2C_CPU connectors become unavailable when an AMD Ryzen™ 8000 Series-Phoenix 1/Phoenix 2 processor is used. 1 x M.2 connector (M2D_SB), integrated in the Chipset, supporting Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSDs 4 x SATA 6Gb/s connectors |
| TPM (Trusted Platform Module ) | 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only) |
| USB (s) | CPU+ASMedia USB4® controller: - 2 x USB4® USB Type-C® ports on the back panel CPU: - 1 x USB 3.2 Gen 1 port on the back panel Chipset: - 1 x USB Type-C® port with USB 3.2 Gen 2x2 support, available through the internal USB header - 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel - 7 x USB 3.2 Gen 1 ports (3 ports on the back panel, 4 ports available through the internal USB headers) - 8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers) |
| Wireless Communication module | MediaTek Wi-Fi 7 MT7925 (PCB rev. 1.0) - WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands - BLUETOOTH 5.4 - Support for 11be 160MHz wireless standard Realtek Wi-Fi 7 RTL8922AE (PCB rev. 1.1) - WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands - BLUETOOTH 5.4 - Support for 11be 160MHz wireless standard |
| Special | |
| Bundled Software | Norton Internet Security (OEM version) LAN bandwidth management software |
| WARRANTY | |
| Manufacturing Warranty | 3 Years |
Description
sophisticated, and informative

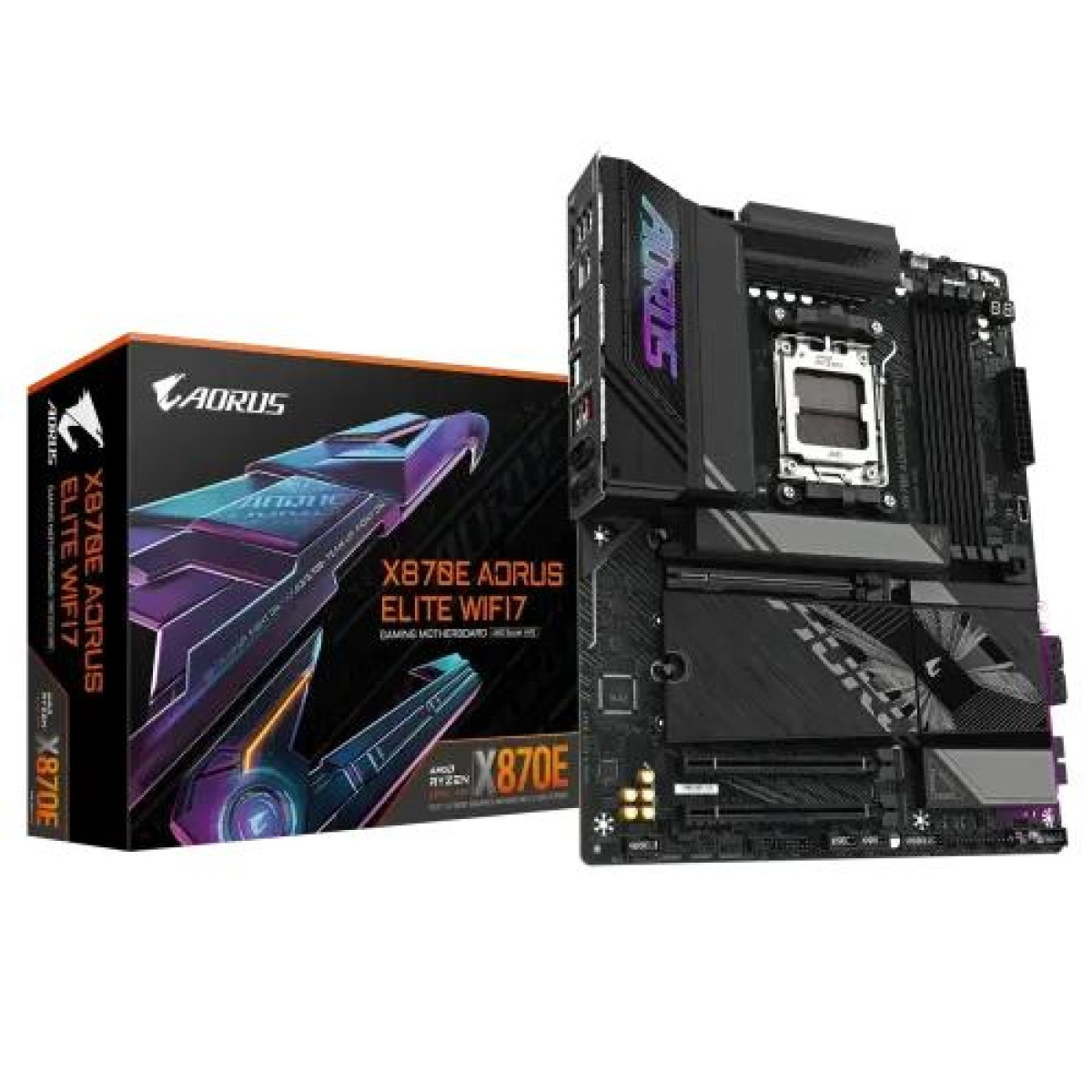

Looking for a high-performance motherboard to take your computing experience to the next level? Look no further than the GIGABYTE X870E AORUS ELITE WIFI7 DDR5 AMD AM5 ATX Motherboard. Designed with cutting-edge technology and top-tier quality, this motherboard is perfect for computer users and students alike who demand the best in speed and performance.
Featuring support for the latest AMD AM5 processors, the GIGABYTE X870E AORUS ELITE WIFI7 DDR5 motherboard offers unparalleled power and efficiency. Whether you're tackling demanding workloads, gaming at the highest settings, or simply multitasking with ease, this motherboard can handle it all with ease.
Quality is at the forefront of the design of the GIGABYTE X870E AORUS ELITE WIFI7 DDR5 motherboard. Built with durable components and strict quality control measures, this motherboard is built to last. You can trust that your investment will provide reliable performance for years to come.
Speed is also a key feature of the GIGABYTE X870E AORUS ELITE WIFI7 DDR5 motherboard. With support for DDR5 memory and PCIe 5.0, you can experience lightning-fast data transfer speeds and seamless multitasking capabilities. Say goodbye to lag and hello to smooth, efficient computing.
Whether you're a student looking for a reliable motherboard for your studies or a computer user who demands top-tier performance, the GIGABYTE X870E AORUS ELITE WIFI7 DDR5 AMD AM5 ATX Motherboard is the perfect choice. Upgrade your computing experience today with this exceptional motherboard from Unix Network, your trusted source for quality products in Jashore, Bangladesh.
If you're in the market for a high-quality, performance-driven motherboard that is designed for speed and reliability, look no further than the GIGABYTE X870E AORUS ELITE WIFI7 DDR5 AMD AM5 ATX Motherboard. This cutting-edge motherboard from GIGABYTE is the perfect choice for computer users and students who demand nothing but the best when it comes to their system.
Featuring the latest DDR5 memory technology, the GIGABYTE X870E AORUS ELITE WIFI7 is built to deliver unrivaled speed and performance. Whether you're a gamer, content creator, or power user, this motherboard will provide you with the power and efficiency you need to tackle any task with ease. With AMD AM5 compatibility, you can rest assured that you're getting a motherboard that is designed to work seamlessly with the latest processors from AMD.
The GIGABYTE X870E AORUS ELITE WIFI7 is built to last, with high-quality components and a durable design that will stand the test of time. This motherboard is packed with features that will take your computing experience to the next level, including dual M.2 slots for lightning-fast storage, USB 3.2 Gen2 ports for quick data transfers, and integrated Wi-Fi for easy wireless connectivity.
At Unix Network in Jashore, Bangladesh, we are proud to offer the GIGABYTE X870E AORUS ELITE WIFI7 DDR5 AMD AM5 ATX Motherboard to our customers. Our team of experts is dedicated to providing top-notch sales and service, ensuring that you get the support you need to make the most of your new motherboard. Don't settle for anything less than the best – choose the GIGABYTE X870E AORUS ELITE WIFI7 and experience the ultimate in performance and reliability.
