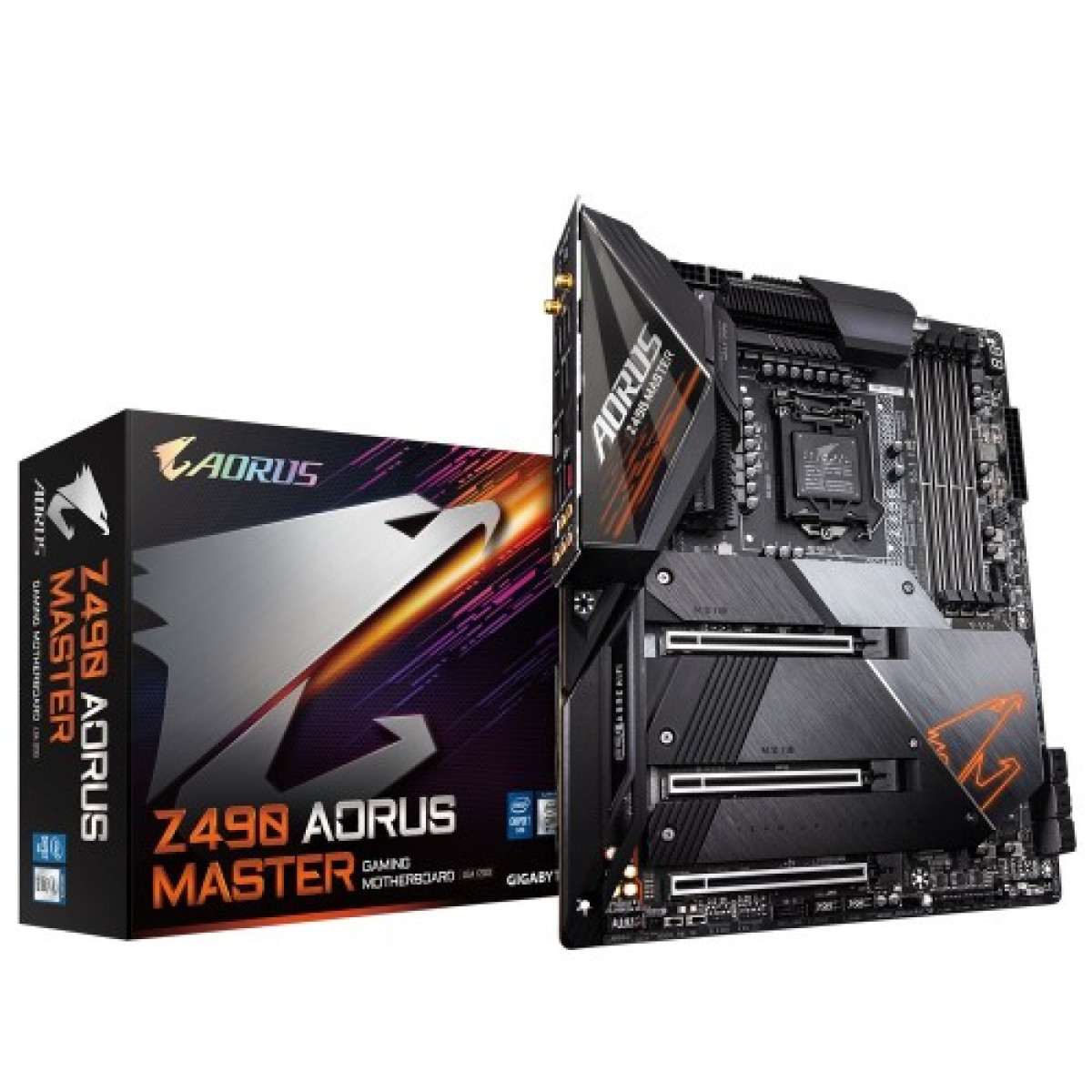

Gigabyte Z490 Aorus Master 10th Gen WiFi ATX Motherboard
Key highlights
- Form Factor: ATX Form Factor; 30.5cm x 24.4cm
- Supported CPU: Support for 10th Generation Intel Core i9 processors/Intel Core i7 processors/Intel Core i5 processors/Intel Core i3 processors/Intel Pentium processors/Intel Celeron processors in the LGA1200 package
- Chipset: Intel Z490 Express Chipset
- Memory: 128 GB
- Slots: 4 x DDR4 DIMM
Description
High-Performance ATX Motherboard with WiFi Support
Unleash the Power of Gaming with Gigabyte Z490 Aorus Master
The Gigabyte Z490 Aorus Master motherboard is a top-tier choice for gamers and PC enthusiasts seeking cutting-edge performance. Built on the Intel Z490 chipset, this ATX motherboard is designed to support 10th Gen Intel Core processors, ensuring lightning-fast speeds and exceptional multitasking capabilities. With its robust power delivery system, featuring a 12+1 phase digital VRM, you can push your CPU to its limits without compromising on stability.
Equipped with WiFi 6 technology, the Z490 Aorus Master offers ultra-fast wireless connectivity, perfect for online gaming and HD streaming. The integrated Dual Channel DDR4 memory can reach speeds of up to 4800 MHz, allowing for seamless performance during demanding tasks. Additionally, the motherboard features three PCIe 3.0 x16 slots, providing ample options for expansion with high-performance GPUs.
The advanced thermal design, including a sophisticated heatsink and Smart Fan 5 technology, ensures optimal cooling for your components. With multiple M.2 slots supporting NVMe SSDs, you'll experience significantly reduced load times and improved system responsiveness. The Aorus Master also includes customizable RGB Fusion 2.0 lighting, enhancing the aesthetic appeal of your build.
Choose the Gigabyte Z490 Aorus Master for its unmatched performance, reliability, and stunning visuals, making it the ideal choice for gamers and content creators alike.
Upgrade Your Build with Gigabyte Z490 Aorus Master
Specification
| BASIC INFORMATION | |
|---|---|
| Form Factor | ATX Form Factor; 30.5cm x 24.4cm |
| Supported CPU | Support for 10th Generation Intel Core i9 processors/Intel Core i7 processors/Intel Core i5 processors/Intel Core i3 processors/Intel Pentium processors/Intel Celeron processors in the LGA1200 package |
| Chipset | Intel Z490 Express Chipset |
| Memory | 128 GB |
| Slots | 4 x DDR4 DIMM |
| Audio | Realtek ALC1220-VB codec ESS ES9118EQ DAC chip Support for DTS:X Ultra High Definition Audio 2/4/5.1/7.1-channel Support for S/PDIF Out |
| BIOS | 2 x 256 Mbit flash Use of licensed AMI UEFI BIOS Support for DualBIOS™ PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| Expansion Slots | |
| M.2 Socket | 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 PCIe x4/x2 SSD support) (M2P_SB) 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe x4/x2 SSD support) (M2A_CPU) 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe x4/x2 SSD support) (M2M_SB) |
| PCI | 1 x PCI Express x16 slot, running at x16 (PCIEX16) 1 x PCI Express x16 slot, running at x8 (PCIEX8) 1 x PCI Express x16 slot, running at x4 (PCIEX4) |
| Graphics Specifications | |
| Max Shared Memory | 512MB |
| Graphics | Integrated Graphics Processor-Intel HD Graphics support: 1 x HDMI port, supporting a maximum resolution of 4096x2160@30 Hz Support for NVIDIA Quad-GPU SLI and 2-Way NVIDIA SLI technologies Support for AMD Quad-GPU CrossFire and 2-Way AMD CrossFire technologies |
| Memory Specifications | |
| Supported Memory | Intel Core i9/i7 processors: Support for DDR4 5000(O.C.)/ 4933(O.C.)/ 4800(O.C.)/ 4700(O.C.)/ 4600(O.C.)/ 4500(O.C.)/ 4400(O.C.)/ 4300(O.C.)/ 4266(O.C.)/ 4133(O.C.)/ 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.)/ 3200(O.C.)/ 3000(O.C.) / 2933 / 2800 / 2666 / 2400 / 2133 MHz Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules |
| Type | Dual channel memory architecture |
| PORTS, CONNECTORS & SLOTS | |
| HDMI | 1 x HDMI port, supporting a maximum resolution of 4096x2160@30 Hz |
| LAN Port (s) | Intel 2.5GbE LAN chip (2.5 Gbit/1 Gbit/100 Mbit) Intel Wi-Fi 6 AX201 WIFI a, b, g, n, ac with wave 2 features, ax, supporting 2.4/5 GHz Dual-Band BLUETOOTH 5.0 Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate |
| Supported Storage | 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 PCIe x4/x2 SSD support) (M2P_SB) 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe x4/x2 SSD support) (M2A_CPU) 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe x4/x2 SSD support) (M2M_SB) 6 x SATA 6Gb/s connectors Support for RAID 0, RAID 1, RAID 5, and RAID 10 Intel Optane Memory Ready |
| USB (s) | Chipset: 2 x USB Type-C ports, with USB 3.2 Gen 2 support (1 port on the back panel, 1 port available through the internal USB header) 3 x USB 3.2 Gen 2 Type-A ports (red) on the back panel 4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header) Chipset+2 USB 2.0 Hubs: 8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers) |
| Internal I/O Connectors | 1 x 24-pin ATX main power connector 2 x 8-pin ATX 12V power connectors 1 x CPU fan header 1 x water cooling CPU fan header 4 x system fan headers 2 x system fan/water cooling pump headers 2 x addressable LED strip headers 2 x RGB LED strip headers 3 x M.2 Socket 3 connectors 6 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB Type-C™ header, with USB 3.2 Gen 2 support 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 1 x noise detection header 2 x Thunderbolt add-in card connectors 1 x power button 1 x reset button 2 x temperature sensor headers 1 x Clear CMOS jumper 2 x BIOS switches |
| Special | |
| Special Feature | Support for APP Center @BIOS EasyTune Fast Boot Game Boost ON/OFF Charge RGB Fusion Smart Backup System Information Viewer Support for Q-Flash Plus Support for Q-Flash Support for Xpress Install H/W Monitoring Voltage detection Temperature detection Fan speed detection Water cooling flow rate detection Overheating warning Fan fail warning Fan speed control Noise detection |
| WARRANTY | |
| Manufacturing Warranty | 03 Years |
