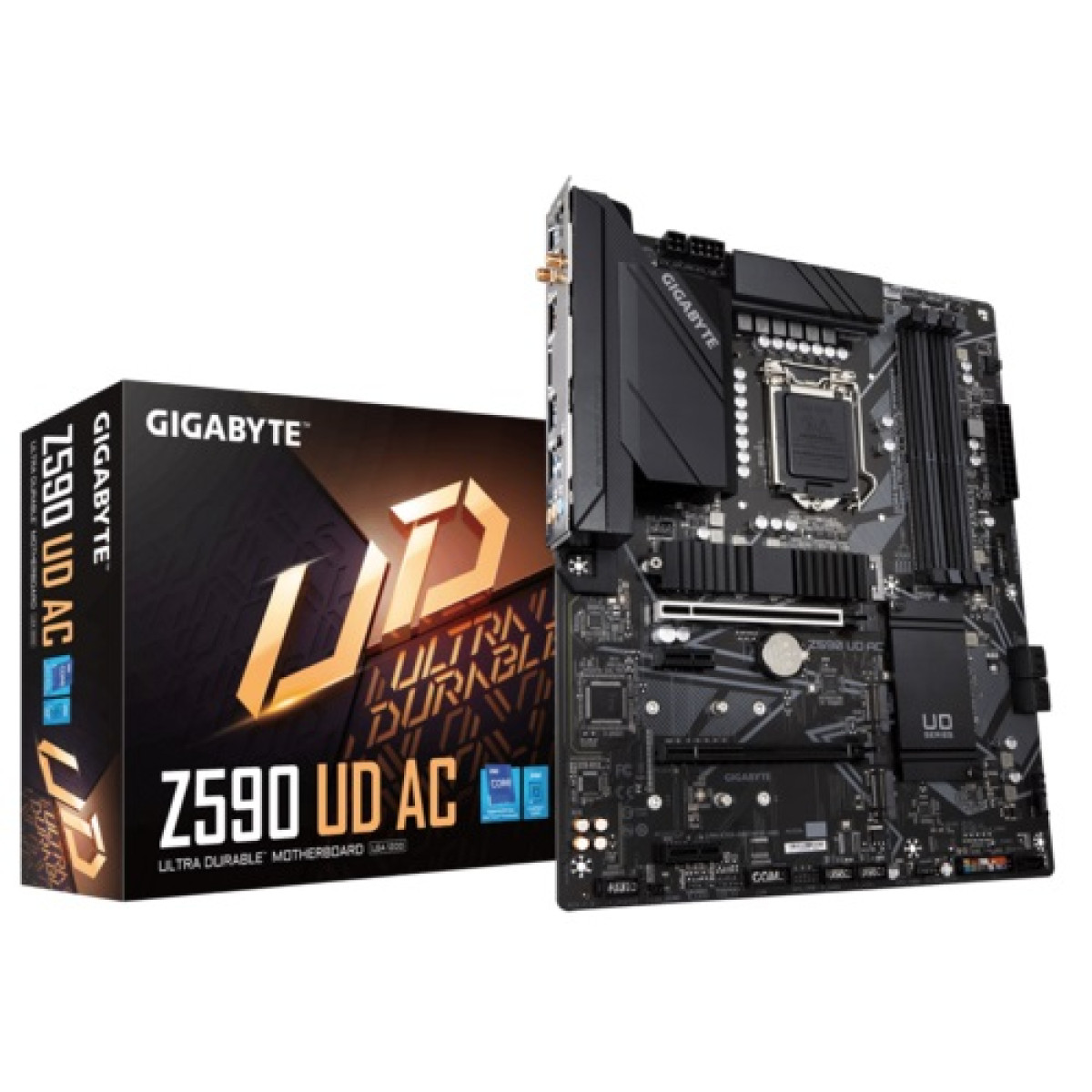

GIGABYTE Z590 UD AC Intel 10th and 11th Gen ATX Motherboard
Key highlights
- Form Factor: ATX Form Factor; 30.5cm x 24.4cm
- SpecialFeatures: Support for APP Center @BIOS EasyTune Fast Boot Game Boost ON/OFF Charge RGB Fusion Smart Backup System Information Viewer Support for Q-Flash Plus Support for Q-Flash Support for Xpress Install
- Chipset: Intel Z590 Express Chipset
- Slots: 4 x DDR4 DIMM
- Audio: Realtek audio CODEC High Definition Audio 2/4/5.1/7.1-channel Support for S/PDIF Out
Description
Upgrade Your PC with GIGABYTE Z590 UD AC Motherboard
Discover the GIGABYTE Z590 UD AC Motherboard
The GIGABYTE Z590 UD AC is a top-tier ATX motherboard designed for Intel's 10th and 11th Gen processors, providing an exceptional foundation for your computing needs. With its advanced architecture and robust feature set, this motherboard is perfect for gamers, content creators, and everyday users alike. Experience lightning-fast speeds with support for PCIe 4.0, ensuring that your graphics card and storage solutions operate at peak performance. Equipped with dual-channel DDR4 memory support, this motherboard allows for overclocking capabilities that can enhance your system's responsiveness and efficiency.
One of the standout features of the Z590 UD AC is its comprehensive thermal design, which includes efficient heat sinks and fan headers that help maintain optimal temperatures during heavy usage. Additionally, the built-in Wi-Fi 6 connectivity ensures that you stay connected with high-speed internet, perfect for streaming, gaming, and downloading large files. With a user-friendly BIOS interface, customizing your system settings has never been easier. Choose the GIGABYTE Z590 UD AC for a reliable, high-performance motherboard that meets the demands of today’s technology.
Explore Features of GIGABYTE Z590 UD AC Motherboard
Specification
| BASIC INFORMATION | |
|---|---|
| Form Factor | ATX Form Factor; 30.5cm x 24.4cm |
| SpecialFeatures | Support for APP Center @BIOS EasyTune Fast Boot Game Boost ON/OFF Charge RGB Fusion Smart Backup System Information Viewer Support for Q-Flash Plus Support for Q-Flash Support for Xpress Install |
| Chipset | Intel Z590 Express Chipset |
| Slots | 4 x DDR4 DIMM |
| Audio | Realtek audio CODEC High Definition Audio 2/4/5.1/7.1-channel Support for S/PDIF Out |
| Type | Dual-channel memory architecture |
| Expansion Slots | |
| PCI | 1 x PCI Express x16 slot, running at x16 (PCIEX16) * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot. (The PCIEX16 slot conforms to PCI Express 4.0 standard.) (Note) 1 x PCI Express x16 slot, running at x4 (PCIEX4) 2 x PCI Express x1 slots (The PCIEX4 and PCIEX1 slots conform to PCI Express 3.0 standard.) |
| PORTS, CONNECTORS & SLOTS | |
| Display Port (s) | 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz * Support for DisplayPort 1.2 version and HDCP 2.3 |
| Internal I/O Ports | 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x 4-pin ATX 12V power connector 1 x CPU fan header 4 x system fan headers 2 x addressable LED strip headers 2 x RGB LED strip headers 1 x Q-Flash Plus button 5 x SATA 6Gb/s connectors 3 x M.2 Socket 3 connectors 1 x front panel header 1 x front panel audio header 1 x S/PDIF Out header 1 x USB 3.2 Gen 1 header 1 x USB Type-C header, with USB 3.2 Gen 1 support 2 x USB 2.0/1.1 headers 2 x Thunderbolt add-in card connectors 1 x serial port header 1 x Clear CMOS jumper |
| TPM (Trusted Platform Module ) | 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only) |
| USB (s) | Chipset: 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel 6 x USB 3.2 Gen 1 ports (4 ports on the back panel, 2 ports available through the internal USB header) 1 x USB Type-C port with USB 3.2 Gen 1 support, available through the internal USB header Chipset+2 USB 2.0 Hubs: 6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers) |
