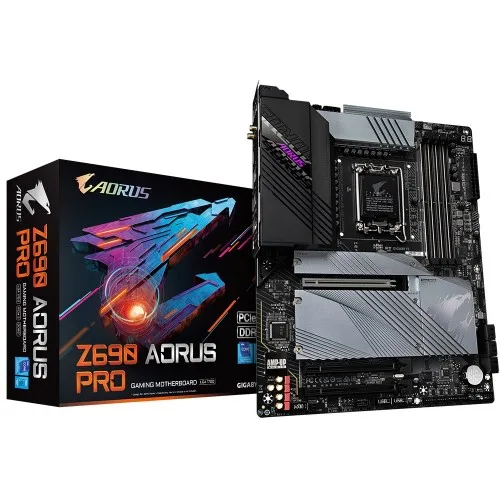

Buy Gigabyte Z690 AORUS PRO 12th Gen ATX Motherboard in Jashore
- Brand: Gigabyte
- Product Code: Z690 AORUS PRO 12th Gen ATX
- Availability: In Stock
Specification
| BASIC INFORMATION | |
| Form Factor | ATX Form Factor; 30.5cm x 24.4cm |
| Wireless technology | Intel Wi-Fi 6 AX200: WIFI a, b, g, n, ac, ax, supporting 2.4/5 GHz Dual-Band BLUETOOTH 5.2 Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate |
| Supported CPU | LGA1700 socket: Support for 12th Generation Intel Core i9 processors/Intel Core i7 processors/Intel Core i5 processors L3 cache varies with CPU |
| Chipset | Intel Z690 Express Chipset |
| Audio | 1 x front panel audio header |
| BIOS | 1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| Expansion Slots | |
| M.2 Socket | 4x Ultra-Fast NVMe PCIe 4.0*/3.0 x4 M.2 with Enlarged Thermal Guard |
| PCI | 1 x PCI Express x16 slot, running at x16 (PCIEX16) (The PCIEX16 slot conforms to PCI Express 5.0 standard.) 2 x PCI Express x16 slots, running at x4 (PCIEX4_1, PCIEX4_2) (The PCIEX4 slots conform to PCI Express 3.0 standard.) |
| Graphics Specifications | |
| Graphics | Integrated Graphics Processor-Intel HD Graphics support: 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz * Support for DisplayPort 1.2 version and HDCP 2.3 Support for AMD Quad-GPU CrossFire and 2-Way AMD CrossFire technologies |
| Memory Specifications | |
| Maximum Memory | Up to 128 GB (32 GB single DIMM capacity) |
| Slots | 4 x DIMM |
| Supported Memory | Support for DDR5 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000 MHz memory modules Dual-channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules |
| Type | DDR5 |
| PORTS, CONNECTORS & SLOTS | |
| Display Port (s) | 1 x DisplayPort |
| Internal I/O Ports | 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x 4-pin ATX 12V power connector 1 x CPU fan header 1 x water cooling CPU fan header 4 x system fan headers 2 x system fan/water cooling pump headers 2 x addressable LED strip headers 2 x RGB LED strip headers 4 x M.2 Socket 3 connectors 6 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB Type-C header, with USB 3.2 Gen 2x2 support 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 1 x noise detection header 2 x Thunderbolt add-in card connectors 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only) 1 x power button 1 x reset button 1 x Q-Flash Plus button 2 x temperature sensor headers 1 x reset jumper 1 x Clear CMOS jumper |
| LAN Port (s) | Intel 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) |
| Supported Storage | CPU: 1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 PCIe 4.0 x4/x2 SSD support) (M2A_CPU) Chipset: 1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 SATA and PCIe 4.0 x4/x2 SSD support) (M2C_SB) 2 x M.2 connectors (Socket 3, M key, type 2260/2280/22110 PCIe 4.0 x4/x2 SSD support) (M2P_SB/M2Q_SB) 6 x SATA 6Gb/s connectors Support for RAID 0, RAID 1, RAID 5, and RAID 10 * Refer to "2-8 Internal Connectors," for the installation notices for the M.2 and SATA connectors. Intel Optane Memory Ready * System acceleration with Intel Optane Memory can only be enabled on the M.2 connectors supported by the Chipset. |
| TPM (Trusted Platform Module ) | 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only) |
| USB (s) | Chipset: 2 x USB Type-C ports, with USB 3.2 Gen 2x2 support (1 port on the back panel, 1 port available through the internal USB header) 4 x USB 3.2 Gen 2 Type-A ports (red) on the back panel Chipset+2 USB 3.2 Gen 1 Hubs: 6 x USB 3.2 Gen 1 ports (4 ports on the back panel, 2 ports available through the internal USB header) Chipset+2 USB 2.0 Hub: 8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers) |
| Special | |
| Bundled Software | Norton Internet Security (OEM version) cFosSpeed |
| Special Feature | Support for APP Center * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. @BIOS EasyTune Fast Boot Game Boost ON/OFF Charge RGB Fusion Smart Backup System Information Viewer Support for Q-Flash Plus Support for Q-Flash Support for Xpress Install |
| WARRANTY | |
| Manufacturing Warranty | 3 years |
Description
Elevate Your Gaming Experience with the Gigabyte Z690 AORUS PRO
The Gigabyte Z690 AORUS PRO motherboard is engineered for gamers and performance enthusiasts who demand the very best. As a flagship ATX motherboard from Gigabyte, it supports Intel's 12th generation processors, ensuring you get the highest processing power and speed.
With cutting-edge features such as PCIe 5.0 support, you can experience ultra-fast data transfer rates, making it ideal for high-performance gaming and demanding applications. The motherboard also boasts DDR5 memory support, allowing for quicker and more efficient multitasking.
Additionally, the Z690 AORUS PRO comes with a robust thermal design that includes advanced heatsinks and thermal pads, ensuring that your high-performance components stay cool even during intense gaming sessions. Gamers will appreciate the customizable RGB lighting that adds a personal touch to their setup, while the high-quality capacitors and solid-state inductors ensure durability and longevity.
Whether you are building a new gaming rig or upgrading your existing setup, the Gigabyte Z690 AORUS PRO is the perfect choice for anyone looking to push their gaming experience to the next level.
Reviews (0)
Tags: Gigabyte, Z690 AORUS PRO, ATX motherboard, gaming motherboard, Intel 12th Gen, DDR5, PCIe 5.0, thermal management, high-speed storage, Bangladesh computer hardware, Unix Network, Jashore, RGB lighting, reliable components, overclocking
