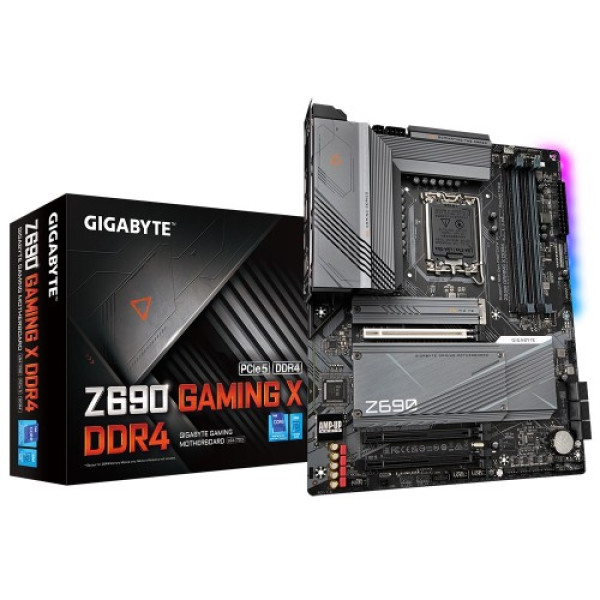

GIGABYTE Z690 GAMING X DDR4 ATX Motherboard for Gaming
Key highlights
- Form Factor: ATX Form Factor; 30.5cm x 24.4cm
- SpecialFeatures: Support for APP Center * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. @BIOS EasyTune Fast Boot Game Boost ON/OFF Charge RGB Fusion Smart Backup System Information Viewer Support for Q-Flash Plus Support for Q-Flash Support for Xpress Install
- M.2 Socket: 4 x Ultra-Fast NVMe PCIe 4.0/3.0 x4 M.2 with Enlarged Thermal Guards
- PCI: 1 x PCI Express x16 slot, running at x16 (PCIEX16) * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot. (The PCIEX16 slot conforms to PCI Express 5.0 standard.) 2 x PCI Express x16 slots, running at x4 (PCIEX4_1, PCIEX4_2) (The PCIEX4 slots conform to PCI Express 3.0 standard.)
- Maximum Memory: Up to 128 GB (32 GB single DIMM capacity)
Description
Upgrade Your Setup with GIGABYTE Z690 Motherboard
Elevate Your Gaming Experience with GIGABYTE Z690 GAMING X DDR4
The GIGABYTE Z690 GAMING X DDR4 motherboard is designed for gamers and PC enthusiasts looking to build a powerful system with Intel's 12th Gen processors. This ATX motherboard combines cutting-edge technology with robust features to deliver unparalleled performance and stability.
Featuring dual-channel DDR4 memory support, this motherboard allows for faster data processing and improved multitasking capabilities. With a maximum memory capacity of 128GB, gamers can run intensive applications and games without any lag. The advanced thermal design ensures optimal cooling, even during intense gaming sessions.
The GIGABYTE Z690 GAMING X also comes equipped with PCIe 5.0 slots, providing lightning-fast data transfer speeds for your graphics cards and storage devices. With multiple M.2 slots for NVMe SSDs, you can enhance your system's storage performance and capacity significantly.
This motherboard is compatible with the latest Intel processors, making it a future-proof choice for your gaming rig. RGB Fusion 2.0 support allows users to customize their system's lighting, adding a personal touch to their gaming setup.
Key Features of GIGABYTE Z690 GAMING X Motherboard
Specification
| BASIC INFORMATION | |
|---|---|
| Form Factor | ATX Form Factor; 30.5cm x 24.4cm |
| SpecialFeatures | Support for APP Center * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. @BIOS EasyTune Fast Boot Game Boost ON/OFF Charge RGB Fusion Smart Backup System Information Viewer Support for Q-Flash Plus Support for Q-Flash Support for Xpress Install |
| Expansion Slots | |
| M.2 Socket | 4 x Ultra-Fast NVMe PCIe 4.0/3.0 x4 M.2 with Enlarged Thermal Guards |
| PCI | 1 x PCI Express x16 slot, running at x16 (PCIEX16) * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot. (The PCIEX16 slot conforms to PCI Express 5.0 standard.) 2 x PCI Express x16 slots, running at x4 (PCIEX4_1, PCIEX4_2) (The PCIEX4 slots conform to PCI Express 3.0 standard.) |
| Memory Specifications | |
| Maximum Memory | Up to 128 GB (32 GB single DIMM capacity) |
| Slots | 4 x DIMM |
| Supported Memory | Support for DDR4 5333(O.C.)/ DDR4 5133(O.C.)/DDR4 5000(O.C.)/4933(O.C.)/4800(O.C.)/ 4700(O.C.)/ 4600(O.C.)/ 4500(O.C.)/ 4400(O.C.)/ 4300(O.C.)/4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200 / 3000 / 2933 / 2800 / 2666 / 2400 / 2133 MHz memory modules Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules |
| PORTS, CONNECTORS & SLOTS | |
| HDMI | 1 x HDMI port |
| LAN Port (s) | Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) |
| TPM (Trusted Platform Module ) | 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only) |
| USB (s) | Chipset: 1 x USB Type-C port on the back panel, with USB 3.2 Gen 2x2 support 1 x USB Type-C port with USB 3.2 Gen 2 support, available through the internal USB header 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel 5 x USB 3.2 Gen 1 ports (3 ports on the back panel, 2 ports available through the internal USB header) Chipset+2 USB 2.0 Hubs: 8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers) |
| WARRANTY | |
| Manufacturing Warranty | 3 years |
