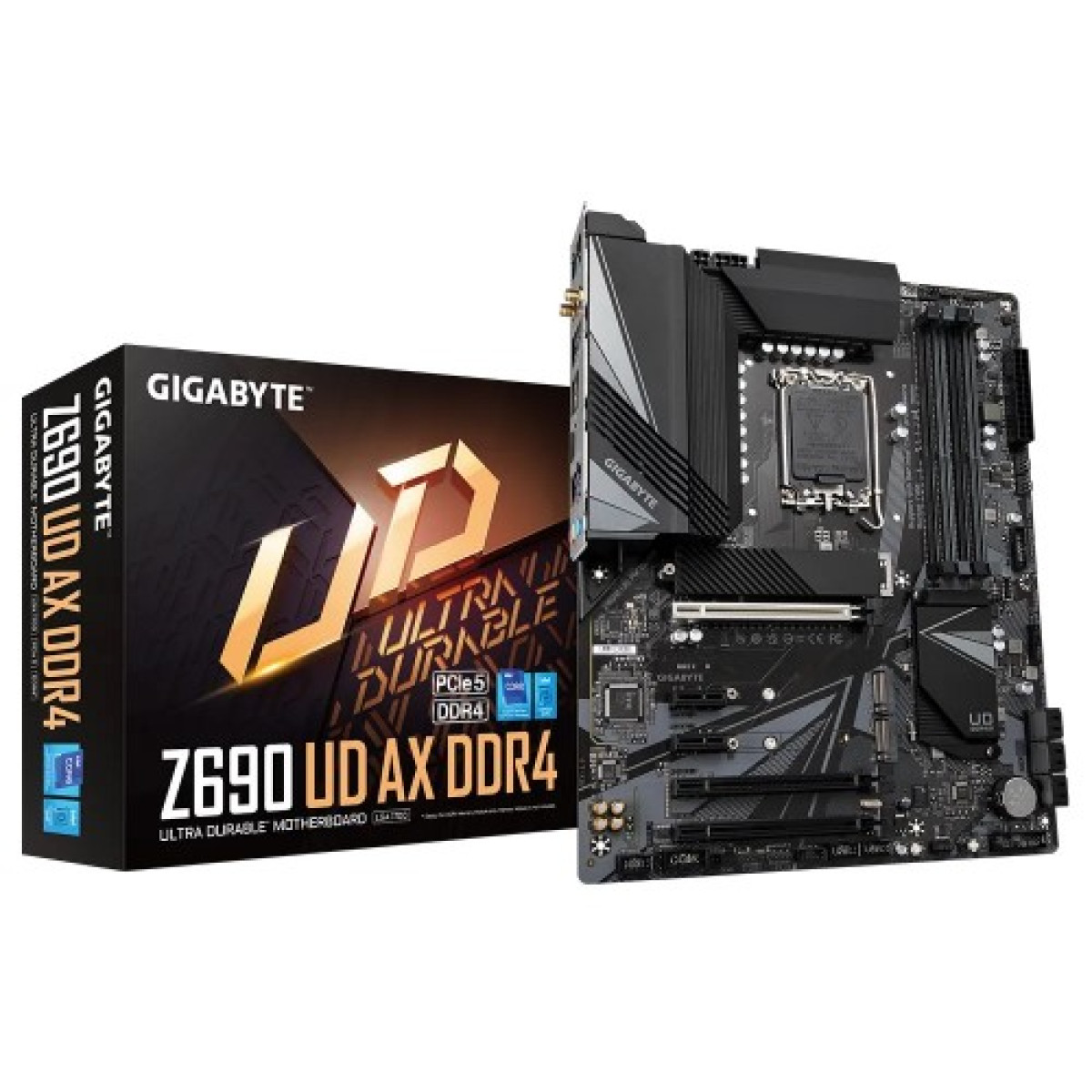

GIGABYTE Z690 UD AX DDR4 12th Gen ATX Motherboard
Key highlights
- Supported CPU: LGA1700 socket: Support for 12th Generation Intel Core, Pentium Gold and Celeron Processors L3 cache varies with CPU
- Chipset: Intel Z690 Express Chipset
- Audio: Realtek Audio CODEC High Definition Audio 2/4/5.1/7.1-channel Support for S/PDIF Out
- Type: DDR4
- Maximum Memory: up to 128 GB (32 GB single DIMM capacity) of system memory
Description
High-Performance ATX Motherboard for Gamers and Creators
Experience Unmatched Performance with GIGABYTE Z690 UD AX DDR4 Motherboard
The GIGABYTE Z690 UD AX DDR4 motherboard is designed for gamers and content creators who demand the best. Built on the advanced Intel Z690 chipset, this ATX motherboard supports 12th Gen Intel Core processors, unleashing incredible performance and efficiency. With dual-channel DDR4 memory support, this motherboard can handle high-speed RAM up to 5333 MHz for seamless multitasking and high-performance gaming.
Equipped with Wi-Fi 6 technology, the GIGABYTE Z690 UD AX ensures you stay connected with lightning-fast internet speeds and stable connections. The motherboard features multiple M.2 slots for NVMe SSDs, allowing for ultra-fast data transfer and improved loading times. Additionally, the robust thermal design and enhanced power delivery system provide exceptional stability and performance under heavy loads.
With its stylish design and customizable RGB lighting, the GIGABYTE Z690 UD AX not only performs exceptionally but also looks great in any build. This motherboard is perfect for gamers, streamers, and professionals looking to elevate their computing experience.
Upgrade to the GIGABYTE Z690 UD AX for Superior Gaming
Specification
| BASIC INFORMATION | |
|---|---|
| Supported CPU | LGA1700 socket: Support for 12th Generation Intel Core, Pentium Gold and Celeron Processors L3 cache varies with CPU |
| Chipset | Intel Z690 Express Chipset |
| Audio | Realtek Audio CODEC High Definition Audio 2/4/5.1/7.1-channel Support for S/PDIF Out |
| Type | DDR4 |
| Memory Specifications | |
| Maximum Memory | up to 128 GB (32 GB single DIMM capacity) of system memory |
| Supported Memory | Support for DDR4 5333(O.C.)/ DDR4 5133(O.C.)/DDR4 5000(O.C.)/4933(O.C.)/4800(O.C.)/ 4700(O.C.)/ 4600(O.C.)/ 4500(O.C.)/ 4400(O.C.)/ 4300(O.C.)/4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200 / 3000 / 2933 / 2800 / 2666 / 2400 / 2133 MHz memory modules 4 x DDR DIMM sockets supporting Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules (Go to GIGABYTE's website for the latest supported memory speeds and memory modules.) |
| PORTS, CONNECTORS & SLOTS | |
| HDMI | 1 x HDMI port |
| Internal I/O Ports | Internal I/O Connectors 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x 4-pin ATX 12V power connector 1 x CPU fan header 1 x water cooling CPU fan header 3 x system fan headers 1 x system fan/water cooling pump header 2 x addressable LED strip headers 2 x RGB LED strip headers 3 x M.2 Socket 3 connectors 6 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x S/PDIF Out header 1 x USB Type-C header, with USB 3.2 Gen 1 support 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 1 x serial port header 2 x Thunderbolt add-in card connectors 1 x reset button 1 x reset jumper 1 x Q-Flash Plus button 1 x Clear CMOS jumper All fan headers are subject to support AIO_Pump, Pump and high performance fan with the capability of delivering up to 2A/12V @ 24W. Back Panel Connectors 1 x PS/2 keyboard/mouse port 2 x SMA antenna connectors (2T2R) 1 x DisplayPort 1 x HDMI port 1 x USB Type-C port, with USB 3.2 Gen 2x2 support 1 x USB 3.2 Gen 2 Type-A port (red) 4 x USB 3.2 Gen 1 ports 4 x USB 2.0/1.1 ports 1 x RJ-45 port 3 x audio jacks |
| TPM (Trusted Platform Module ) | 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only) |
| USB (s) | Chipset: 1 x USB Type-C port on the back panel, with USB 3.2 Gen 2x2 support 1 x USB Type-C port with USB 3.2 Gen 1 support, available through the internal USB header 1 x USB 3.2 Gen 2 Type-A ports (red) on the back panel 6 x USB 3.2 Gen 1 ports (4 ports on the back panel, 2 ports available through the internal USB header) Chipset+2 USB 2.0 Hubs: 8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers) |
