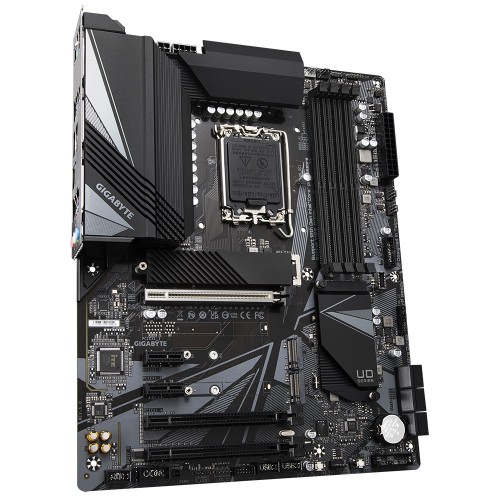

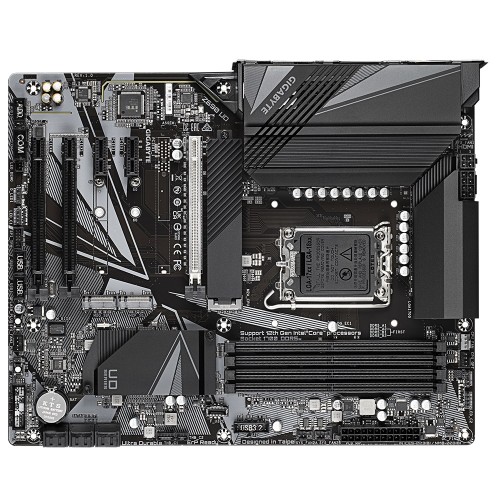

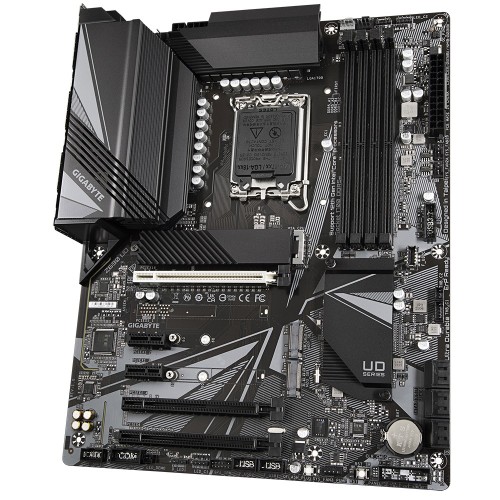

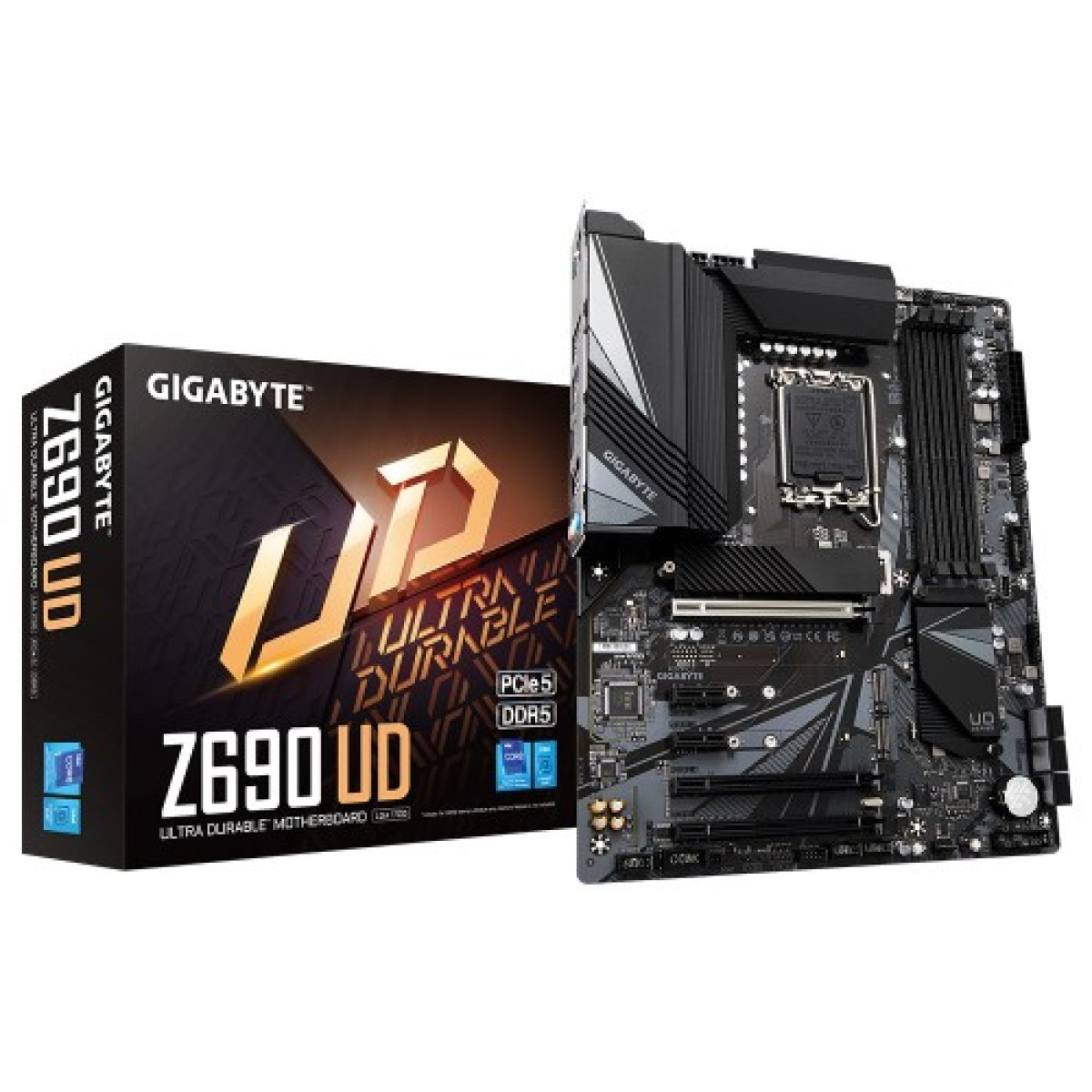

GIGABYTE Z690 UD 12th Gen ATX Motherboard
Key highlights
- Form Factor: ATX Form Factor; 30.5cm x 24.4cm
- Graphics: Integrated Graphics Processor-Intel HD Graphics support: 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz * Support for HDMI 2.0 version and HDCP 2.3. 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz * Support for DisplayPort 1.2 version and HDCP 2.3 Support for AMD Quad-GPU CrossFire and 2-Way AMD CrossFire technologies
- SpecialFeatures: Support for APP Center * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. @BIOS EasyTune Fast Boot Game Boost ON/OFF Charge RGB Fusion Smart Backup System Information Viewer Support for Q-Flash Plus Support for Q-Flash Support for Xpress Install
- Supported CPU: LGA1700 socket: Support for 12th Generation Intel Core i9 processors/Intel Core i7 processors/Intel Core i5 processors L3 cache varies with CPU
- Chipset: Intel Z690 Express Chipset
Description
Premium Performance with GIGABYTE Z690 UD Motherboard
GIGABYTE Z690 UD 12th Gen ATX Motherboard Overview
The GIGABYTE Z690 UD motherboard is a cutting-edge technology designed for the latest 12th Generation Intel processors, delivering exceptional performance, scalability, and reliability. This ATX motherboard is engineered for gamers, content creators, and tech enthusiasts who demand high-speed processing and enhanced graphics capabilities. With its advanced features, the Z690 UD is an ideal choice for building a powerful PC that can handle everything from intensive gaming sessions to complex computing tasks.
Benefits of the GIGABYTE Z690 UD
This motherboard provides numerous benefits, including robust connectivity options, advanced thermal management, and support for the latest memory technologies. With support for DDR5 memory, the Z690 UD enables faster data transfer rates and improved overall system performance. Additionally, the motherboard supports PCIe 5.0, allowing for faster graphics cards and storage devices, thus maximizing your gaming or productivity experience.
Use Cases
The GIGABYTE Z690 UD is perfect for a variety of use cases. Gamers will appreciate its ability to support high refresh rate displays and the latest GPUs, while content creators can leverage its multi-threading capabilities for video editing, 3D rendering, and other demanding applications. The motherboard also provides excellent overclocking potential, enabling users to push their systems to the limit for even better performance.
Why You Should Buy the GIGABYTE Z690 UD
Choosing the GIGABYTE Z690 UD means investing in a product that is not only feature-rich but also built to last. With a comprehensive warranty and GIGABYTE's renowned customer support, you can purchase with confidence. This motherboard offers a solid foundation for your next build, ensuring compatibility with future technologies and maximizing your investment. Whether you are a casual user or a hardcore gamer, the Z690 UD caters to all, making it a versatile addition to any PC setup.
Upgrade Your Build with GIGABYTE Z690 UD Features
Specification
| BASIC INFORMATION | |
|---|---|
| Form Factor | ATX Form Factor; 30.5cm x 24.4cm |
| Graphics | Integrated Graphics Processor-Intel HD Graphics support: 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz * Support for HDMI 2.0 version and HDCP 2.3. 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz * Support for DisplayPort 1.2 version and HDCP 2.3 Support for AMD Quad-GPU CrossFire and 2-Way AMD CrossFire technologies |
| SpecialFeatures | Support for APP Center * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. @BIOS EasyTune Fast Boot Game Boost ON/OFF Charge RGB Fusion Smart Backup System Information Viewer Support for Q-Flash Plus Support for Q-Flash Support for Xpress Install |
| Supported CPU | LGA1700 socket: Support for 12th Generation Intel Core i9 processors/Intel Core i7 processors/Intel Core i5 processors L3 cache varies with CPU |
| Chipset | Intel Z690 Express Chipset |
| Slots | 4 x DIMM |
| Audio | 1 x front panel audio header |
| BIOS | 1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| Type | DDR5 |
| Memory Specifications | |
| Maximum Memory | Up to 128 GB (32 GB single DIMM capacity) |
| PORTS, CONNECTORS & SLOTS | |
| Display Port (s) | 1 x DisplayPort |
| HDMI | 1 x HDMI port |
| Internal I/O Ports | 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x 4-pin ATX 12V power connector 1 x CPU fan header 1 x water cooling CPU fan header 3 x system fan headers 1 x system fan/water cooling pump header 2 x addressable LED strip headers 2 x RGB LED strip headers 3 x M.2 Socket 3 connectors 6 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x S/PDIF Out header 1 x USB Type-C header, with USB 3.2 Gen 1 support 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 1 x serial port header 2 x Thunderbolt add-in card connectors 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only) 1 x reset button 1 x reset jumper 1 x Q-Flash Plus button 1 x Clear CMOS jumper |
| LAN Port (s) | Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) |
| Supported Storage | CPU: 1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 PCIe 4.0 x4/x2 SSD support) (M2A_CPU) Chipset: 1 x M.2 connector (Socket 3, M key, type 2260/2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB) 1 x M.2 connector (Socket 3, M key, type 2260/2280 PCIe 4.0 x4/x2 SSD support) (M2Q_SB) 6 x SATA 6Gb/s connectors Support for RAID 0, RAID 1, RAID 5, and RAID 10 Intel Optane Memory Ready |
| TPM (Trusted Platform Module ) | 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only) |
| USB (s) | Chipset: 1 x USB Type-C port on the back panel, with USB 3.2 Gen 2x2 support 1 x USB Type-C port with USB 3.2 Gen 1 support, available through the internal USB header 1 x USB 3.2 Gen 2 Type-A ports (red) on the back panel 6 x USB 3.2 Gen 1 ports (4 ports on the back panel, 2 ports available through the internal USB header) Chipset+2 USB 2.0 Hubs: 8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers) |
| Special | |
| Bundled Software | Norton Internet Security (OEM version) Realtek Gaming LAN Bandwidth Control Utility |
| WARRANTY | |
| Manufacturing Warranty | 3 years |
