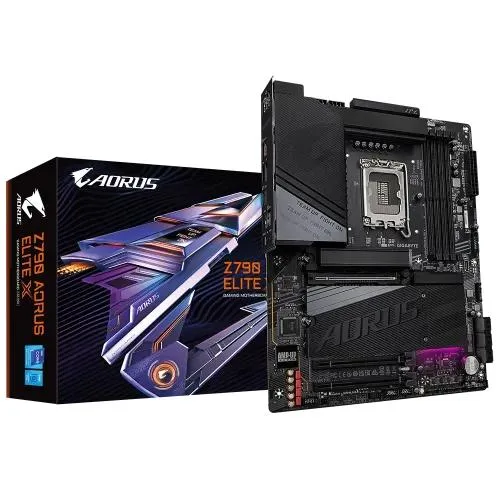

GIGABYTE Z790 AORUS ELITE X ATX Motherboard for Gamers

BASIC INFORMATION
Form Factor	ATX Form Factor; 30.5cm x 24.4cm
Supported CPU	LGA1700 socket: Support for the 14th, 13th, and 12th Generation Intel® Core, Pentium Gold and Celeron Processors L3 cache varies with CPU
Chipset	Intel Z790 Express Chipset
Slots	4 x DIMM sockets
Audio	2 x audio jacks
BIOS	1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Expansion Slots
PCI	CPU: - 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16) * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot. Chipset: - 2 x PCI Express x16 slots, supporting PCIe 4.0 and running at x4 (PCIEX4_1/PCIEX4_2)
Graphics Specifications
Graphics	Integrated Graphics Processor-Intel HD Graphics support: - 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz * Support for HDMI 2.0 version and HDCP 2.3. - 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz * Support for DisplayPort 1.2 version and HDCP 2.3
Memory Specifications
Maximum Memory	up to 192 GB (48 GB single DIMM capacity)
Supported Memory	Support for DDR5 8266(O.C) / 8200(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000 MT/s memory modules Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules
Type	DDR5
PORTS, CONNECTORS & SLOTS
Display Port (s)	1 x DisplayPort
HDMI	1 x HDMI
Internal I/O Ports	1 x 24-pin ATX main power connector 2 x 8-pin ATX 12V power connectors 1 x CPU fan header 1 x CPU fan/water cooling pump header 3 x system fan headers 1 x system fan/water cooling pump header 3 x addressable RGB Gen2 LED strip headers 1 x RGB LED strip header 4 x M.2 Socket 3 connectors 6 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB Type-C header, with USB 3.2 Gen 2 support 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 2 x Thunderbolt add-in card connectors 1 x reset button 1 x Q-Flash Plus button 1 x Clear CMOS button 1 x reset jumper 1 x Clear CMOS jumper
LAN Port (s)	Intel 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
Supported Storage	CPU: - 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU) Chipset: - 2 x M.2 connectors (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB, M2Q_SB) - 1 x M.2 connector (Socket 3, M key, type 22110/2280 SATA and PCIe 4.0 x4 SSD support) (M2M_SB) - 6 x SATA 6Gb/s connectors
TPM (Trusted Platform Module )	1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only)
USB (s)	Chipset: - 1 x USB Type-C port on the back panel, with USB 3.2 Gen 2x2 support - 1 x USB Type-C port with USB 3.2 Gen 2 support, available through the internal USB header - 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel - 5 x USB 3.2 Gen 1 ports (3 ports on the back panel, 2 ports available through the internal USB header) Chipset+2 USB 2.0 Hubs: - 8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)
Special
Bundled Software	Norton Internet Security (OEM version) LAN bandwidth management software
WARRANTY
Manufacturing Warranty	3 years

The GIGABYTE ATX Motherboard is a high-end motherboard built to fulfill the demands of both gamers and power users. This motherboard is compatible with Intel Core 14th and 13th-generation CPUs, allowing you to take advantage of the most recent CPU technologies for maximum performance. Its digital dual VRM technology with 16+1+2 phases provides consistent power delivery, making it an ideal choice for reliable performance and overclocking capabilities. Multitasking and gaming performance are greatly improved with support for Dual Channel DDR5 memory via four DIMM slots and XMP 3.0 memory modules. The also excels in graphics compatibility, having a PCIe 5.0 x 16 slot with 10X power for the most recent graphics cards. The EZ-Latch Click and EZ-Latch Plus M.2 heatsinks feature a screwless and quick-release design, effectively dissipating heat from M.2 SSDs and improving overall system stability. The user-friendly UC BIOS offers an intuitive experience with Quick Access functions, simplifying system customization and optimization. Additionally, the motherboard boasts ultra-fast storage capabilities with four PCIe 4.0 x4 M.2 slots, reducing loading times for games and applications. Thermal management efficiency is a top emphasis, with the VRM Thermal Armor Advanced and M.2 Thermal Guard L assisting in maintaining overall thermal performance even under severe workloads. Its 2.5GbE LAN offers speedy networking, making it ideal for online gaming and streaming. The motherboard also has a wide range of connectivity choices, such as DisplayPort (DP), HDMI, Front USB-C at 10Gb/s, and Rear USB-C at 20Gb/s, making it ideal for connecting a wide range of devices and peripherals. Finally, with the ALC1220 audio chipset and audiophile-grade capacitors, it delivers high-quality sound for an immersive gaming and entertainment experience. In Bangladesh, you can get original From Unix Network. We have a large collection of latest to purchase for your . Order Online Or Visit your Nearest Shop to get yours at lowest price. The GIGABYTE Z790 AORUS ELITE X ATX Motherboard comes with 3 years warranty.

Are you in need of a high-quality motherboard that offers top-notch performance and impressive speeds? Look no further than the GIGABYTE Z790 AORUS ELITE X ATX Motherboard, available at Unix Network in Jashore, Bangladesh.

Designed with computer users and students in mind, this motherboard is the perfect choice for those who demand excellence in their computing experience. The GIGABYTE Z790 AORUS ELITE X ATX Motherboard boasts a host of features that set it apart from the competition.

Featuring premium quality components, this motherboard ensures durability and reliability, making it a wise investment for your computing needs. Whether you're a hardcore gamer, a student tackling complex projects, or a professional in need of a reliable workstation, the GIGABYTE Z790 AORUS ELITE X ATX Motherboard delivers exceptional performance.

With its cutting-edge design and innovative technology, this motherboard allows for seamless multitasking and smooth operation, enabling you to tackle any task with ease. Whether you're editing videos, running demanding software, or playing the latest games, the GIGABYTE Z790 AORUS ELITE X ATX Motherboard will provide you with the speed and efficiency you need to excel.

Don't settle for subpar performance and unreliable hardware – choose the GIGABYTE Z790 AORUS ELITE X ATX Motherboard for a computing experience that is second to none. Visit Unix Network in Jashore, Bangladesh, today to experience the power and potential of this exceptional motherboard. Let the GIGABYTE Z790 AORUS ELITE X ATX Motherboard take your computing experience to the next level.
