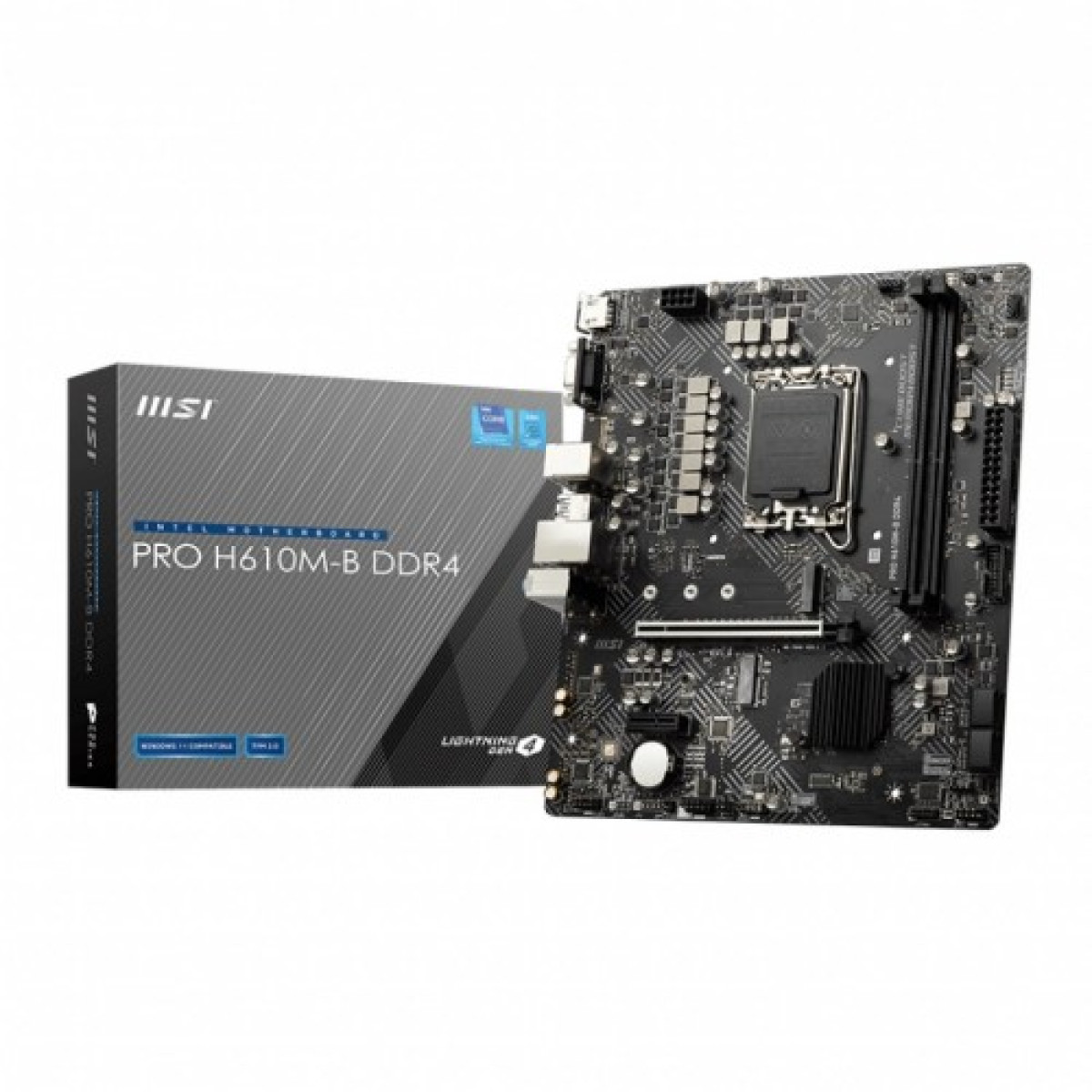

MSI PRO H610M-B DDR4 12th Gen Micro-ATX Motherboard
Key highlights
- Form Factor: M-ATX Form Factor 9.3 in. x 8.0 in. (24.4 cm x 21.1 cm)
- Graphics: 1x HDMI 2.1 with HDR port, supports a maximum resolution of 4K 60Hz 1x VGA port, supports a maximum resolution of 2048x1536 50Hz, 2048x1280 60Hz, 1920x1200 60Hz Available only on processors featuring integrated graphics.Graphics specifications may vary depending on the CPU installed.
- Supported CPU: Supports 12th Gen Intel Core Processors, Pentium Gold and Celeron Processors Processor socket LGA1700
- Audio: Realtek ALC892/ ALC897 Codec 7.1-Channel High Definition Audio
- Type: DDR4
Description
Upgrade Your PC with MSI PRO H610M-B Motherboard Today
Elevate Your Computing Experience with MSI PRO H610M-B
Discover the power of the MSI PRO H610M-B DDR4 12th Gen Micro-ATX Motherboard, designed specifically for those who demand performance and reliability. This motherboard supports Intel's 12th generation processors, providing a robust platform for both gaming and professional applications. With advanced features like PCIe 4.0 support, you can enjoy faster data transfer speeds and enhanced graphics capabilities, making it ideal for content creators and gamers alike.
The PRO H610M-B is equipped with multiple USB ports, including USB 3.2 Gen 1, ensuring that your peripherals can connect effortlessly. Its DDR4 memory support allows for smooth multitasking and improved performance in demanding applications. This motherboard also includes MSI's exclusive Click BIOS 5, which makes system configuration intuitive and user-friendly.
Built with quality components, the MSI PRO H610M-B offers exceptional durability and stability, essential for long-term use. Plus, with features like Audio Boost technology, your gaming and media experience will be immersive and enjoyable. Choose the MSI PRO H610M-B to power your next build and experience the difference.
Discover Features of MSI PRO H610M-B for 12th Gen CPUs
Specification
| BASIC INFORMATION | |
|---|---|
| Form Factor | M-ATX Form Factor 9.3 in. x 8.0 in. (24.4 cm x 21.1 cm) |
| Graphics | 1x HDMI 2.1 with HDR port, supports a maximum resolution of 4K 60Hz 1x VGA port, supports a maximum resolution of 2048x1536 50Hz, 2048x1280 60Hz, 1920x1200 60Hz Available only on processors featuring integrated graphics.Graphics specifications may vary depending on the CPU installed. |
| Supported CPU | Supports 12th Gen Intel Core Processors, Pentium Gold and Celeron Processors Processor socket LGA1700 |
| Audio | Realtek ALC892/ ALC897 Codec 7.1-Channel High Definition Audio |
| Type | DDR4 |
| Memory Specifications | |
| Maximum Memory | Support up to 64GB |
| Slots | 2x DDR4 memory slots |
| Supported Memory | 3200/ 3000/ 2933/ 2666/ 2400/ 2133 MHz memory modules Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules |
| PORTS, CONNECTORS & SLOTS | |
| HDMI | 1x HDMI 2.1 |
| LAN Port (s) | 1x Intel I219V 1Gbps LAN controller |
| TPM (Trusted Platform Module ) | 1x TPM module connector |
