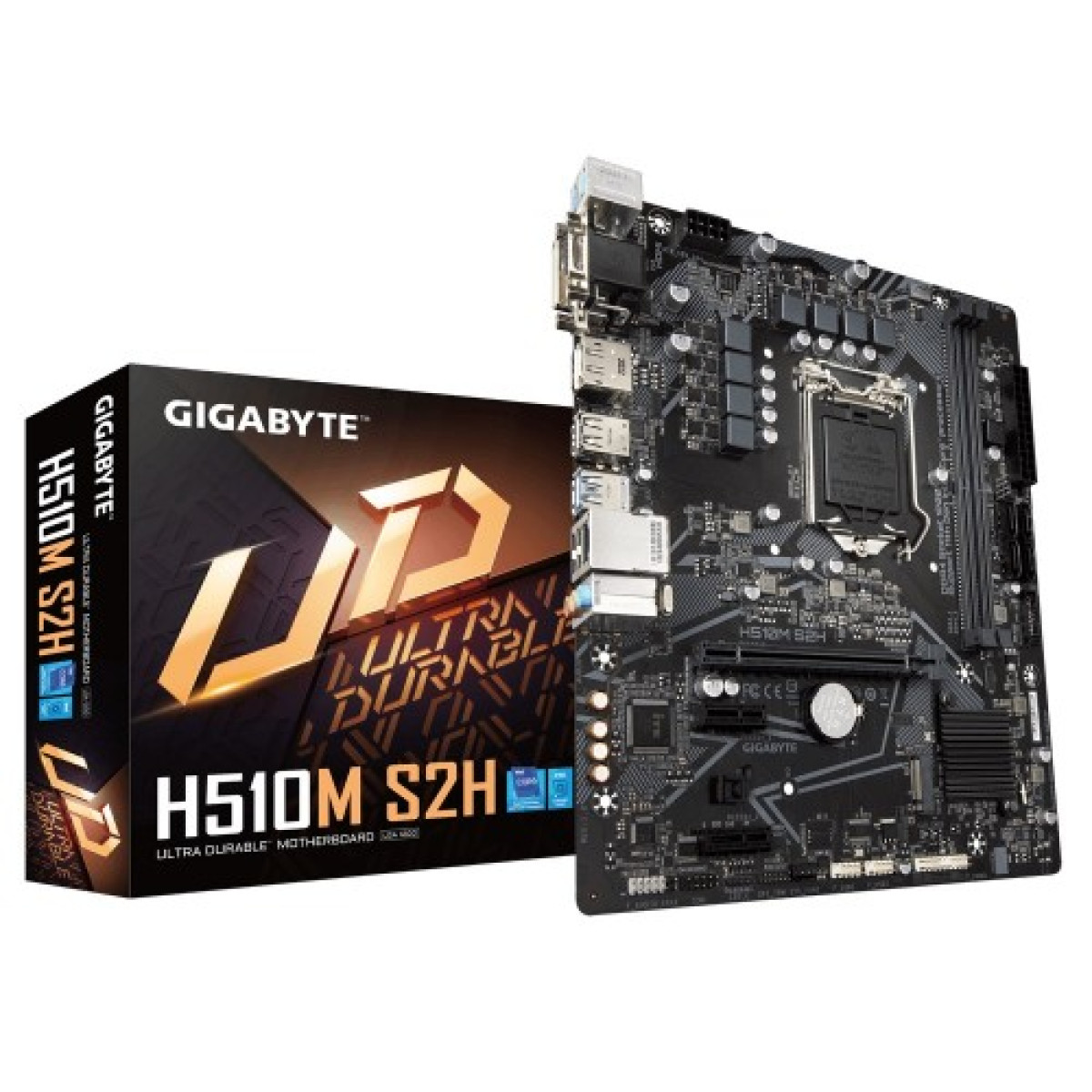

GIGABYTE H510M S2H Intel 10th and11th Gen Micro ATX Motherboard
Key highlights
- Graphics: Integrated Graphics Processor-Intel HD Graphics support: 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz * When the D-Sub port and DisplayPort are connected at the same time, images will output from the DisplayPort only. 1 x DVI-D port, supporting a maximum resolution of 1920x1200@60 Hz * The DVI-D port does not support D-Sub connection by adapter. 1 x HDMI ports, supporting a maximum resolution of 4096x2160@30 Hz * Support for HDMI 1.4 version and HDCP 2.3. 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz * Support for DisplayPort 1.2 version and HDCP 2.3 * When the D-Sub port and DisplayPort are connected at the same time, images will output from the DisplayPort only. Support for up to 2 displays at the same time
- SpecialFeatures: Support for APP Center @BIOS Ambient LED EasyTune Fast Boot Game Boost ON/OFF Charge Smart Backup System Information Viewer Support for Q-Flash Support for Xpress Install
- Slots: 2 x DDR4 DIMM
- Audio: Realtek Audio CODEC High Definition Audio 2/4/5.1/7.1-channel
- BIOS: 1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Description
Compatible with Intel 10th and 11th Gen Processors
Experience Unmatched Performance with the GIGABYTE H510M S2H
The GIGABYTE H510M S2H motherboard is designed to harness the full potential of Intel's 10th and 11th generation processors, making it an ideal choice for both gamers and professionals in Bangladesh. With its Micro ATX form factor, this motherboard offers a perfect balance of size and performance, fitting seamlessly into a variety of PC builds.
Key Features: The H510M S2H supports dual-channel DDR4 memory up to 3200MHz, ensuring faster data processing and multitasking capabilities. Its advanced thermal design keeps your system cool even during intense gaming sessions. With multiple PCIe slots, you can easily expand your setup with additional GPUs or storage options.
Moreover, the motherboard features HDMI and DVI-D outputs, providing excellent video quality for your gaming or multimedia needs. The GIGABYTE H510M S2H also includes a robust power delivery system, ensuring stable performance under heavy loads. Choose this motherboard to elevate your computing experience.
Affordable Micro ATX Solution for Your PC Build
Specification
| BASIC INFORMATION | |
|---|---|
| Graphics | Integrated Graphics Processor-Intel HD Graphics support: 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz * When the D-Sub port and DisplayPort are connected at the same time, images will output from the DisplayPort only. 1 x DVI-D port, supporting a maximum resolution of 1920x1200@60 Hz * The DVI-D port does not support D-Sub connection by adapter. 1 x HDMI ports, supporting a maximum resolution of 4096x2160@30 Hz * Support for HDMI 1.4 version and HDCP 2.3. 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz * Support for DisplayPort 1.2 version and HDCP 2.3 * When the D-Sub port and DisplayPort are connected at the same time, images will output from the DisplayPort only. Support for up to 2 displays at the same time |
| SpecialFeatures | Support for APP Center @BIOS Ambient LED EasyTune Fast Boot Game Boost ON/OFF Charge Smart Backup System Information Viewer Support for Q-Flash Support for Xpress Install |
| Slots | 2 x DDR4 DIMM |
| Audio | Realtek Audio CODEC High Definition Audio 2/4/5.1/7.1-channel |
| BIOS | 1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| Type | Dual channel memory architecture |
| Expansion Slots | |
| M.2 Socket | 1 x M.2 connector (Socket 3, M key, type 2260/2280 SATA and PCIe 3.0 x4/x2 SSD support) |
| Memory Specifications | |
| Maximum Memory | 64 GB (32 GB single DIMM capacity) |
| PORTS, CONNECTORS & SLOTS | |
| DVI-D (s) | 1 x DVI-D port |
| LAN Port (s) | Realtek GbE LAN chip (1 Gbit/100 Mbit) |
| TPM (Trusted Platform Module ) | 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only) |
| USB (s) | Chipset: 4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header) Chipset+USB 2.0 Hub: 8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB header) |
| WARRANTY | |
| Manufacturing Warranty | 3 years |
