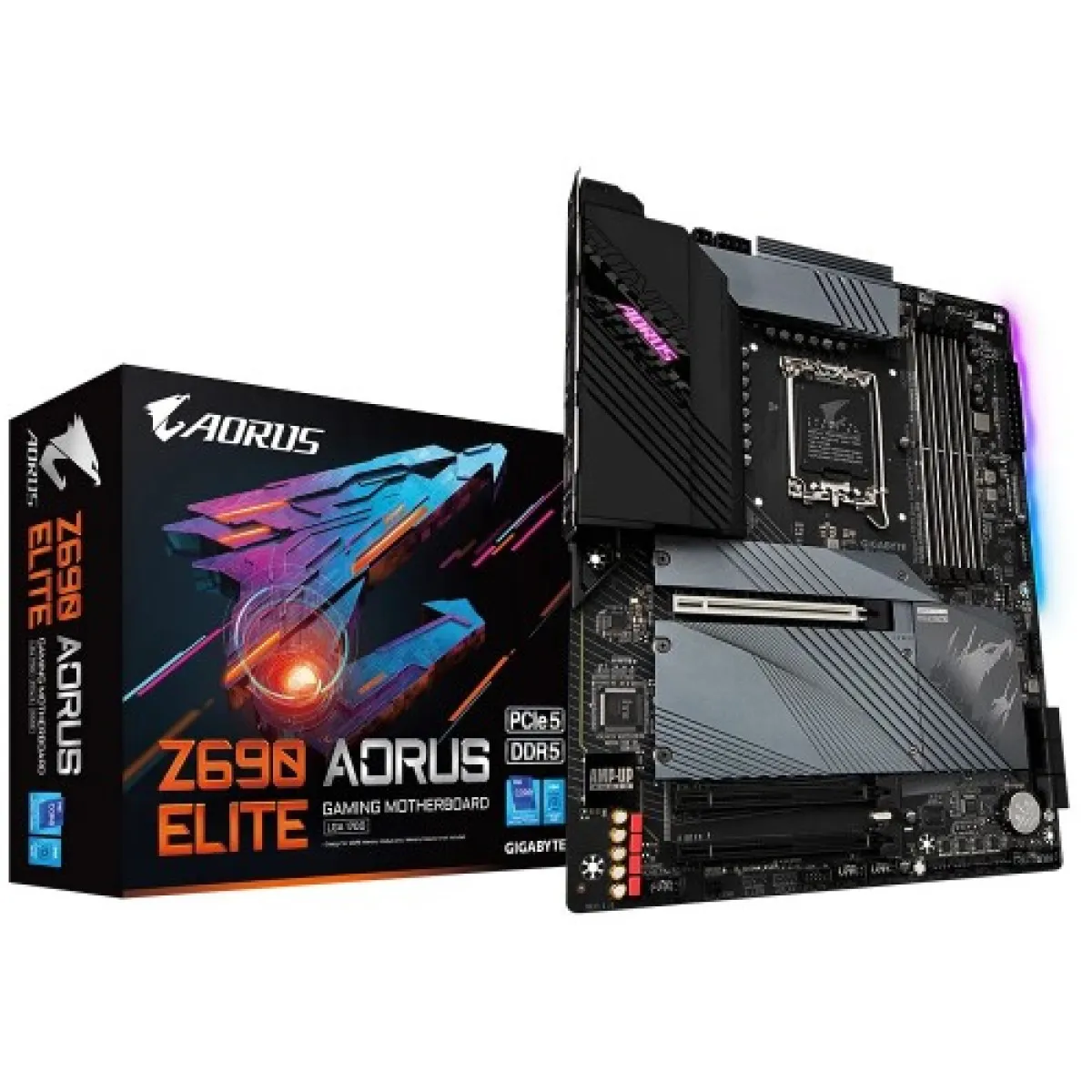

GIGABYTE Z690 AORUS ELITE 12th Gen ATX Motherboard
Key highlights
- Form Factor: ATX Form Factor; 30.5cm x 24.4cm
- Graphics: Integrated Graphics Processor-Intel HD Graphics support: 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz Support for HDMI 2.1 version and HDCP 2.3. Support native HDMI 2.1 TMDS compatible ports. 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz Support for DisplayPort 1.2 version and HDCP 2.3 (Graphics specifications may vary depending on CPU support.) Multi-Graphics Technology Support for AMD Quad-GPU CrossFire and 2-Way AMD CrossFire technologies
- Supported CPU: LGA1700 socket: Support for 12th Generation Intel Core, Pentium Gold and Celeron Processors L3 cache varies with CPU
- Chipset: Intel Z690 Express Chipset
- Slots: 4 x DIMM
Description
High-Performance Motherboard for Gamers in Jashore
GIGABYTE Z690 AORUS ELITE 12th Gen ATX Motherboard Overview
The GIGABYTE Z690 AORUS ELITE motherboard is designed to meet the demands of the latest 12th generation Intel processors, providing a powerful platform for gamers, content creators, and tech enthusiasts alike. This ATX motherboard boasts an advanced feature set, combining cutting-edge technology with exceptional build quality to deliver unparalleled performance in both gaming and productivity tasks.
Performance and Power Delivery: One of the standout features of the Z690 AORUS ELITE is its robust power delivery system, which includes a 16+1 phase digital VRM solution with high-quality capacitors. This ensures stable power distribution, enabling users to push their CPUs to higher clock speeds without overheating or throttling. The motherboard is engineered to support overclocking, allowing enthusiasts to extract every ounce of performance from their hardware.
Enhanced Connectivity: In terms of connectivity, the Z690 AORUS ELITE is equipped with multiple M.2 slots featuring PCIe 4.0 support for lightning-fast SSD speeds. With USB 3.2 Gen 2 Type-C ports and an array of USB-A connectors, users can connect their peripherals and external devices with ease. Additionally, the motherboard includes integrated Wi-Fi 6 and Bluetooth 5.2, ensuring high-speed wireless connectivity for online gaming and streaming.
Cooling Solutions: The motherboard features an advanced thermal design, including large heatsinks and thermal pads, which help maintain optimal operating temperatures. This is particularly important for high-performance setups where heat can become a limiting factor. With Smart Fan 6 technology, users can customize fan profiles to ensure efficient cooling tailored to their specific needs.
Use Cases and Target Audience: The GIGABYTE Z690 AORUS ELITE is perfect for a variety of use cases, from high-end gaming rigs to professional workstations. Gamers will appreciate the superior performance and immersive experience provided by the advanced audio and high-speed networking capabilities. Content creators benefit from the fast data transfer speeds and reliable power delivery, allowing for smooth multitasking and rendering of complex projects.
When considering a high-performance motherboard, the GIGABYTE Z690 AORUS ELITE stands out due to its combination of quality, performance, and innovative features. By choosing this motherboard, customers invest in a future-proof solution that will continue to meet their demands as technology evolves.
Upgrade Your Setup with GIGABYTE Z690 AORUS ELITE
Specification
| BASIC INFORMATION | |
|---|---|
| Form Factor | ATX Form Factor; 30.5cm x 24.4cm |
| Graphics | Integrated Graphics Processor-Intel HD Graphics support: 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz Support for HDMI 2.1 version and HDCP 2.3. Support native HDMI 2.1 TMDS compatible ports. 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz Support for DisplayPort 1.2 version and HDCP 2.3 (Graphics specifications may vary depending on CPU support.) Multi-Graphics Technology Support for AMD Quad-GPU CrossFire and 2-Way AMD CrossFire technologies |
| Supported CPU | LGA1700 socket: Support for 12th Generation Intel Core, Pentium Gold and Celeron Processors L3 cache varies with CPU |
| Chipset | Intel Z690 Express Chipset |
| Slots | 4 x DIMM |
| BIOS | 1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| Type | DDR5 |
| Memory Specifications | |
| Maximum Memory | supporting up to 128 GB |
| Supported Memory | Support for DDR5 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000 MHz memory modules 4 x DDR DIMM sockets (32 GB single DIMM capacity) of system memory Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules (Please refer "Memory Support List" for more information.) |
| PORTS, CONNECTORS & SLOTS | |
| Display Port (s) | 1 x DisplayPort |
| Internal I/O Ports | Internal I/O Connectors: 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x 4-pin ATX 12V power connector 1 x CPU fan header 1 x water cooling CPU fan header 3 x system fan headers 1 x system fan/water cooling pump header 2 x addressable LED strip headers 2 x RGB LED strip headers 4 x M.2 Socket 3 connectors 6 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB Type-C header, with USB 3.2 Gen 2 support 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 2 x Thunderbolt add-in card connectors 1 x reset button 1 x Q-Flash Plus button 1 x reset jumper 1 x Clear CMOS jumper All fan headers are subject to support AIO_Pump, Pump and high performance fan with the capability of delivering up to 2A/12V @ 24W. Back Panel Connectors 1 x USB Type-C port, with USB 3.2 Gen 2x2 support 2 x USB 3.2 Gen 2 Type-A ports (red) 3 x USB 3.2 Gen 1 ports 4 x USB 2.0/1.1 ports 1 x HDMI port 1 x DisplayPort 1 x RJ-45 port 1 x optical S/PDIF Out connector 2 x audio jacks I/O Controller: iTE I/O Controller Chip |
| LAN Port (s) | Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) |
| TPM (Trusted Platform Module ) | 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only) |
| USB (s) | Chipset: 1 x USB Type-C port on the back panel, with USB 3.2 Gen 2x2 support 1 x USB Type-C port with USB 3.2 Gen 2 support, available through the internal USB header 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel 5 x USB 3.2 Gen 1 ports (3 ports on the back panel, 2 ports available through the internal USB header) Chipset+2 USB 2.0 Hub: 8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers) |
| Special | |
| Bundled Software | Norton Internet Security (OEM version) Realtek Gaming LAN Bandwidth Control Utility |
