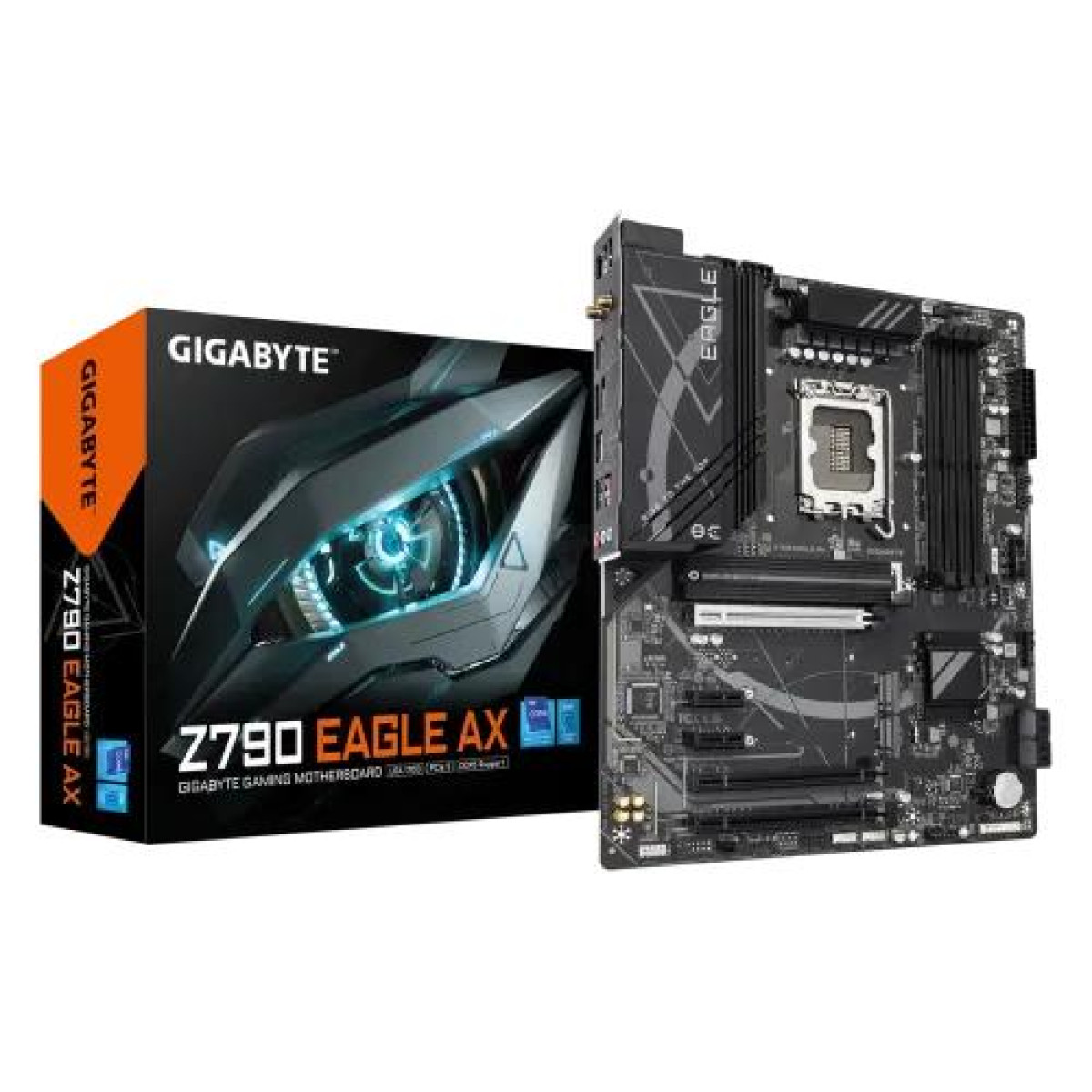

GIGABYTE Z790 EAGLE AX DDR5 ATX Motherboard

BASIC INFORMATION
Form Factor	ATX Form Factor; 30.5cm x 24.4cm
Supported CPU	LGA1700 socket: Support for the 14th, 13th, and 12th Generation Intel® Core, Pentium Gold and Celeron Processors L3 cache varies with CPU (Please refer "CPU Support List" for more information.)
Chipset	Intel Z790 Express Chipset
Slots	4 x DDR5 DIMM sockets
Audio	3 x audio jacks
BIOS	1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Expansion Slots
PCI	CPU: - 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16) * The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot. Chipset: - 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4) - 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x1 (PCIEX1_4) - 2 x PCI Express x1 slots, supporting PCIe 3.0 and running at x1 (PCIEX1_2, PCIEX1_3)
Graphics Specifications
Graphics	Integrated Graphics Processor-Intel® HD Graphics support: - 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz * Support for HDMI 2.1 version and HDCP 2.3. ** Support for native HDMI 2.1 TMDS compatible ports. - 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz * Support for DisplayPort 1.2 version and HDCP 2.3 (Graphics specifications may vary depending on CPU support.)
Memory Specifications
Maximum Memory	up to 192 GB (48 GB single DIMM capacity) of system memory
Supported Memory	14th and 13th Generation Intel Core i9/i7 Pocessors: - Support for DDR5 7600(O.C.) /7400(O.C.) /7200(O.C.) /7000(O.C.) /6800(O.C.) /6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600 / 5400 / 5200/ 4800/4400 MT/s memory modules 13th Generation Intel Core i5/i3 and 12th Generation Intel Core, Pentium Gold and Celeron Processors: - Support for DDR5 4800/4400 MT/s memory modules Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules (The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" on GIGABYTE's website for more information.)
Type	DDR5
PORTS, CONNECTORS & SLOTS
Display Port (s)	1 x DisplayPort
HDMI	1 x HDMI port
Internal I/O Ports	Internal I/O Connectors 1 x 24-pin ATX main power connector 2 x 8-pin ATX 12V power connectors 1 x CPU fan header 1 x CPU fan/water cooling pump header 3 x system fan headers 1 x system fan/water cooling pump header 2 x addressable LED strip headers 3 x M.2 Socket 3 connectors 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x S/PDIF Out header 1 x USB Type-C header, with USB 3.2 Gen 1 support 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 2 x Thunderbolt™ add-in card connectors 1 x reset button 1 x Q-Flash Plus button 1 x reset jumper 1 x Clear CMOS jumper Back Panel Connectors 1 x PS/2 keyboard/mouse port 1 x USB Type-C port, with USB 3.2 Gen 2 support 1 x USB 3.2 Gen 2 Type-A port (red) 4 x USB 3.2 Gen 1 ports 2 x USB 2.0/1.1 ports 2 x SMA antenna connectors (1T1R) 1 x HDMI port 1 x DisplayPort 1 x RJ-45 port 3 x audio jacks
LAN Port (s)	Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
Supported Storage	CPU: - 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU) Chipset: - 1 x M.2 connectors (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB) - 1 x M.2 connectors (Socket 3, M key, type 2280 SATA and PCIe 4.0 x4/x2 SSD support) (M2M_SB) - 4 x SATA 6Gb/s connectors
TPM (Trusted Platform Module )	1 x Trusted Platform Module header (For the GC-TPM2.0 SPI / GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only)
USB (s)	Chipset: - 1 x USB Type-C port on the back panel, with USB 3.2 Gen 2 support - 1 x USB Type-C port with USB 3.2 Gen 1 support, available through the internal USB header - 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel - 6 x USB 3.2 Gen 1 ports (4 ports on the back panel, 2 ports available through the internal USB header) - 2 x USB 2.0/1.1 ports on the back panel Chipset+USB 2.0 Hub: - 4 x USB 2.0/1.1 ports, available through the internal USB headers
Wireless Communication module	Intel Wi-Fi 6E AX211 (PCB rev. 1.0) - WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands - BLUETOOTH 5.3 - Support for 11ax 160MHz wireless standard Realtek Wi-Fi 6E RTL8852CE(PCB rev. 1.1) - WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands - BLUETOOTH 5.3 - Support for 11ax 160MHz wireless standard (Actual data rate may vary depending on environment and equipment.)
Special
Bundled Software	Norton Internet Security (OEM version) LAN bandwidth management software
WARRANTY
Manufacturing Warranty	3 years

The GIGABYTE motherboard is a high-performance platform ideal for demanding applications like gaming and content production. It is designed to accommodate the latest 14th, 13th, and 12th Gen Intel CPUs using the LGA1700 socket. It provides fast and efficient performance for demanding tasks and multitasking, with four DIMM slots supporting up to 192GB of DDR5 memory and speeds up to 7600 MHz (overclocked). Its display connection options include DisplayPort and HDMI outputs. A strong Twin 12*+1+1 Phases Digital VRM Solution, which offers steady and dependable power delivery and is necessary to sustain performance under high loads, is one of the GIGABYTE Z790 EAGLE AX's key characteristics. Dual-channel DDR5 with XMP 3.0 Memory Modules is supported by the motherboard, enhancing memory performance and stability. With three PCIe 4.0 x4 M.2 connections, there are many storage options and fast data transmission and large storage capacity. In addition to preventing SSD overheating, the M.2 Thermal Guard and sophisticated thermal design guarantee VRM power stability. The quick-release design of the EZ-Latch PCIe 5.0 x16 slot facilitates installation simplicity and makes graphics card upgrades simple. Thanks to Intel Wi-Fi 6E (802.11ax) and Realtek 2.5GbE LAN, networking is dependable and quick. In addition, the offers a wide range of connectivity choices, such as DisplayPort, HDMI, and a rear USB-C connector that supports 10Gb/s data transmission. With its various temperature sensors and hybrid fan headers with FAN STOP technology, the Smart Fan 6 feature provides sophisticated cooling solutions that are specifically matched to the requirements of the system. The update procedure is made simpler by the Q-Flash Plus function, which enables BIOS upgrades without requiring the installation of the CPU, RAM, or graphics card. For those looking for a reliable and feature-rich motherboard that supports the newest Intel CPUs and cutting-edge technology and offers exceptional performance and dependability for any high-end computing demands, the GIGABYTE Z790 EAGLE AX is a great option. In Bangladesh, you can get the original From Unix Network. We have a large collection of the latest to purchase for your . Order Online Or Visit your Nearest Shop to get yours at the lowest price. The GIGABYTE Z790 EAGLE AX DDR5 ATX Motherboard comes with 3-year warranty.

Elevate your computing experience with the cutting-edge GIGABYTE Z790 EAGLE AX DDR5 ATX Motherboard, now available at Unix Network in Jashore, Bangladesh. This motherboard is specially designed to deliver top-notch quality, superior performance, and lightning-fast speed, making it the perfect choice for computer users and students alike.

With its innovative DDR5 memory technology, the GIGABYTE Z790 EAGLE AX Motherboard provides unparalleled speed and efficiency, ensuring smooth multitasking and seamless performance for all your computing needs. Whether you're working on intensive projects, playing graphics-heavy games, or simply browsing the web, this motherboard guarantees a smooth and responsive experience every time.

The GIGABYTE Z790 EAGLE AX Motherboard is packed with features that enhance your computing experience. From its advanced connectivity options, including WiFi 6E and Bluetooth 5.2 support, to its robust power delivery system for stable overclocking, this motherboard has everything you need to take your PC to the next level. Plus, with its sleek and stylish design, the GIGABYTE Z790 EAGLE AX Motherboard will add a touch of sophistication to your setup.

At Unix Network, we take pride in offering high-quality products that meet the needs of our customers. The GIGABYTE Z790 EAGLE AX DDR5 ATX Motherboard is no exception – it is built to last and deliver exceptional performance, making it a valuable investment for any computer user or student. Whether you're looking to upgrade your current system or build a new one from scratch, this motherboard is sure to exceed your expectations.

Don't compromise on quality or performance – choose the GIGABYTE Z790 EAGLE AX DDR5 ATX Motherboard for a truly exceptional computing experience. Visit Unix Network in Jashore, Bangladesh today to get your hands on this top-of-the-line motherboard and take your PC to new heights.

If you're looking to take your gaming or computing experience to the next level, look no further than the GIGABYTE Z790 EAGLE AX DDR5 ATX Motherboard. Designed for superior performance and speed, this motherboard is the perfect choice for computer users and students alike.

Featuring top-of-the-line quality and unparalleled reliability, the GIGABYTE Z790 EAGLE AX DDR5 ATX Motherboard is built to last. Its durable construction ensures that it can handle even the most demanding tasks with ease, making it a smart investment for anyone in need of a high-performance motherboard.

But it's not just about quality with the GIGABYTE Z790 EAGLE AX DDR5 ATX Motherboard. This motherboard is also packed with features that will enhance your computing experience. With support for DDR5 memory and the latest technologies, you can expect lightning-fast speeds and seamless multitasking capabilities. Whether you're gaming, streaming, or working on important projects, this motherboard can handle it all with ease.

And let's not forget about speed. The GIGABYTE Z790 EAGLE AX DDR5 ATX Motherboard is designed to deliver lightning-fast performance, ensuring that you never have to wait for your computer to catch up with you. With its innovative design and cutting-edge technology, this motherboard is guaranteed to impress even the most discerning computer users.

At Unix Network in Jashore, Bangladesh, we are proud to offer the GIGABYTE Z790 EAGLE AX DDR5 ATX Motherboard to our customers. With our professional sales and service team, you can trust that you're getting the best product and support available. So why wait? Upgrade your computer today with the GIGABYTE Z790 EAGLE AX DDR5 ATX Motherboard and experience the ultimate in performance and speed.
