Key highlights
- Form Factor: - Micro ATX Form Factor: 9.1-in x 8.1-in, 23.1 cm x 20.6 cm - Solid Capacitor design
- Supported CPU: - Supports AMD Socket AM4 A-Series APUs (Bristol Ridge) and Ryzen Series CPUs (Summit Ridge, Raven Ridge and Pinnacle Ridge) - Digi Power design - 7 Power Phase design - Supports CPU up to 65W
- Chipset: - AMD Promontory A320
- Memory: - Max. capacity of system memory: 32GB
- Slots: - 2 x DDR4 DIMM Slots - 15μ Gold Contact in DIMM Slots
Description
Affordable ASRock A320M HDV R4.0 Motherboard for Gaming

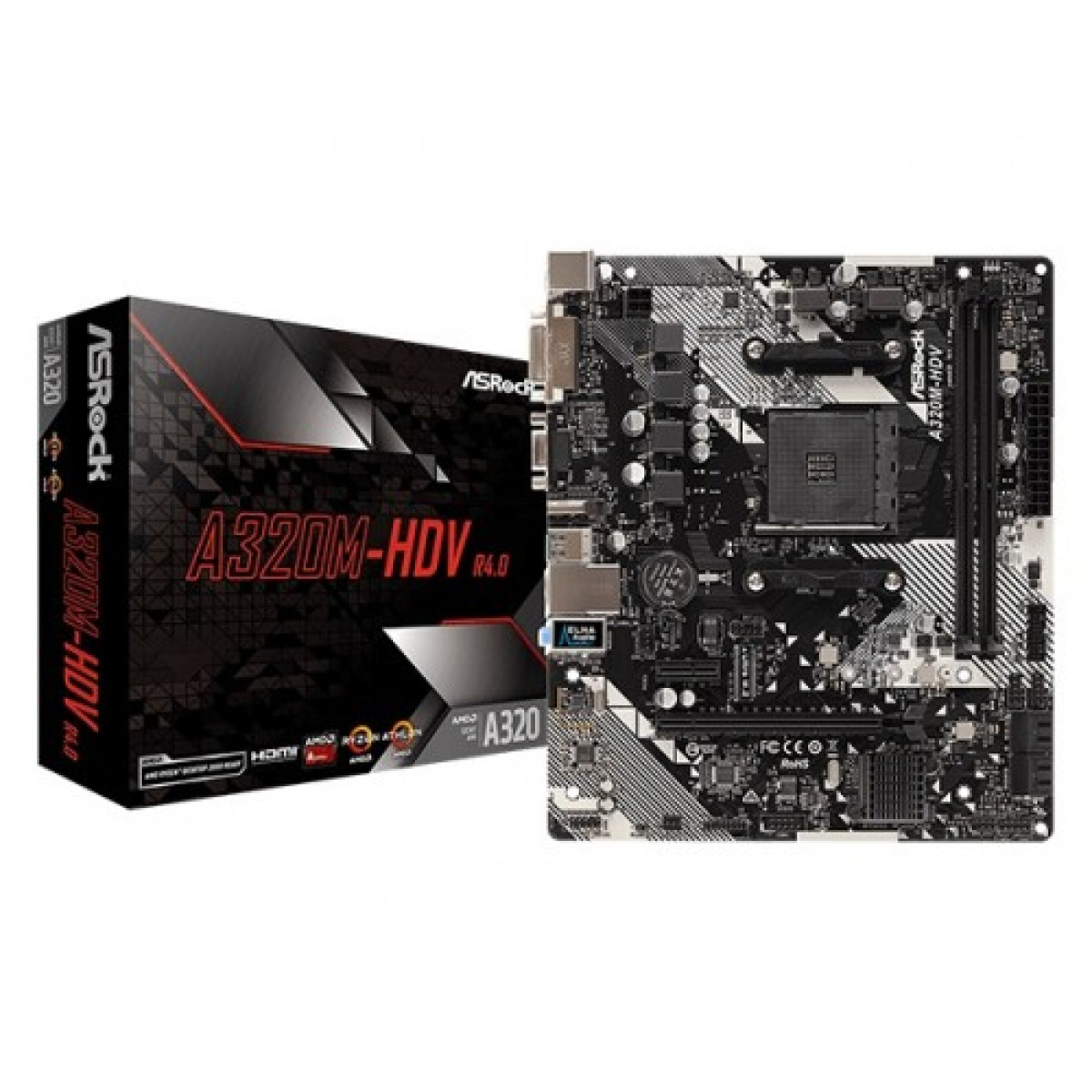

ASRock A320M HDV R4.0 AMD Motherboard
The ASRock A320M HDV R4.0 AMD Motherboard is designed for performance, reliability, and ease of use, making it an excellent choice for both casual users and gaming enthusiasts in Bangladesh. This Micro ATX motherboard supports AMD Ryzen processors, ensuring that you can build a powerful custom PC tailored to your needs.
Key Features: Featuring dual-channel DDR4 memory support, this motherboard allows for up to 32GB of RAM, enhancing multitasking capabilities. The integrated HDMI and DVI-D ports provide versatile display options, while the USB 3.1 Gen1 ports ensure rapid data transfer speeds.
Enhanced Connectivity: With an array of SATA3 ports, you can connect multiple storage devices, ensuring that your system has ample space for all your files and applications. The ASRock A320M HDV R4.0 also features advanced audio technology, providing immersive sound quality for gaming and entertainment.
Additionally, this motherboard includes a user-friendly BIOS setup and support for overclocking, giving tech-savvy users the ability to customize their systems for even better performance. Choose the ASRock A320M HDV R4.0 for a dependable and high-performing motherboard that meets the diverse needs of Bangladeshi customers.
Top Features of ASRock A320M HDV R4.0 Motherboard
Specification
| BASIC INFORMATION | |
|---|---|
| Form Factor | - Micro ATX Form Factor: 9.1-in x 8.1-in, 23.1 cm x 20.6 cm - Solid Capacitor design |
| Supported CPU | - Supports AMD Socket AM4 A-Series APUs (Bristol Ridge) and Ryzen Series CPUs (Summit Ridge, Raven Ridge and Pinnacle Ridge) - Digi Power design - 7 Power Phase design - Supports CPU up to 65W |
| Chipset | - AMD Promontory A320 |
| Memory | - Max. capacity of system memory: 32GB |
| Slots | - 2 x DDR4 DIMM Slots - 15μ Gold Contact in DIMM Slots |
| Audio | - 7.1 CH HD Audio (Realtek ALC887 Audio Codec) - Supports Surge Protection - ELNA Audio Caps |
| BIOS | - 128Mb AMI UEFI Legal BIOS with GUI support - Supports "Plug and Play" - ACPI 5.1 compliance wake up events - Supports jumperfree - SMBIOS 2.3 support - DRAM Voltage multi-adjustment |
| Expansion Slots | |
| M.2 Socket | - 1 x Ultra M.2 Socket, supports M Key type 2242/2260/2280 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x4 (32 Gb/s) (with Summit Ridge, Raven Ridge and Pinnacle Ridge) or Gen3 x2 (16 Gb/s) (with A-Series APU, and Athlon 2xxGE series APU) - 1 x Screw for M.2 Socket |
| PCI | AMD Ryzen series CPUs (Summit Ridge and Pinnacle Ridge) - 1 x PCI Express 3.0 x16 Slot (PCIE2: x16 mode) AMD 7th A-Series APUs / Raven Ridge CPUs - 1 x PCI Express 3.0 x16 Slot (PCIE2: x8 mode) AMD Ryzen series CPUs (Raven Ridge) - 1 x PCI Express 3.0 x16 Slot (PCIE2: x8 mode) AMD Athlon series CPUs - 1 x PCI Express 3.0 x16 Slot (PCIE2: x4 mode) - 1 x PCI Express 2.0 x1 Slot |
| Graphics Specifications | |
| Max Shared Memory | - Shared memory default 2GB. Max Shared memory supports up to 16GB. - The Max shared memory 16GB requires 32GB system memory installed. |
| Memory Specifications | |
| Supported Memory | - AMD Ryzen series CPUs (Matisse) support DDR4 3200/2933/2667/2400/2133 ECC & non-ECC, un-buffered memory - AMD Ryzen series CPUs (Pinnacle Ridge) support DDR4 3200+(OC) / 2933(OC) / 2667/2400/2133 ECC & non-ECC, un-buffered memory - AMD Ryzen series CPUs (Picasso) support DDR4 2933/2667/2400/2133 non-ECC, un-buffered memory - AMD Ryzen series CPUs (Summit Ridge) support DDR4 3200+(OC) / 2933(OC) / 2667/2400/2133 ECC & non-ECC, un-buffered memory - AMD Ryzen series CPUs (Raven Ridge) support DDR4 3200+(OC) / 2933/2667/2400/2133 non-ECC, un-buffered memory - AMD 7th Gen A-Series APUs support DDR4 2400/2133 non-ECC, un-buffered memory |
| Type | - Dual Channel DDR4 Memory Technology |
| PORTS, CONNECTORS & SLOTS | |
| D-Sub (s) | - 1 x D-Sub Port - Supports D-Sub with max. resolution up to 2048x1536 @ 60Hz |
| DVI-D (s) | - 1 x DVI-D Port - Supports DVI-D with max. resolution up to 1920x1200 @ 60Hz - Supports HDCP 1.4 with DVI-D and HDMI Ports - Supports Full HD 1080p Blu-ray (BD) playback with DVI-D and HDMI Po |
| HDMI | - 1 x HDMI Port - Supports HDMI with max. resolution up to 4K x 2K (4096x2160) @ 24Hz / (3840x2160) @ 30Hz - Supports HDCP 1.4 with DVI-D and HDMI Ports - Supports Full HD 1080p Blu-ray (BD) playback with DVI-D and HDMI Ports - Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI Port (Compliant HDMI monitor is required) |
| LAN Port (s) | - 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED) |
| Supported Storage | - 4 x SATA3 6.0 Gb/s Connectors, support RAID (RAID 0, RAID 1 and RAID 10), NCQ, AHCI and Hot Plug - 1 x Ultra M.2 Socket, supports M Key type 2242/2260/2280 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x4 (32 Gb/s) (with Summit Ridge, Raven Ridge and Pinnacle Ridge) or Gen3 x2 (16 Gb/s) (with A-Series APU, and Athlon 2xxGE series APU) - Supports ASRock U.2 Kit - Supports NVMe SSD as boot disks |
| USB (s) | 6 USB 3.1 Gen1 (2 Front, 4 Rear) - 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection) - 1 x USB 3.1 Gen1 Header (Supports 2 USB 3.1 Gen1 ports) (Supports ESD Protection) - 2 x USB 2.0 Ports (Supports ESD Protection) - 4 x USB 3.1 Gen1 Ports (Supports ESD Protection) |
| Internal I/O Connectors | - 1 x PS/2 Mouse/Keyboard Port - 1 x D-Sub Port - 1 x DVI-D Port - 1 x HDMI Port - 2 x USB 2.0 Ports (Supports ESD Protection) - 4 x USB 3.1 Gen1 Ports (Supports ESD Protection) - 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED) - HD Audio Jacks: Line in / Front Speaker / Microphone - 1 x COM Port Header - 1 x Chassis Intrusion and Speaker Header - 1 x CPU Fan Connector (4-pin)* - 2 x Chassis Fan Connectors (1 x 4-pin, 1 x 3-pin)** - 1 x 24 pin ATX Power Connector - 1 x 4 pin 12V Power Connector - 1 x Front Panel Audio Connector - 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection) - 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) (Supports ESD Protection) |
| WARRANTY | |
| Manufacturing Warranty | 03 Years warranty |
