Key highlights
- Graphics: - Integrated AMD Radeon Vega Series Graphics in Ryzen Series APU - DirectX 12, Pixel Shader 5.0 - Shared memory default 2GB. Max Shared memory supports up to 16GB. - Three graphics output options: D-Sub, HDMI and DisplayPort 1.4 - Supports Triple Monitor - Supports HDMI 2.1 with max. resolution up to 4K x 2K (4096x2160) @ 60Hz - Supports DisplayPort 1.4 with max. resolution up to 5K (5120x2880)@120Hz - Supports D-Sub with max. resolution up to 1920x1200 @ 60Hz - Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI 2.1 Port (Compliant HDMI monitor is required) - Supports HDR (High Dynamic Range) with HDMI 2.1 - Supports HDCP 2.3 with HDMI 2.1 and DisplayPort 1.4 Ports - Supports 4K Ultra HD (UHD) playback with HDMI 2.1 and DisplayPort 1.4 Ports - Supports Microsoft PlayReady
- Chipset: AMD B550
- Audio: - 7.1 CH HD Audio with Content Protection (Realtek ALC1200 Audio Codec) - Premium Blu-ray Audio support - Supports Surge Protection - PCB Isolate Shielding - Individual PCB Layers for R/L Audio Channel - Nahimic Audio
- BIOS: - 256Mb AMI UEFI Legal BIOS with GUI support - Supports "Plug and Play" - ACPI 5.1 compliance wake up events - Supports jumperfree - SMBIOS 2.3 support - CPU, CPU VDDCR_SOC, DRAM, VPPM, 1.05V_PROM_S5, 2.5V_PROM, +1.8VSB, VDDP Voltage Multi-adjustment
- M.2 Socket: - 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT module
Description
High-Performance ASRock B550M Pro4 for Gamers

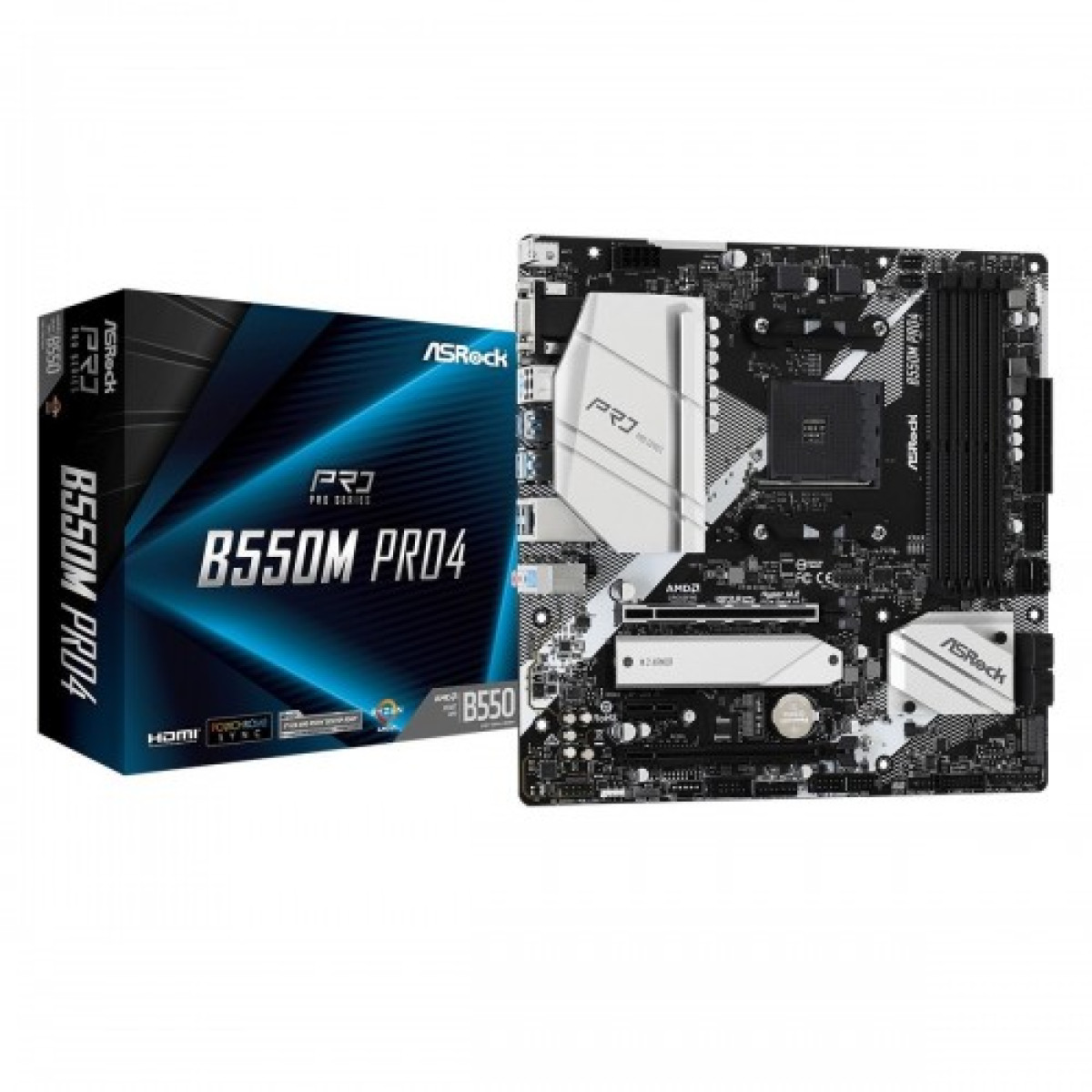

Explore the ASRock B550M Pro4 DDR4 AMD Motherboard
The ASRock B550M Pro4 is designed for gamers and professionals who demand high performance and reliability. This motherboard combines cutting-edge technology with user-friendly features, ensuring an exceptional computing experience. Equipped with the AMD B550 chipset, it supports the latest AMD Ryzen processors, providing you with unmatched processing power and efficiency.
One of the standout features of the ASRock B550M Pro4 is its dual M.2 slots, which allow for lightning-fast storage solutions. With support for PCIe 4.0, you can take advantage of the latest high-speed SSDs. Additionally, the motherboard features four DIMM slots that can accommodate up to 128GB of DDR4 RAM, enabling seamless multitasking and enhanced performance.
Connectivity is another major benefit of this motherboard. It includes USB 3.2 Gen1 ports, HDMI, and DisplayPort outputs, ensuring that you have all the necessary connections for your peripherals and displays. The integrated Realtek ALC892 audio codec delivers a rich audio experience, perfect for gaming and multimedia consumption.
Durability is also a key factor, with premium capacitors and a sturdy design that guarantees longevity. Whether you're building a new system or upgrading an existing one, the ASRock B550M Pro4 is your go-to choice for a reliable and high-performing motherboard.
Explore Features of ASRock B550M Pro4 Motherboard
Specification
| BASIC INFORMATION | |
|---|---|
| Graphics | - Integrated AMD Radeon Vega Series Graphics in Ryzen Series APU - DirectX 12, Pixel Shader 5.0 - Shared memory default 2GB. Max Shared memory supports up to 16GB. - Three graphics output options: D-Sub, HDMI and DisplayPort 1.4 - Supports Triple Monitor - Supports HDMI 2.1 with max. resolution up to 4K x 2K (4096x2160) @ 60Hz - Supports DisplayPort 1.4 with max. resolution up to 5K (5120x2880)@120Hz - Supports D-Sub with max. resolution up to 1920x1200 @ 60Hz - Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI 2.1 Port (Compliant HDMI monitor is required) - Supports HDR (High Dynamic Range) with HDMI 2.1 - Supports HDCP 2.3 with HDMI 2.1 and DisplayPort 1.4 Ports - Supports 4K Ultra HD (UHD) playback with HDMI 2.1 and DisplayPort 1.4 Ports - Supports Microsoft PlayReady |
| Chipset | AMD B550 |
| Audio | - 7.1 CH HD Audio with Content Protection (Realtek ALC1200 Audio Codec) - Premium Blu-ray Audio support - Supports Surge Protection - PCB Isolate Shielding - Individual PCB Layers for R/L Audio Channel - Nahimic Audio |
| BIOS | - 256Mb AMI UEFI Legal BIOS with GUI support - Supports "Plug and Play" - ACPI 5.1 compliance wake up events - Supports jumperfree - SMBIOS 2.3 support - CPU, CPU VDDCR_SOC, DRAM, VPPM, 1.05V_PROM_S5, 2.5V_PROM, +1.8VSB, VDDP Voltage Multi-adjustment |
| Expansion Slots | |
| M.2 Socket | - 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT module |
| PCI | - 1 x PCI Express 3.0 x1 Slot |
| Memory Specifications | |
| Maximum Memory | 128GB |
| Type | DDR4 |
| PORTS, CONNECTORS & SLOTS | |
| D-Sub (s) | 1 x D-Sub Port |
| Display Port (s) | 1 x DisplayPort 1.4 |
| LAN Port (s) | - 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED) |
| TPM (Trusted Platform Module ) | - 1 x SPI TPM Header |
| USB (s) | - 1 x USB 3.2 Gen2 Type-A Port (10 Gb/s) (Supports ESD Protection) - 1 x USB 3.2 Gen2 Type-C Port (10 Gb/s) (Supports ESD Protection) - 4 x USB 3.2 Gen1 Ports (ASMedia ASM1074 hub) (Supports ESD Protection) - 2 x USB 2.0 Ports (Supports ESD Protection) - 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED) |
| Special | |
| Special Feature | ASRock USB 3.2 Gen2 - ASRock USB 3.2 Gen2 Type-A Port (10 Gb/s) - ASRock USB 3.2 Gen2 Type-C Port (10 Gb/s) ASRock Super Alloy - XXL Aluminum Alloy Heatsink - Premium 50A Power Choke - Sapphire Black PCB - High Density Glass Fabric PCB - 2oz Copper PCB ASRock Steel Slot Gen4 ASRock Full Coverage M.2 Heatsink ASRock Hyper M.2 (PCIe Gen4x4) ASRock POST Status Checker (PSC) ASRock Full Spike Protection (for all USB, Audio, LAN Ports) ASRock Live Update & APP Shop |
| WARRANTY | |
| Manufacturing Warranty | 03 Years Warranty |
