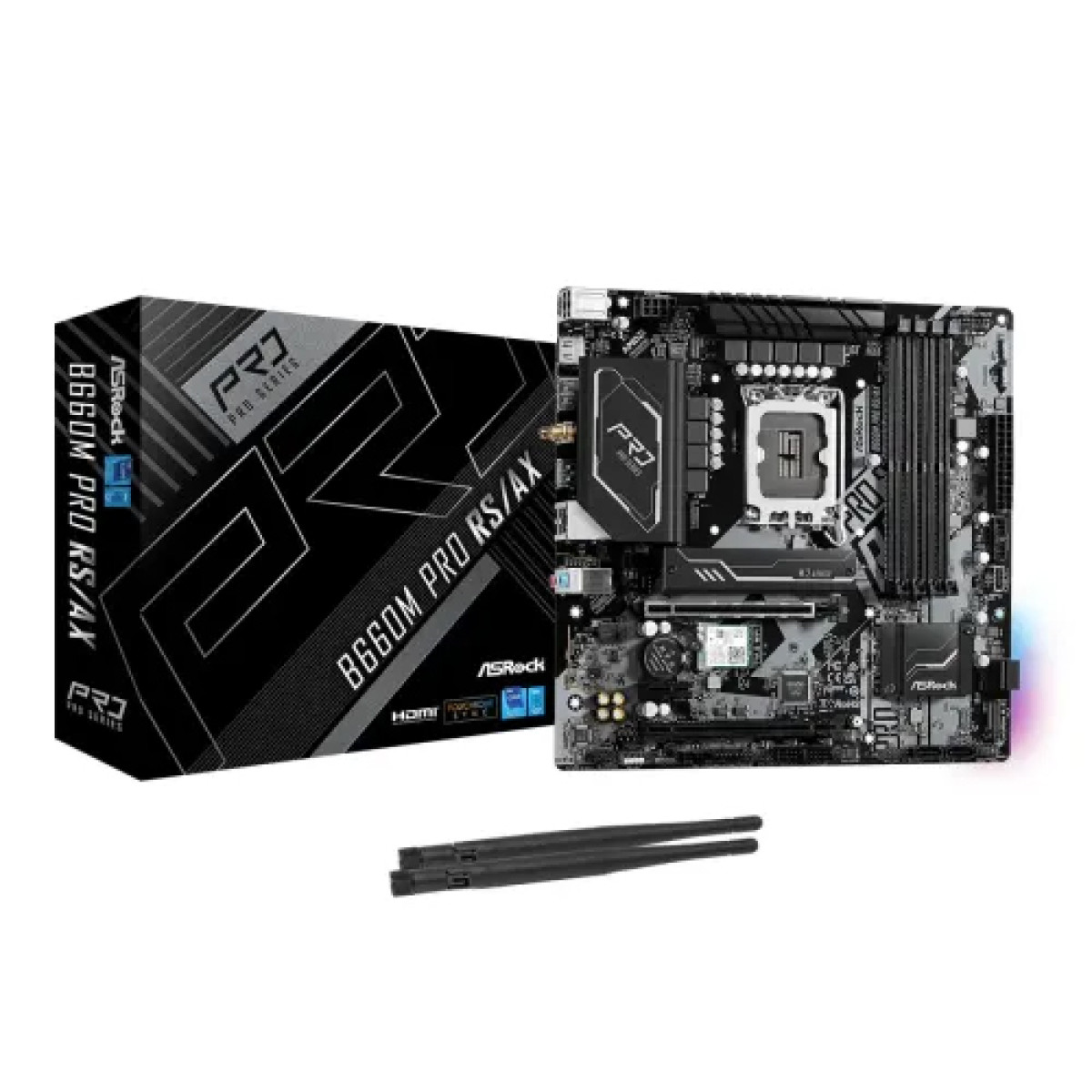

ASRock B660M Pro RS/ax 12th Gen Micro ATX Motherboard
Key highlights
- Form Factor: Micro ATX Form Factor: 9.6-in x 9.6-in, 24.4 cm x 24.4 cm Solid Capacitor design
- Supported CPU: Supports 12th Gen Intel Core Processors (LGA1700) Digi Power design 8 Power Phase design Supports Intel Hybrid Technology Supports Intel Turbo Boost Max 3.0 Technology
- Chipset: Intel B660
- Audio: 7.1 CH HD Audio (Realtek ALC897 Audio Codec) Supports Surge Protection Nahimic Audio
- BIOS: 128Mb AMI UEFI Legal BIOS with multilingual GUI support ACPI 6.0 Compliant wake up events SMBIOS 2.7 Support CPU Core/Cache, CPU GT, DRAM, VDD_IMC, VCCIN AUX, +1.05V PROC, +0.82V PCH, +1.05V PCH Voltage Multi-adjustment
Description
Shop Micro ATX Motherboard for Gaming and Productivity
Experience Unmatched Performance with ASRock B660M Pro RS/ax
The ASRock B660M Pro RS/ax motherboard is designed for the tech-savvy user looking to harness the power of the 12th Generation Intel processors. With its Micro ATX form factor, this motherboard fits perfectly into compact cases, making it an ideal choice for gamers and professionals alike. Enhanced Connectivity is at the forefront of this motherboard’s design, offering dual M.2 slots for lightning-fast SSD storage, and USB 3.2 Gen2 ports ensuring rapid data transfer speeds. Stability is guaranteed with ASRock’s premium capacitors and a reinforced PCIe slot that can support the latest graphics cards, making it perfect for gaming and creative applications.
Cooling Solutions are vital for optimal performance, and the B660M Pro RS/ax comes equipped with multiple fan headers and an advanced heatsink design that ensures your system stays cool under pressure. This motherboard also boasts superior audio quality with Realtek ALC897 audio codec, providing an immersive sound experience for gaming and multimedia.
In a market like Bangladesh, where performance meets affordability, the ASRock B660M Pro RS/ax stands out, providing a reliable foundation for your next build. Invest in a motherboard that not only meets your needs but exceeds your expectations.
Explore Features of ASRock B660M Pro RS/ax Board
Specification
| BASIC INFORMATION | |
|---|---|
| Form Factor | Micro ATX Form Factor: 9.6-in x 9.6-in, 24.4 cm x 24.4 cm Solid Capacitor design |
| Supported CPU | Supports 12th Gen Intel Core Processors (LGA1700) Digi Power design 8 Power Phase design Supports Intel Hybrid Technology Supports Intel Turbo Boost Max 3.0 Technology |
| Chipset | Intel B660 |
| Audio | 7.1 CH HD Audio (Realtek ALC897 Audio Codec) Supports Surge Protection Nahimic Audio |
| BIOS | 128Mb AMI UEFI Legal BIOS with multilingual GUI support ACPI 6.0 Compliant wake up events SMBIOS 2.7 Support CPU Core/Cache, CPU GT, DRAM, VDD_IMC, VCCIN AUX, +1.05V PROC, +0.82V PCH, +1.05V PCH Voltage Multi-adjustment |
| Type | DDR4 |
| Expansion Slots | |
| PCI | Chipset: 1 x PCIe 4.0 x16 Slot (PCIE1), supports x16 mode* 1 x PCIe 3.0 x16 Slot (PCIE3), supports x4 mode* 1 x PCIe 3.0 x1 Slot (PCIE2)* 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module and Intel® CNVi (Integrated WiFi/BT) Supports AMD CrossFire |
| Memory Specifications | |
| Maximum Memory | 128GB |
| Slots | 4 x DIMM Slots |
| PORTS, CONNECTORS & SLOTS | |
| HDMI | 1 x HDMI Port |
| Internal I/O Ports | 1 x Chassis Intrusion and Speaker Header 1 x RGB LED Header 3 x Addressable LED Headers 1 x CPU Fan Connector (4-pin) 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)**** 3 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control) 1 x 24 pin ATX Power Connector 1 x 8 pin 12V Power Connector (Hi-Density Power Connector) 1 x Front Panel Audio Connector 1 x Thunderbolt AIC Connector (5-pin) (Supports ASRock Thunderbolt 4 AIC Card) 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection) 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) (Supports ESD Protection) 1 x Front Panel Type C USB 3.2 Gen1 Header (Supports ESD Protection) |
| Wireless Communication module | 802.11ax Wi-Fi 6E Module Supports IEEE 802.11a/b/g/n/ax Supports Dual-Band 2x2 160MHz with extended 6GHz band support* 2 antennas to support 2 (Transmit) x 2 (Receive) diversity technology Supports Bluetooth + High speed class II Supports MU-MIMO |
| WARRANTY | |
| Manufacturing Warranty | 3 years |
