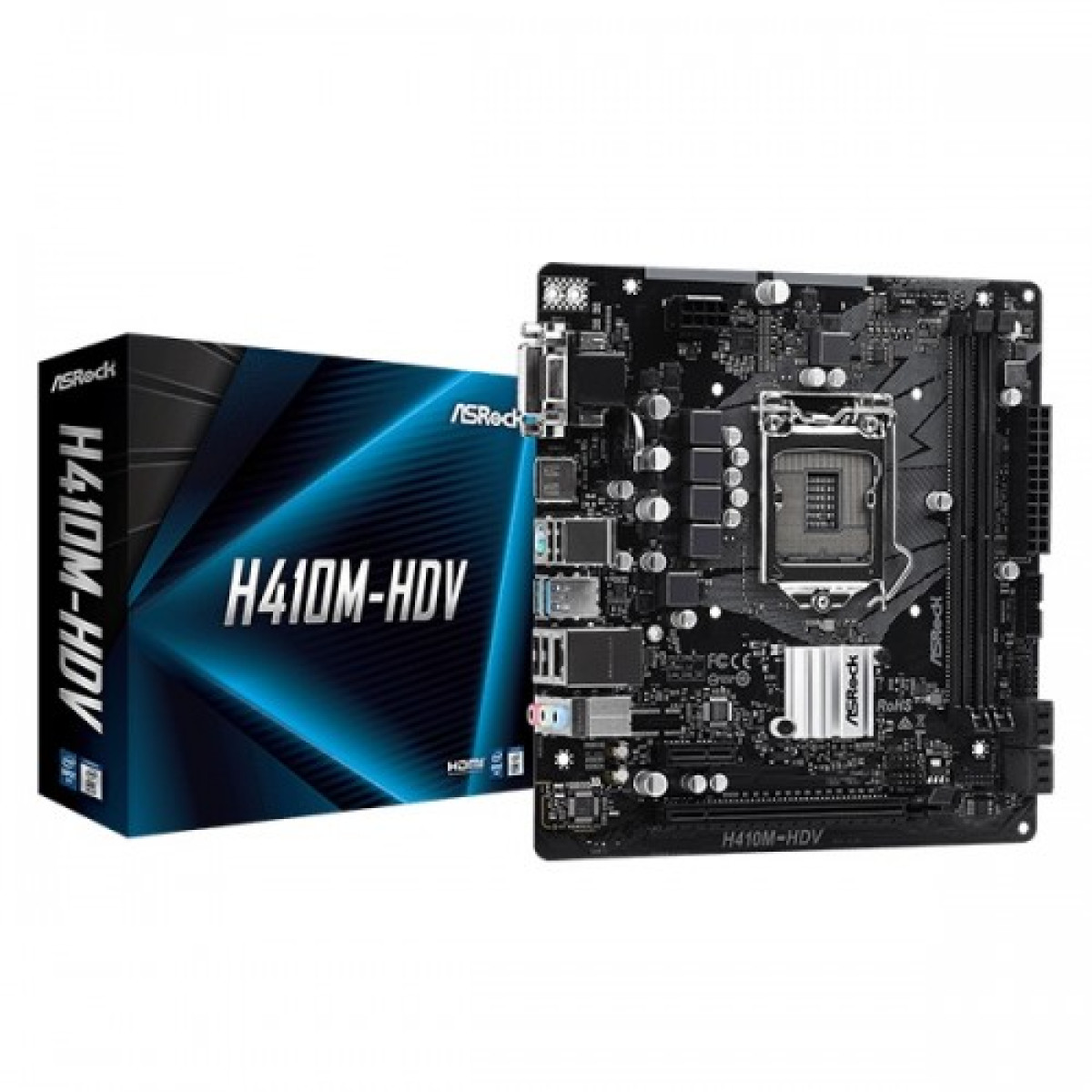

ASRock H410M-HDV 10th Gen DDR4 Motherboard
Key highlights
- Form Factor: Micro ATX Form Factor: 7.76-in x 7.4-in, 19.7 cm x 18.8 cm Solid Capacitor design
- Supported CPU: Supports 10th Gen Intel® Core™ Processors (Socket 1200) Digi Power design 5 Power Phase design Supports Intel Turbo Boost Max 3.0 Technology
- Chipset: Intel H410
- Audio: 7.1 CH HD Audio (Realtek ALC887 Audio Codec) - Supports Surge Protection
- BIOS: 128Mb AMI UEFI Legal BIOS with multilingual GUI support ACPI 6.0 Compliant wake up events SMBIOS 2.7 Support CPU Core/Cache, GT, DRAM, PCH +1.0V, VCCST Voltage Multi-adjustment
Description
Reliable Performance with ASRock H410M-HDV Motherboard
Unlock Your PC's Potential with ASRock H410M-HDV
The ASRock H410M-HDV motherboard is designed to support the latest 10th Gen Intel processors, making it an ideal choice for anyone looking to build a powerful yet budget-friendly PC. With its Micro ATX form factor, this motherboard is compact yet packed with features that enhance performance and connectivity.
One of the standout features is the DDR4 memory support, allowing for speeds of up to 2933 MHz, which significantly boosts your system's responsiveness. Additionally, the 4 SATA3 connectors provide ample storage options for all your files and applications, while the HDMI and DVI-D outputs ensure you can connect to modern displays without any hassle.
Built with high-quality components, the ASRock H410M-HDV promises durability and longevity, essential for users in Bangladesh who value reliability in their computing solutions. Whether you're gaming, working, or streaming, this motherboard delivers consistent performance.
Upgrade your computing experience today with the ASRock H410M-HDV motherboard and take the first step towards building a system that meets your needs!
Upgrade Your PC with ASRock's 10th Gen Technology
Specification
| BASIC INFORMATION | |
|---|---|
| Form Factor | Micro ATX Form Factor: 7.76-in x 7.4-in, 19.7 cm x 18.8 cm Solid Capacitor design |
| Supported CPU | Supports 10th Gen Intel® Core™ Processors (Socket 1200) Digi Power design 5 Power Phase design Supports Intel Turbo Boost Max 3.0 Technology |
| Chipset | Intel H410 |
| Audio | 7.1 CH HD Audio (Realtek ALC887 Audio Codec) - Supports Surge Protection |
| BIOS | 128Mb AMI UEFI Legal BIOS with multilingual GUI support ACPI 6.0 Compliant wake up events SMBIOS 2.7 Support CPU Core/Cache, GT, DRAM, PCH +1.0V, VCCST Voltage Multi-adjustment |
| Expansion Slots | |
| PCI | 1 x PCI Express 3.0 x 16 Slot 1 x PCI Express 3.0 x 1 Slot |
| Graphics Specifications | |
| Graphics | -Hardware Accelerated Codecs: AVC/H.264, HEVC/H.265 8bit, HEVC/H.265 10bit, VP8, VP9 8bit, VP9 10bit, MPEG 2, MJPEG, VC-1 -Supports HDMI 1.4 with max. resolution up to 4K x 2K (4096x2160) @ 30Hz -Intel UHD Graphics Built-in Visuals and the VGA outputs can be supported only with processors which are GPU integrated. -VP9 10bit and VC-1 are for decode only. VP8 and VP9 encode are not supported by Windows OS -Supports up to 2 displays simultaneously |
| Memory Specifications | |
| Maximum Size | Max. capacity of system memory: 64GB |
| Slots | 1 x PCI Express 3.0 x 16 Slot 1 x PCI Express 3.0 x 1 Slot |
| Supported Memory | - Dual Channel DDR4 Memory Technology - 2 x DDR4 DIMM Slots - Supports DDR4 2933 / 2800 / 2666 / 2400 / 2133 non-ECC, un-buffered memory - Supports Intel Extreme Memory Profile (XMP) 2.0 - 15μ Gold Contact in DIMM Slots |
| Type | DDR4 |
| PORTS, CONNECTORS & SLOTS | |
| D-Sub (s) | 1 x D-Sub Port |
| DVI-D (s) | 1 x DVI-D Port |
| HDMI | 1 x HDMI 1.4 |
| LAN Port (s) | 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED) |
| Supported Storage | 4 x SATA3 6.0 Gb/s Connectors, support NCQ, AHCI and Hot Plug |
| USB (s) | 1 x USB 2.0 1 x USB 3.2 Gen1 |
| Internal I/O Connectors | 1 x PS/2 Mouse/Keyboard Port 1 x D-Sub Port 1 x DVI-D Port 1 x HDMI Port 4 x USB 2.0 Ports (Supports ESD Protection) 2 x USB 3.2 Gen1 Ports (Supports ESD Protection) 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED) HD Audio Jacks: Line in / Front Speaker / Microphone |
| Special | |
| Bundled Software | Software- ASRock Motherboard Utility (A-Tuning) ASRock XFast LAN UEFI ASRock EZ Mode ASRock Full HD UEFI ASRock My Favorites in UEFI ASRock Instant Flash ASRock Internet Flash |
| Special Feature | Premium 50A Power Choke Sapphire Black PCB High Density Glass Fabric PCB |
| WARRANTY | |
| Manufacturing Warranty | 03 Years Warranty |
