Key highlights
- Form Factor: Micro ATX Form Factor; 24.4cm x 20.5cm
- Graphics: 1 x D-Sub port, supporting a maximum resolution of 1920x1200 at 60 Hz 1 x DVI-D port, supporting a maximum resolution of 1920x1200 at 60 Hz The DVI-D port does not support D-Sub connection by adapter. 1 x HDMI port, supporting a maximum resolution of 4096x2160 at 60 Hz(Note) Support for HDMI 2.0 version and HDCP 2.2.(Note) Maximum shared memory of 2 GB (Note) Actual support may vary by CPU.
- SpecialFeatures: Support for APP Center Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. BIOS 3D OSD AutoGreen Cloud Station EasyTune Fast Boot Game Boost ON/OFF Charge RGB Fusion Smart Backup Smart Keyboard Smart TimeLock Smart HUD Smart Survey System Information Viewer USB Blocker Support for Q-Flash Support for Xpress Install
- Supported CPU: AM4 Socket Support for AMD Ryzen 2nd Generation/ Ryzen with Radeon Vega Graphics/ Athlon with Radeon Vega Graphics/ Ryzen 1st Generation Processors
- Chipset: AMD B450
Description

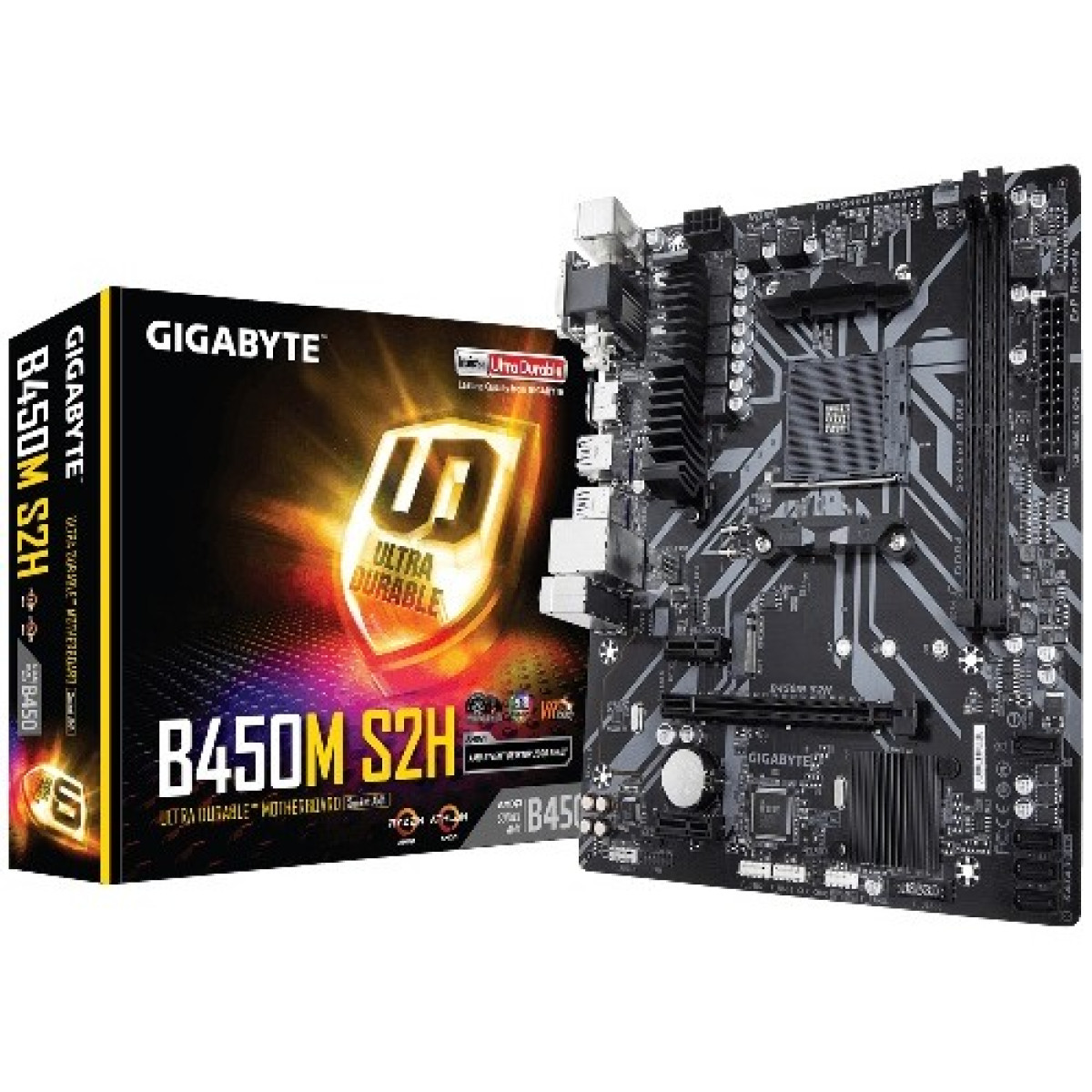

Affordable Gigabyte B450M S2H Motherboard for Your PC
Elevate Your Build with the Gigabyte B450M S2H
The Gigabyte B450M S2H motherboard is an exceptional choice for gamers and PC builders looking for a reliable and high-performing foundation for their systems. Designed for the AMD AM4 socket, this Micro ATX motherboard supports a range of Ryzen processors, ensuring you have the power needed for intensive applications and gaming sessions.
With its dual channel DDR4 support, you can maximize your system's memory performance, allowing for smoother multitasking and faster data access. The motherboard features Realtek ALC887 audio codec for crystal-clear sound quality, enhancing your gaming and multimedia experience.
Additionally, the Gigabyte B450M S2H offers multiple connectivity options, including USB 3.1 Gen 1 and HDMI output, making it versatile for various setups. Its Smart Fan 5 technology ensures efficient cooling, keeping your components running at optimal temperatures.
Investing in this motherboard means you are choosing quality and durability, backed by Gigabyte’s reputation in the industry. Upgrade your system today and experience the remarkable performance that the Gigabyte B450M S2H can offer.
Compact and Powerful AM4 Micro ATX Motherboard
Specification
| BASIC INFORMATION | |
|---|---|
| Form Factor | Micro ATX Form Factor; 24.4cm x 20.5cm |
| Graphics | 1 x D-Sub port, supporting a maximum resolution of 1920x1200 at 60 Hz 1 x DVI-D port, supporting a maximum resolution of 1920x1200 at 60 Hz The DVI-D port does not support D-Sub connection by adapter. 1 x HDMI port, supporting a maximum resolution of 4096x2160 at 60 Hz(Note) Support for HDMI 2.0 version and HDCP 2.2.(Note) Maximum shared memory of 2 GB (Note) Actual support may vary by CPU. |
| SpecialFeatures | Support for APP Center Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. BIOS 3D OSD AutoGreen Cloud Station EasyTune Fast Boot Game Boost ON/OFF Charge RGB Fusion Smart Backup Smart Keyboard Smart TimeLock Smart HUD Smart Survey System Information Viewer USB Blocker Support for Q-Flash Support for Xpress Install |
| Supported CPU | AM4 Socket Support for AMD Ryzen 2nd Generation/ Ryzen with Radeon Vega Graphics/ Athlon with Radeon Vega Graphics/ Ryzen 1st Generation Processors |
| Chipset | AMD B450 |
| Slots | - 2 x DDR4 DIMM sockets supporting up to 32 GB of system memory |
| BIOS | 1 x 128 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| Type | Dual channel memory architecture |
| Expansion Slots | |
| PCI | 1 x PCI Express x16 slot, running at x16 (The PCIEX16 slot conforms to PCI Express 3.0 standard.) 2 x PCI Express x1 slots (The PCI Express x1 slot conforms to PCI Express 2.0 standard.) |
| Graphics Specifications | |
| Max Shared Memory | 2 GB |
| Memory Specifications | |
| Maximum Memory | 32 GB |
| Supported Memory | - Support for DDR4 3200(O.C.)/2933/2667/2400/2133 MHz memory modules - Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) - Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules - Support for Extreme Memory Profile (XMP) memory modules |
| PORTS, CONNECTORS & SLOTS | |
| DVI-D (s) | 1 x DVI-D port, supporting a maximum resolution of 1920x1200 at 60 Hz |
| LAN Port (s) | Realtek GbE LAN chip (10/100/1000 Mbit) |
| Special | |
| Bundled Software | Norton Internet Security (OEM version) Realtek 8118 Gaming LAN Bandwidth Control Utility |
