Key highlights
- Form Factor: mATX Form Factor 8.9 inch x 7.3 inch ( 22.6 cm x 18.5 cm )
- Supported CPU: Intel® Socket 1151 for 8th Generation Core™ i7/Core™ i5/Core™ i3/Pentium®/Celeron® Processors Supports Intel® 14 nm CPU Supports Intel® Turbo Boost Technology 2.0
- Chipset: Intel® H310
- Memory: 32GB
- Slots: DDR4 2666/2400/2133 MHz Non-ECC, Un-buffered Memory
Description

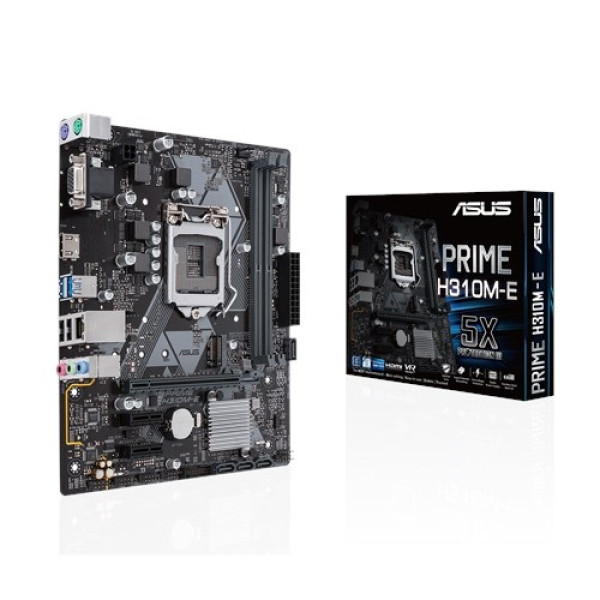

Asus PRIME H310M E R2.0: Perfect Choice for mATX Builds
Unleash the Power of Your PC with Asus PRIME H310M E R2.0
The Asus PRIME H310M E R2.0 motherboard is a remarkable choice for PC builders looking to harness the capabilities of Intel's 8th Generation processors. Designed in a compact micro ATX form factor, this motherboard is perfect for those who want to save space without sacrificing performance. Whether you're a gamer, content creator, or just need a reliable workstation, this motherboard caters to all your needs.
With support for up to 32GB of DDR4 RAM, the H310M E R2.0 ensures smooth multitasking and efficient performance. The dual-channel memory architecture enhances data transfer rates, making it ideal for demanding applications. The motherboard also features multiple PCIe slots for expansion, allowing you to add graphics cards, SSDs, and other peripherals with ease.
One of the standout features of this motherboard is its robust connectivity options. Equipped with USB 3.1 Gen 1 ports, you can enjoy lightning-fast data transfer speeds, while the HDMI and DVI-D outputs offer flexible display options for your setup. Additionally, the Asus 5X Protection III technology ensures your components are safe from damage, providing peace of mind during installation and use.
In conclusion, the Asus PRIME H310M E R2.0 motherboard is a powerful, reliable, and feature-rich option for anyone looking to build a high-performance PC. Experience superior performance, expandability, and enhanced durability, all in one compact package.
Affordable and Reliable Motherboard for Your PC Needs
Specification
| BASIC INFORMATION | |
|---|---|
| Form Factor | mATX Form Factor 8.9 inch x 7.3 inch ( 22.6 cm x 18.5 cm ) |
| Supported CPU | Intel® Socket 1151 for 8th Generation Core™ i7/Core™ i5/Core™ i3/Pentium®/Celeron® Processors Supports Intel® 14 nm CPU Supports Intel® Turbo Boost Technology 2.0 |
| Chipset | Intel® H310 |
| Memory | 32GB |
| Slots | DDR4 2666/2400/2133 MHz Non-ECC, Un-buffered Memory |
| Audio | Realtek® ALC887 8-Channel High Definition Audio CODEC - Supports : Jack-detection, Front Panel Jack-retasking Audio Feature : - LED-illuminated design - Brighten up your build with the gorgeous illuminated audio trace path. - Audio Shielding: Ensures precision analog/digital separation and greatly reduced multi-lateral interference - Dedicated audio PCB layers: Separate layers for left and right channels to guard the quality of the sensitive audio signals - Premium Japanese audio capacitors: Provide warm, natural and immersive sound with exceptional clarity and fidelity * Choose the chassis with HD audio module in front panel to support 8-channel audio output. |
| BIOS | 128 Mb Flash ROM, UEFI AMI BIOS, PnP, SM BIOS 3.1, ACPI 6.1, MultilanguageBIOS, ASUS EZ Flash 3, CrashFree BIOS 3, F6 Qfan Control, F3 MyFavorites, Last Modified log, F12 PrintScreen, and ASUS DRAM SPD (SerialPresence Detect) memory information |
| Expansion Slots | |
| M.2 Socket | 1 x M.2 Socket 3, , with M Key, type 2242/2260/2280 storage devices support (both SATA & x2 PCIE mode) |
| PCI | 1 x PCIe 3.0/2.0 x16 (x16 mode, gray) 2 x PCIe 2.0 x1 |
| Graphics Specifications | |
| Max Shared Memory | 1024 MB |
| Graphics | Multi-VGA output support : HDMI/D-Sub ports - Supports HDMI 1.4b with max. resolution 4096 x 2160 @ 24 Hz / 25600 x 1600 @ 60 Hz - Supports D-sub with max. resolution 1920 x 1200 @ 60 Hz |
| Memory Specifications | |
| Supported Memory | DDR4 2666MHz and higher memory modules will run at max. 2666MHz on Intel® 8th Gen. 6-core or higher processors. |
| Type | 2 x DIMM |
| PORTS, CONNECTORS & SLOTS | |
| D-Sub (s) | 1 X D-sub |
| HDMI | 1 x HDMI |
| LAN Port (s) | Realtek® RTL8111H, 1 x Gigabit LAN |
| Supported Storage | Intel® H310 Chipset : 1 x M.2 Socket 3, , with M Key, type 2242/2260/2280 storage devices support (both SATA & x2 PCIE mode)*1 4 x SATA 6Gb/s port(s), gray, |
| USB (s) | Intel® H310 Chipset : 4 x USB 3.1 Gen 1 up to 5Gbps port(s) (2 at back panel, blue, Type-A, 2 at mid-board) Intel® H310 Chipset : 6 x USB 2.0/1.1 port(s) (2 at back panel, , 4 at mid-board) |
| Internal I/O Connectors | 1 x USB 3.1 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.1 Gen 1 port(s) (19-pin) 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s) 1 x M.2 Socket 3 with M Key, type 2242/2260/2280 storage devices support (both SATA & x2 PCIE mode) 1 x COM port(s) connector(s) 4 x SATA 6Gb/s connector(s) 1 x CPU Fan connector(s) (1 x 4 -pin) 1 x Chassis Fan connector(s) (1 x 4 -pin) 1 x S/PDIF out header(s) 1 x 24-pin EATX Power connector(s) 1 x 4-pin ATX 12V Power connector(s) 1 x Front panel audio connector(s) (AAFP) 1 x Clear CMOS jumper(s) 1 x System panel connector 1 x Speaker connector |
| WARRANTY | |
| Manufacturing Warranty | 03 years |
