Key highlights
- Form Factor: ATX: 30.5cm x 24.4cm
- Supported CPU: Intel Socket LGA1200 for 11th Gen Intel Core Processors & 10th Gen Intel Core, Pentium Gold and Celeron Processors Supports Intel 14 nm CPU Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0
- Chipset: Intel Z590 Chipset
- Slots: 4 x DIMM
- BIOS: 256 Mb Flash ROM, UEFI AMI BIOS
Description
High-Performance EATX Motherboard for 11th Gen CPUs

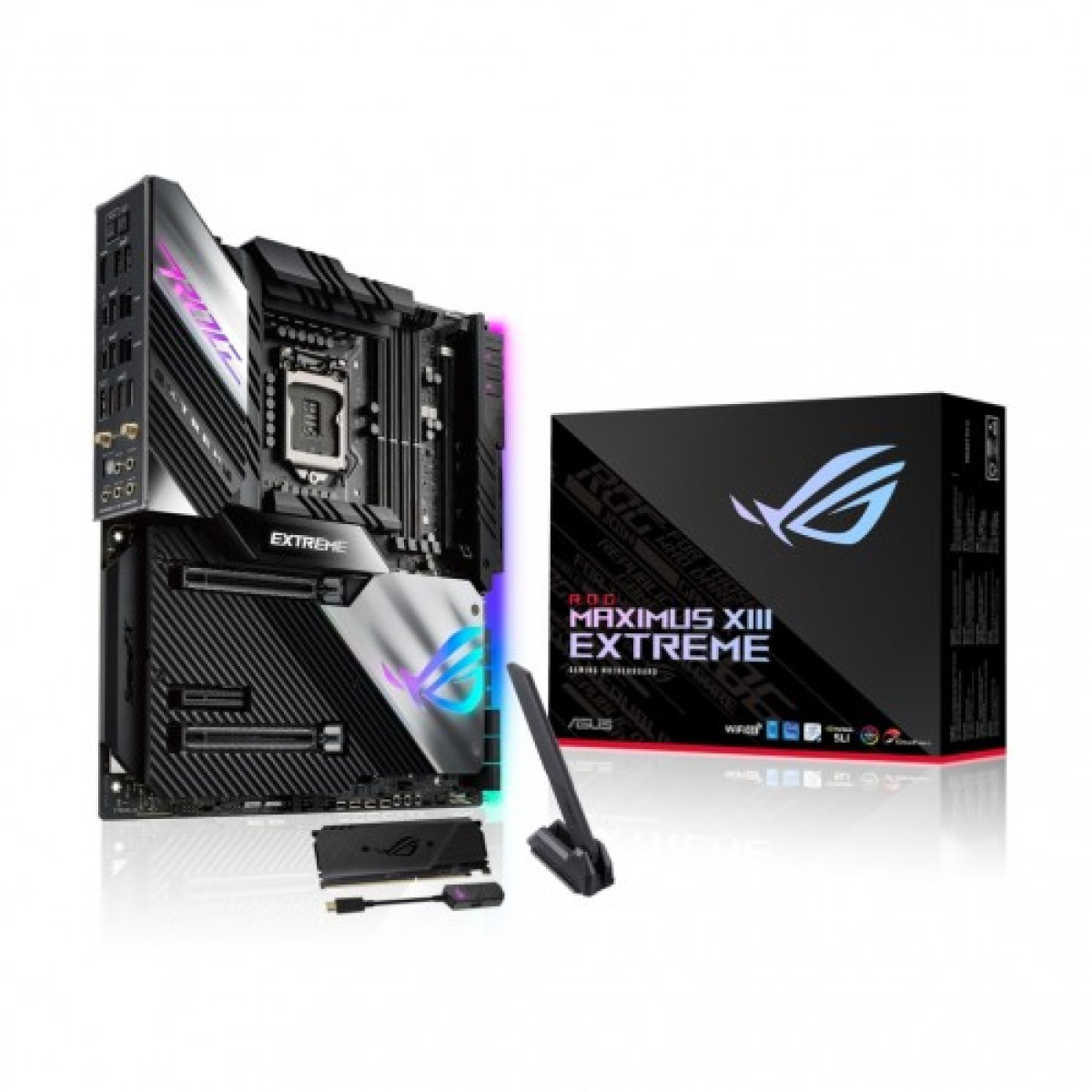

Unleash the Power of Gaming with Asus ROG Maximus XIII Extreme Z590
The Asus ROG Maximus XIII Extreme Z590 motherboard is the pinnacle of performance and innovation, designed for gamers and enthusiasts who demand nothing but the best. This EATX motherboard supports both 11th and 10th Generation Intel processors, ensuring compatibility with the latest technology. With advanced overclocking capabilities and a robust VRM design, it delivers outstanding power efficiency and performance, making it ideal for high-end gaming setups.
The board features cutting-edge Wi-Fi 6E technology for lightning-fast internet speeds and low latency, perfect for online gaming. Additionally, the integrated Thunderbolt 4 ports provide ultra-fast data transfer and connectivity options, while the RGB lighting allows you to customize your build's aesthetics. With support for multiple GPU setups, you can elevate your gaming experience to new heights.
Embrace the future of gaming with the Asus ROG Maximus XIII Extreme Z590, where performance meets style and innovation.
Unlock Your Gaming Potential with Asus ROG Z590
Specification
| BASIC INFORMATION | |
|---|---|
| Form Factor | ATX: 30.5cm x 24.4cm |
| Supported CPU | Intel Socket LGA1200 for 11th Gen Intel Core Processors & 10th Gen Intel Core, Pentium Gold and Celeron Processors Supports Intel 14 nm CPU Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0 |
| Chipset | Intel Z590 Chipset |
| Slots | 4 x DIMM |
| BIOS | 256 Mb Flash ROM, UEFI AMI BIOS |
| Expansion Slots | |
| M.2 Socket | M.2_1 slot (Key M), type 2242/ 2260/ 2280/ 22110 - Only Intel 11th Core processors support PCIe 4.0 x4 mode, this slot will be disabled for other CPUs M.2_2 slot (Key M), type 2242/ 2260/ 2280 - Intel 11th Core processors support PCIe 4.0 x4 mode - Intel 10th Core processors support PCIe 3.0 x4 mode Intel Z590 Chipset M.2_3 slot (Key M), type 2242/ 2260/ 2280 (supports PCIe 3.0 x4 mode) M.2_4 slot (Key M), type 2242/ 2260/ 2280/ 22110 (supports PCIe 3.0 x4 & SATA modes) |
| PCI | 2 x PCIe 4.0/3.0 x16 (x16, x8/ x8, x8 /x4) + 1 x PCIe 3.0 x16 (max. x4) Intel 11th &10th Gen Processors 2 x PCIe 4.0/ 3.0 x16 slot(s) - Intel 11th Core processors support PCIe 4.0 x16 or x8/ x8 or x8/ x4 mode(s) - Intel10th Core processors support PCIe 3.0 x16 or x8/ x8 or x8/ x4 mode(s) Intel Z590 Chipset 1 x PCIe 3.0 x16 slot (supports x4 mode) 1 x PCIe 3.0 x1 slots |
| Graphics Specifications | |
| Max Shared Memory | Supports NVIDIA 2-Way SLI® Technology |
| Graphics | 2 x HDMI 2.0 2 x Intel Thunderbolt 4 ports (USB Type-C) support DisplayPort 1.2/1.4 and Thunderbolt video outputs |
| Memory Specifications | |
| Maximum Memory | 128GB |
| Supported Memory | 5333(OC)/ 5133(OC)/ 5000(OC)/ 4800(OC)/ 4700(OC)/ 4600(OC)/ 4500(OC)/ 4400(OC)/ 4266(OC)/ 4133(OC)/ 4000(OC)/ 3866(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3200/ 3000/ 2933/ 2800/ 2666/ 2400/ 2133 MHz Non-ECC, Un-buffered Memory Dual Channel Memory Architecture Supports Intel Extreme Memory Profile (XMP) OptiMem III |
| Type | 4DDR4 |
| PORTS, CONNECTORS & SLOTS | |
| HDMI | 1x HDMI 2.0 |
| Internal I/O Ports | Fan and Cooling related 1 x 4-pin CPU Fan header(s) 1 x 4-pin CPU OPT Fan header(s) 1 x 4-pin AIO Pump header(s) 3 x 4-pin Chassis Fan header(s) 1 x 4-pin H_AMP Fan header(s) 1 x W_PUMP+ header(s) 1 x 2-pin Water In header 1 x 2-pin Water Out header 1 x 3-pin Water Flow header Power related 1 x 24-pin Main Power connector 2 x 8-pin +12V Power connector Storage related 4 x M.2 slots (Key M) 6 x SATA 6Gb/s ports USB 1 x USB 3.2 Gen 2x2 connector (support(s) USB Type-C®) 2 x USB 3.2 Gen 1 header(s) support(s) additional 4 USB 3.2 Gen 1 ports 2 x USB 2.0 header(s) support(s) additional 4 USB 2.0 ports Miscellaneous 3 x AURA Addressable Gen 2 header(s) 1 x AURA RGB header(s) 1 x FlexKey button 1 x Front Panel Audio header (AAFP) 1 x ReTry button 1 x Speaker header 1 x Start button 1 x 10-1 pin System Panel header 1 x Thermal Sensor header |
| LAN Port (s) | 2 x Intel I225-V 2.5Gb Ethernet ASUS LANGuard ASUS LANGuard Wireless & Bluetooth "Intel Wi-Fi 6 2x2 Wi-Fi 6 (802.11 a/ b/ g/ n/ ac/ ax) Supports 2.4/ 5GHz frequency band Bluetooth v5.0 or later" |
| Supported Storage | Supports 4 x M.2 slots and 6 x SATA 6Gb/s ports Intel 11th &10th Gen Processors M.2_1 slot (Key M), type 2242/ 2260/ 2280/ 22110 - Only Intel 11th Core processors support PCIe 4.0 x4 mode, this slot will be disabled for other CPUs M.2_2 slot (Key M), type 2242/ 2260/ 2280 - Intel 11th Core processors support PCIe 4.0 x4 mode - Intel 10th Core processors support PCIe 3.0 x4 mode Intel Z590 Chipset M.2_3 slot (Key M), type 2242/ 2260/ 2280 (supports PCIe 3.0 x4 mode) M.2_4 slot (Key M), type 2242/ 2260/ 2280/ 22110 (supports PCIe 3.0 x4 & SATA modes) 6 x SATA 6Gb/s ports Raid function for PCIe mode SSD in Intel Rapid Storage Technology is available with either 1. Intel SSDs installed in both CPU-attached and PCH-attached slots, or 2. any other 3rd party SSDs installed in PCH-attached slots. To enable Intel Optane Memory (Hybrid Storage device), it must be installed in PCH-attached slots with Intel Rapid Storage Technology. |
| USB (s) | 2 x Intel Thunderbolt 4 ports (USB Type-C) support DisplayPort 1.2/ 1.4 and Thunderbolt video outputs |
| Special | |
| Special Feature | Extreme OC Kit - FlexKey button - ReTry button - Start button Extreme Engine Digi+ - 10K Black Metallic Capacitors - MicroFine Alloy Choke ASUS Q-Design - Q-Code - Q-Connector - Q-DIMM - Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) - Q-Slot ASUS Thermal Solution - M.2 heatsink backplate - M.2 heatsink - VRM heatsink design ASUS EZ DIY - BIOS FlashBack button - Clear CMOS button - ProCool II - Pre-mounted I/O shield - SafeSlot AURA Sync - AURA RGB header(s) - Addressable Gen 2 RGB header(s) ASUS HYDRANODE - 3 x Chassis fan support (CHA_FAN1P, CHA_FAN2P, CHA_FAN3P) |
| WARRANTY | |
| Manufacturing Warranty | 3 Years |
