Key highlights
- Form Factor: ATX Form Factor: 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm)
- Supported CPU: Intel Socket 1200 for 10th Gen Intel Core, Pentium Gold and Celeron Processors Supports Intel 14 nm CPU Supports Intel Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0
- Chipset: Intel B460
- Memory: 128 GB
- Slots: 4 x DDR4 DIMM
Description
High-Performance Intel 10th Gen ATX Motherboard for Gamers

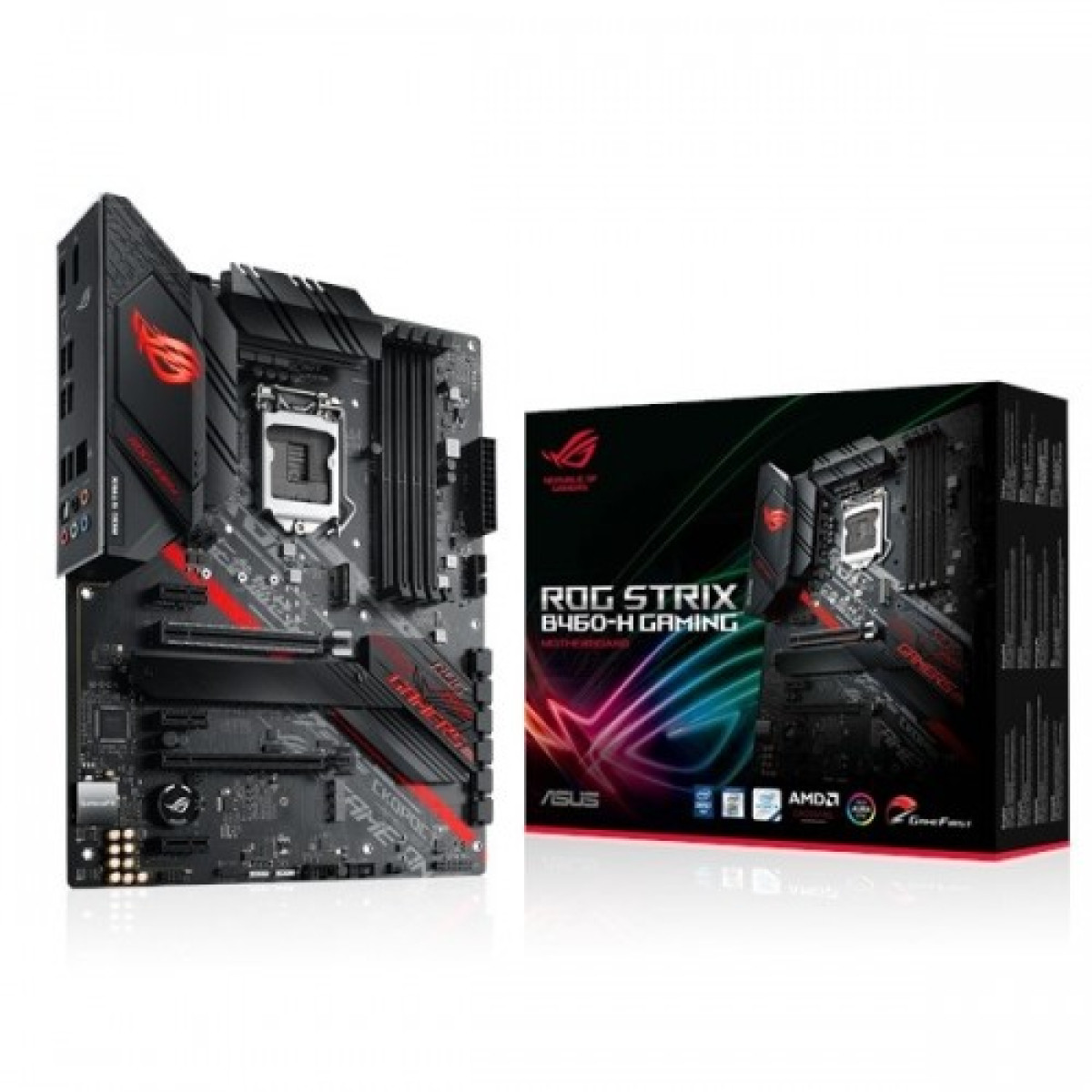

Experience Gaming Excellence with the Asus ROG Strix B460-H
The Asus ROG Strix B460-H Gaming Intel 10th Gen ATX Motherboard is engineered for gamers and performance enthusiasts who demand the best. With its robust design and cutting-edge features, this motherboard stands out in the competitive gaming landscape. It supports Intel's 10th generation processors, allowing for unparalleled performance and multitasking capabilities. Enhanced cooling solutions ensure that your system runs smoothly during intense gaming sessions, while Aura Sync RGB lighting adds a personalized touch to your build.
Designed for gamers, the B460-H offers dual M.2 slots for super-fast SSDs, enabling lightning-speed load times and seamless gameplay. With real-time monitoring and overclocking features, you can optimize your system's performance to meet your gaming needs. The motherboard also includes a robust audio solution, delivering immersive sound quality for an enhanced gaming experience.
With its compatibility with high-performance components and a user-friendly BIOS interface, the Asus ROG Strix B460-H is a perfect choice for both seasoned builders and newcomers. Step into the future of gaming with this remarkable motherboard that brings your gaming dreams to life.
Explore Asus ROG Strix B460-H Features and Benefits
Specification
| BASIC INFORMATION | |
|---|---|
| Form Factor | ATX Form Factor: 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm) |
| Supported CPU | Intel Socket 1200 for 10th Gen Intel Core, Pentium Gold and Celeron Processors Supports Intel 14 nm CPU Supports Intel Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0 |
| Chipset | Intel B460 |
| Memory | 128 GB |
| Slots | 4 x DDR4 DIMM |
| Audio | ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC - Dual OP Amplifiers - Impedance sense for front and rear headphone outputs - Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking - High quality 120 dB SNR stereo playback output and 113 dB SNR recording input - Supports up to 32-Bit/192kHz playback Audio Feature : - SupremeFX Shielding Technology - Rear audio USB Type-C port - Premium Japanese audio capacitors - Audio Cover |
| BIOS | 128 Mb Flash ROM, UEFI AMI BIOS |
| Expansion Slots | |
| M.2 Socket | 1 x M.2_1 socket 3, with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode) 1 x M.2_2 socket 3, with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode) |
| PCI | Intel 10th Gen Processors: 1 x PCIe 3.0 x16 Intel B460 Chipset: 1 x PCIe 3.0 x16 (x4 mode) 3 x PCIe 3.0 x1 |
| Graphics Specifications | |
| Graphics | Integrated Graphics Processor 1 x DisplayPort 1.4 1 x HDMI 1.4b Supports AMD 2-Way CrossFireX Technology |
| Memory Specifications | |
| Supported Memory | Support for DDR4 2933/2800/2666/2400/2133 MHz Non-ECC, Un-buffered Memory Supports Intel Extreme Memory Profile (XMP) OptiMem |
| Type | Dual channel memory architecture |
| PORTS, CONNECTORS & SLOTS | |
| Display Port (s) | 1 x DisplayPort 1.4 at max. resolution of 4096 x 2304 @60Hz |
| HDMI | 1 x HDMI 1.4b |
| LAN Port (s) | Intel I219-V 1Gb Ethernet ASUS LANGuard |
| Supported Storage | Total supports 2 x M.2 slots and 6 x SATA 6Gb/s ports Intel B460 Chipset : 1 x M.2_1 socket 3, with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode) 1 x M.2_2 socket 3, with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode) 6 x SATA 6Gb/s port(s) Support Raid 0, 1, 5, 10 Intel Optane Memory Ready |
| USB (s) | Rear USB Port ( Total 7 ) 1 x USB 3.2 Gen 2x2 port(s)(1 x USB Type-C) 6 x USB 3.2 Gen 1 port(s)(6 x Type-A) Front USB Port ( Total 6 ) 2 x USB 3.2 Gen 1 port(s) 4 x USB 2.0 port(s) |
| Internal I/O Connectors | 1 x CPU Fan connector(s) 1 x CPU OPT Fan connector(s) 2 x Chassis Fan connector(s) 1 x AIO_PUMP connector 1 x AAFP connector 1 x Aura RGB Strip Headers 1 x Addressable Gen 2 header(s) 1 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s) 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s) 2 x M.2 Socket 3 1 x M.2 with E key for Wi-Fi module 6 x SATA 6Gb/s connector(s) 1 x Thunderbolt header(s) 1 x 24-pin EATX Power connector(s) 1 x 8-pin ATX 12V Power connector(s) 1 x System panel connector |
| Special | |
| Special Feature | Extreme Engine Digi+ - 5K Black Metallic Capacitors ASUS Q-Design - ASUS Q-DIMM - ASUS Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) - ASUS Q-Slot ASUS Thermal Solution - Aluminum M.2 heatsink ASUS EZ DIY - BIOS FlashBack button - BIOS FlashBack LED - Procool - Pre-mounted I/O shield - SafeSlot AURA Sync - Standard RGB header(s) - Addressable Gen 2 RGB header(s) Rear audio USB Type-C connector |
| WARRANTY | |
| Manufacturing Warranty | 03 Years |
