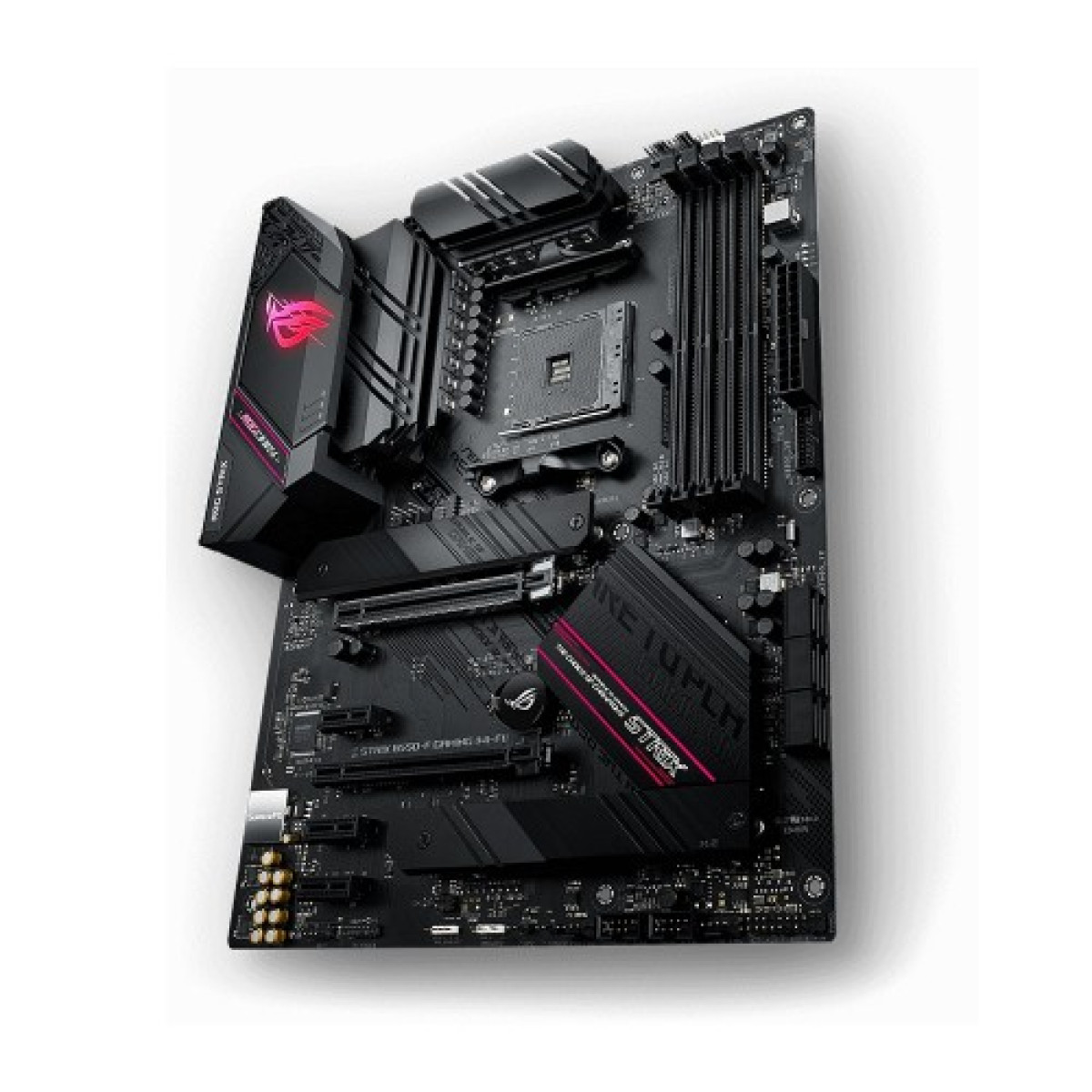

Asus ROG Strix B550-F Gaming (WI-FI) AM4 ATX Motherboard
Key highlights
- Form Factor: ATX Form Factor 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
- Supported CPU: AMD AM4 Socket for AMD Ryzen 5000 Series/ 4000 G-Series/ 3000 Series Desktop Processors
- Chipset: AMD B550
- Memory: 128GB, DDR4
- Slots: 4 x DIMM slots
Description
Top Features of Asus ROG Strix B550-F Gaming Motherboard
Unleash Your Gaming Potential with Asus ROG Strix B550-F Gaming (WI-FI)
The Asus ROG Strix B550-F Gaming (WI-FI) motherboard is designed to elevate your gaming experience to new heights. With its advanced features and robust build quality, this motherboard is perfect for gamers and PC enthusiasts in Bangladesh looking for performance and reliability. Equipped with Wi-Fi 5, it allows for seamless online gaming and streaming, ensuring you stay connected without any interruptions. The B550 chipset supports the latest AMD Ryzen processors, providing exceptional processing power and performance.
This motherboard features dual M.2 slots for high-speed SSDs, enhancing load times and overall system responsiveness. The Aura Sync RGB lighting allows you to customize your rig's aesthetics, creating a visually stunning gaming setup. With Robust Power Delivery and excellent thermal management, you can push your system to its limits while maintaining stability.
Whether you're building a new gaming rig or upgrading your current setup, the Asus ROG Strix B550-F Gaming (WI-FI) is the ideal choice for those who demand top-tier performance and reliability.
Why Choose the Asus ROG Strix B550-F for Your PC Build
Specification
| BASIC INFORMATION | |
|---|---|
| Form Factor | ATX Form Factor 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm ) |
| Supported CPU | AMD AM4 Socket for AMD Ryzen 5000 Series/ 4000 G-Series/ 3000 Series Desktop Processors |
| Chipset | AMD B550 |
| Memory | 128GB, DDR4 |
| Slots | 4 x DIMM slots |
| Audio | - Dual OP Amplifiers - Impedance sense for front and rear headphone outputs - Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking - High quality120dBSNR stereo playback outputand113dBSNR recording input - Supports up to 32-Bit/192kHz playback * Audio Feature : - SupremeFX Shielding™ Technology - Optical S/PDIF in port(s) at back panel - Premium Japanese audio capacitors - Audio Cover * Due to limitations in HDA bandwidth, 32-Bit/192kHz is not supported for 8-Channel audio. - Audio Shielding ROG SupremeFX7.1-Channel High Definition Audio CODEC S1220A |
| BIOS | 256 Mb Flash ROM, UEFI AMI BIOS |
| Expansion Slots | |
| PCI | 1 x PCIe 3.0 x16 (x16 mode) AMD B550 Chipset 1 x PCIe 3.0 x16 (x4 mode) 3 x PCIe 3.0 x1 1 x PCIe 4.0 x16 (x16 mode) |
| Graphics Specifications | |
| Graphics | Integrated Graphics Processor |
| Memory Specifications | |
| Supported Memory | 4 x DIMM, Max. 128GB, DDR4 4600(O.C)/4400(O.C)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3600(O.C.)/3466(O.C.)/3200/3000/2800/2666/2400/2133 MHz Un-buffered Memory 4 x DIMM, Max. 128GB, DDR4 5100(O.C)/4800(O.C.)/4600(O.C)/4400(O.C)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3600(O.C.)/3466(O.C.)/3200/3000/2800/2666/2400/2133 MHz Memory |
| Type | Dual Channel Memory Architecture |
| PORTS, CONNECTORS & SLOTS | |
| Display Port (s) | 1 x DisplayPort 1.2 |
| HDMI | 1 x HDMI 2.1(4K@60HZ) |
| LAN Port (s) | Intel I225-V 2.5Gb Ethernet ASUS LANGuard |
| Supported Storage | 1 x M.2_1 socket 3, with M key, type 2242/ 2260/ 2280/ 22110 storage devices support(SATA & PCIe 4.0 x4 mode) AMD B550 Chipset : 6 x SATA 6Gb/s port(s) Support Raid 0, 1, 10 Total supports 2 x M.2 slot(s) and 6 x SATA 6Gb/s ports 1 x M.2_1 socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode) 1 x M.2_2 socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode) |
| USB (s) | Rear USB Port ( Total 8 ) 2 x USB 3.2 Gen 2 port(s)(1 x Type-A +1 x USB Type-C) 4 x USB 3.2 Gen 1 port(s)(4 x Type-A) 2 x USB 2.0 port(s) Front USB Port ( Total 6 ) 2 x USB 3.2 Gen 1 port(s) 4 x USB 2.0 port(s) |
| Special | |
| Bundled Software | ROG Exclusive Software - RAMCache III - ROG CPU-Z - GameFirst VI - Sonic Studio III + Sonic Studio Virtual Mixer - Sonic Radar III - DTS® Sound Unbound - Overwolf - Anti-virus software ASUS Exclusive Software Features Armoury Crate - Aura Creator - Aura Sync - AI Noise Cancelling Microphone AI Suite 3: - PPSU EPU DIGI+ VRM Fan Xpert 4 TurboV EVO - EZ update WinRAR UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode |
| Special Feature | Supports dual band frequency 2.4/5 GHz Supports channel bandwidth: HT20/HT40/HT80/HT160 Intel Wi-Fi 6 AX200 Aura Sync - Standard RGB header(s) - Addressable Gen 2 RGB header(s) ASUS Q-Design - ASUS Q-DIMM - ASUS Q-LED (DRAM [yellow],CPU [red], VGA [white], Boot Device [yellow green) - ASUS Q-Slot ASUS Thermal Solution - Aluminum M.2 heatsink ASUS EZ DIY -BIOS FlashBack™ button -BIOS FlashBack™ LED -Clear CMOS header -ProCool -Pre-mounted I/O shield - SafeSlot |
| WARRANTY | |
| Manufacturing Warranty | 03 Years Warranty |
