Key highlights
- Form Factor: mATX Form Factor 9.6 inch x 9.6 inch ( 24.4 cm x 24.4 cm )
- Supported CPU: AMD Ryzen 5000/4000G Series & AMD Ryzen 3rd Generation Processors
- Chipset: AMD A520
- Memory: 128GB
- Slots: 4 x DIMM slots
Description
High-Performance Micro ATX AM4 Motherboard for Gamers

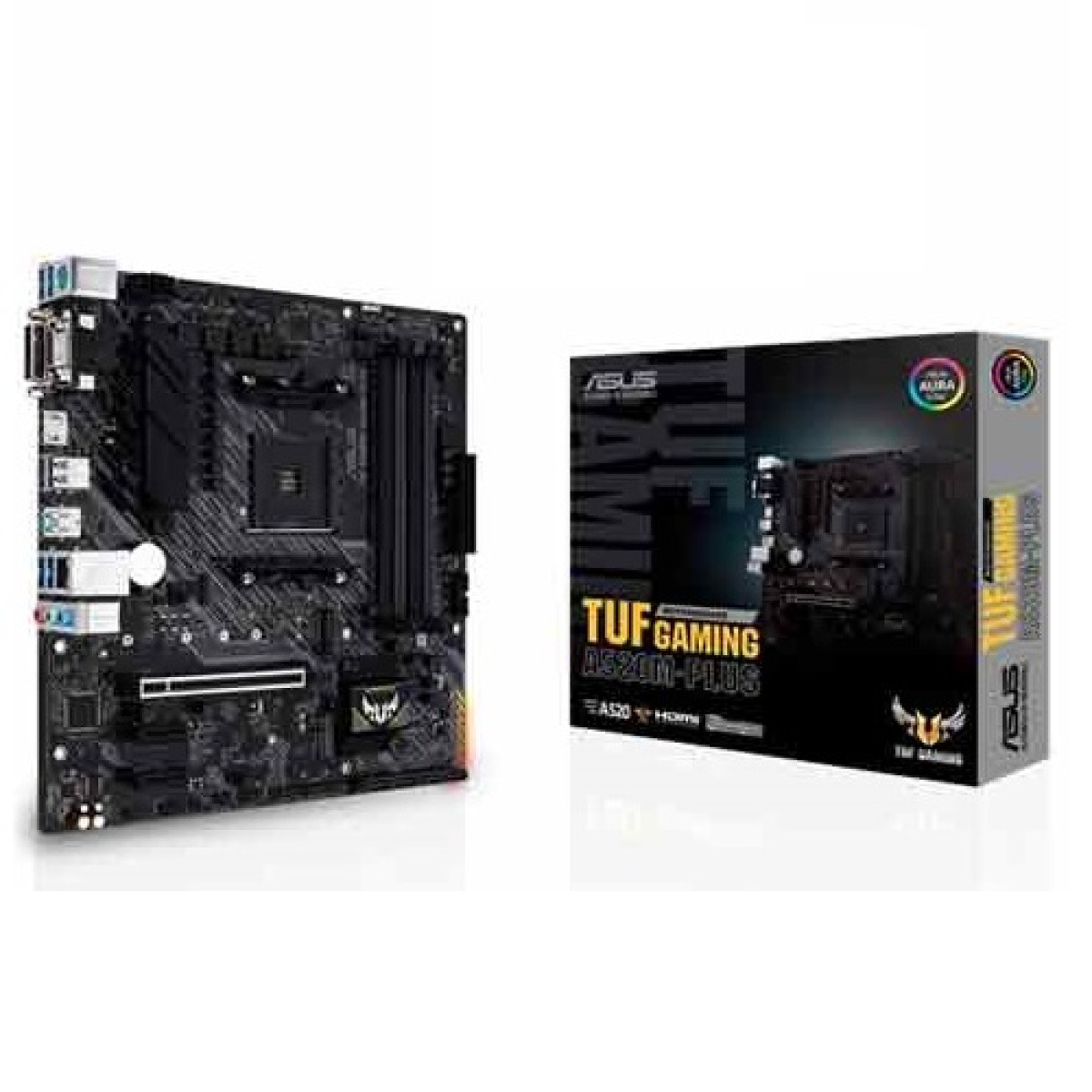

Unleash Your Gaming Potential with the Asus TUF Gaming A520M-Plus
The Asus TUF Gaming A520M-Plus Micro ATX AM4 Motherboard is designed for gamers and PC enthusiasts who demand performance, durability, and advanced features. Built on the AM4 socket, this motherboard supports AMD Ryzen processors, providing exceptional processing power and speed for gaming and multitasking. With its robust design and military-grade components, you can trust that this motherboard will withstand the rigors of intense gaming sessions.
Equipped with dual M.2 slots and USB 3.2 Gen 2 support, data transfer is fast and efficient. The motherboard also features Aura Sync RGB lighting, allowing you to customize your setup for a unique gaming atmosphere. Furthermore, the Realtek S1200A codec ensures high-quality audio output, enhancing your overall gaming experience.
The Asus TUF Gaming A520M-Plus is not just about performance; it also prioritizes user-friendly features. The TUF Gaming Alliance ensures compatibility with a wide range of components, making installation and upgrades seamless. Additionally, the motherboard's comprehensive cooling solutions keep your system running at optimal temperatures, even during the most demanding tasks.
Explore Asus TUF Gaming A520M-Plus Features and Benefits
Specification
| BASIC INFORMATION | |
|---|---|
| Form Factor | mATX Form Factor 9.6 inch x 9.6 inch ( 24.4 cm x 24.4 cm ) |
| Supported CPU | AMD Ryzen 5000/4000G Series & AMD Ryzen 3rd Generation Processors |
| Chipset | AMD A520 |
| Memory | 128GB |
| Slots | 4 x DIMM slots |
| Audio | Realtek ALC887 7.1 Surround Sound High Definition Audio CODEC - Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking, up to 24-Bit/192kHz playback Audio Feature : - Audio Shielding - Dedicated audio PCB layers - Premium Japanese audio capacitors |
| BIOS | 256 Mb Flash ROM, UEFI AMI BIOS |
| Expansion Slots | |
| M.2 Socket | 1 x M.2 Socket 3, with M Key, Type 2242/2260/2280/22110(PCIE 3.0 x4 and SATA modes) storage devices support |
| PCI | 3rd Gen AMD Ryzen Processors 1 x PCIe 4.0 x16 (x16 mode) 3rd Gen AMD Ryzen with Radeon Graphics Processors 1 x PCIe 3.0 x16 (x16 mode) AMD B550 Chipset 1 x PCIe 3.0 x16 (x4 mode) 1 x PCIe 3.0 x1 |
| Graphics Specifications | |
| Graphics | Integrated Graphics in the 3rd Gen AMD Ryzen with Radeon Graphics Processors 1 x D-Sub 1 x DVI-D 1 x HDMI 2.1(4K@60HZ) |
| Memory Specifications | |
| Supported Memory | 3rd Gen AMD Ryzen Processors 4600(O.C)/ 4400(O.C)/ 4266(O.C.)/ 4133(O.C.)/ 4000(O.C.)/ 3866(O.C.)/ 3733(O.C.)/ 3600(O.C.)/ 3466(O.C.)/ 3333(O.C.)/ 3200/ 3000/ 2800/ 2666/ 2400/ 2133 MHz Un-buffered Memory 3rd Gen AMD Ryzen with Radeon Graphics Processors 4800(O.C.)/ 4600(O.C)/ 4466(O.C.)/ 4400(O.C)/ 4266(O.C.)/ 4133(O.C.)/ 4000(O.C.)/ 3866(O.C.)/ 3733(O.C.)/ 3600(O.C.)/ 3466(O.C.)/ 3333(O.C.)/ 3200/ 3000/ 2800/ 2666/ 2400/ 2133 MHz Un-buffered Memory ECC Memory (ECC mode) support varies by CPU |
| Type | Dual Channel Memory Architecture |
| PORTS, CONNECTORS & SLOTS | |
| D-Sub (s) | 1 x D-Sub |
| DVI-D (s) | 1 x DVI-D |
| HDMI | 1 x HDMI 2.1(4K@60HZ) |
| LAN Port (s) | Realtek L8200A 1Gb Ethernet TUF LANGuard |
| Supported Storage | Total supports 1 x M.2 slot(s) and 4 x SATA 6Gb/s ports 3rd Gen AMD Ryzen and 3rd Gen AMD Ryzen with Radeon Graphics Processors : 1 x M.2 Socket 3, with M Key, Type 2242/2260/2280/22110(PCIE 3.0 x4 and SATA modes) storage devices support AMD A520 Chipset : 4 x SATA 6Gb/s port(s), Support Raid 0, 1, 10 |
| USB (s) | Rear USB Port ( Total 7 ) 1 x USB 3.2 Gen 2 port(s)(1 x Type-A) 4 x USB 3.2 Gen 1 port(s)(4 x Type-A) 2 x USB 2.0 port(s)(2 x Type-A) Front USB Port ( Total 5 ) 2 x USB 3.2 Gen 1 port(s)(2 x Type-A) 3 x USB 2.0 port(s)(3 x Type-A) |
| Internal I/O Connectors | 1 x CPU Fan connector(s) 2 x Chassis Fan connector(s) 1 x Aura RGB Strip Header 1 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s) 2 x USB 2.0 connector(s) support(s) additional 3 USB 2.0 port(s) 1 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode) 1 x M.2 with E key for Wi-Fi module 1 x SPI TPM header 4 x SATA 6Gb/s connector(s) 1 x S/PDIF out header(s) 1 x 24-pin EATX Power connector(s) 1 x 8-pin EATX 12V Power connectors 1 x Front panel audio connector(s) (AAFP) 1 x Clear CMOS jumper(s) 1 x System panel connector 1 x COM port header |
| Special | |
| Special Feature | ASUS Exclusive Software Armoury Crate - Aura Creator - Aura Sync AI Suite 3 - Performance And Power Saving Utility TurboV EVO EPU Digi+ VRM Fan Xpert 2+ - EZ update - PC Cleaner - System Information TUF GAMING CPU-Z AI Charger ASUS Turbo LAN Norton Anti-virus software (Free Trial for 60 days) WinRAR UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode ASUS TUF PROTECTION - ASUS DIGI+ VRM - ASUS ESD Guards - TUF LANGuard - ASUS Overvoltage Protection - ASUS SafeSlot Core+ - ASUS Stainless-Steel Back I/O ASUS Q-Design - ASUS Q-DIMM - ASUS Q-Slot ASUS Thermal Solution - Aluminum heatsink design |
| WARRANTY | |
| Manufacturing Warranty | 03 Years Warranty |
