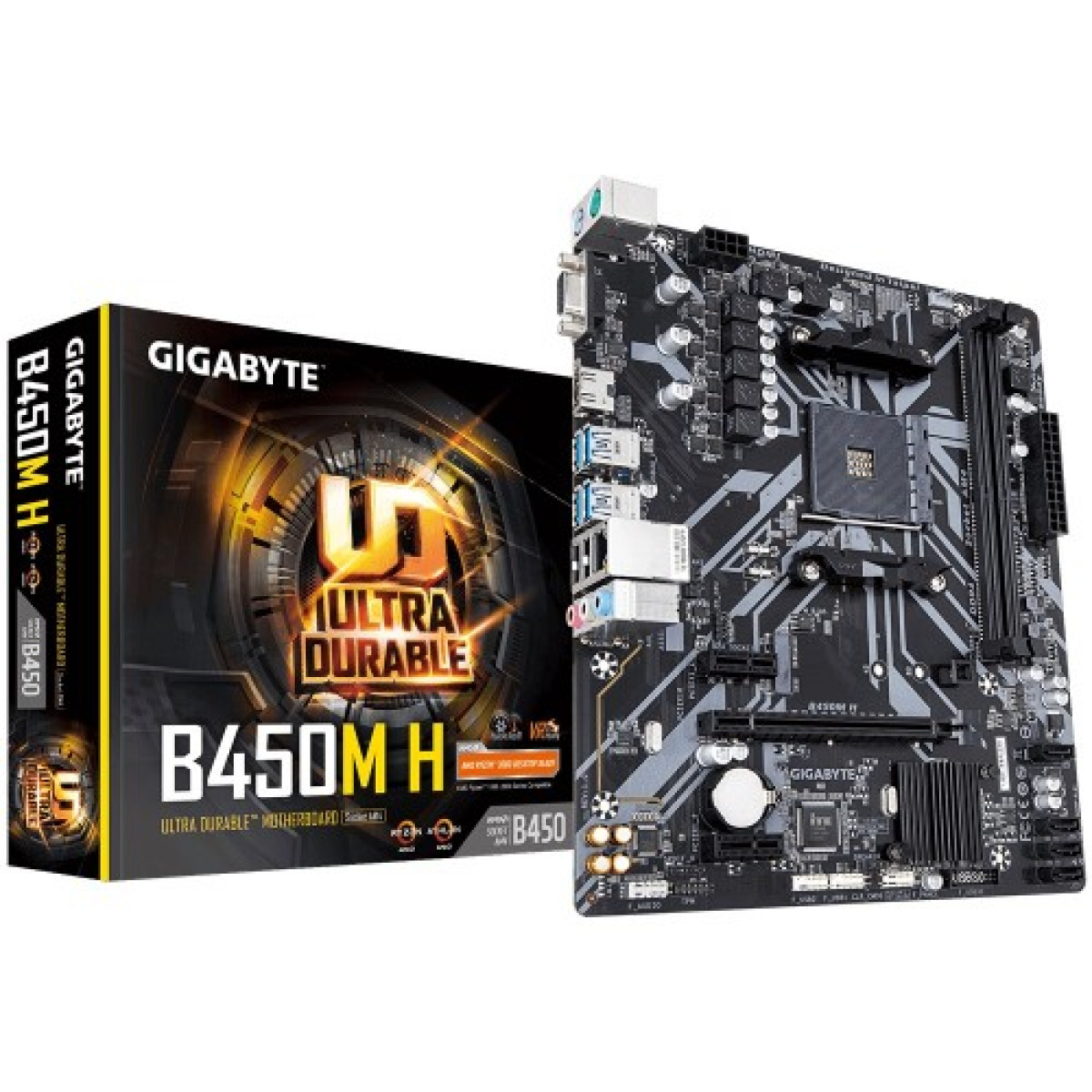

GIGABYTE B450M H Ultra Durable AMD AM4 Micro-ATX Motherboard
Key highlights
- Form Factor: Micro ATX Form Factor: 24.4cm x 20.5cm
- Supported CPU: AMD Socket AM4, support for 3rd Generation AMD Ryzen processors/ 2nd Generation AMD Ryzen processors/ 1st Generation AMD Ryzen processors/ 2nd Generation AMD Ryzen with Radeon Vega Graphics processors/ 1st Generation AMD Ryzen with Radeon Vega Graphics processors/ AMD Ryzen with Radeon Vega Graphics processors
- Chipset: AMD B450
- BIOS: 1 x 128 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
- M.2 Socket: 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe x4/x2* SSD support)
Description
Explore GIGABYTE B450M H for Your Gaming Needs
GIGABYTE B450M H Ultra Durable AMD AM4 Micro-ATX Motherboard
The GIGABYTE B450M H Ultra Durable motherboard is designed to provide a robust and reliable platform for AMD's AM4 processors. With its Micro-ATX form factor, it perfectly fits in compact cases while offering all the essential features for both gamers and professionals. Ultra Durable Technology ensures longevity and stability, providing users with a motherboard that can withstand the rigors of daily use.
This motherboard supports dual-channel DDR4 memory, allowing for improved performance and efficiency. AMD StoreMI technology enhances storage performance by combining the speed of SSDs with the capacity of HDDs, making it an ideal choice for users looking for fast data access. Additionally, the motherboard features multiple connectivity options, including USB 3.1 Gen 1 and HDMI, ensuring compatibility with a wide range of peripherals.
With its advanced thermal design, the GIGABYTE B450M H maintains optimal temperatures even under heavy loads, which is crucial for maintaining system performance. Gamers will appreciate the NVMe M.2 slot for lightning-fast SSDs, making loading times a thing of the past. Invest in the GIGABYTE B450M H for a seamless computing experience.
Powerful and Reliable AMD AM4 Micro-ATX Motherboard
Specification
| BASIC INFORMATION | |
|---|---|
| Form Factor | Micro ATX Form Factor: 24.4cm x 20.5cm |
| Supported CPU | AMD Socket AM4, support for 3rd Generation AMD Ryzen processors/ 2nd Generation AMD Ryzen processors/ 1st Generation AMD Ryzen processors/ 2nd Generation AMD Ryzen with Radeon Vega Graphics processors/ 1st Generation AMD Ryzen with Radeon Vega Graphics processors/ AMD Ryzen with Radeon Vega Graphics processors |
| Chipset | AMD B450 |
| BIOS | 1 x 128 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| Expansion Slots | |
| M.2 Socket | 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe x4/x2* SSD support) |
| PCI | 1 x PCI Express x16 slot, running at x16 (The PCIEX16 slot conforms to PCI Express 3.0 standard.) 2 x PCI Express x1 slots (The PCI Express x1 slot conforms to PCI Express 2.0 standard.) |
| Graphics Specifications | |
| Max Shared Memory | 16 GB |
| Graphics | Integrated Graphics Processor: 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz |
| Memory Specifications | |
| Maximum Size | 32 GB |
| Slots | 2 x DDR4 DIMM |
| Supported Memory | Support for DDR4 3600(O.C.)/3466(O.C.)/2933/2667/2400/2133 MHz memory modules Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules |
| Type | Dual channel memory architecture |
| PORTS, CONNECTORS & SLOTS | |
| Audio Jack Combo | Realtek ALC887 codec High Definition Audio 2/4/5.1/7.1-channel Support for S/PDIF Out |
| D-Sub (s) | 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz |
| HDMI | 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz |
| LAN Port (s) | Realtek GbE LAN chip (1000 Mbit/100 Mbit) |
| Supported Storage | 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe x4/x2 SSD support) 4 x SATA 6Gb/s connectors Support for RAID 0, RAID 1, and RAID 10 |
| USB (s) | Chipset: 2 x USB 3.1 Gen 1 ports available through the internal USB header 6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers) CPU: 4 x USB 3.1 Gen 1 ports on the back panel |
| Internal I/O Connectors | 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 1 x system fan header 1 x M.2 Socket 3 connector 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x S/PDIF Out header 1 x CPU cooler LED strip/RGB LED strip header 1 x USB 3.1 Gen 1 header 2 x USB 2.0/1.1 headers 1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only) 1 x speaker header 1 x Clear CMOS jumper 1 x chassis intrusion header |
| Special | |
| Special Feature | Support for APP Center AutoGreen Cloud Station EasyTune Fast Boot Game Boost ON/OFF Charge RGB Fusion Smart Backup Smart Keyboard Smart Survey System Information Viewer USB Blocker Support for Q-Flash Support for Xpress Install |
| WARRANTY | |
| Manufacturing Warranty | 03 years |
