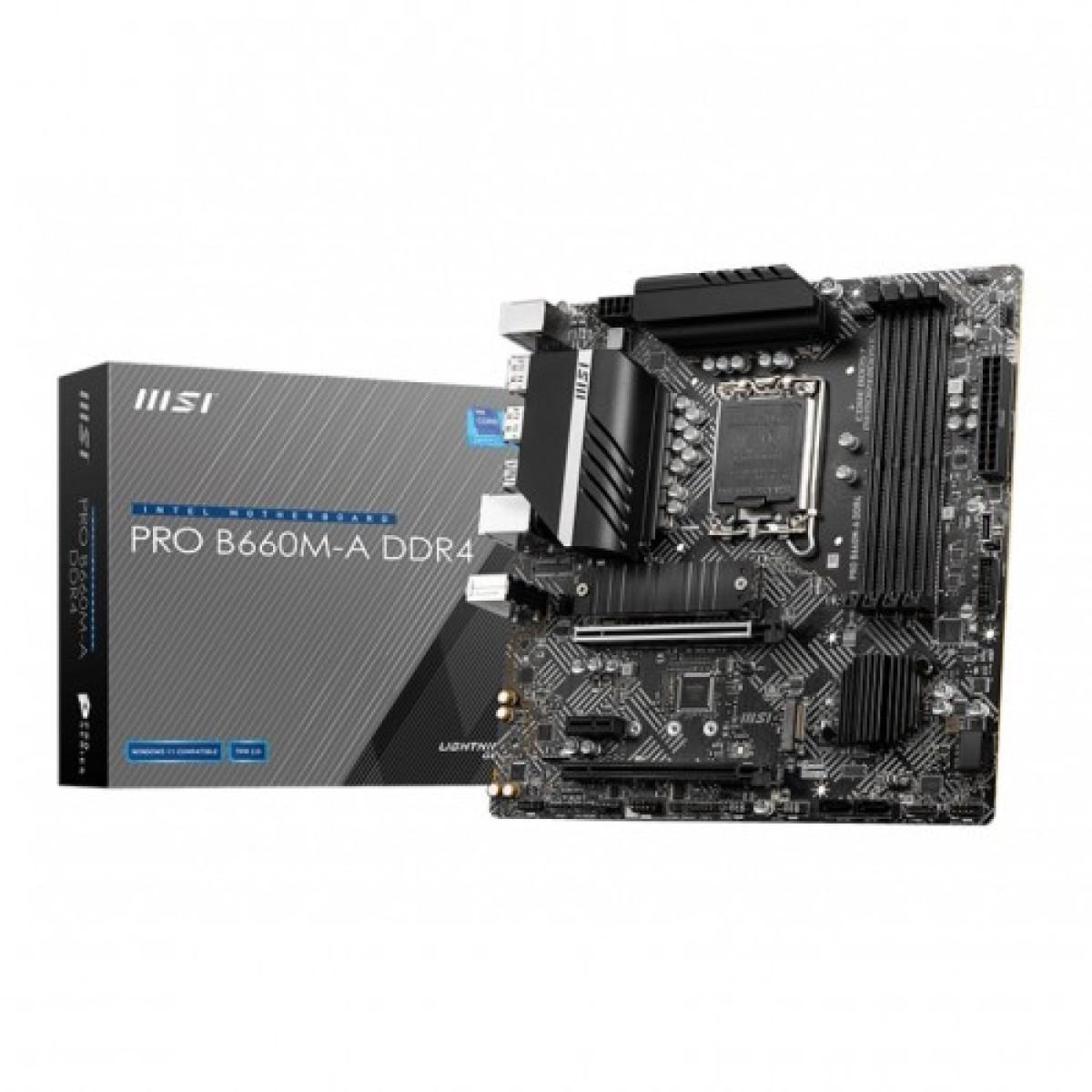

MSI PRO B660M-A DDR4 12th Gen Micro-ATX Motherboard
Key highlights
- SpecialFeatures: 1x 4-pin RGB LED connector 2x 3-pin RAINBOW LED connectors 4x EZ Debug LED
- Supported CPU: Supports 12th Gen Intel Core Processors Processor socket LGA1700
- Chipset: Intel B660 Chipset
- Slots: 4x DDR4 memory slots
- Audio: Realtek ALC897 Codec 7.1-Channel High Definition Audio
Description
Explore the Features of MSI PRO B660M-A Motherboard
Unleash Your Potential with the MSI PRO B660M-A DDR4 Motherboard
The MSI PRO B660M-A DDR4 12th Gen Micro-ATX Motherboard is designed to elevate your computing experience, offering an array of features that cater to both casual users and hardcore gamers alike. With its robust build quality and advanced technologies, this motherboard is a cornerstone for building powerful and efficient systems. Equipped with the latest 12th Gen Intel Core processors, the B660M-A ensures seamless performance across various applications, from everyday tasks to demanding gaming sessions.
Benefits and Use Cases: This motherboard supports DDR4 memory with speeds of up to 3200 MHz, allowing users to enjoy faster data processing and multitasking capabilities. Whether you're a content creator needing efficient rendering times or a gamer wanting to maximize frame rates, this motherboard meets your needs. The Dual Channel memory architecture further enhances performance, making it ideal for heavy multitasking.
Why You Should Buy: The MSI PRO B660M-A is not just about performance; it's about reliability and future-proofing your system. With multiple PCIe slots, SATA connectors, and USB ports, this motherboard offers expansive connectivity options, ensuring compatibility with a wide range of peripherals. Its high-quality capacitors and steel-reinforced PCIe slots enhance durability, making it a long-lasting investment. In the competitive landscape of motherboards, the MSI PRO B660M-A stands out with its blend of performance, reliability, and affordability.
Best Motherboard for 12th Gen Processors in Bangladesh
Specification
| BASIC INFORMATION | |
|---|---|
| SpecialFeatures | 1x 4-pin RGB LED connector 2x 3-pin RAINBOW LED connectors 4x EZ Debug LED |
| Supported CPU | Supports 12th Gen Intel Core Processors Processor socket LGA1700 |
| Chipset | Intel B660 Chipset |
| Slots | 4x DDR4 memory slots |
| Audio | Realtek ALC897 Codec 7.1-Channel High Definition Audio |
| Type | DDR4 |
| Expansion Slots | |
| PCI | 2x PCIe x16 slots PCI_E1 (From CPU) Support PCIe 4.0 x16 PCI_E3 (From B660 chipset) Support PCIe 3.0 x4 1x PCIe 3.0 x1 slot (Fom B660 chipset) |
| Memory Specifications | |
| Maximum Memory | support up to 128GB |
| Supported Memory | Supports 1R 2133/ 2666/ 3200 MHz (by JEDEC & POR) Max overclocking frequency: 1DPC 1R Max speed up to 4800+ MHz 1DPC 2R Max speed up to 4000+ MHz 2DPC 1R Max speed up to 4000+ MHz 2DPC 2R Max speed up to 3600+ MHz Supports Dual-Channel mode Supports non-ECC, un-buffered memoryy Supports Intel Extreme Memory Profile (XMP) |
| PORTS, CONNECTORS & SLOTS | |
| HDMI | HDMI (BACK PANEL PORTS) |
| Internal I/O Ports | INTERNAL CONNECTORS: 1x 24-pin ATX main power connector 1x 8-pin ATX 12V power connector 1x 4-pin ATX 12V power connector 4x SATA 6Gb/s connectors 2x M.2 slots (M-Key) 1x USB 3.2 Gen 1 5Gbps Type-C port 1x USB 3.2 Gen 1 5Gbps Type-A connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports) 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports) 1x 4-pin CPU fan connector 1x 4-pin water-pump fan connector 2x 4-pin system fan connectors 1x Front panel audio connector 2x System panel connectors 1x Chassis Intrusion connector 1x Clear CMOS jumper 1x TBT connector (supports RTD3) 1x Serial port 1x Tuning Controller connector BACK PANEL PORTS: Keyboard / Mouse DisplayPort USB 3.2 Gen 1 5Gbps Type-A LAN port Audio connector USB 2.0 HDMI USB 3.2 Gen 2 10Gbps Type-A |
| LAN Port (s) | 1x Realtek RTL8125BG 2.5Gbps LAN controller |
| Supported Storage | 4x SATA 6Gb/s ports (From B660 chipset) 2x M.2 slots (Key M) M2_1 slot (From CPU) Supports up to PCIe 4.0 x4 Supports 2242/ 2260/ 2280 storage devices M2_2 slot (From B660 chipset) Supports up to PCIe 4.0 x4 Supports up to SATA 6Gb/s Supports 2242/ 2260/ 2280 storage devices Supports Intel Optane Memory Support Intel Smart Response Technology for Intel Core processors |
| TPM (Trusted Platform Module ) | 1x TPM module connector |
| WARRANTY | |
| Manufacturing Warranty | 3 years warranty |
