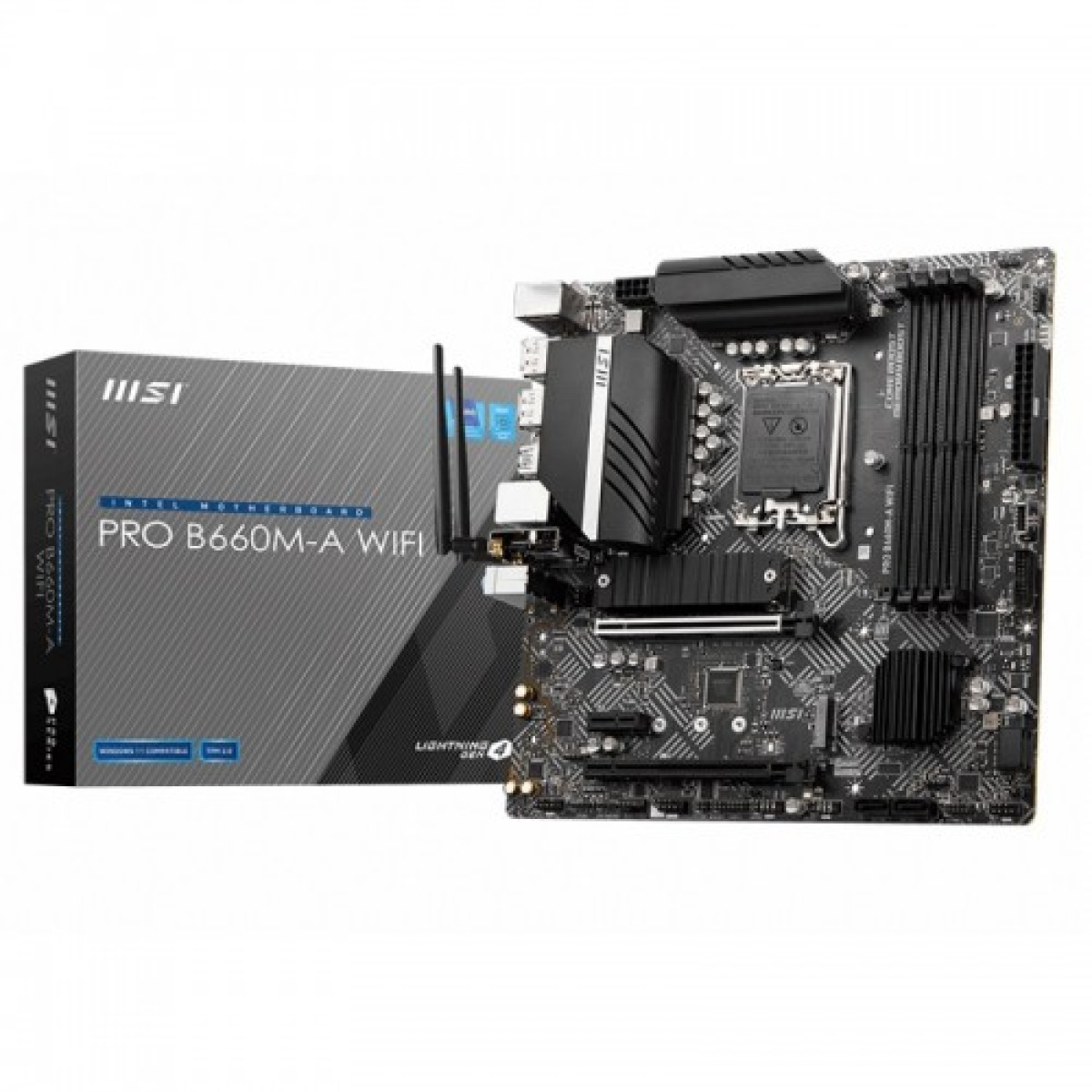

MSI PRO B660M-A WIFI DDR5 12th Gen Micro-ATX Motherboard
Key highlights
- Form Factor: Micro-ATX Form Factor 9.6 in. x 9.6 in. (24.4 cm x 24.4 cm)
- Supported CPU: Supports 12th Gen Intel Core Processors Processor socket LGA1700
- Chipset: Intel B660 Chipset
- Slots: 4x DDR5 memory slots
- Audio: Realtek ALC897 Codec 7.1-Channel High Definition Audio
Description
Upgrade Your PC with MSI PRO B660M-A Motherboard
MSI PRO B660M-A WIFI DDR5 12th Gen Micro-ATX Motherboard
The MSI PRO B660M-A WIFI DDR5 motherboard is an exceptional choice for users looking to build a powerful and reliable system with Intel's 12th generation processors. This micro-ATX motherboard is designed to deliver superior performance, extensive connectivity options, and robust features, making it an ideal choice for professionals, gamers, and everyday users alike.
One of the standout features of the MSI PRO B660M-A is its support for the latest DDR5 memory technology. With DDR5, users can expect faster speeds and improved efficiency, which translates to a smoother experience when multitasking or running memory-intensive applications. The motherboard supports up to 128GB of RAM across two slots, allowing users to maximize their system's performance.
In terms of connectivity, this motherboard comes equipped with Wi-Fi 6, ensuring fast and stable internet connections without the need for additional hardware. The inclusion of multiple USB 3.2 Gen 2 ports provides ample options for connecting peripherals, while HDMI and DisplayPort outputs allow for high-resolution display setups. Furthermore, the motherboard features an M.2 slot for NVMe SSDs, enabling lightning-fast storage solutions that significantly enhance boot and load times.
The MSI PRO B660M-A also emphasizes durability and build quality, featuring high-quality capacitors and a robust power delivery system. This ensures that the motherboard can handle demanding workloads while maintaining stability and longevity. Additionally, MSI's Click BIOS 5 offers an intuitive interface for easy adjustments and overclocking, making it suitable for both novice and experienced builders.
For users in Bangladesh, the MSI PRO B660M-A is particularly appealing due to its local availability and competitive pricing. By choosing this motherboard, customers gain access to a product that combines quality with affordability, ensuring that they get the best bang for their buck. The motherboard's warranty provides peace of mind, allowing users to invest with confidence.
In conclusion, the MSI PRO B660M-A WIFI DDR5 Micro-ATX motherboard is a well-rounded solution that offers exceptional performance, connectivity, and build quality. Whether for gaming, content creation, or everyday computing, this motherboard is designed to meet diverse needs and exceed expectations.
Best Micro-ATX Motherboard for 12th Gen Intel CPUs
Specification
| BASIC INFORMATION | |
|---|---|
| Form Factor | Micro-ATX Form Factor 9.6 in. x 9.6 in. (24.4 cm x 24.4 cm) |
| Supported CPU | Supports 12th Gen Intel Core Processors Processor socket LGA1700 |
| Chipset | Intel B660 Chipset |
| Slots | 4x DDR5 memory slots |
| Audio | Realtek ALC897 Codec 7.1-Channel High Definition Audio |
| Type | DDR5 |
| Connectivity | |
| HDMI | 2x HDMI 2.1 with HDR ports, supporting a maximum resolution of 4K 60Hz |
| Memory Specifications | |
| Supported Memory | 4x DDR5 memory slots, support up to 128GB 1 Supports 1R 4800 MHz (by JEDEC & POR) Max overclocking frequency: 1DPC 1R Max speed up to 6200+ MHz 1DPC 2R Max speed up to 5200+ MHz 2DPC 1R Max speed up to 4000+ MHz 2DPC 2R Max speed up to 4000+ MHz Supports Dual-Channel mode Supports non-ECC, un-buffered memory Supports Intel Extreme Memory Profile (XMP) |
| PORTS, CONNECTORS & SLOTS | |
| Display Port (s) | 2x DisplayPort 1.4 ports with HBR3, supporting a maximum resolution of 4K 60Hz |
| Internal I/O Ports | INTERNAL CONNECTORS: 1x 24-pin ATX main power connector 1x 8-pin ATX 12V power connector 1x 4-pin ATX 12V power connector 4x SATA 6Gb/s connectors 2x M.2 slots (M-Key) 1x USB 3.2 Gen 1 5Gbps Type-C port 1x USB 3.2 Gen 1 5Gbps Type-A connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports) 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports) 1x 4-pin CPU fan connector 1x 4-pin water-pump fan connector 2x 4-pin system fan connectors 1x Front panel audio connector 2x System panel connectors 1x Chassis Intrusion connector 1x Clear CMOS jumper 1x TBT connector (supports RTD3) 1x Serial port 1x Tuning Controller connector BACK PANEL PORTS: Keyboard / Mouse DisplayPort USB 3.2 Gen 1 5Gbps Type-A LAN port Audio connector USB 2.0 HDMI USB 3.2 Gen 2 10Gbps Type-A |
| LAN Port (s) | 1x Realtek RTL8125BG 2.5Gbps LAN controller |
| Supported Storage | 4x SATA 6Gb/s ports (From B660 chipset) 2x M.2 slots (Key M) M2_1 slot (From CPU) Supports up to PCIe 4.0 x4 Supports 2242/ 2260/ 2280 storage devices M2_2 slot (From B660 chipset) Supports up to PCIe 4.0 x4 Supports up to SATA 6Gb/s Supports 2242/ 2260/ 2280 storage devices Supports Intel Optane Memory Support Intel Smart Response Technology for Intel Core processors |
| TPM (Trusted Platform Module ) | 1x TPM module connector |
| USB (s) | Intel B660 Chipset 2x USB 3.2 Gen 2 10Gbps Type-A ports on the back panel 3x USB 3.2 Gen 1 5Gbps ports (2 Type-A ports on the back panel, 1 Type-C available through the internal connector) 6x USB 2.0 ports (2 Type-A ports on the back panel, 4 Type-A ports available through the internal connectors) Asmedia ASM1074 2X USB 3.2 Gen 1 5Gbps Type-A ports through the internal connector |
| Wireless Communication module | Intel Wi-Fi 6 The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz (160MHz) up to 2.4Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax Supports Bluetooth 5.2 |
| WARRANTY | |
| Manufacturing Warranty | 3 years warranty |
