Key highlights
- Application: Primary (Campus), Secondary (Riser), Tertiary (Horizontal) IEEE 802.3an: 10Base-T; 100Base-TX; 1000Base-T IEEE 802.5 16 MB; ISDN; TPDDI; ATM
- Cable Lay-Up: 4 pairs to the core with cross separator
- Conductor: Bare solid copper
- Fire Rating: Flame retardant- PVC
- Insulation: HDPE, overall Ø 0.92±0.02 mm
Description
High-Quality CAT6 Cable Box for Fast Network Connections

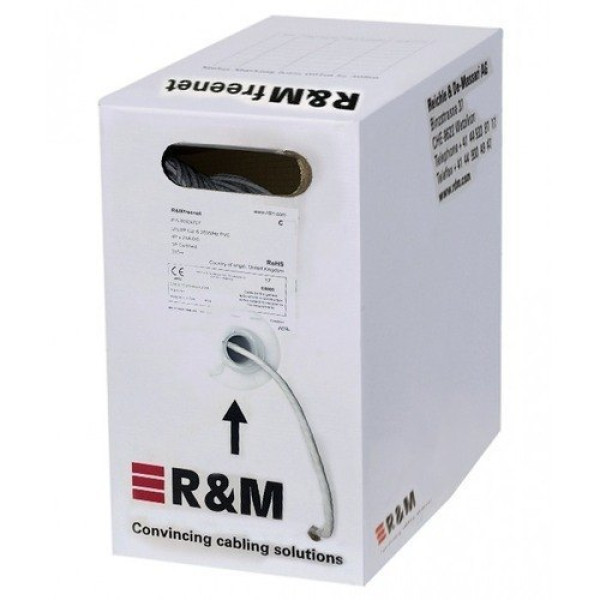

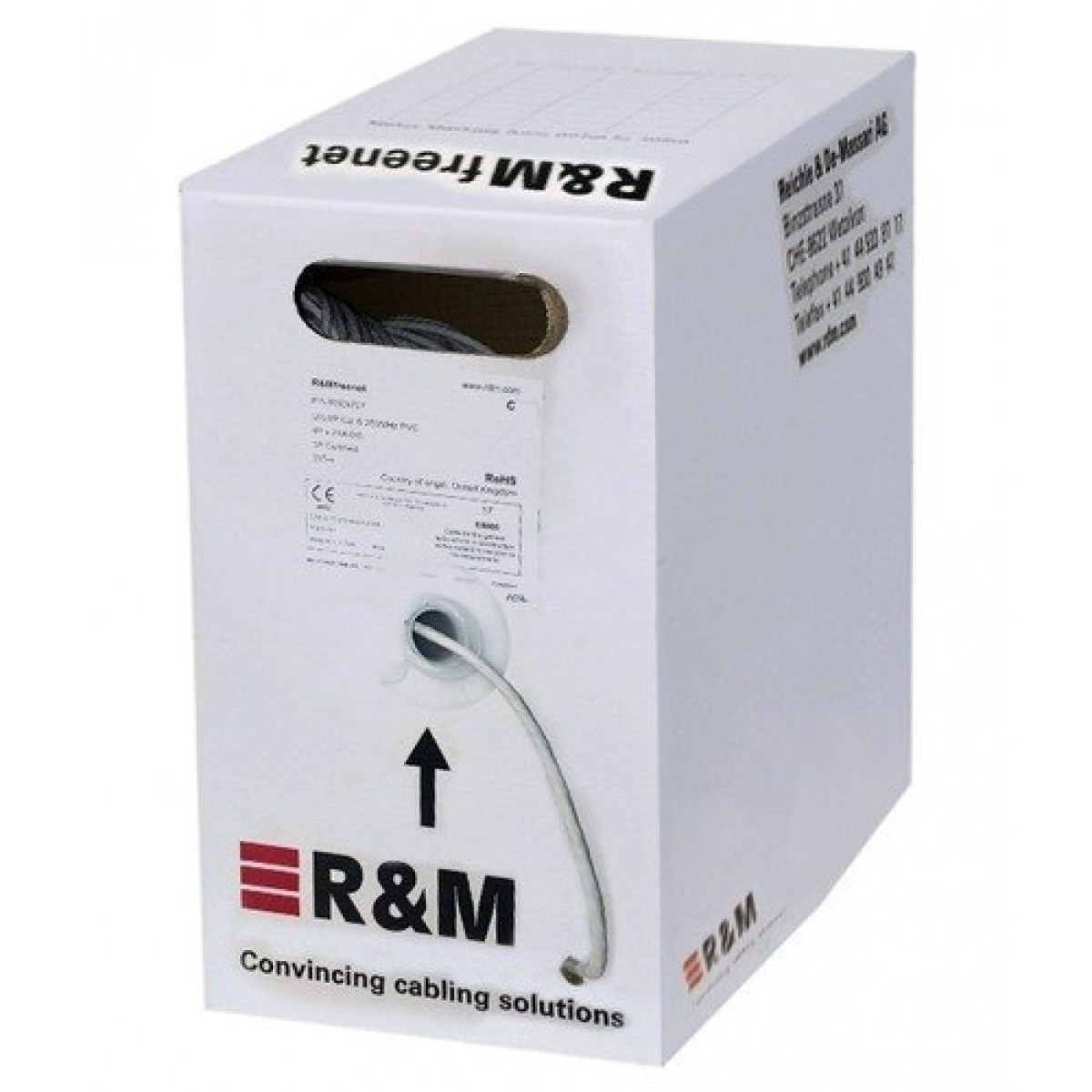

R&M CAT6 U/UTP FRPVC Cable Box
The R&M CAT6 U/UTP FRPVC Cable Box is your ideal solution for fast, reliable networking. Designed to meet the rigorous demands of modern networking, this cable features a robust U/UTP design that minimizes interference and maximizes signal integrity. Available in vibrant yellow, blue, and grey colors, it not only serves a functional purpose but also enhances the aesthetic of your workspace.
High-Speed Performance: With support for data rates up to 10 Gbps, this cable ensures seamless data transfer, making it perfect for both home and office environments.
Durability and Flexibility: The FRPVC jacket provides excellent resilience against environmental factors, ensuring that your network remains stable and reliable regardless of the conditions.
Easy Installation: This cable comes in a convenient box that simplifies installation and organization, allowing you to set up your network quickly and efficiently.
Durable U/UTP FRPVC Cable in Yellow, Blue, and Grey
Specification
| BASIC INFORMATION | |
|---|---|
| Application | Primary (Campus), Secondary (Riser), Tertiary (Horizontal) IEEE 802.3an: 10Base-T; 100Base-TX; 1000Base-T IEEE 802.5 16 MB; ISDN; TPDDI; ATM |
| Cable Lay-Up | 4 pairs to the core with cross separator |
| Conductor | Bare solid copper |
| Fire Rating | Flame retardant- PVC |
| Insulation | HDPE, overall Ø 0.92±0.02 mm |
| Overall Screen | Non |
| Pair Screen | Non |
| Sheath | PVC, gray RAL 7035, Sheath Thickness: 0.50mm nominal |
| Standards | ISO/IEC 11801 2nd ed.; EN 50173-1; ANSI/TIA-568-C.2 IEC 61156-5 2nd ed.; IEC 61156-7; EN 50288-6-1 |
| Twisting | 2 wires to the pair |
| Weight | 13.0kg nominal |
| Physical Specification | |
| Color | Yellow Blue Grey |
| Technical Specification | |
| Bending Radius | ≥ 25 mm during operation (without load) ≥ 50 mm during installation (with load) |
| Cable Designation | U/UTP Cat.6 250MHz |
| Outer Diameter | 5.8±0.3mm |
| Packaging | Drum 305 m |
| Pulling Pressure | 11Kg nominal |
| Segregation Class | B |
| Temperature ange | During operation: -20°C…+ 60°C During installation: 0°C…+ 50°C |
| Tensile Strength | > 16.5N/mm² |
