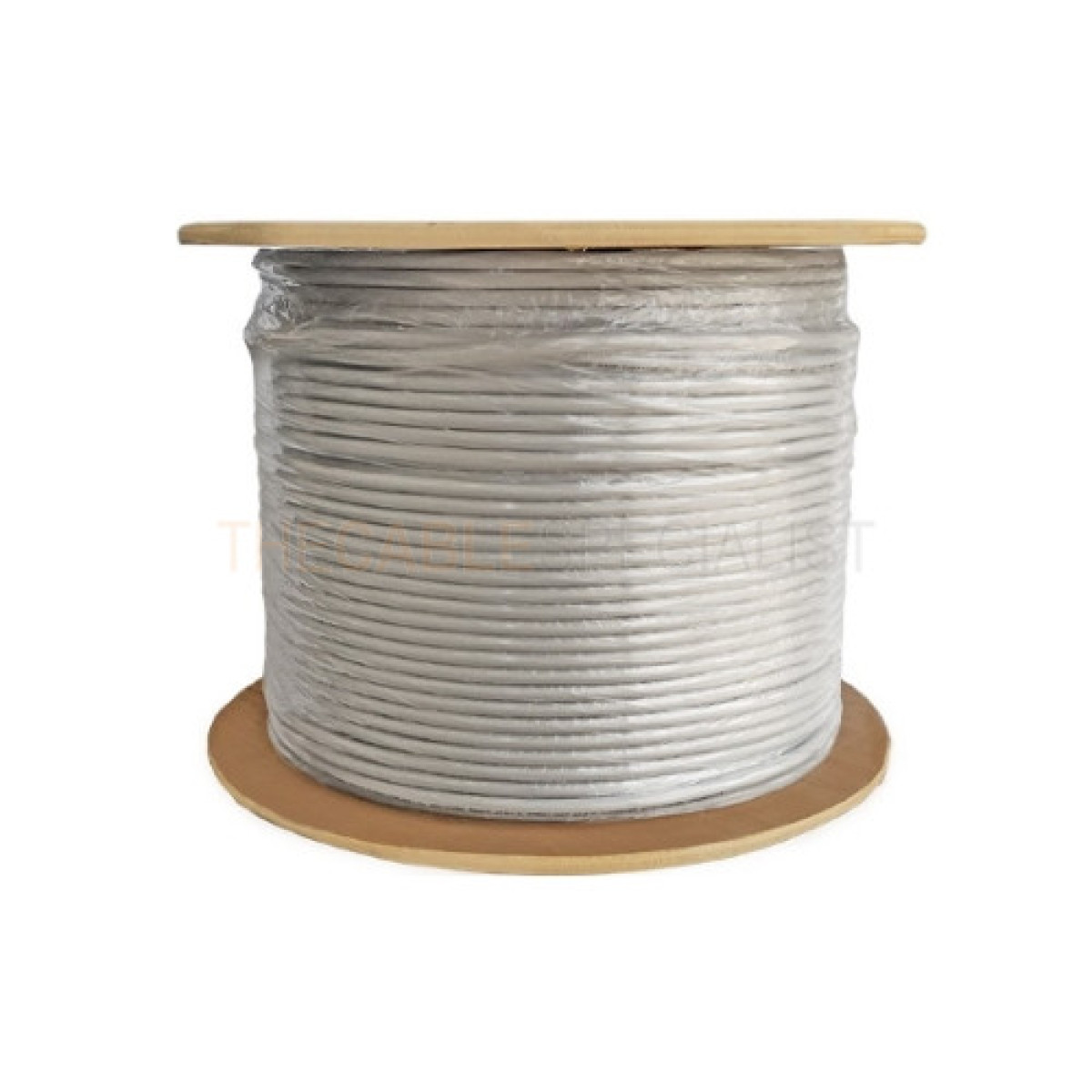

R&M R195718 CAT6A U/UTP 4P 500MHz 23AWG LSZH Gray 305m Installation Cable
Key highlights
- Application: Primary (Campus), Secondary (Riser), Tertiary (Horizontal) IEEE 802.3an: 10Base-T; 100Base-TX; 1000Base-T; 10GBase-T IEEE 802.5 16 MB; ISDN; TPDDI; ATM IEEE 802.3af-2002: POE; IEEE 802.3at: POE+
- Cable Lay-Up: 4 paires to the core with cross separator
- Conductor: Bare solid copper wire AWG23
- Fire Rating: LSZH IEC 60332-1; IEC 60754-2; IEC 61034
- Insulation: Polyethylene ≤ Ø 1.22 mm
Description
High-Quality CAT6A U/UTP Cable for Fast Networking
R&M R195718 CAT6A U/UTP 4P 500MHz 23AWG LSZH Gray 305m Installation Cable
The R&M R195718 CAT6A U/UTP installation cable is a top-tier choice for individuals and businesses looking to enhance their network infrastructure. Designed to support high-speed data transmission, this cable operates at a frequency of 500MHz, making it ideal for applications that require substantial bandwidth. Whether you're setting up a new office network, upgrading your existing cabling system, or implementing a robust data center solution, this cable is engineered to deliver optimal performance and reliability.
Benefits of Using R&M R195718 Cable:
The R195718 cable is constructed with 23AWG copper wire, providing superior conductivity and reduced attenuation. The unshielded twisted pair (U/UTP) design minimizes crosstalk and ensures clear signals, which is essential for maintaining high data integrity over long distances. With a length of 305 meters, this cable is perfect for larger installations, reducing the need for multiple connections and potential points of failure.
Use Cases:
Why Choose R&M R195718?
Shop 500MHz 23AWG LSZH Installation Cable Online
Specification
| BASIC INFORMATION | |
|---|---|
| Application | Primary (Campus), Secondary (Riser), Tertiary (Horizontal) IEEE 802.3an: 10Base-T; 100Base-TX; 1000Base-T; 10GBase-T IEEE 802.5 16 MB; ISDN; TPDDI; ATM IEEE 802.3af-2002: POE; IEEE 802.3at: POE+ |
| Cable Lay-Up | 4 paires to the core with cross separator |
| Conductor | Bare solid copper wire AWG23 |
| Fire Rating | LSZH IEC 60332-1; IEC 60754-2; IEC 61034 |
| Insulation | Polyethylene ≤ Ø 1.22 mm |
| Sheath | LSZH, gray |
| Twisting | 2 wires to the pair |
| Weight | 58 kg / km |
| Technical Specification | |
| Bending Radius | ≥ 35 mm during operation (without load) ≥ 55 mm during installation (with load) |
| Cable Designation | Cat6A U/UTP |
| Outer Diameter | Nominal 7.0 +/- 0.8 mm |
| Pulling Pressure | 1090 MJ / km |
| Segregation Class | B |
| Temperature ange | During operation: -20°C…+ 60°C During installation: 0°C…+ 50°C |
| Tensile Strength | 100 N |
