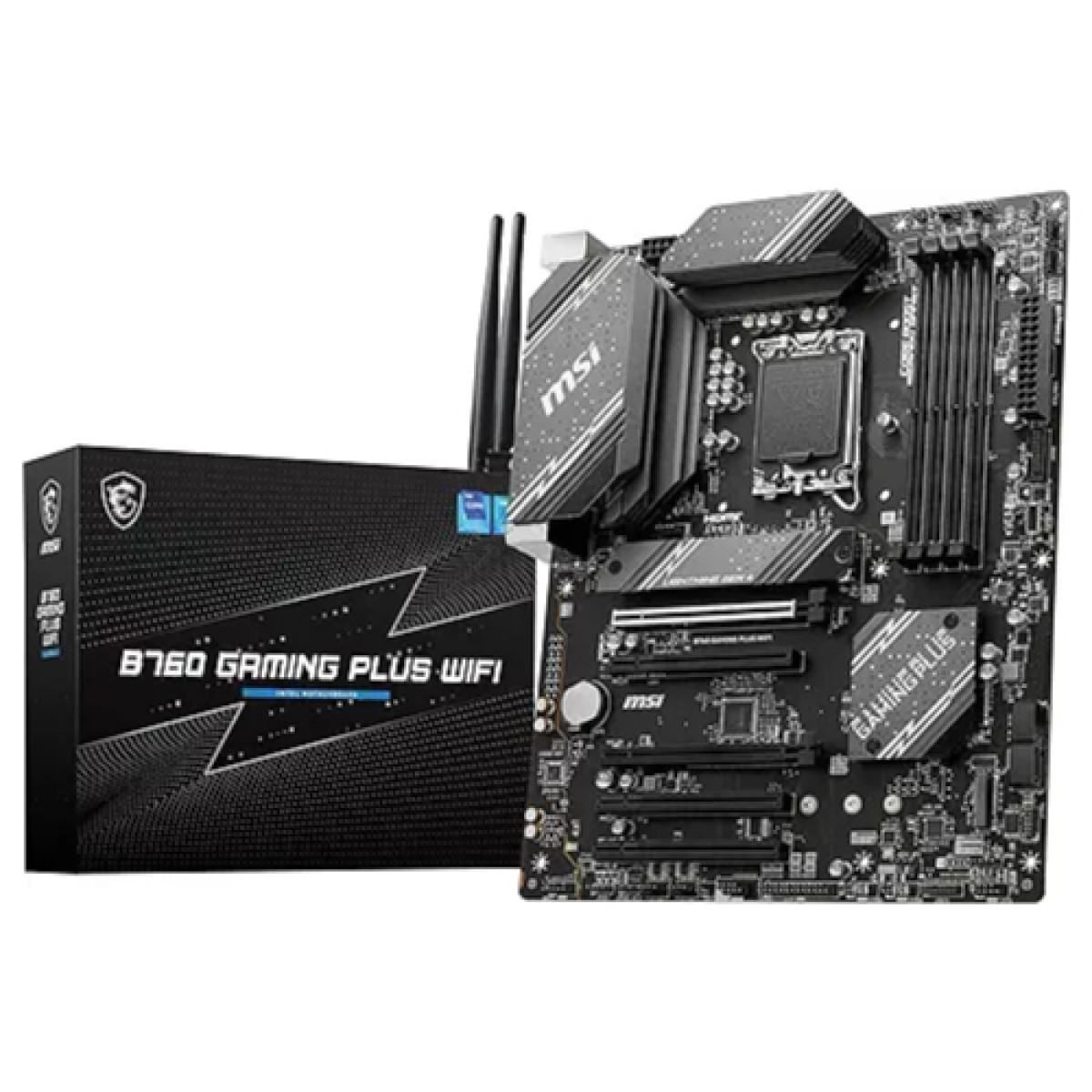

MSI B760 GAMING PLUS WIFI ATX Motherboard
Key highlights
- Form Factor: ATX 243.84mmx304.8mm
- Raid controller: Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
- Supported CPU: Supports 14th/13th/12th Gen Intel Core Processors, Pentium Gold and Celeron Processors LGA1700
- Chipset: INTEL B760
- Audio: Realtek ALC897 Codec 7.1-Channel High Definition Audio Supports S/PDIF output
Description
Upgrade Your Gaming Setup with MSI B760 Motherboard
Unleash the Power of Gaming with MSI B760 GAMING PLUS WIFI ATX Motherboard
The MSI B760 GAMING PLUS WIFI ATX Motherboard is designed for gamers and PC enthusiasts who demand high performance and reliability. This motherboard supports the latest Intel processors, allowing you to experience cutting-edge computing power. With its robust design and advanced features, the B760 GAMING PLUS is perfect for building a high-performance gaming rig or a powerful workstation.
Key Features: The motherboard supports Intel's 13th and 12th Gen Core processors, providing you with the flexibility to choose the best CPU for your needs. Equipped with DDR4 memory slots, it supports speeds up to 3200 MHz, ensuring that your system runs smoothly even under heavy loads. The ATX form factor allows for ample room for expansion, making it easy to add additional components like GPUs, SSDs, and more.
Benefits: One of the standout features of the B760 GAMING PLUS is its integrated Wi-Fi 6 capability, providing fast and reliable wireless connectivity. This is especially advantageous for gamers who prefer a wireless setup, eliminating the clutter of cables. Additionally, the motherboard comes with multiple USB 3.2 Gen 2 ports, ensuring quicker data transfer rates for your peripherals.
Use Cases: Whether you are an avid gamer, a content creator, or someone who needs a reliable workstation for professional tasks, the MSI B760 GAMING PLUS WIFI ATX Motherboard is versatile enough to meet your needs. Its gaming-oriented features make it perfect for high-end gaming experiences, while its robust build quality ensures stability and longevity.
Why Buy This Product: Investing in the MSI B760 GAMING PLUS means investing in quality and performance. With its advanced thermal design, you can push your components to their limits without worrying about overheating. Additionally, MSI's Dragon Center software allows for easy overclocking and monitoring of system performance, giving you an edge in competitive gaming.
Exceptional Performance with MSI B760 GAMING PLUS WIFI
Specification
| BASIC INFORMATION | |
|---|---|
| Form Factor | ATX 243.84mmx304.8mm |
| Raid controller | Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices |
| Supported CPU | Supports 14th/13th/12th Gen Intel Core Processors, Pentium Gold and Celeron Processors LGA1700 |
| Chipset | INTEL B760 |
| Audio | Realtek ALC897 Codec 7.1-Channel High Definition Audio Supports S/PDIF output |
| Expansion Slots | |
| PCI | 5x PCI-E x16 slot PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset) PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset) PCI_E4 Gen PCIe 3.0 supports up to x1 (From Chipset) PCI_E5 Gen PCIe 3.0 supports up to x1 (From Chipset) |
| Graphics Specifications | |
| Graphics | 1x HDMI Support HDMI 2.1 with HDR, maximum resolution of 4K 60Hz 1x DisplayPort Support DP 1.4, maximum resolution of 4K 60Hz |
| Memory Specifications | |
| Maximum Memory | 192GB |
| Slots | 4 |
| Supported Memory | Memory Support DDR5 6800+(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MHz Max. overclocking frequency: • 1DPC 1R Max speed up to 6800+ MHz • 1DPC 2R Max speed up to 6400+ MHz • 2DPC 1R Max speed up to 6000+ MHz • 2DPC 2R Max speed up to 5600+ MHz Supports Intel XMP 3.0 OC Supports Dual-Controller Dual-Channel mode Supports non-ECC, un-buffered memory |
| Type | DDR5 |
| PORTS, CONNECTORS & SLOTS | |
| Display Port (s) | 1x DisplayPort |
| HDMI | 1x HDMI |
| Internal I/O Ports | 1x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR) 1x CPU Fan 1x Pump Fan 5x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Printer Port (JLPT) 1x Com Port (JCOM) 1x TBT connector (JTBT, supports RTD3) 2x Addressable V2 RGB LED connector (JARGB_V2) 1x RGB LED connector(JRGB) 4x USB 2.0 ports 2x USB 3.2 Gen1 Type A ports 1x USB 3.2 Gen1 Type C ports |
| LAN Port (s) | Realtek RTL8125BG 2.5G LAN |
| Supported Storage | 2x M.2 M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 22110/2280/2260/2242 devices M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices 4x SATA 6G |
| TPM (Trusted Platform Module ) | 1x TPM pin header(Support TPM 2.0) |
| USB (s) | 4x USB 2.0 (Rear) 4x USB 2.0 (Front) 2x USB 3.2 Gen1 Type A (Front) 1x USB 3.2 Gen1 Type C (Front) 2x USB 3.2 Gen2 Type A (Rear) 1x USB 3.2 Gen2 Type C (Rear) |
| Wireless Communication module | Intel Wi-Fi 6E The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.4Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax Supports Bluetooth 5.3, FIPS, FISMA |
| Special | |
| Special Feature | 4x EZ Debug LED |
| WARRANTY | |
| Manufacturing Warranty | 3 years |
