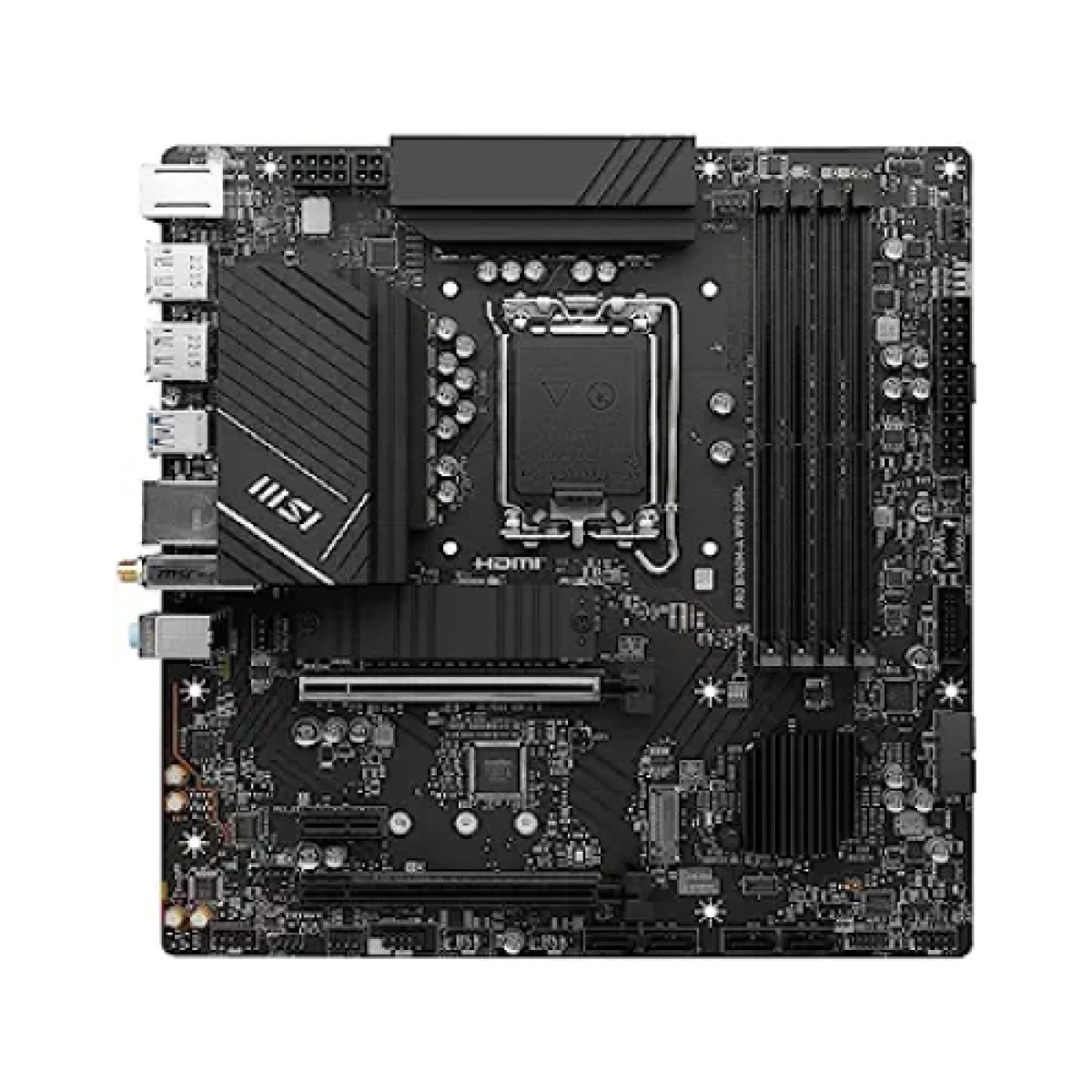

MSI B760M BOMBER WIFI mATX Motherboard
Key highlights
- Form Factor: mATX 220mmx243.84mm
- Raid controller: Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
- Supported CPU: Supports 14th/13th/12th Gen Intel Core Processors, Pentium Gold and Celeron Processors LGA1700
- Chipset: INTEL B760
- Audio: Realtek ALC897 Codec 7.1-Channel High Definition Audio Supports S/PDIF output
Description
Elevate Your PC with MSI B760M BOMBER WIFI Motherboard
Unleash Your Gaming Potential with the MSI B760M BOMBER WIFI mATX Motherboard
The MSI B760M BOMBER WIFI mATX Motherboard is designed to cater to the needs of gamers, content creators, and tech enthusiasts alike. With its compact mATX form factor, this motherboard allows for easy integration into a variety of builds, making it an ideal choice for those who prioritize space without compromising on performance. Featuring the latest Intel B760 chipset, this motherboard supports 12th and 13th Gen Intel Core processors, ensuring that you have the processing power needed for demanding tasks.
Benefits of the MSI B760M BOMBER WIFI: One of the standout features of this motherboard is its built-in Wi-Fi 6 capability, which guarantees faster, more stable internet connections, perfect for online gaming or streaming. The motherboard also supports DDR4 RAM with speeds up to 3200 MHz, allowing for smoother multitasking and enhanced performance in memory-intensive applications. With support for PCIe 4.0, you can enjoy faster data transfer rates for your graphics cards and NVMe SSDs, enhancing your overall computing experience.
This motherboard is perfect for a range of use cases, from building a powerful gaming rig to setting up a workstation for video editing or 3D rendering. Its robust power delivery system ensures stability even under heavy loads, while the advanced cooling solutions keep your system running efficiently. Additionally, the MSI B760M BOMBER WIFI features customizable RGB lighting, allowing you to personalize your setup to reflect your style.
Why Choose MSI B760M BOMBER WIFI? Customers should consider this motherboard for its impressive performance metrics, user-friendly installation process, and comprehensive support for future upgrades. Its competitive pricing in the Bangladeshi market makes it accessible for a wide range of users. Whether you're a seasoned PC builder or a newcomer, the MSI B760M BOMBER WIFI is a reliable choice that promises longevity, performance, and a plethora of features to enhance your computing experience.
Affordable High-Performance Motherboard for Gaming Setup
Specification
| BASIC INFORMATION | |
|---|---|
| Form Factor | mATX 220mmx243.84mm |
| Raid controller | Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices |
| Supported CPU | Supports 14th/13th/12th Gen Intel Core Processors, Pentium Gold and Celeron Processors LGA1700 |
| Chipset | INTEL B760 |
| Audio | Realtek ALC897 Codec 7.1-Channel High Definition Audio Supports S/PDIF output |
| Expansion Slots | |
| PCI | 5x PCI-E x16 slot PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset) PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset) PCI_E4 Gen PCIe 3.0 supports up to x1 (From Chipset) PCI_E5 Gen PCIe 3.0 supports up to x1 (From Chipset) |
| Graphics Specifications | |
| Graphics | 1x HDMI Support HDMI 2.1 with HDR, maximum resolution of 4K 60Hz 1x DisplayPort Support DP 1.4, maximum resolution of 4K 60Hz 1x D-Sub Support VGA, maximum resolution of 2048x1536 50Hz, 2048x1280 60Hz, 1920x1200 60Hz |
| Memory Specifications | |
| Maximum Memory | 96GB |
| Slots | 2 |
| Supported Memory | Memory Support DDR5 6400+(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) Max. overclocking frequency: • 1DPC 1R Max speed up to 6400+ MHz • 1DPC 2R Max speed up to 5600+ MHz Supports Intel® XMP 3.0 OC Supports Dual-Controller Dual-Channel mode Supports non-ECC, un-buffered memory |
| Type | DDR5 |
| PORTS, CONNECTORS & SLOTS | |
| D-Sub (s) | 1x D-Sub |
| Display Port (s) | 1x DisplayPort |
| HDMI | 1x HDMI |
| Internal I/O Ports | 1x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR) 1x CPU Fan 1x Pump Fan 5x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Printer Port (JLPT) 1x Com Port (JCOM) 1x TBT connector (JTBT, supports RTD3) 2x Addressable V2 RGB LED connector (JARGB_V2) 1x RGB LED connector(JRGB) 4x USB 2.0 ports 2x USB 3.2 Gen1 Type A ports 1x USB 3.2 Gen1 Type C ports |
| LAN Port (s) | Realtek RTL8125B 2.5Gbps LAN |
| Supported Storage | 2x M.2 M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 22110/2280/2260/2242 devices M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices 4x SATA 6G |
| TPM (Trusted Platform Module ) | 1x TPM pin header(Support TPM 2.0) |
| USB (s) | 2x USB 2.0 (Rear) 4x USB 2.0 (Front) 4x USB 3.2 Gen1 Type A (Rear) 2x USB 3.2 Gen1 Type A (Front) |
| Wireless Communication module | Intel Wi-Fi 6E The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.4Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax Supports Bluetooth 5.3, FIPS, FISMA |
| Special | |
| Special Feature | 4x EZ Debug LED |
| WARRANTY | |
| Manufacturing Warranty | 3 years |
