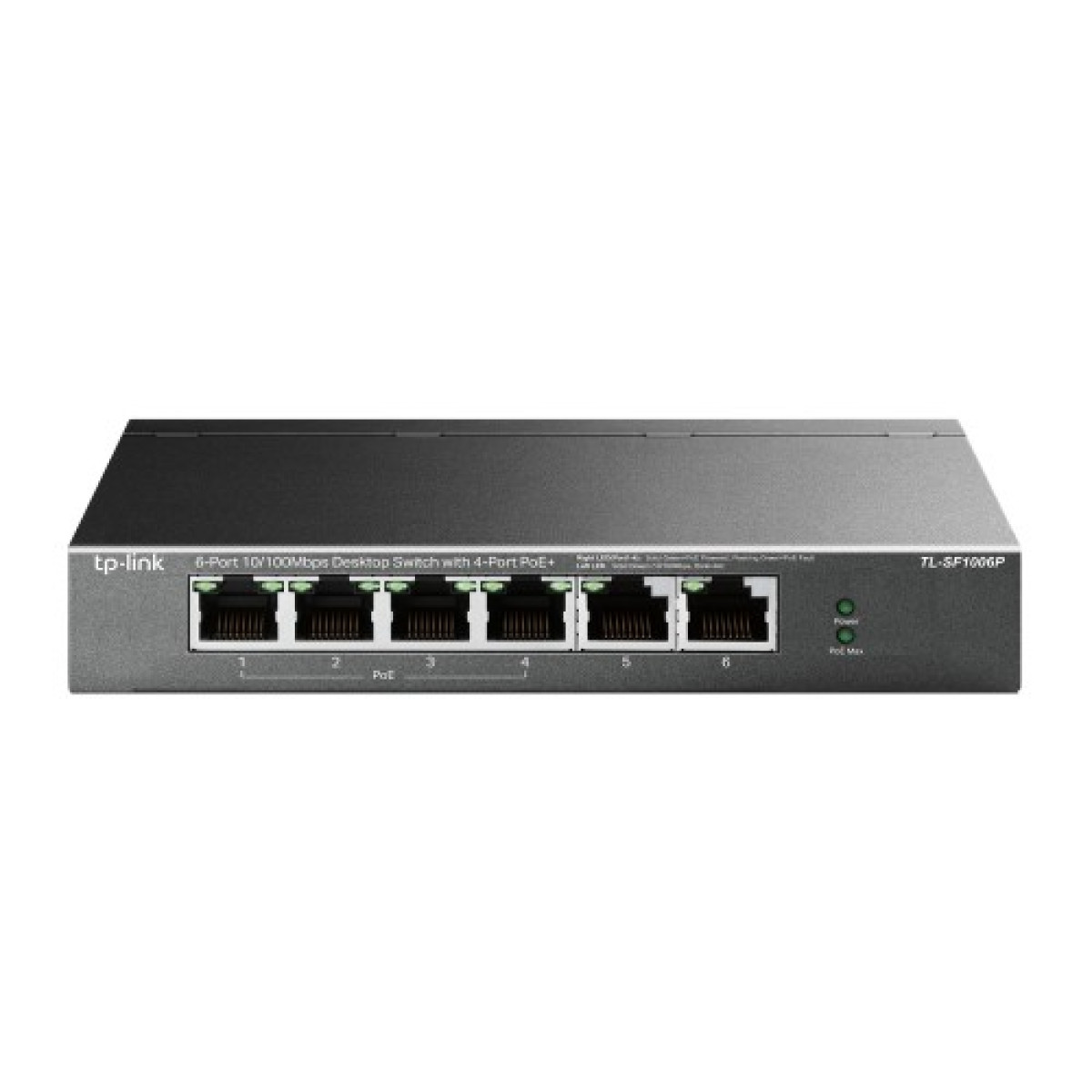

TP-Link TL-SF1006P 6-Port 10/100Mbps Desktop PoE Switch with 4-Port PoE+
Key highlights
- Dimensions (L x W x H ): 6.2 x 4.0 x 1.0 in (158 x 101 x 25 mm)
- Interface: 6× 10/100 Mbps RJ45 Ports (ports 1–4 support 802.3af/at PoE+) AUTO Negotiation AUTO MDI/MDIX
- Network Standard: 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m) 100BASE-TX: UTP category 5, 5e cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m)
- Power Supply: External Power Adapter (Output: 53.5 V DC / 1.31 A) Max Power Consumption: 1.9 W (220 V / 50 Hz, no PD connected) 74 W (220 V / 50 Hz, with 67 W PD connected)
- Advanced Functions: Compatible With IEEE 802.3af/at Compliant PDs Extend Mode Button (Ports 1–4) Priority Mode Button (Ports 1–2) Mac Address Auto-Learning and Auto-Aging IEEE802.3x Flow Control For Full-Duplex Mode and Backpressure for Half-Duplex Mode
Description
Affordable 10/100Mbps Desktop PoE Switch for Home & Office
TP-Link TL-SF1006P: Enhance Your Network Performance
The TP-Link TL-SF1006P is a powerful 6-port desktop switch designed specifically for small to medium-sized networks. With 4 of its ports supporting Power over Ethernet (PoE+), this device is perfect for powering IP cameras, VoIP phones, and wireless access points without the need for additional power supplies. The switch operates at speeds of 10/100Mbps, ensuring that your network maintains high performance and reliability.
Equipped with auto-MDI/MDI-X functionality, the TL-SF1006P simplifies installation by automatically detecting the type of network cable used, eliminating the need for crossover cables. Its compact design makes it an ideal choice for desktop use, allowing you to easily integrate it into your workspace without sacrificing valuable real estate.
This switch is built with the latest energy-efficient technology to reduce power consumption, making it an environmentally friendly choice. With a total switching capacity of 1.2 Gbps, it can handle multiple devices simultaneously, providing seamless connectivity for all your networked equipment. Experience the difference with the TP-Link TL-SF1006P and take your networking capabilities to the next level.
Enhanced Networking with TP-Link TL-SF1006P PoE Switch
Specification
| BASIC INFORMATION | |
|---|---|
| Dimensions (L x W x H ) | 6.2 x 4.0 x 1.0 in (158 x 101 x 25 mm) |
| Interface | 6× 10/100 Mbps RJ45 Ports (ports 1–4 support 802.3af/at PoE+) AUTO Negotiation AUTO MDI/MDIX |
| Network Standard | 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m) 100BASE-TX: UTP category 5, 5e cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m) |
| Power Supply | External Power Adapter (Output: 53.5 V DC / 1.31 A) Max Power Consumption: 1.9 W (220 V / 50 Hz, no PD connected) 74 W (220 V / 50 Hz, with 67 W PD connected) |
| Main Features | |
| Advanced Functions | Compatible With IEEE 802.3af/at Compliant PDs Extend Mode Button (Ports 1–4) Priority Mode Button (Ports 1–2) Mac Address Auto-Learning and Auto-Aging IEEE802.3x Flow Control For Full-Duplex Mode and Backpressure for Half-Duplex Mode |
| Transmission Method | Store-And-Forward |
| WARRANTY | |
| Manufacturing Warranty | 1 Year |
