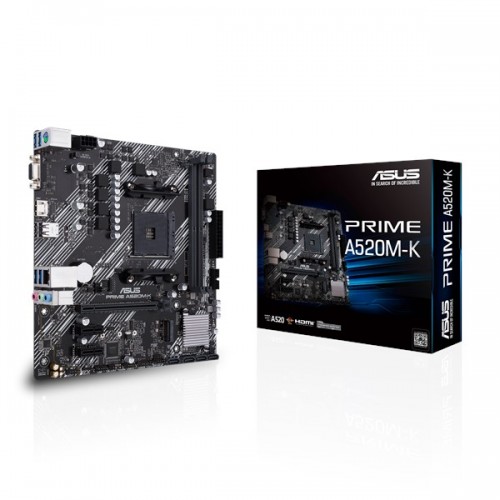

Asus Prime A520M-K AM4 Micro-ATX AMD Motherboard
Key highlights
- Form Factor: mATX Form Factor 8.9 inch x 8.7 inch ( 22.6 cm x 22.1 cm )
- Supported CPU: AMD AM4 Socket for AMD Ryzen 5000 Series/ 4000 G-Series/ 3000 Series Desktop Processors
- Chipset: AMD A520
- Memory: 64GB, DDR4
- Slots: 2 x DIMM
Genuine products with manufacturer warranty where applicable. Keep your invoice for warranty claims.
Contact us within the return window for defective or wrong items. Open-box returns may vary by category.
Description
Shop High-Quality Asus Motherboard in Jashore, Bangladesh
Unleash Your PC's Potential with the Asus Prime A520M-K
Discover the power and performance of the Asus Prime A520M-K AM4 Micro-ATX AMD Motherboard, a perfect choice for gamers and PC builders in Bangladesh. This motherboard supports the latest AMD Ryzen processors, ensuring you get the most out of your system. Its Micro-ATX design makes it ideal for compact builds without sacrificing essential features.
Equipped with dual M.2 slots for lightning-fast SSDs, the A520M-K enhances your gaming and productivity experience. The motherboard also includes a rich array of connectivity options, including USB 3.2 Gen 1 and HDMI support, allowing you to connect multiple devices effortlessly.
Moreover, the integrated AI noise-canceling technology ensures crystal-clear communication during online gaming or video calls. With a robust power design and comprehensive cooling options, your system stays stable even under heavy loads. The Asus Prime A520M-K is not just a motherboard; it's a gateway to superior performance and reliability.
Features of Asus Prime A520M-K for Your PC Build
Specification
| BASIC INFORMATION | |
|---|---|
| Form Factor | mATX Form Factor 8.9 inch x 8.7 inch ( 22.6 cm x 22.1 cm ) |
| Supported CPU | AMD AM4 Socket for AMD Ryzen 5000 Series/ 4000 G-Series/ 3000 Series Desktop Processors |
| Chipset | AMD A520 |
| Memory | 64GB, DDR4 |
| Slots | 2 x DIMM |
| BIOS | 256 MB Flash ROM, UEFI AMI BIOS |
| Expansion Slots | |
| PCI | AMD Ryzen 5000 Series/ 4000 G-Series/ 3000 Series Desktop Processors 1 x PCIe 3.0 x16 (x16 mode) AMD A520 Chipset 2 x PCIe 3.0 x1 |
| Memory Specifications | |
| Supported Memory | 4600(O.C)/4400(O.C)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3333(O.C.)/3200/3000/2800/2666/2400/2133 MHz Un-buffered Memory |
| Type | Dual Channel DDR4 Memory Technology |
| PORTS, CONNECTORS & SLOTS | |
| D-Sub (s) | 1 x D-Sub |
| HDMI | 1 x HDMI 2.1 (4K@60Hz) |
| LAN Port (s) | Realtek RTL8111H 1GB Ethernet ASUS LANGuard |
| Supported Storage | Total supports 2 x M.2 slot(s) and 4 x SATA 6Gb/s ports AMD Ryzen 5000 Series/ 3000 Series Desktop Processors : 1 x M.2_1 socket 3, with M Key, Type 2242/2260/ 2280 /22110(PCIE 4.0 x4 and SATA modes) storage devices support AMD Ryzen 4000 G-Series Processors : 1 x M.2_1 socket 3, with M Key, Type 2242/2260/2280/22110(PCIE 3.0 x4 and SATA modes) storage devices support AMD B550 Chipset : 1 x M.2_2 socket 3, with M Key, Type 2242/2260/2280 (PCIE 3.0 x4 and SATA modes) storage devices support 4 x SATA 6Gb/s port(s), Support Raid 0, 1, 10 |
| Internal I/O Connectors | 1 x CPU Fan connector(s) 1 x Chassis Fan connector(s) 1 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s) 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s) 1 x M.2 Socket 3 with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode) 4 x SATA 6Gb/s connector(s) 1 x S/PDIF out header(s) 1 x 24-pin EATX Power connector(s) 1 x 8-pin EATX 12V Power connectors 1 x Front panel audio connector(s) (AAFP) 1 x Clear CMOS jumper(s) 1 x System panel connector 1 x COM port header 1 x Speaker connector Back I/O Ports: 1 x PS/2 keyboard/mouse combo port(s) 1 x D-Sub 1 x HDMI 1 x LAN (RJ45) port(s) 4 x USB 3.2 Gen 1 (blue) Type-A 2 x USB 2.0 3 x Audio jack(s) |
| Special | |
| Bundled Software | ASUS Exclusive Software Armoury Crate AI Suite 3 - Performance And Power Saving Utility TurboV EVO EPU Digi+ VRM Fan Xpert 2+ - EZ update ASUS CPU-Z AI Charger DAEMON Tools Norton Anti-virus software (Free Trial for 60 days) WinRAR UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode |
| Special Feature | ASUS 5X PROTECTION III - ASUS DIGI+ VRM - ASUS LANGuard - ASUS Overvoltage Protection - ASUS SafeSlot Core - ASUS Stainless-Steel Back I/O ASUS Q-Design - ASUS Q-DIMM - ASUS Q-Slot ASUS Thermal Solution - Aluminum heatsink design |
| WARRANTY | |
| Manufacturing Warranty | 03 Years Warranty |
