Key highlights
- Form Factor: ATX Form Factor 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
- Supported CPU: Build in AMD Socket sTRX4 for 3rd Gen AMD Ryzen Threadripper Series Desktop Processors Supports CPU up to 64 cores
- Chipset: AMD TRX40
- Memory: 256GB, DDR4
- Slots: 8 x DIMM slots
Genuine products with manufacturer warranty where applicable. Keep your invoice for warranty claims.
Contact us within the return window for defective or wrong items. Open-box returns may vary by category.
Description
Unleash Gaming Potential with the TRX40-XE Motherboard

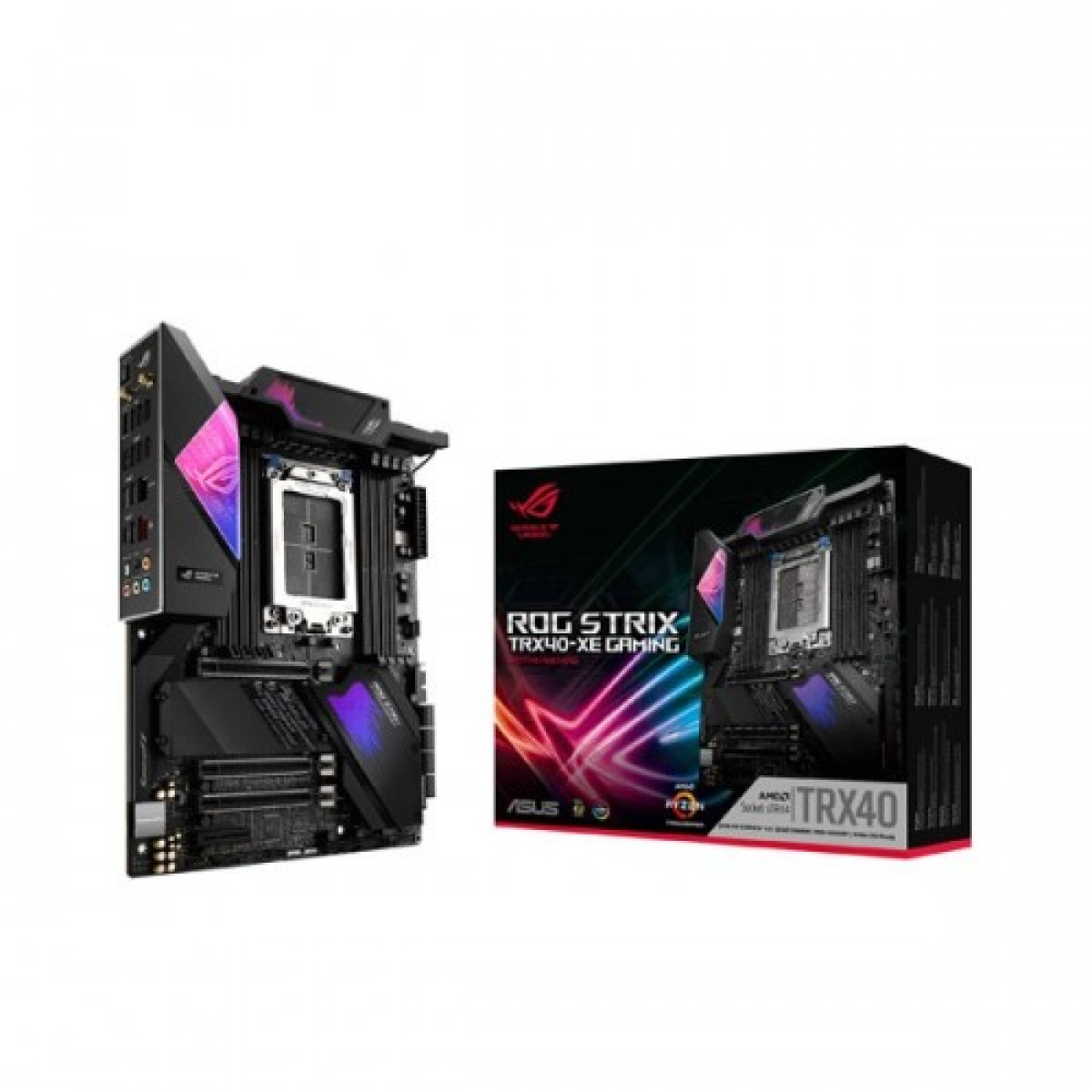

Unleash Your Gaming Potential with the Asus ROG Strix TRX40-XE
The Asus ROG Strix TRX40-XE Gaming AMD Motherboard is designed for gamers and content creators seeking unparalleled performance and cutting-edge technology. Built on the AMD TRX40 chipset, this motherboard supports the latest AMD Ryzen Threadripper processors, providing immense processing power for multitasking and intensive applications.
With advanced features like PCIe 4.0 support, you can enjoy lightning-fast data transfer speeds, making it ideal for gaming and professional workloads. The motherboard comes equipped with dual M.2 slots for high-speed NVMe SSDs, enabling faster load times and improved overall system responsiveness.
The robust power delivery system ensures stable performance even under heavy loads, while the customizable RGB lighting allows you to personalize your rig. Additionally, the ROG Strix TRX40-XE boasts exceptional connectivity options including USB 3.2 Gen 2 and 10Gb Ethernet, ensuring low-latency online gaming.
Elevate your gaming experience with the Asus ROG Strix TRX40-XE – where performance meets style.
Key Features of Asus ROG Strix TRX40-XE Gaming Board
Specification
| BASIC INFORMATION | |
|---|---|
| Form Factor | ATX Form Factor 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm ) |
| Supported CPU | Build in AMD Socket sTRX4 for 3rd Gen AMD Ryzen Threadripper Series Desktop Processors Supports CPU up to 64 cores |
| Chipset | AMD TRX40 |
| Memory | 256GB, DDR4 |
| Slots | 8 x DIMM slots |
| Audio | ROG SupremeFX8-Channel High Definition Audio CODEC S1220 - Dual OP Amplifiers - Supports : Jack-detection, Multi-streaming, Front Panel MIC Jack-retasking - High quality120dBSNR stereo playback output108dBSNR recording input - Supports up to 32-Bit/192kHz playback |
| BIOS | 128 Mb Flash ROM, UEFI AMI BIOS, PnP, WfM2.0, SM BIOS 3.2, ACPI 6.2 |
| Expansion Slots | |
| PCI | 3rd Gen AMD RyzenThreadripper Series Desktop processors 3 x PCIe 4.0 x16 (x16/x16/x16) 1 x PCIe 4.0 x4 |
| Memory Specifications | |
| Supported Memory | 4666(O.C.)/4600(O.C)/4400(O.C)/ 4333(O.C.)/4266(O.C.)/ 4133(O.C.)/ 3800(O.C.)/ 3733(O.C.)/3466(O.C.)/3400(O.C.)/ 3200/2800/2666/2400/2133 MHz ECC and non-ECC, Un-buffered Memory |
| Type | Quad Channel Memory Architecture |
| PORTS, CONNECTORS & SLOTS | |
| LAN Port (s) | IRealtek RTL8125-CG 2.5G LAN Intel I211-AT, 1 x Gigabit LAN Controller(s) Anti-surge LANGuard ROG GameFirst V Technology |
| Supported Storage | 3rd Gen AMD Ryzen Threadripper Series Desktop processors : 2 x M.2 Socket 3, with M key, type 2242/ 2260/ 2280/ 22110 storage devices support(PCIe 4.0 x4 mode) AMD TRX40 chipset : 1 x M.2 Socket 3, with vertical M key, type 2242/2260/2280/22110 storage devices support(SATA & PCIe 4.0 x4 mode) 8 x SATA 6Gb/s port(s), Support Raid 0, 1, 10 |
| USB (s) | 3rd Gen AMD Ryzen Threadripper Processors : 4 x USB 3.2 Gen 2 port(s) (4 at back panel, red) AMD TRX40 chipset : 1 x USB 3.2 Gen 2 front panel connector port(s) 4 x USB 3.2 Gen 2 port(s) (4 at back panel, red, 3 x Type-A+1 x Type-C) 8 x USB 2.0 port(s) ASMedia USB 3.2 Gen 1 controller : 4 x USB 3.2 Gen 1 port(s) (4 at mid-board) |
| Internal I/O Connectors | 2 x Aura RGB Strip Header 2 x Addressable Gen 2 header(s) 2 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 4 USB 3.2 Gen 1 port(s) 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s) 2 x M.2 Socket 1 with M key, type 2242/2260/2280/22110 storage devices support(PCIe 4.0 x4 mode) 1 x M.2 Socket 2 with vertical M key, type 2242/2260/2280/22110 storage devices support(SATA & PCIe 4.0 x4 mode) 8 x SATA 6Gb/s connector(s) 1 x CPU Fan connector(s) 1 x CPU OPT Fan connector(s) 3 x Chassis Fan connector(s) 1 x AIO_PUMP connector 1 x W_PUMP+ connector 1 x 24-pin EATX Power connector(s) 2 x 8-pin ATX 12V Power connector(s) 1 x Front panel audio connector(s) (AAFP) 1 x Thermal sensor connector(s) 1 x Power-on button(s) 1 x Clear CMOS jumper(s) 1 x Node Connector(s) 1 x System panel connector 1 x USB 3.2 Gen 2 front panel connector 1 x Speaker connector 1 x Chipset Fan Header 1 x VRM_HS_FAN Header |
| Special | |
| Bundled Software | ROG Exclusive Software - RAMCache III - CPU-Z - GameFirst V - Overwolf |
| Special Feature | Wireless Data Network: Intel Wi-Fi 6 AX200 Wi-Fi 802.11 ax, Bluetooth 5.0 Supports dual band frequency 2.4/5 GHz Supports 2x2 MU-MIMO Supports channel bandwidth: HT20/HT40/HT80/HT160. Up to 1.73Gbps transfer speed 5-Way Optimization by Dual Intelligent Processors 5 - Whole system optimization with a single click! 5-Way Optimization tuning key perfectly consolidates TPU, EPU, DIGI+ Power Control, Fan Xpert 4, and Turbo App together, providing better CPU performance, efficient power saving, precise digital power control, whole system cooling and even tailor your own app usages. Gamer´s Guardian: - DRAM Overcurrent Protection - Highly Durable components - Digi+ VRM - SafeSlot - ESD Guards on LAN, Audio,and USB ports LiveDash OLED 1.3” AURA : - Aura Lighting Control - Addressable Gen 2 Header ASUS Exclusive Features : - USB BIOS FlashBack™ - AI Suite 3 - Ai Charger - Pre-mounted I/O Shield - ASUS NODE: hardware control interface - BIOS FlashBack™ Button ASUS EZ DIY : - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 ASUS Q-Design : - ASUS Q-LED (CPU, DRAM, VGA, Boot Device LED) - ASUS Q-Slot - ASUS Q-DIMM - ASUS Q-Connector |
| WARRANTY | |
| Manufacturing Warranty | 03 Years Warranty |
